Sky Eye-U30 1080P 30X Optical Zoom Camera With Tracking And Geotagging

Sky Eye-U30 1080P 30X Optical Zoom Camera With Tracking And Geotagging

$3,699.00 $3,259.00
(You save $440.00)
SKU:
Sky Eye-U30
Weight:
5.00 KGS

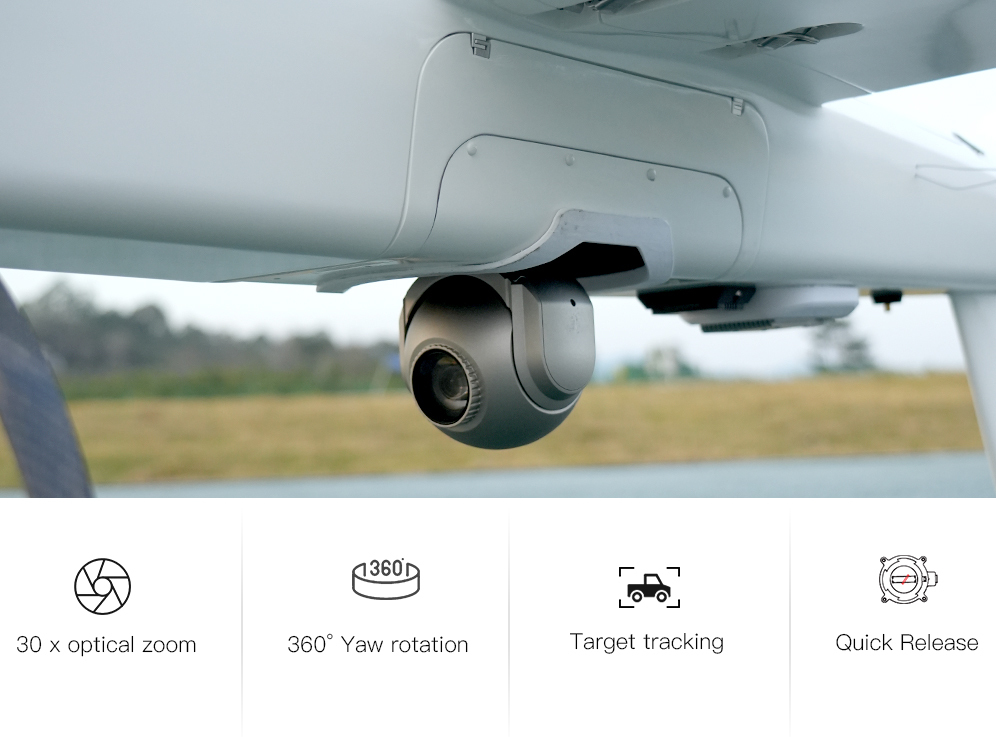

Introduction

Sky Eye-U30 gyro-stabilized camera payload can be mounted on any fixed-wing or VTOL Unmanned Aerial Vehicle. It combines cutting-edge technologies in lightweight, affordable, gyro-stabilised gimbal system. Which makes it a perfect choice for applications like inspection, surveillance, search and rescue.

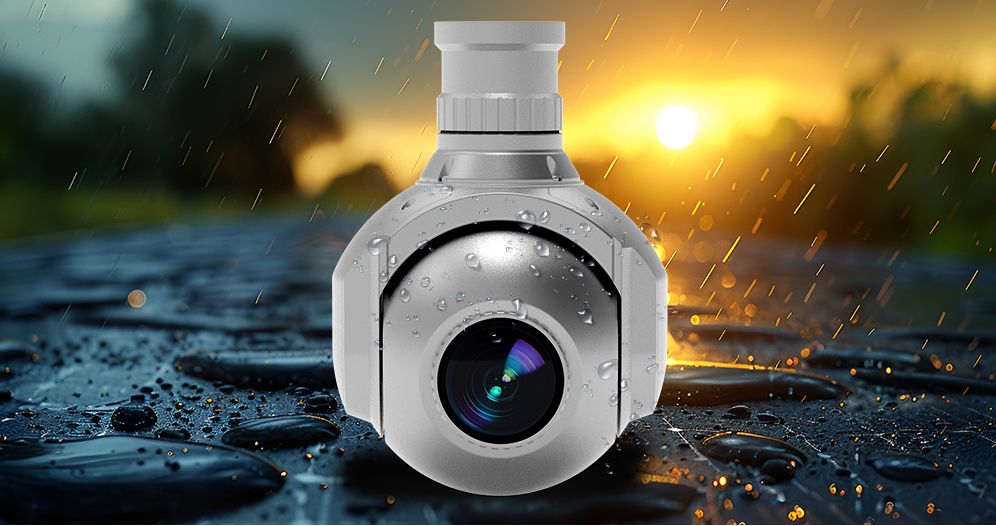

Compact and lightweight
Sky Eye-U30 weighs as little as 690g to help you meet your payload weight allowance.

High quality video sensor
Sky Eye-U30 is using SONY FCB-EV7520 camera block, which provides 1080P 60FPS full HD video streaming and up to 360X zoom capability. It also features anti-fog, video enhancement and some other advanced features.

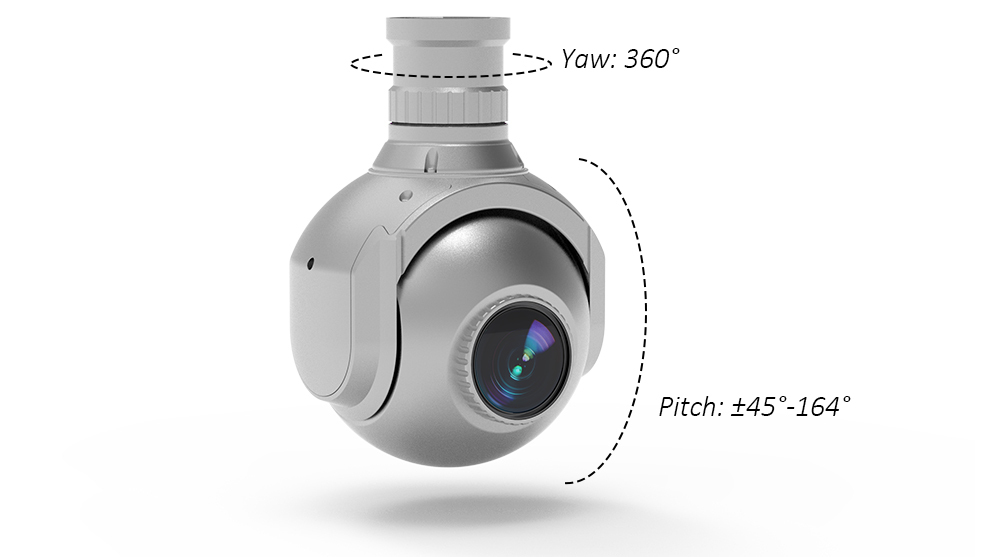

Continuous 360-degree rotation
The gimbal has continuous 360-degree rotation, which will enable the gimbal to track targets freely without any angle limit.

Auto object tracking
With onboard object tracking module, Sky Eye-U30 is able to track static or moving target easily, keeping it in the center of the frame.

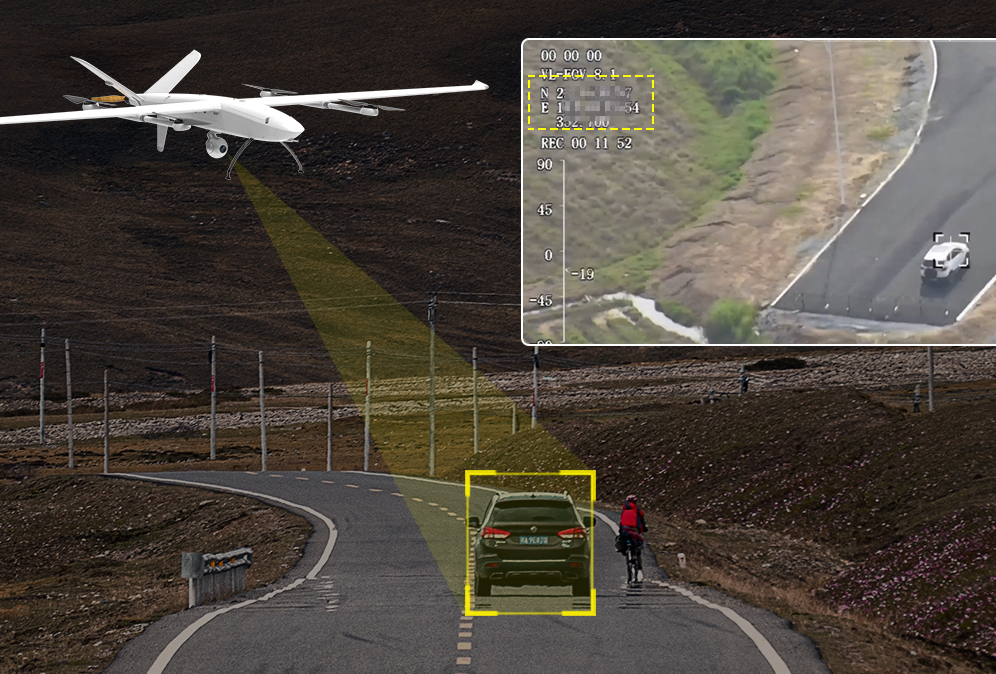

Geo-referencing
GPS coordinates from a Pixhawk flight controller will be led to the gimbal and you can read it from photo EXIF file.

Dual video output
There are 2 video streaming outputs: HD-SDI and Ethernet, which will give you the flexibility to choose the video transmitter for your drone.

Easy for integration
Sky Eye-U30 can not only be controlled via PWM signal, but also serial command. Also, gimbal status(like Yaw/Pitch angle,zoom position etc) can be obtained by sending serial command to the gimbal via its serial port, which is really useful for precise gimbal control and system integration.

Clean and simple wiring
Sky Eye-U30 comes with one wiring hub for RC receiver and video output port, which makes wiring pretty easy and clean. Also the gimbal offers 2 smart speed modes:FAST speed and LOW speed.Fast speed mode is used for small zooming range,which makes the gimbal control sensitive and quick.LOW speed mode is used for large zoom range, will enable you to target the object more accurately.

Features

1) 690grams, light weight
2) 1/2.8-type Exmor CMOS
3) 30X optical zoom, 1080P/60 HD-SDI and Ethernet output for video downlink
4) 1080P/30 H.264 video recorded for on-board TF card
5) Auto object tracking
6) Geo tagging
7) PWM control and serial command control
8) Convenient wiring hub for RC receiver and video output
9) 2-aixs high stabilized gimbal system
10) Adjustable control speed: SLOW speed for large zoom range, accurate. FAST speed for small zoom range, sensitive and quick.

Video



System Specification

30X zoom camera(SONY FCB-EV7520)
Sensor 1/2.8-type Exmor CMOS
Video Output 1080P/60 HD-SDI and Ethernet
Video recorded 1080P/30 H.264
Focal length 30X optical focal zoom, 4.3-129mm
Digital zoom 12X(360X with optical zoom)
Wide Dynamic Up to 105dB
Auto focus Less than 1S
Low illumination Color: 0.01 lx (F1.6,AGC on,1/30s)
Aperture Φ 16.0
Gimbal system
Input voltage 3S-4S
Rotate range Pitch: ±90° Yaw: Unlimited
Angle amount of jitter Pitch: ±0.02° Yaw: ±0.03°
Control interface PWM and serial command
Working Current Static current: 330mA(@12V)
Dynamic current: 450mA(@12V)

Download Sky Eye-U30 PDF Datasheet

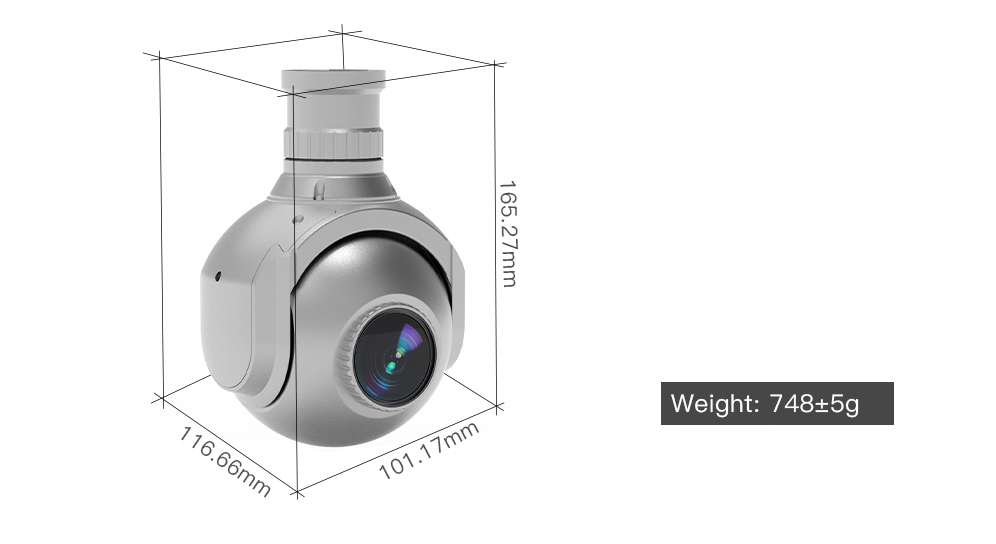

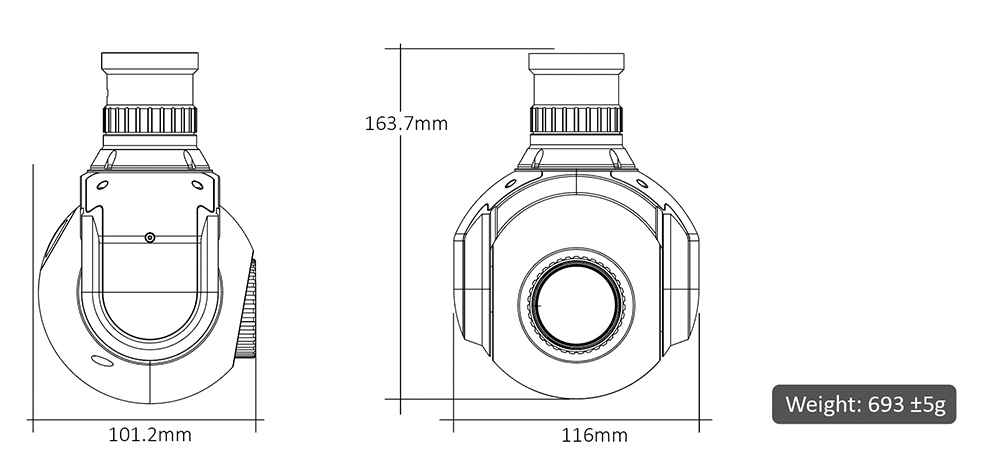

Dimension

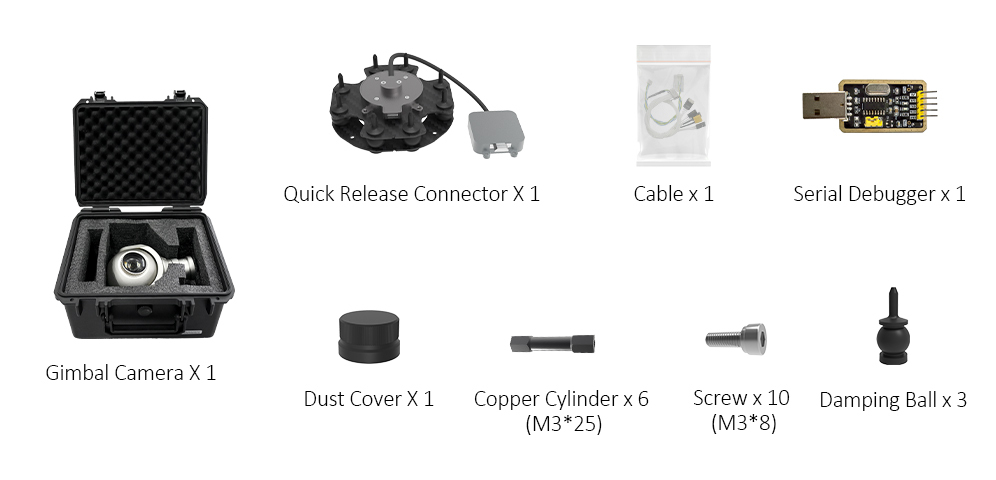

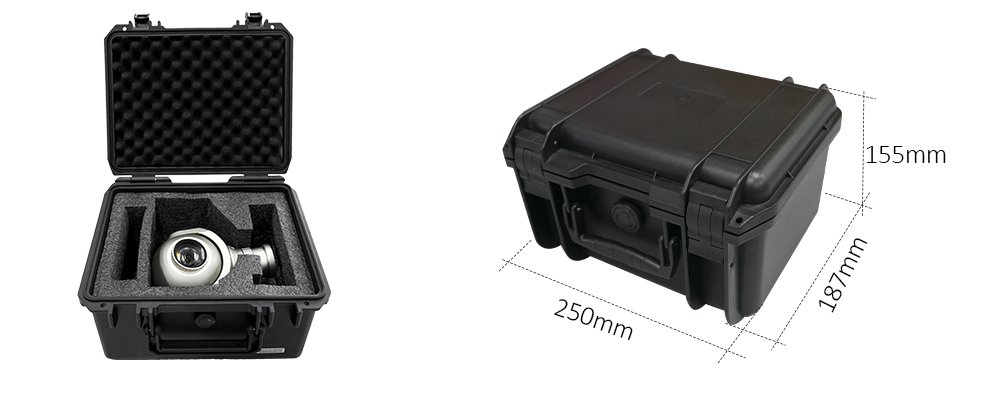

Your Purchase Includes

1 x Sky Eye-U30 30X optical zoom camera

1 x Sky Eye-U30 2-axis high stabilized gimbal system
