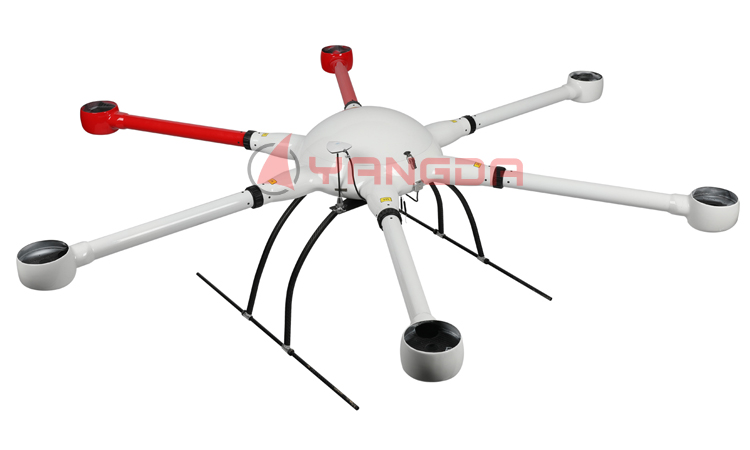

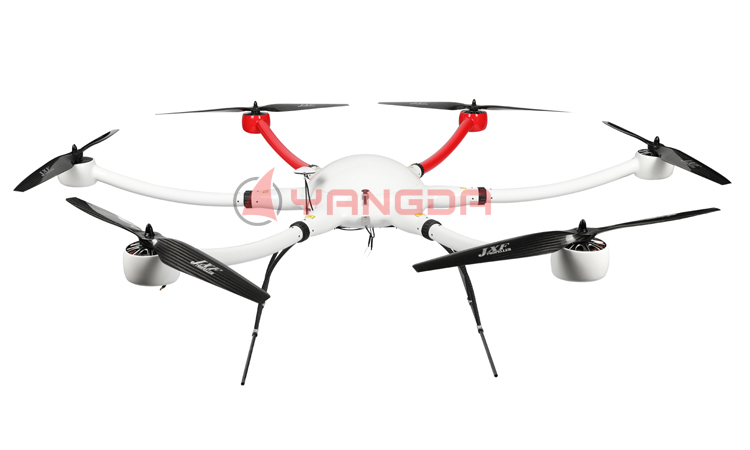

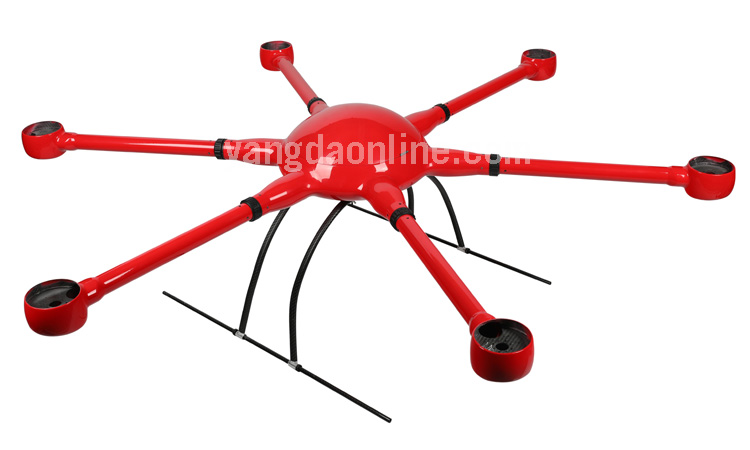

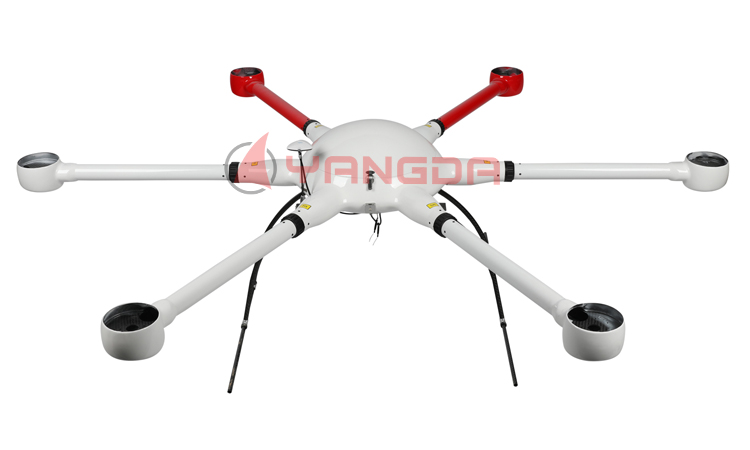

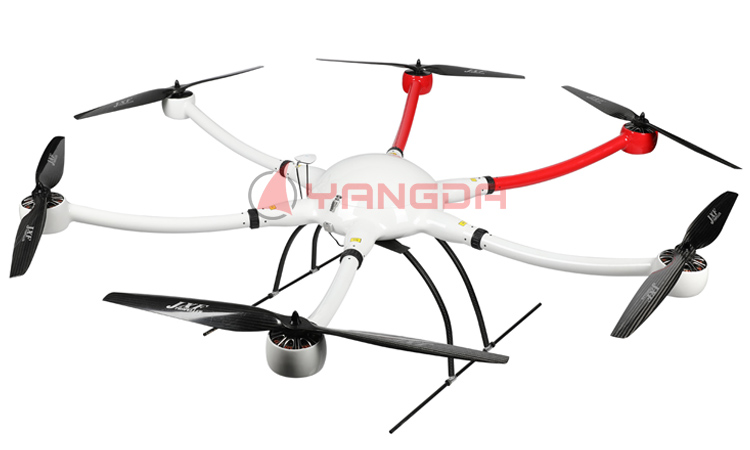

YD6-1600S Long Flight Time Waterproof Hexacopter Frame

YD6-1600S Long Flight Time Waterproof Hexacopter Frame

$3,529.00 $2,759.00
(You save $770.00)
SKU:
YD6-1600S
Weight:
42.00 KGS

INTRODUCTION

The Hexacopter frame YD6-1600S comes with many great features.
Its one-time forming carbon fiber reduces weight while still keep the stiffness,which makes it stronger and lighter for long time(up to 60 minutes) flying tasks.For instance,equipped with a small zoom camera like Sky Eye-I 1080P,the firefighter is able to monitor the fire scene for a long time which is crucial for the fire fighting.Also you might use it for 3D mapping and other long time aerial photography tasks.

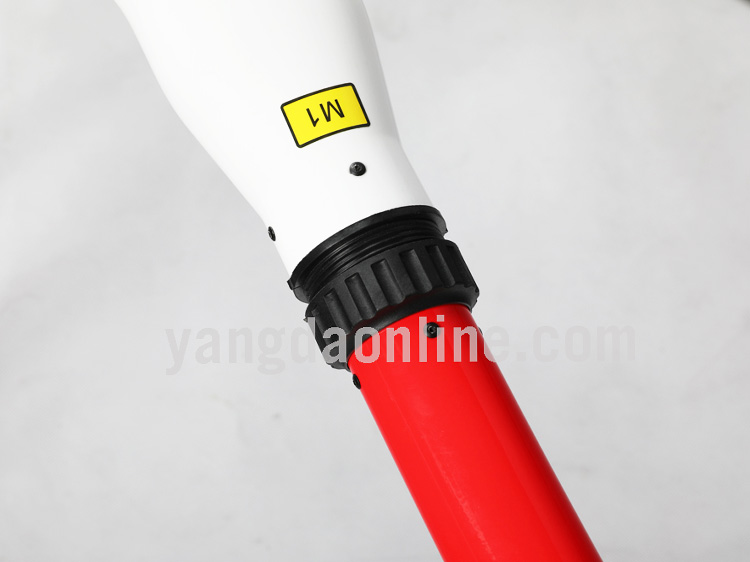

YD6-1600S arm connector is using special compound material:industrial plastic with glass fiber.This compound material features high strength and flexibility,which can stand high frequency vibration created by the motors in the air.

Furthermore,with a glass fiber canopy,the GPS signal will not be blocked.Its detachable frame arm makes YD6-1600S very easy to carry and easy for maintenance.

Another very useful feature is its waterproofness and dustproofness,which enable the drone to fly under most weather conditions,like rainy days.In this case,it is an idea tool for police security monitoring,fire fighting,emergency research and rescue.

FEATURES

1) Full carbon fiber made
2) Light weight, stiff and stable, long flight time: 60 minutes with 2KG payload

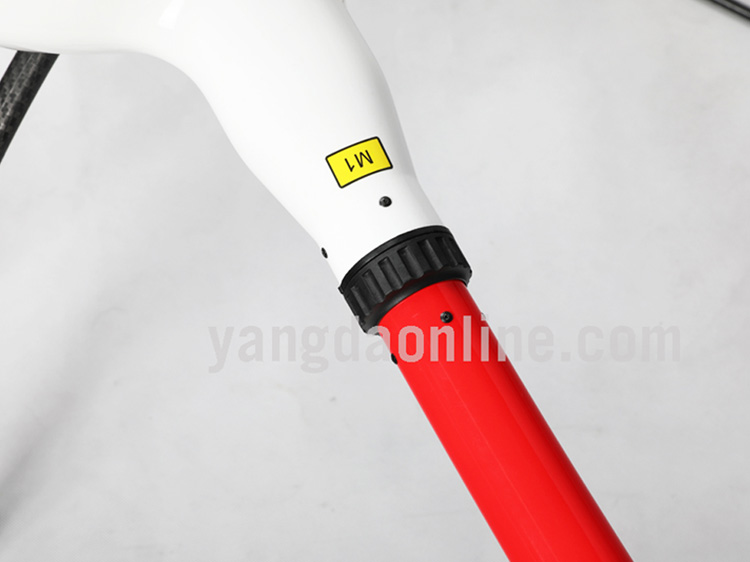

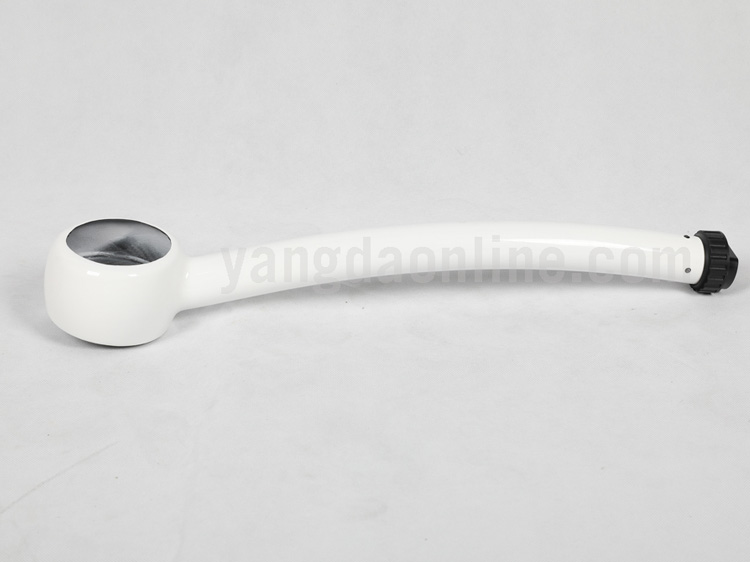

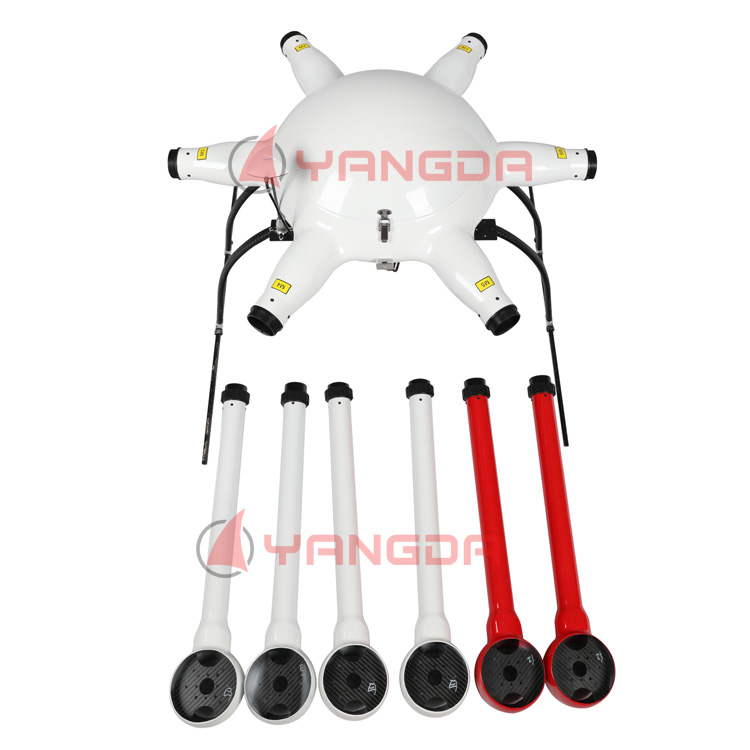

3) Detachable arm, easy for carrying and maintenance
4) Waterproof and dustproof
5) Power redundancy makes it more reliable

Video





SPECIFICATIONS

Wheelbase: 1600mm
Wingspan: 2350mm
Frame Weight: 2700 grams
Fuselage Height: 500mm
Landing Skid Width: 500mm
Motor Mount Diameter: 92mm
Motor Compatible: T-MOTOR U8 U10 Series
Max Propeller Size: 30 Inch
Battery Compatible: 1pcs 30000mAH or 2pcs 25000mAH lipo
Frame Material: Toray 3K Carbon Fiber

Recommended Power Combination For Long Flight Time

Motor: T-Motor U8 Lite KV85 motor
ESC: T-Motor ALPHA 60A HV ESC

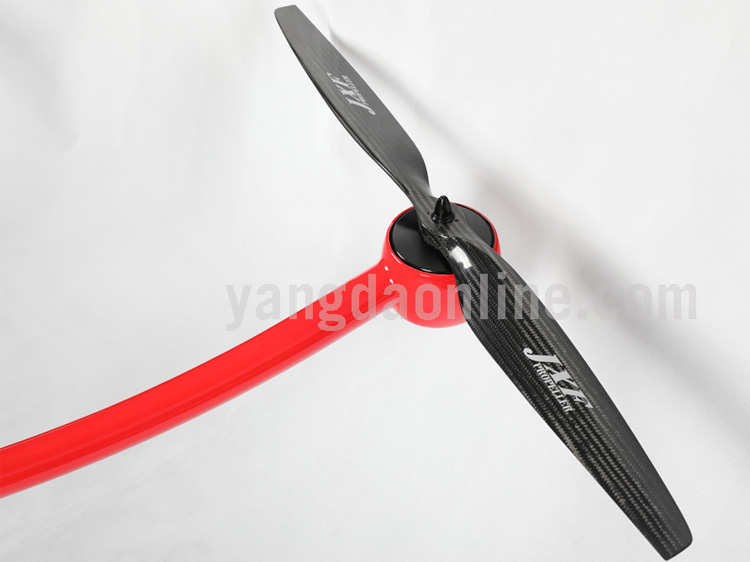

Propeller: T-Motor 29*8.7 inch propeller
Battery: 2 x Tattu 6S 25000mAh 22.8V high voltage lipo

YOUR PURCHASE INCLUDES

1 x YD6-1600S frame(No ESC,Motor and Propellers)

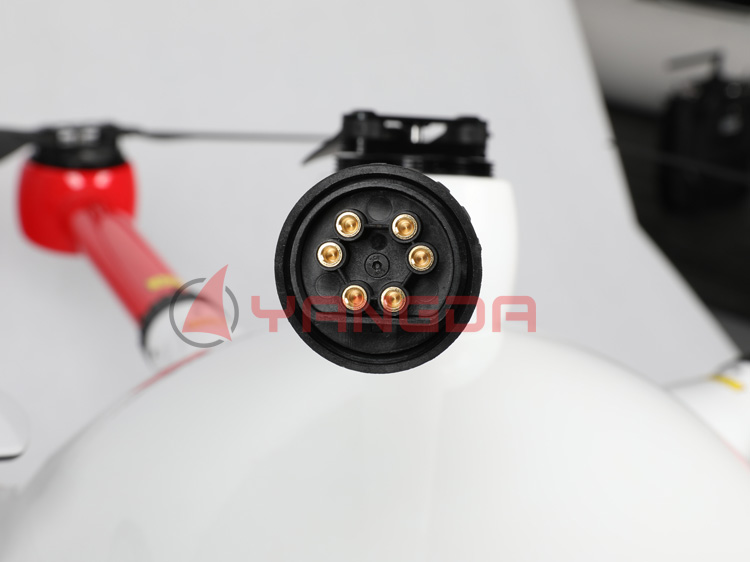

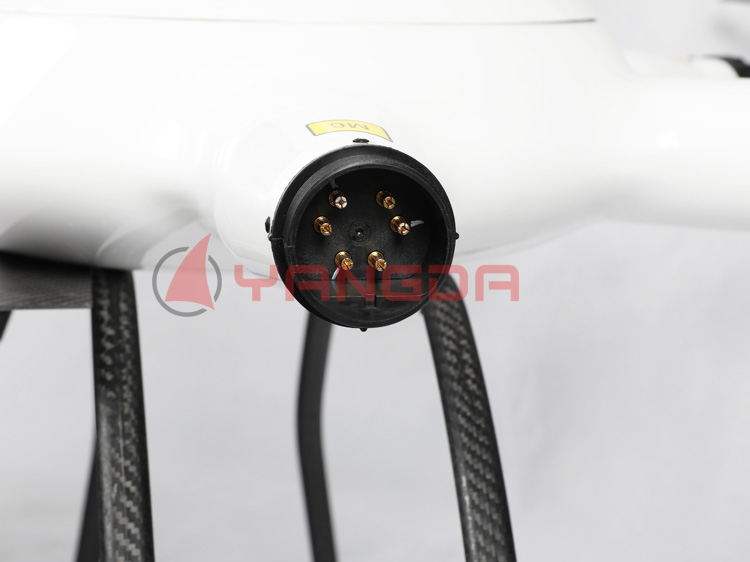

6 x Motor connector unit(For motor and ESC connection)

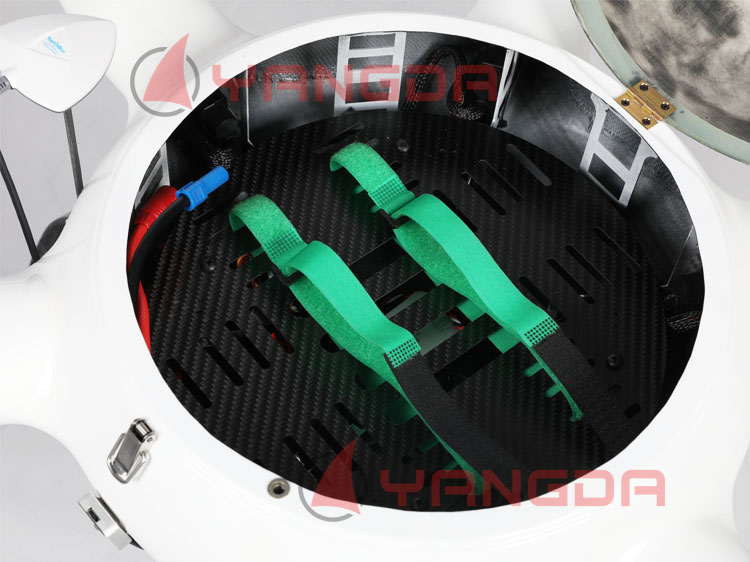

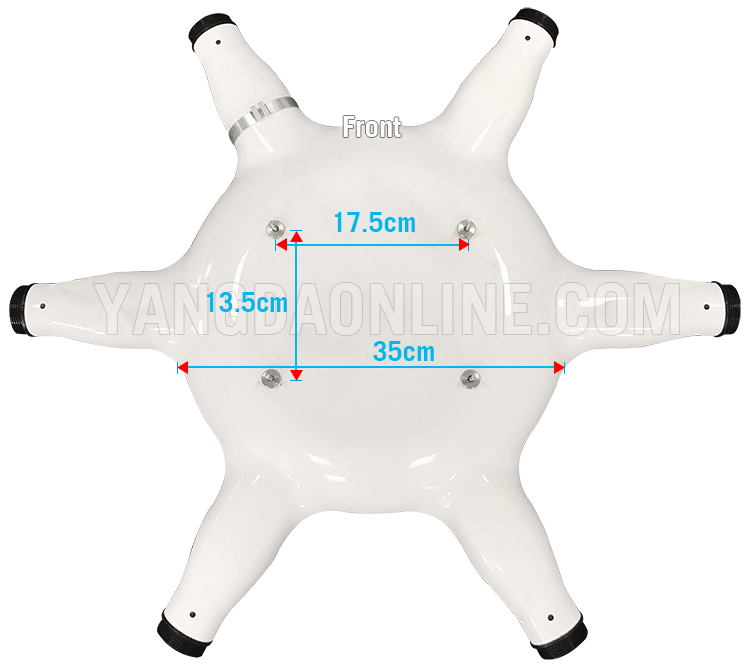

1 x Center board(For battery and electronic components installation)
1 x Bottom board(For payload installation,like gimbal)

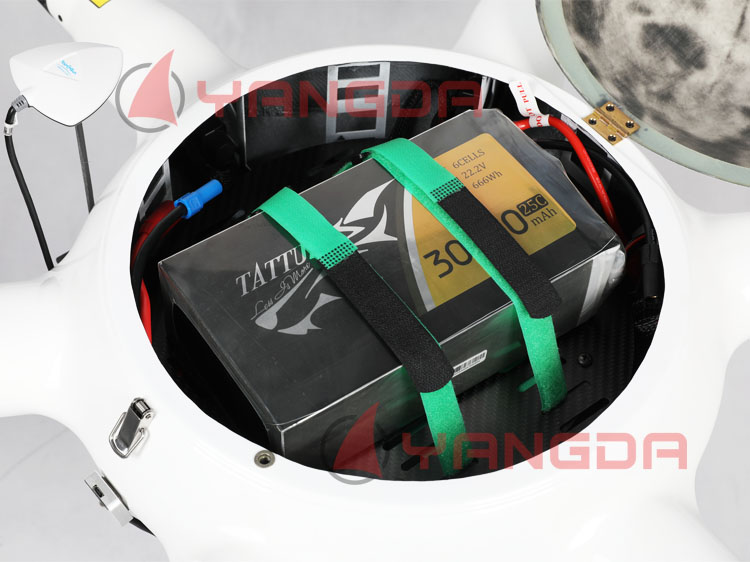

1 x Double side tape(For battery fixing on center board)
