YANGDA Videopass-N15 Long Range Digital Video And Data Link

€2,032.98
Sku:
Videopass-N15
Weight:
0.50 KGS
Adding to cart… The item has been added

Product Overview

Introduction

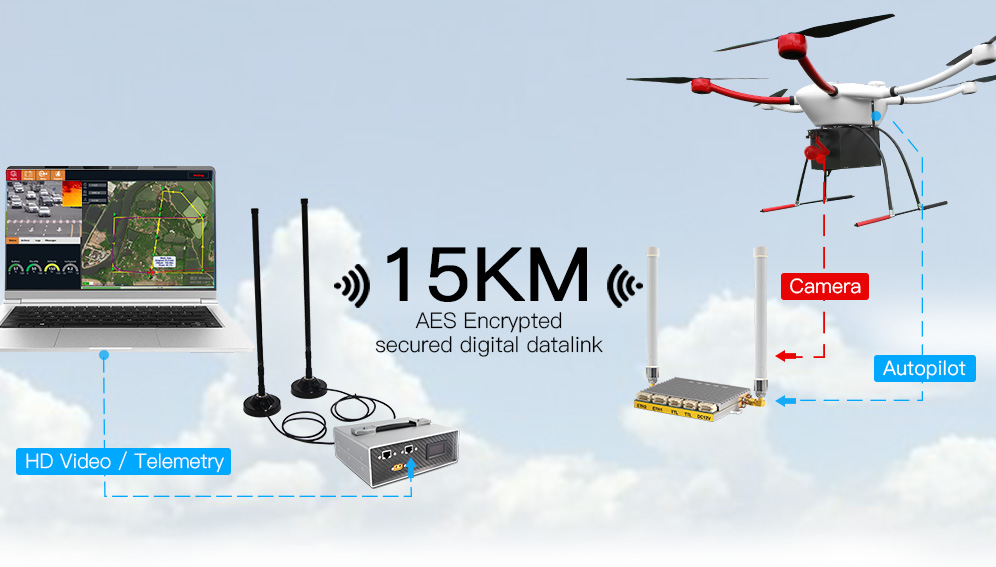

The YANGDA Videopass-N15 is a long-range, point-to-point, point-to-multipoint broadband video and data transmission module, and its transmission range can reach up to max 15KM. Adopting key technologies such as OFDM(Orthogonal Frequency Division Multiplexing), MCS adaptive modulation and coding mechanism, the long-range digital video and data link is developed based on the LTE wireless communication standard and does not depend on the operator's base station.

2 datalinks in one

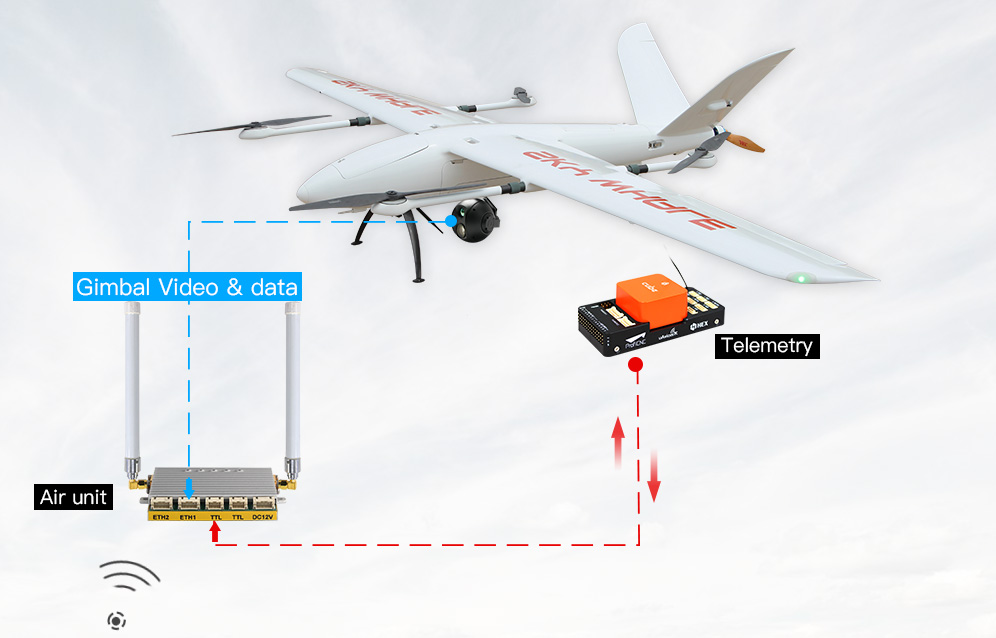

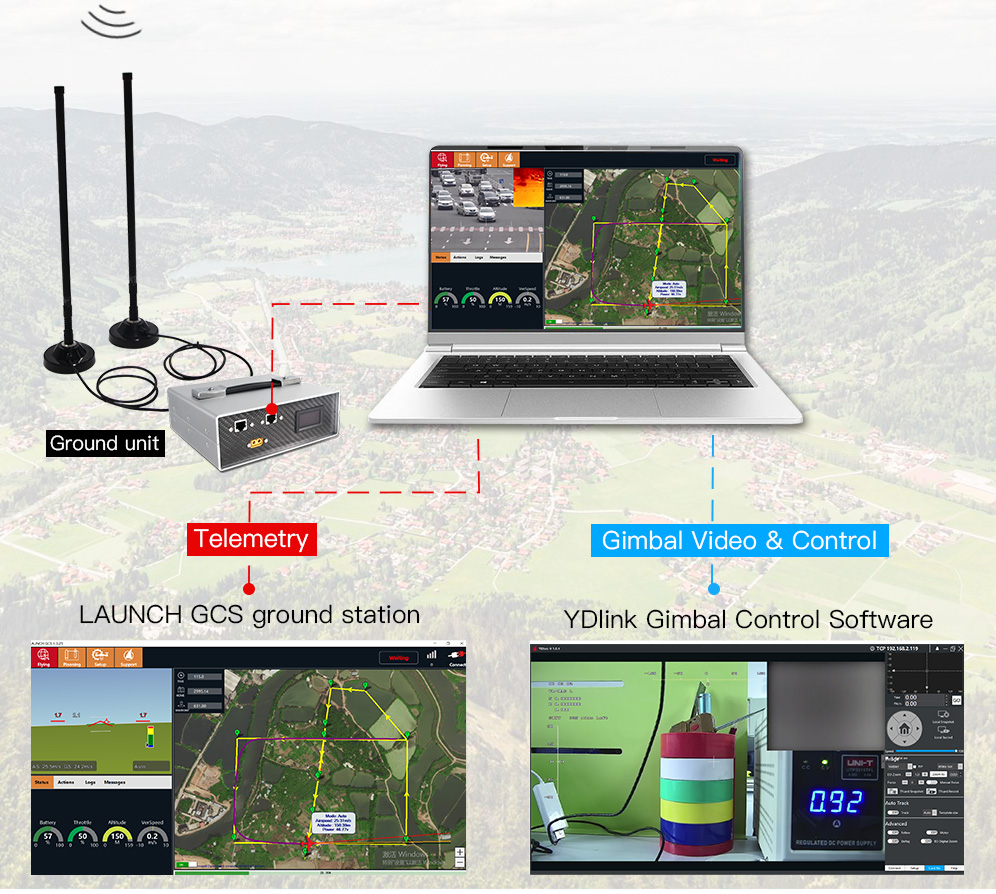

The Videopass-N15 has two Ethernet video channels and one telemetry channel.

3 frequencies
The video and data transmitter provides three frequencies to adapt to local regulation in different regions: 800MHz (806-826MHz), 1.4GHz (1427.9-1447.9MHz), and 2.4GHz (2401.5-2481.5MHz).

Ultra-low latency
Thanks to the flat system architecture, the latency of the video transmission is less than 150ms.

What is included

1 x Videopass-N15 air unit
1 x Videopass-N15 ground unit
2 x SMA Antenna
1 x Data cable
1 x Power cable
1 x USB cable

Product Photos

Radio
Frequency 2401.5-2481.5MHz, 1427.9-1447.9MHz, 806-826MHz
Modulation OFDM & MCS
RF power up to 25dBm / 0.32W
Bandwidth 1.4MHz / 3MHz / 5MHz /10MHz /20MHz (adjustable)
Encryption AES128
Data rate Max 30Mbps
Latency Ethernet transmission ≤ 150ms, UART≤ 20ms
Range 15km
Power
Air unit 2.7W, 5-24V DC
Ground unit 3.1W, 5-24V DC
Size And Weight
Size (air unit) 85 x 52 x 18 mm
Size (ground unit) 118 x 64 x 37 mm
Weight (air unit) 194g (2 antennas are included)
Weight (ground unit) 205g (2 antennas are included)
Connectivity
Air unit 2 x ETH, 1 x UART, 2 x SMA, 1 x Power Input
Ground unit 1 x USB2.0, 2 x SMA, 1 x Power Input
Antenna
Air unit 2 x SMA 2dBi
Ground unit 2 x SMA 5dBi
Environment
Storage temperature -40℃~+85℃
Working temperature -20℃~+75℃
