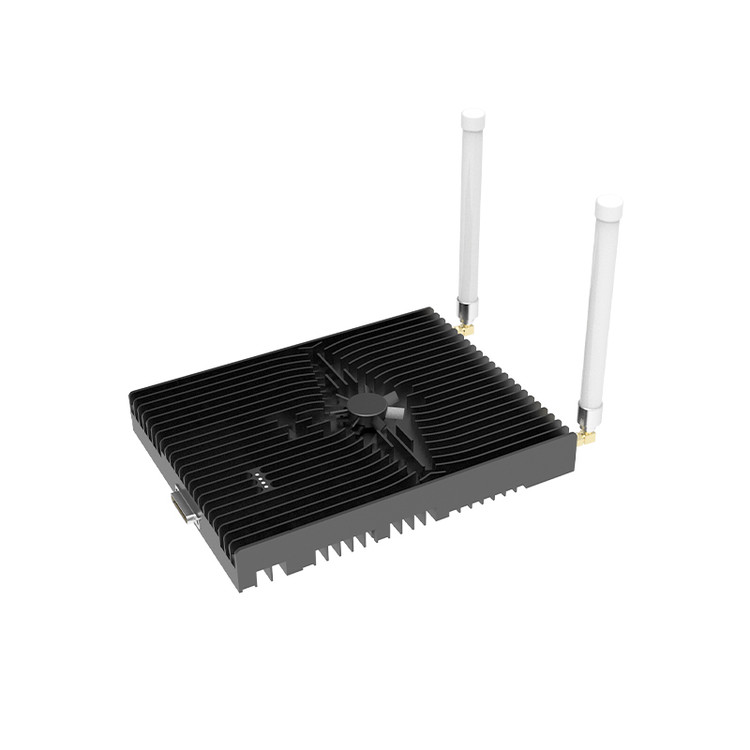

N300 Ultra-Long-Range Drone Video Transmitter
Overview

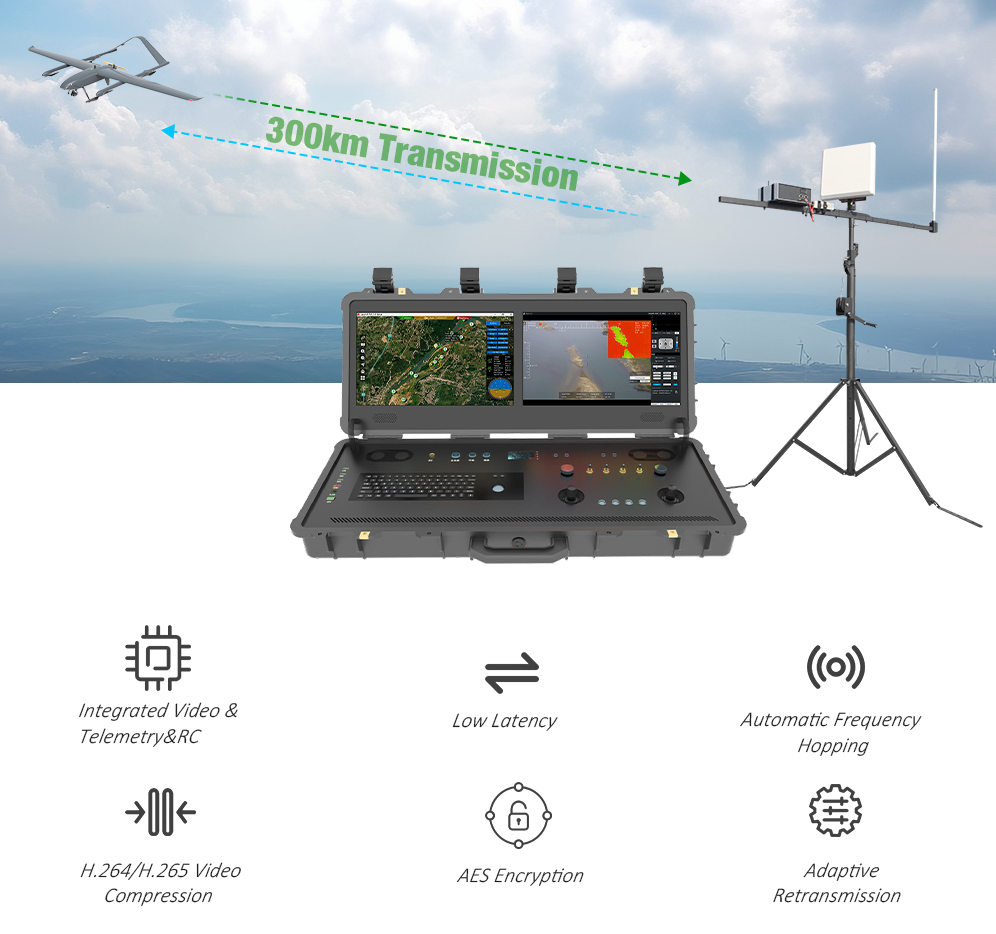

Featuring a point-to-point transmission range of up to 300 km, the N300 supports ultra-long-range video, data, and command transmission for large-scale industrial operations. By integrating the UAV, gimbal, and GCS into a unified system, it delivers encrypted high-quality video, real-time telemetry, and responsive command transmission, while maintaining strong adaptability across diverse operational environments.
Mission Fit
Why it Performs in Demanding Aerial Missions
20MHz Bandwidth
Balanced Transmission Capability
The N300 features a bandwidth up to 20MHz and delivers stable transmission of high-quality and optimized data volume, providing reliable video and data support for aerial missions such as industrial patrol, monitoring, and inspection.
150ms Low Latency
Real-Time Decision Support
Designed with latency lower than 150ms, the N300 enables real-time feedback on the operational environment, target positioning, and area status, providing enhanced situational awareness for mission decision-making.
Integrated Video
Telemetry and Command Transmission
Built for seamless transmission, the N300 enables both real-time data flow and responsive operational control, creating a highly integrated system with acute perception, real-time transmission, and rapid command execution.

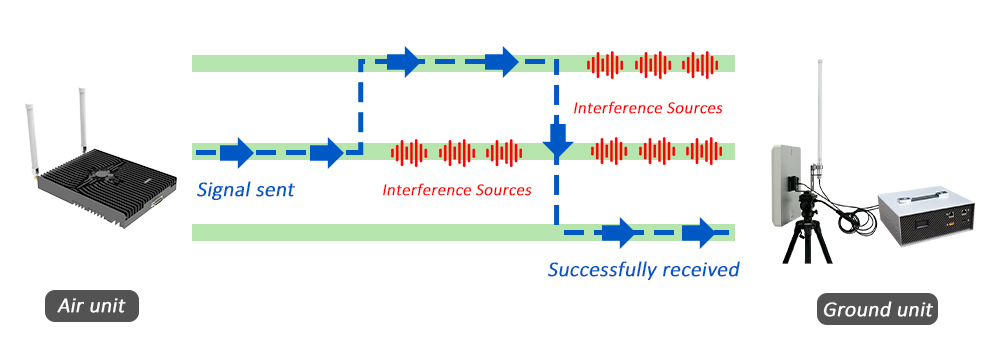

Adaptive Frequency Switching
Uninterrupted Communication
To mitigate co-channel and multipath interference, the N300 automatically selects and switches to the optimal channel, ensuring stable and uninterrupted communication during mission execution.
AES256 Encryption
Guaranteed Data Security
With AES256 encryption protecting all data, the N300 ensures the security of customers' industrial information, fully meeting the high-security requirements of diverse enterprises.
Wide Temperature Tolerance
Always All-Weather Ready
Exhibiting a wide operating temperature range of -20°C to 55°C, the N300 adapts to diverse weather conditions and mission requirements, helping customers save both time and cost by eliminating the need for multiple mission-specific communication systems.
Best Fit For
Specifications
Power
● Air unit: 40W, 24V DC
● Ground unit: 40W, 24V DC
Connectivity
● Air unit: 1 x ETH, 2 x UART, 2 x SMA, 1 x Power Input
● Ground unit: 1 x ETH, 2 x USB2.0, 2 x SMA, 1 x Power Input
Antenna
● Air unit: 2 x SMA 2dBi
● Ground unit: 2 x SMA
Size And Weight
Recommended Applications
How to Choose
Choose This Model If You Need
Click here for the shorter-range transmitter, and here for the longer-range.
● Ultra-long-range UAV video and data transmission
● Ultra-long-range remote control of drones and gimbal cameras
● Real-time situational awareness and target positioning
● A device for closed-loop UAV systems enabling perception, processing, and execution
| Radio | |
| Frequency | 635-675MHz |
| 800-830MHz | |
| 1300-1400MHz | |
| 1350-1450MHz (default) | |
| 1710-1785MHz | |
| Modulation | COFDM/QPSK/16QAM/64QAM |
| RF power | Up to 46±3dBm |
| Bandwidth | 5MHz / 10MHz / 20MHz |
| Encryption | AES256 |
| Data rate | Max 47Mbps |
| Latency | ≤ 150ms |
| Range | 300km |
| Power | |
| Air unit | 40W, 24V DC |
| Ground unit | 40W, 24V DC |

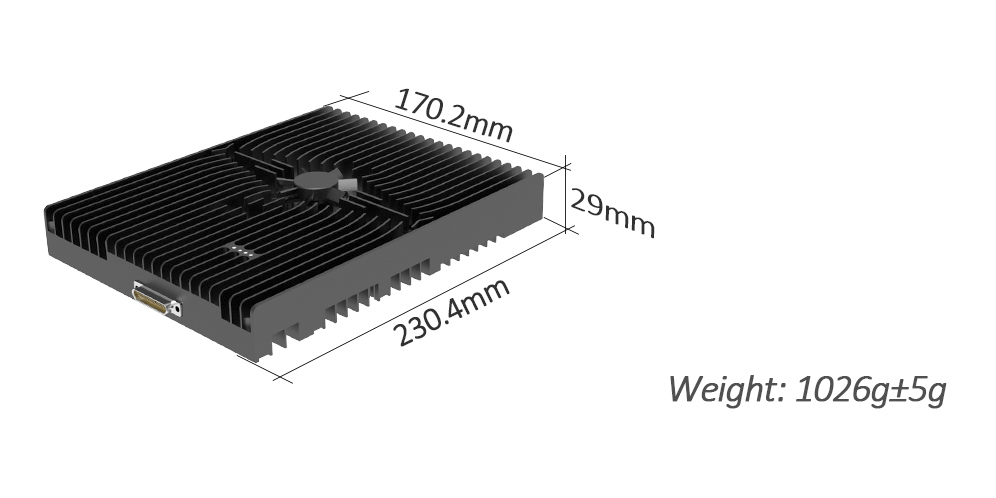

| Size And Weight | |
| Size (air unit) | 230.4*170.2*29.0mm |
| Size (ground unit) | 230.4*170.2*29.0mm |
| Weight (air unit) | 1026g (2 antennas are included) |
| Weight (ground unit) | 1026g (2 antennas are included) |
| Connectivity | |
| Air unit | 1 x ETH, 2 x UART, 2 x SMA, 1 x Power Input |
| Ground unit | 1 x ETH, 2 x USB2.0, 2 x SMA, 1 x Power Input |
| Antenna | |
| Air unit | 2 x SMA 2dBi |
| Ground unit | 2 x SMA |
| Environment | |
| Storage temperature | -40℃~+65℃ |
| Working temperature | -20℃~+55℃ |
