YANGDA Videopass-N150 Long Range Digital Video And Data Link

0.30 KGS
Adding to cart… The item has been added

Product Overview

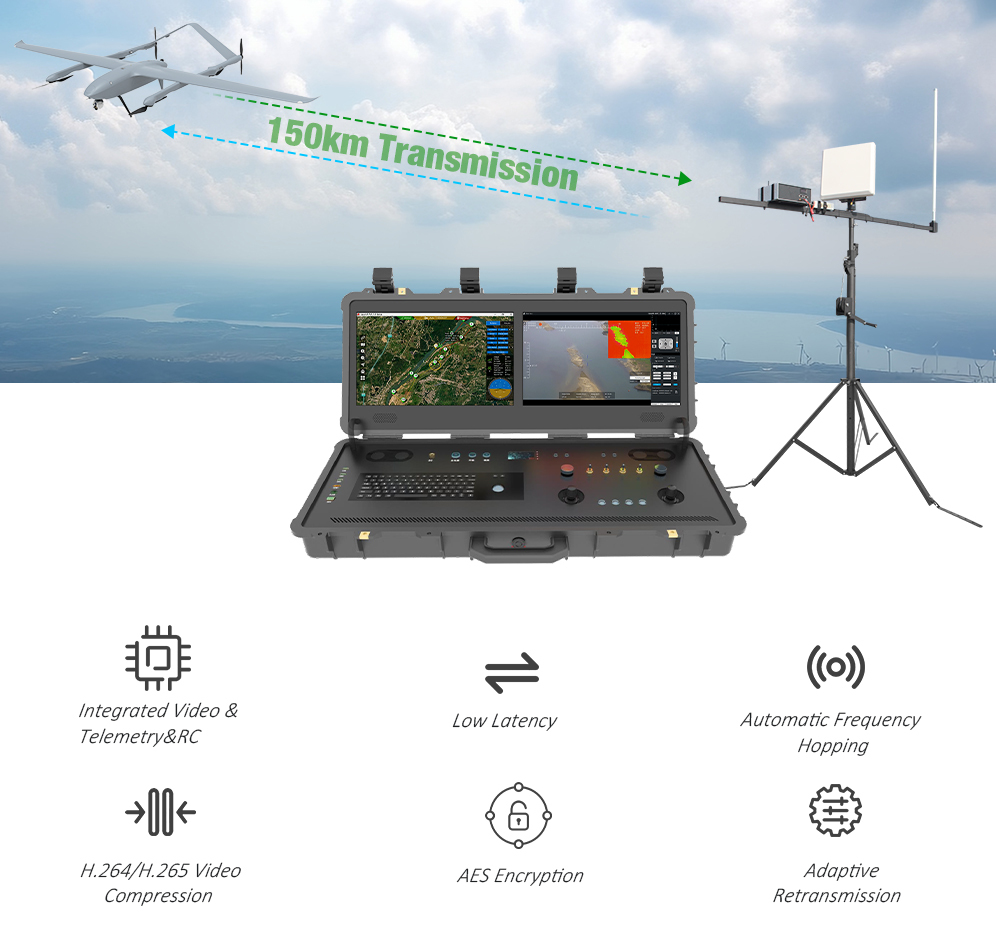

The YANGDA Videopass-N150 is a long-range, point-to-point, point-to-multipoint broadband video and data transmission module, and range can reach up to 150KM. Adopting key technologies such as OFDM(Orthogonal Frequency Division Multiplexing), MCS adaptive modulation and coding mechanism, the long-range digital video and data link is developed based on the LTE wireless communication standard and does not depend on the operator's base station.

2 datalinks in one
The Videopass-N150 has two Ethernet video channels and one telemetry channel.

2 frequencies
The video and data transmitter provides three frequencies to adapt to local regulation in different regions: 800MHz (806-826MHz), 1.4GHz (1427.9-1447.9MHz).

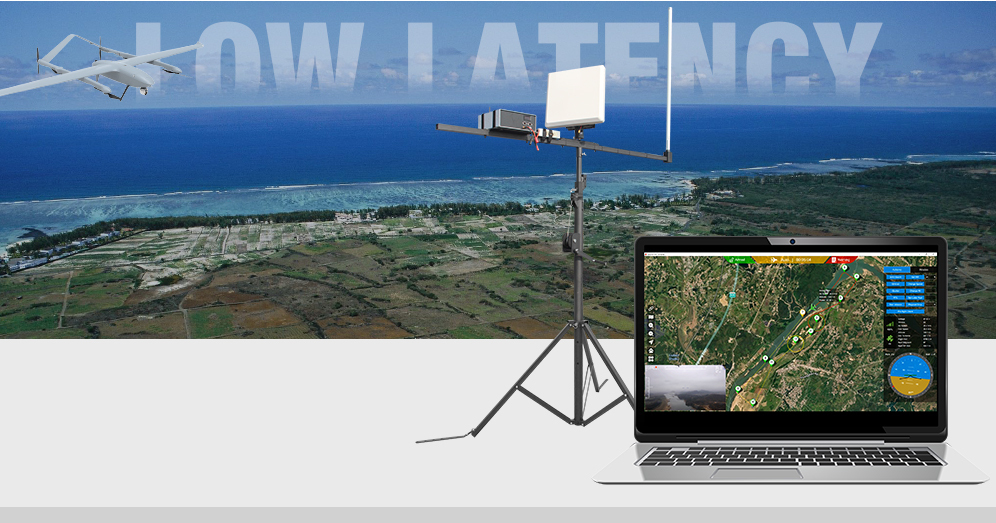

Ultra-low latency
Thanks to the flat system architecture, the latency of the video transmission is less than 150ms.

Packing List

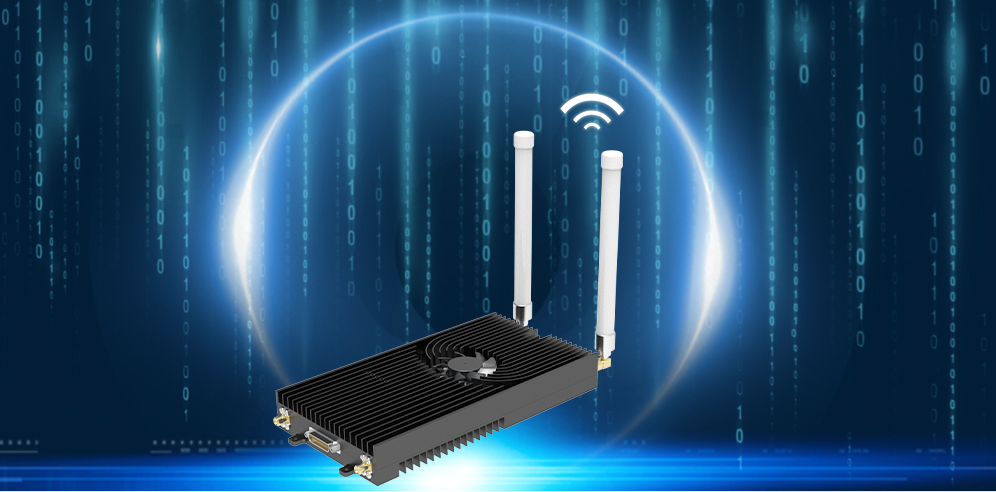

1 x Videopass-N150 air unit

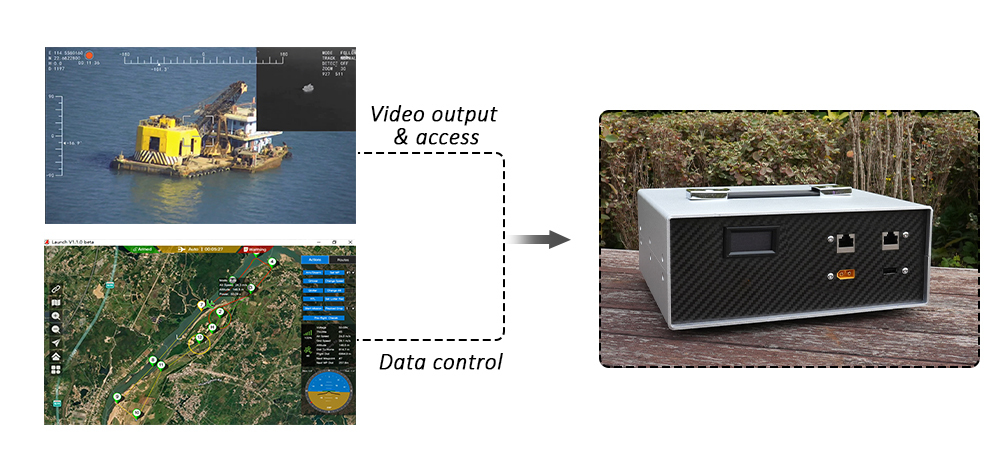

1 x Videopass-N150 ground unit
2 x SMA Antenna
1 x Data cable
1 x Power cable
1 x USB cable

More Details

Frequency 1427.9-1447.9MHz, 806-826MHz
Modulation OFDM & MCS
RF power Up to 40±2dBm / 10W
Bandwidth 1.4MHz / 3MHz / 5MHz /10MHz /20MHz (adjustable)
Encryption AES128
Data rate Max 30Mbps
Latency Ethernet transmission ≤ 150ms, UART≤ 20ms
Range 150km
Air unit 30W, 24V DC
Ground unit 30W, 24V DC
Size And Weight
Size (air unit) 169 x 68 x 30 mm
Size (ground unit) 170 x 140 x 65 mm
Weight (air unit) 300g (2 antennas are included)
Weight (ground unit) 634g (2 antennas are included)
Air unit 2 x ETH, 2 x UART, 2 x SMA, 1 x Power Input
Ground unit 2 x USB2.0, 2 x SMA, 1 x Power Input
Air unit 2 x SMA 2dBi (1.4GHz)
Ground unit 2 x SMA 5dBi (1.4GHz)
Storage temperature -40℃~+85℃
Working temperature -20℃~+75℃
