YANGDA Sky Fury Electric Long Endurance VTOL Drone

MSRP: $8,999.00
$8,380.00
(You save $619.00 )
Sku:
Sky Fury
Weight:
6.58 KGS
Adding to cart… The item has been added

Product Overview

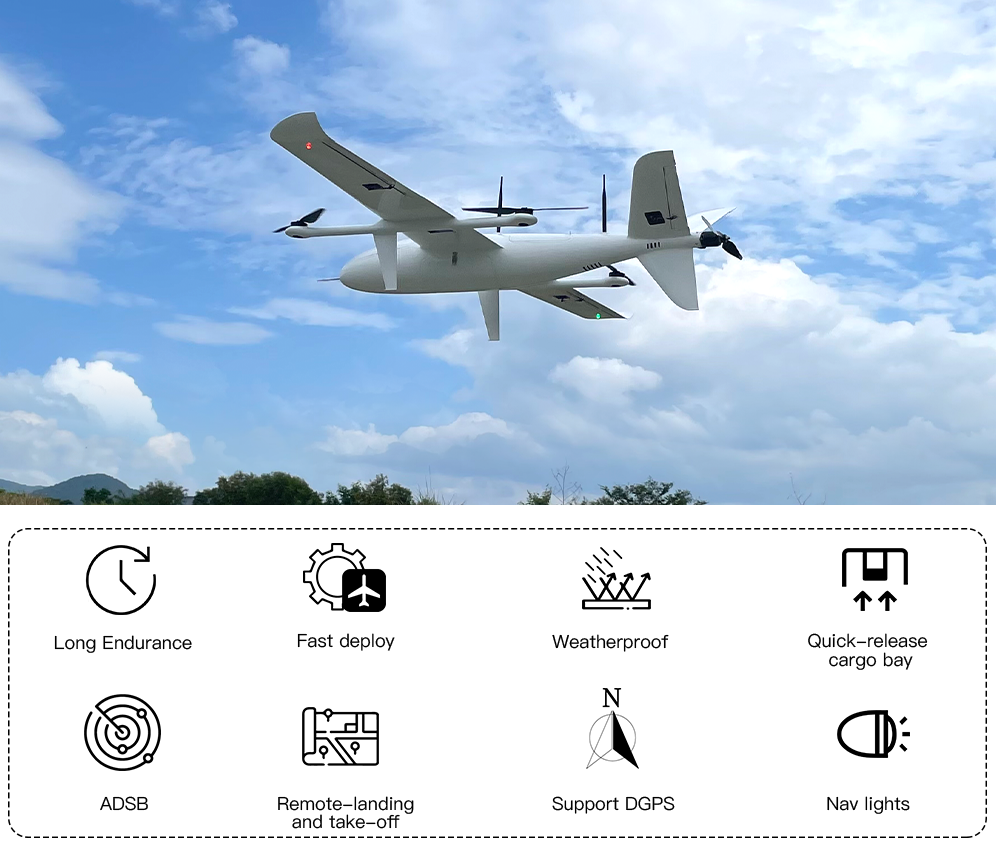

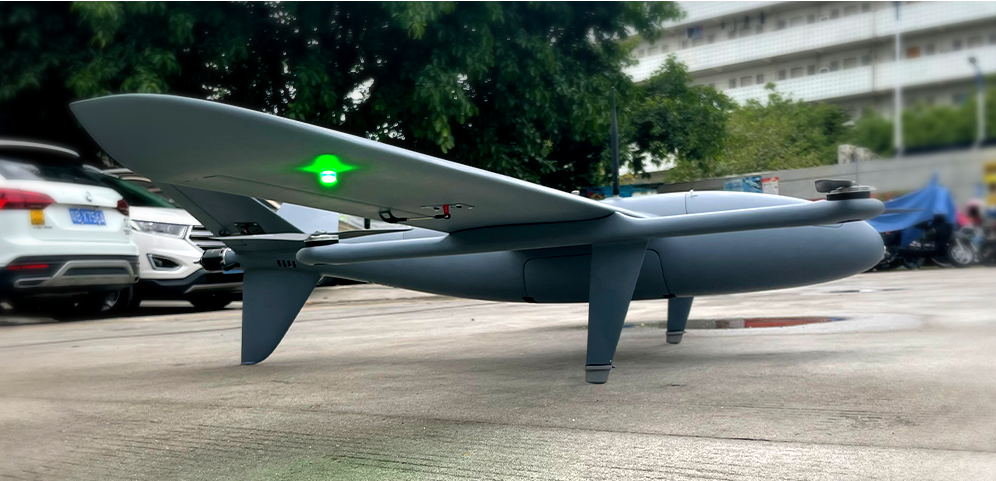

YANGDA Sky Fury long-endurance electric VTOL drone is specially designed for long-range security & surveillance, search & rescue, survey & mapping applications. It comes with four lift motors and one fixed-wing motor, which will allow the fixed-wing VTOL to ascend like a helicopter. Once in the air, the aircraft transitions to horizontal flight as a push-prop fixed-wing.

Full carbon fiber airframe
Sky Fury VTOL drone airframe is made of full carbon fiber, which makes it rugged and durable enough for long-time flight.

Over 3 hours of endurance
The long-range VTOL UAV features an outstanding aerodynamic design on both airframe and landing gear, which allows the drone to fly 3 hours and 20 minutes with one 1.2kg payload. Click HERE to watch the endurance test video.

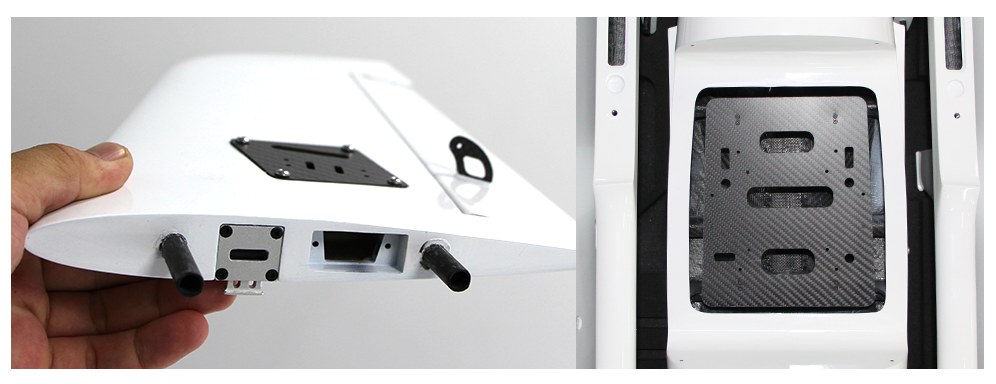

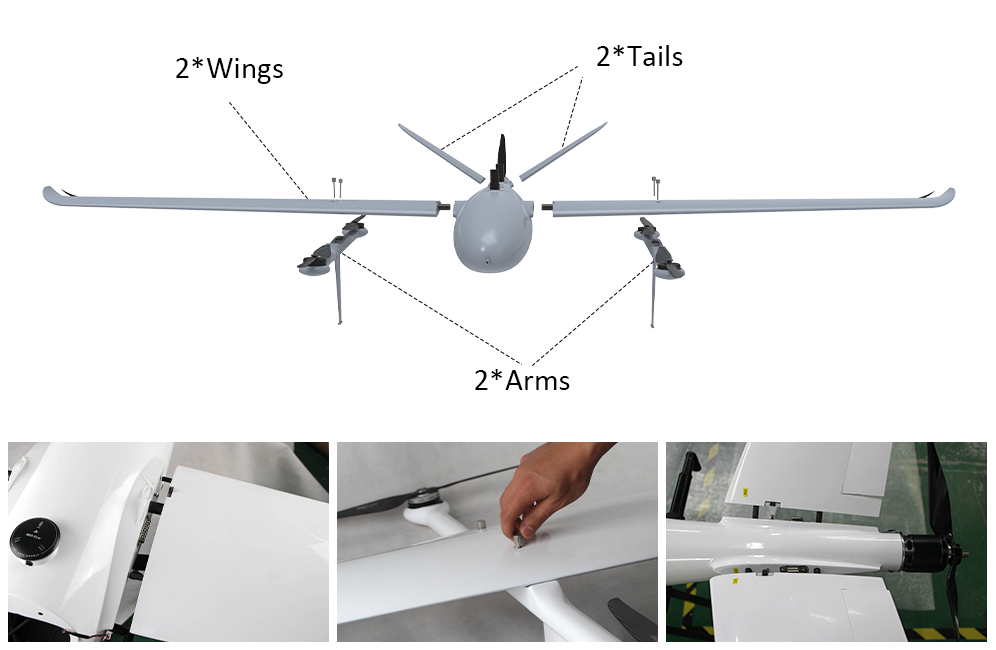

Quick detach design
The fixed-wing UAV is adapting the most advanced quick-detach technology on both airframe and cable connector, making assembly and disassembly becomes super easy.

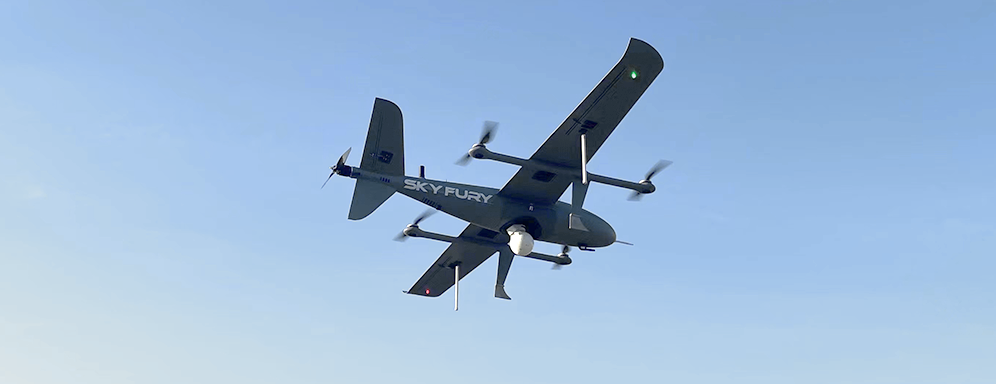

Working day and night
Sky Fury can be easily identified in the air with onboard navigation lights, especially at night.

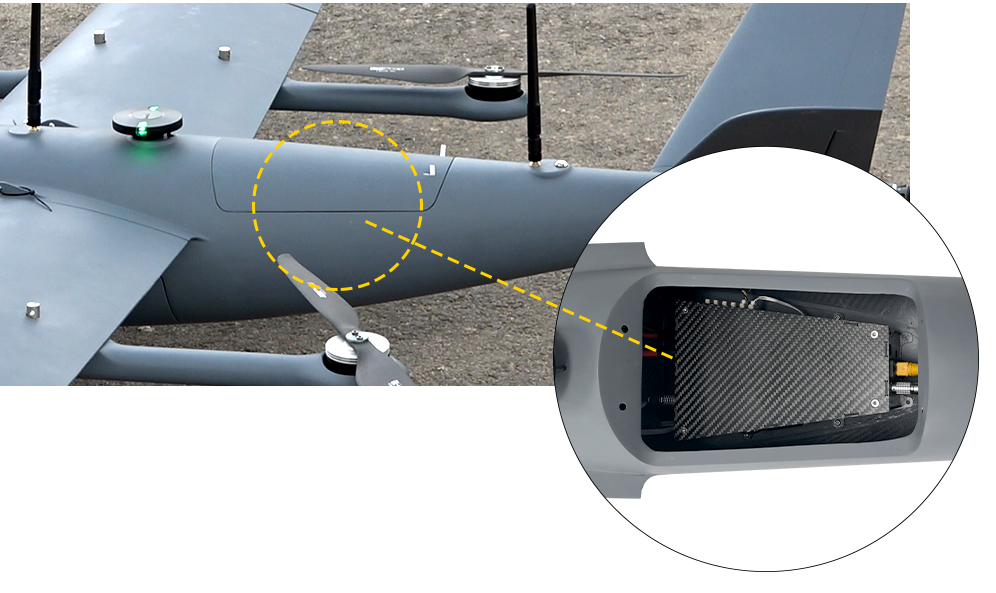

Clean wiring
The avionics box makes the internal wiring super clean and straightforward. Also, the flight controller inside is well protected from the airflow.

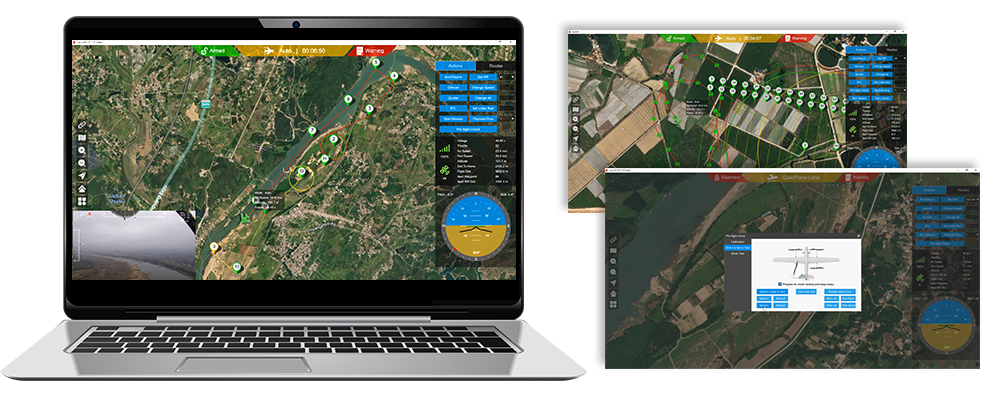

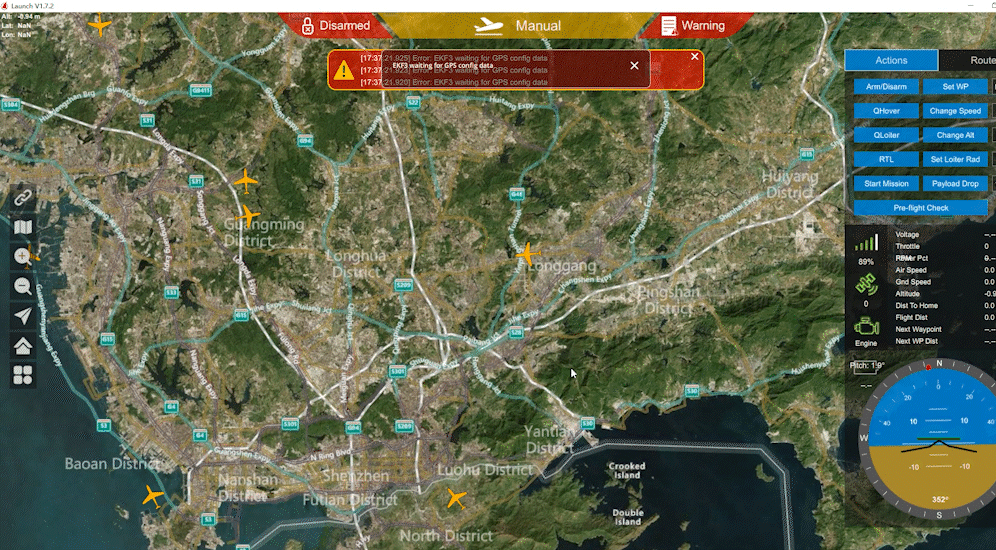

No piloting skills needed
The LAUNCH ground control software that Sky Fury VTOL drone uses is developed for beginners, so a pilot without any flight experience can fly the drone well. Click HERE to learn more.

Built-in TOF landing assistance
The landing is gentle and safe with one 8m range radar detection device.

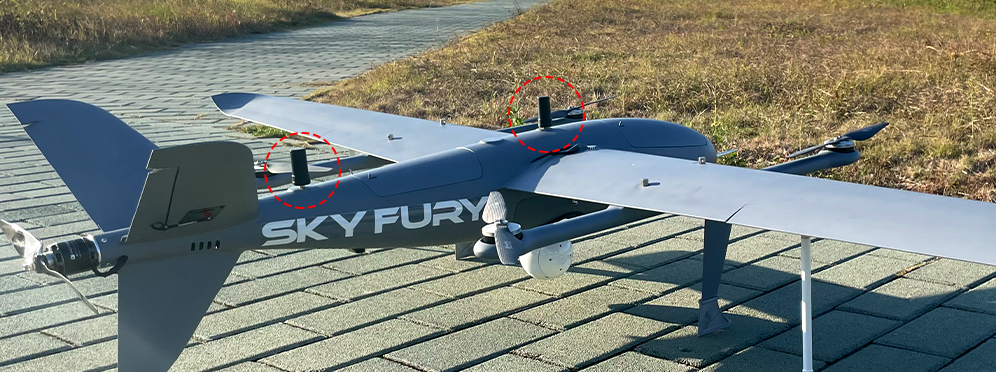

Onboard ADS-B
Equipped with ADS-B, Sky Fury's GPS coordinate will be displayed on the air traffic control system.

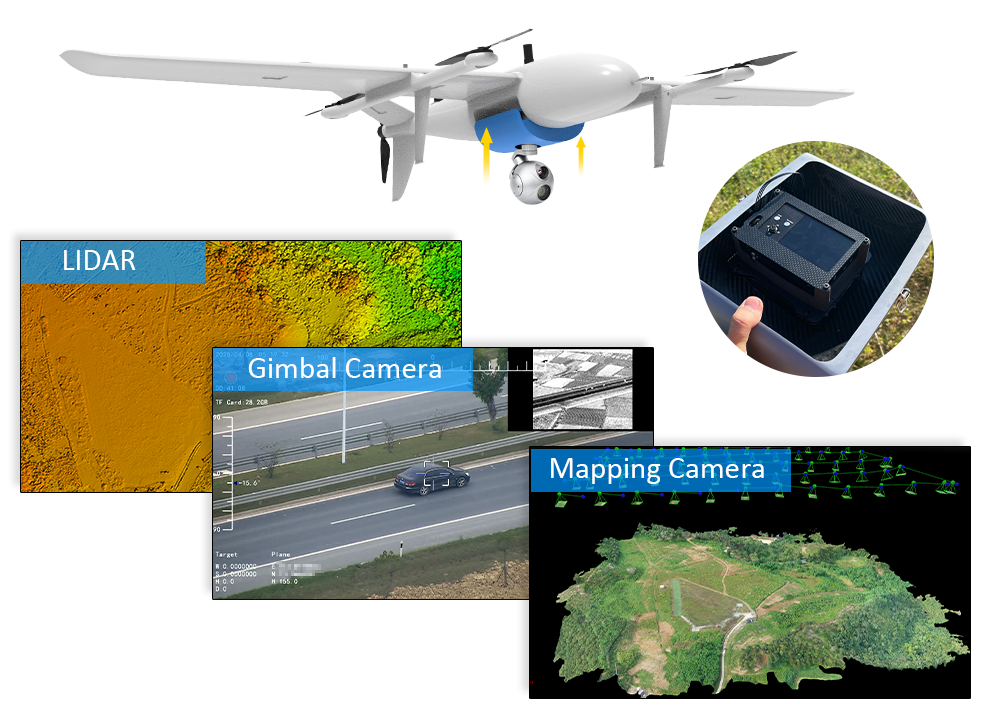

Versatile airborne platform
Thanks to its excellent stability and powerful payload-lift capability, Sky Fury VTOL can be used in mapping, search, rescue, and surveillance applications. For mapping applications, the VTOL supports these mapping cameras: SONY RX1R-II/A7R/A6000/A5100 camera and oblique camera. As to surveillance, it supports these cameras: 3-axis 30x zoom camera / 2-axis 30x zoom camera (for daytime missions), 3-axis 30x EO/IR camera / 2-axis 30x EO/IR camera (for daytime and nighttime missions).

Compass calibration-free (optional)
The pilot does not need to do compass calibration on the VTOL UAV, saving lots of time in emergency tasks. Furthermore, the fixed-wing VTOL won't get affected by surrounding electromagnetic interference (EMI) anymore since the compass is replaced by DGPS, significantly improving the VTOL flight stability in the air.

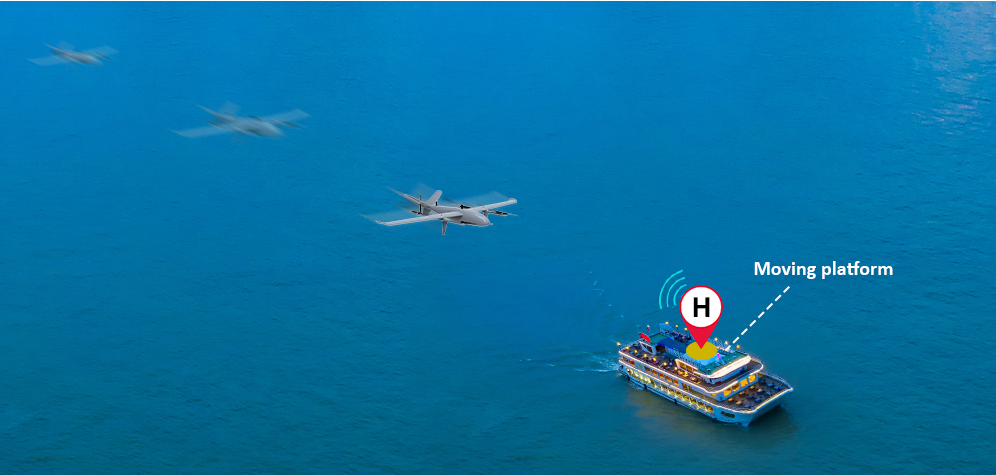

Follow Me feature (optional)
Sometimes the flight platform, like a boat or a vehicle, has to move around after the drone takes off to carry out a mission. Then, in this case, the drone should have the ability to follow the moving flight platform and land when the task is over. This feature is available on YANGDA VTOL drones now, please click HERE to watch the demo video.

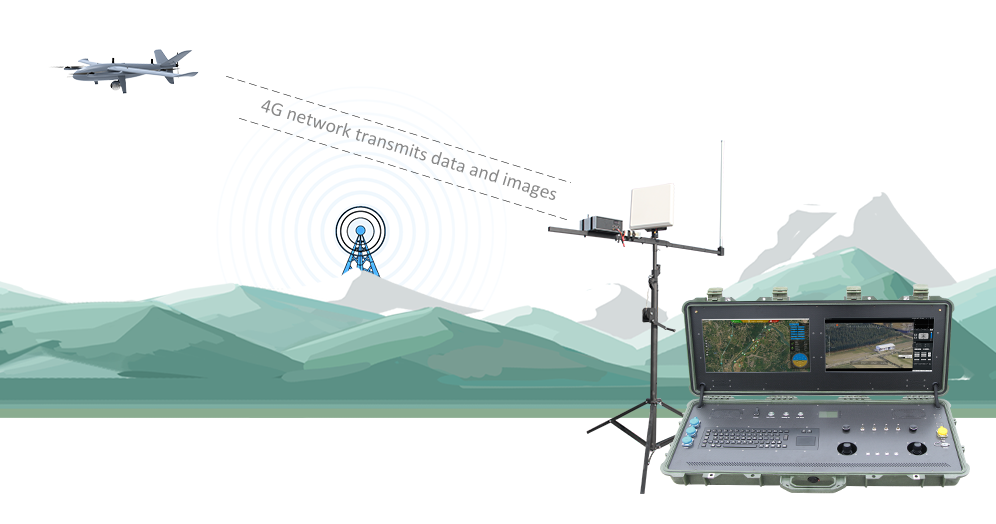

Unlimited video & data range (optional)
Sky Fury aircraft provides a 4G / LTE video transmitter for unlimited video & data transmission.

What is included

1 x YANGDA Sky Fury VTOL fixed-wing airframe
4 x T-motor lift motor
4 x T-motor ESC for lift motor
1 x T-motor ESC for fixed-wing motor
2 x T-motor 1654 CF Propeller CW&CCW
1 x T-motor fixed-wing motor
1 x CF 17x12 Propeller CW
4 x KST Servo
1 x CAN air Speedometer
1 x Power distribution board
1 x Pixhawk Cube Orange Standard Set With Here 3 GNSS & Cube Carrier Board
1 x TOF
1 x WFLY ET10 radio controller
1 x Assembly and Flight Test Service
1 x Aviation box
1 x LAUNCH ground control software

Items compatible (not included)
Battery: 2 x 6S Tattu 25000mAh 6S 25C 22.8V High Voltage Lipo Battery, or 2 x YANGDA Thunder Stone 30000mAh 22.2V 3C 6S1P Solid State Li-Ion Battery
Flight controller: CUAV V5+, CUAV X7 and X7 ProAheadX Taurus 2AheadX LEO 2
Radio controller: YR16S Radio Controller
Long range HD video & data link: Videopass-N15(15KM range), Videopass-N30(30KM range)
Ground control station: ROCK GCS

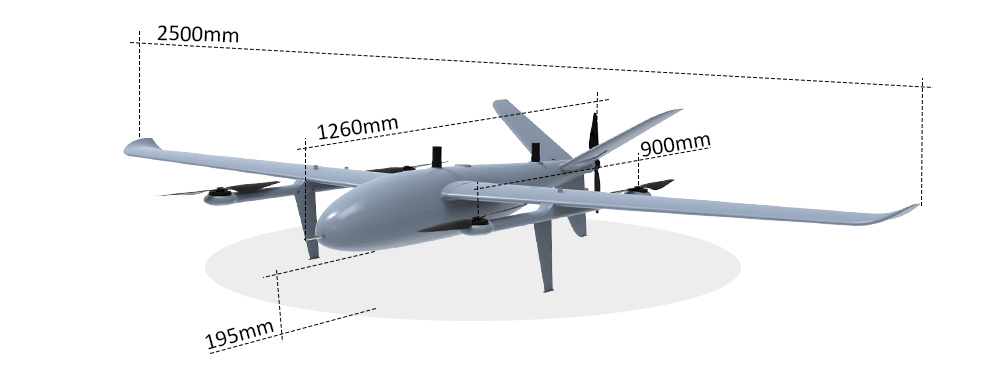

VTOL Drone Size

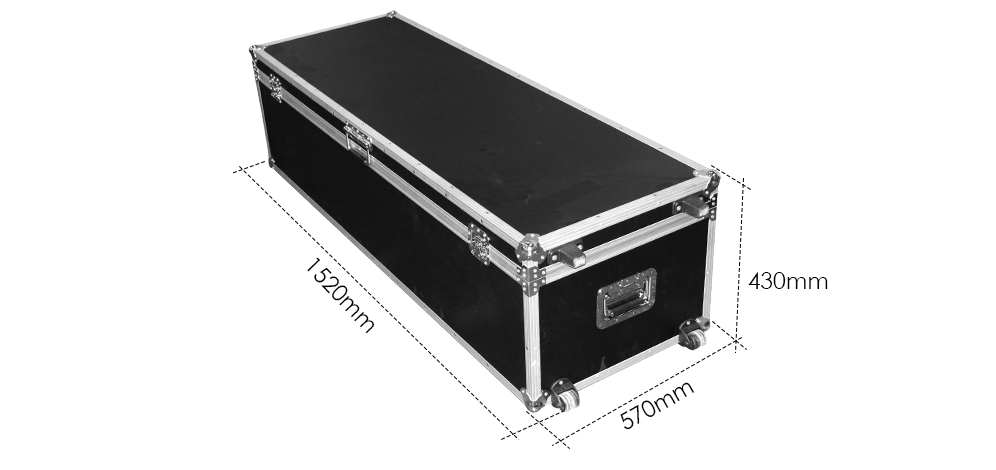

Packing Dimension

MTOW 13.5kg
Weight w/o battery and payload 6.58kg
Wingspan 2,500 mm
Length 1,260 mm
Height 195 mm
Frame weight 3.2kg
Max payload (battery included) 6.92kg
Battery weight (2 x Tattu 6S 25000mAh HV Lipo) 4.72kg
Suggested payload weight 1.2kg
Endurance (12.5kg take-off weight) 3 hours 20 minutes
Cruise speed 68.4-108km/h
Max speed 150km/h
Stall speed 55.8km/h (57.6km/h @ Roll 25° / Pitch 15°)
Minimum Circling Radius 120m @ 68.4km/h ( Roll 18° )
Anti-wind capability 43.2km/h
Operating Altitude(Max.) 3,500m ASL
Operating Temperature -20℃~45℃
