YANGDA FW-250 Fixed Wing VTOL Plane

$7,380.00
Sku:
FW-250
Weight:
5.50 KGS
Adding to cart… The item has been added

Product Overview

Introduction

YANGDA FW-250 is a reliable and affordable VTOL fixed-wing plane designed for long-range inspection, survey, aerial photography, agriculture, search and rescue and public safety applications. As a fixed-wing UAV with VTOL and hover capabilities, the FW-250 features a modular airframe that can be set up in less than 10 minutes, does not require runway or catapult to get airborne. Once in the air, the aircraft transitions to horizontal flight as a push-prop fixed-wing.

Tool-free assembly
Due to its modular airframe design, FW-250 can be set up in less than 10 minutes by a single man.

Long flight time
FW-250 airframe is using light-weight and high strength composite material, which will enable the fixed-wing plane to fly up to 2 hours with 2KG payload, at an average cruising speed of 75KM/H.

Compass calibration-free (optional)
The pilot does not need to do compass calibration on the VTOL UAV, saving lots of time in emergency tasks. Furthermore, the fixed-wing VTOL won't get affected by surrounding electromagnetic interference (EMI) anymore since the compass is replaced by DGPS, significantly improving the VTOL flight stability in the air.

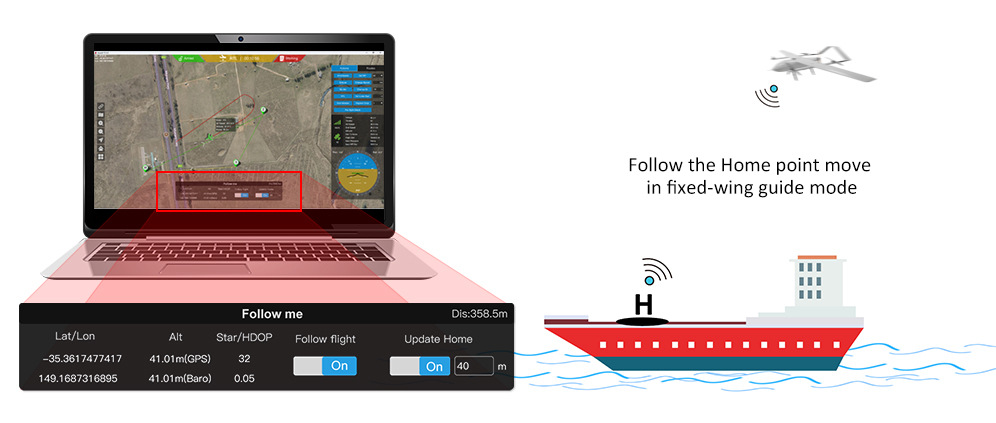

Follow Me feature (optional)
Sometimes the flight platform, like a boat or a vehicle, has to move around after the drone takes off to carry out a mission. Then, in this case, the drone should have the ability to follow the moving flight platform and land when the task is over. This feature is available on YANGDA VTOL drones now, please click HERE to watch the demo video.

No piloting skills needed

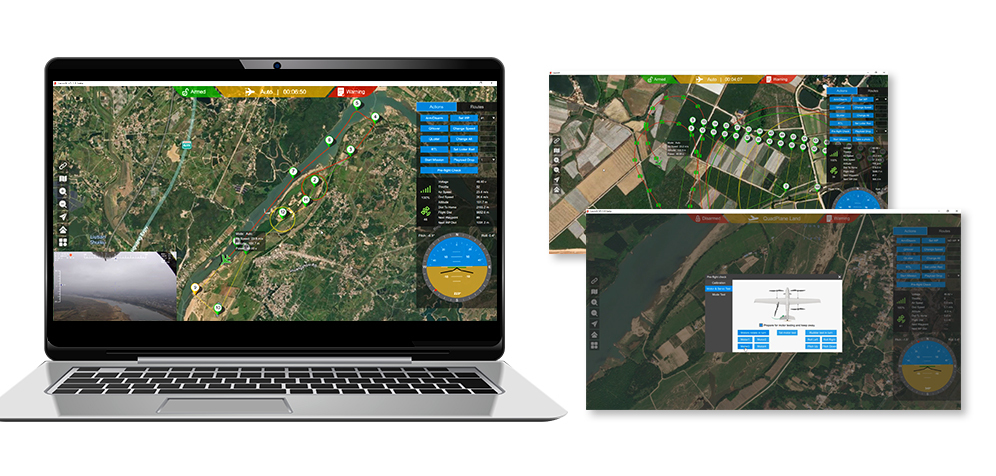

The LAUNCH ground control software that FW-250 VTOL drone uses is developed for beginners, so a pilot without any flight experience can fly the drone well. Click HERE to learn more.

Versatile airborne platform
Thanks to its excellent stability and powerful payload-lift capability, FW-250 VTOL can be used in mapping, search, rescue, and surveillance applications. For mapping application, the VTOL supports these mapping cameras: SONY RX1R-II/A7R/A6000/A5100 camera and oblique camera. As to surveillance, it supports these cameras: 3-axis 30x zoom camera / 2-axis 30x zoom camera (for daytime missions), 3-axis 30x EO/IR camera / 2-axis 30x EO/IR camera (for daytime and nighttime missions).

What is included

1 x YANGDA FW-250 VTOL fixed-wing airframe
4 x T-motor MN505 lift motor
4 x T-motor FLAME 60A ESC for lift motor
1 x T-motor 12S 60A ESC for fixed-wing motor
2 x T-motor 1654 CF Propeller CW&CCW
1 x T-motor AT4120 fixed-wing motor
1 x Wood 15x8 Propeller CW
4 x KST Servo
1 x CAN air Speedometer
1 x Power Distribution Board
1 x Pixhawk Cube Orange Standard Set With Here 3 GNSS & Cube Carrier Board
1 x WFLY ET10 radio controller
1 x Assembly and Flight Test Service
1 x Aviation box
1 x LAUNCH ground control software

Items compatible (not included)
Battery: 2 x 6S Tattu 22000mAh 6S 25C 22.8V High Voltage Lipo Battery
Flight controller: CUAV V5+, CUAV X7 and X7 ProAheadX Taurus 2AheadX LEO 2
Radio Controller: YR16S Radio Controller
Long range HD video & data link: Videopass-N15(15KM range), Videopass-N30(30KM range)
Ground control station: ROCK GCS

Drone Size

Packing Dimension



MTOW 12kg
Weight w/o battery and payload 5.5kg
Wingspan 2,500 mm
Length 1,400 mm
Height 500 mm
Frame weight 2.68kg
Max payload (battery included) 6.5kg
Battery weight  4.5kg
Suggested payload weight 2kg
Endurance(12kg take-off weight) 2hours
Cruise speed 78-90km/h
Max speed 100km/h
Stall speed 57.6km/h
Anti-wind capability 43.2km/h
Operating Altitude(Max.) 3,500m ASL
