Storm Eye-30IE-M 3KM Laser Rangefinder EO/IR Camera With AI Auto-Identify And Target Tracking

Inquire now: info@yangdaonline.com

Storm Eye-30IE-M
1.25 KGS

Product Overview

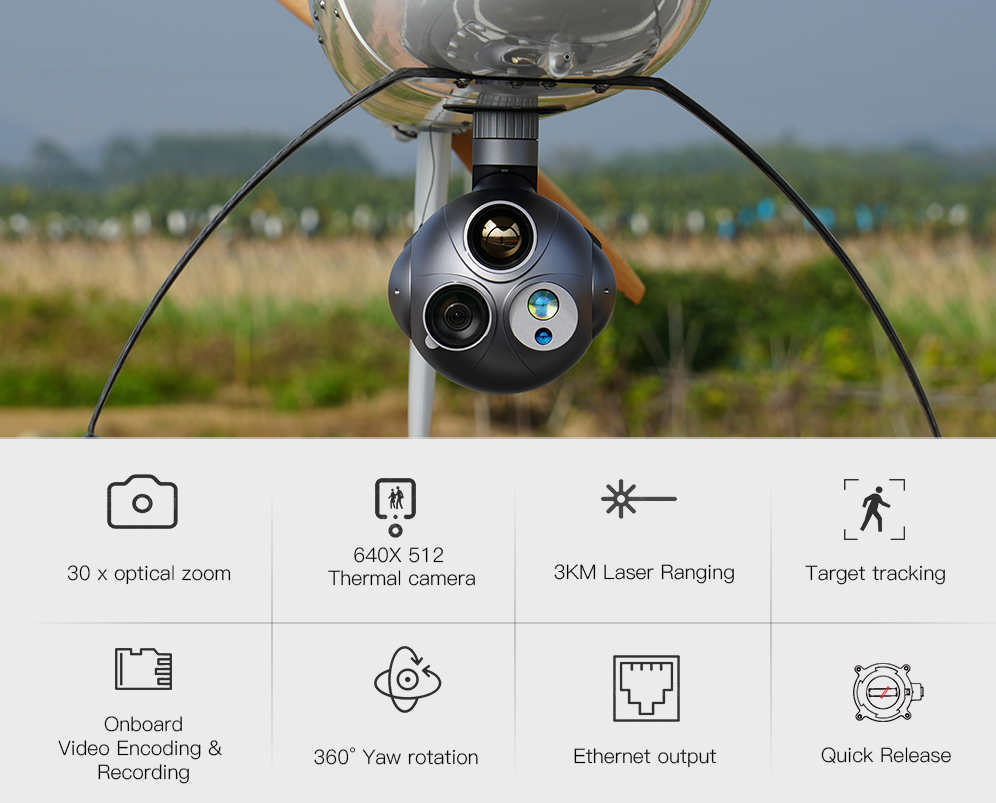

Storm Eye-30IE-M is a AI version 3-axis gimbal that integrates a 30x optical zoom camera, a 640x512 thermal camera, and a 3000 meters laser rangefinder. AI indicates auto-indentify, featuring auto detection and stable tracking for car and human. The high-performance 3-axis gimbal is developed based on FOC (field-oriented control) technology, giving you crystal-clear video footage. The 30x zoom camera provides 1080P 30fps full HD video streaming and up to zoom 360x capability, which enables you to see every detail you need in the air, even if you are far away from the target. At the same time, the thermal camera allows you to detect targets at night or in low visibility conditions.
It provides priceless information when carrying out missions like inspecting or object monitoring. The high-precision laser rangefinder can accurately resolve the GPS location and distance of the object within 3000 meters, and this information will display on the screen automatically.


High-performance 3-axis gimbal with 360-degree rotation

Powered by a dedicated sensor, the high-performance 3-axis drone gimbal has a control accuracy of ±0.02°, giving you crystal clear video footage.


Powerful zoom capability
30x optical zoom, 12x digital zoom, 1080P 30fps video streaming.

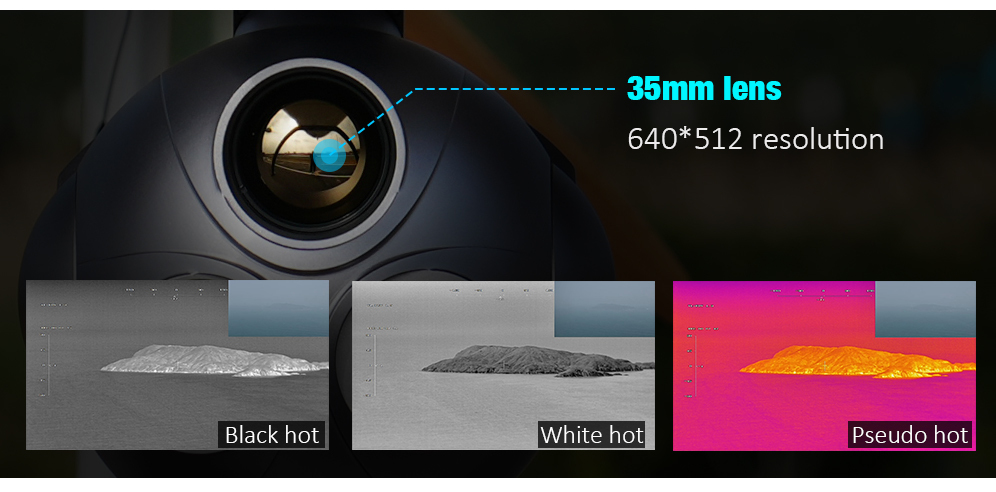

High-resolution thermal imager
640*512 resolution, 25Hz frequency, 3 color palettes, 4x digital zoom.

Target GPS coordinate

The advanced location calculating algorithm is used to calculate the target's distance within 3000 meters and accurately analyze the longitude and latitude of the target. This feature is essential for drone patrol and inspection: suspicious target coordinates can be easily obtained and shared with the supervisor. Also, the drone can keep watching the target based on the coordinates.


Auto-Identity: auto detection and tracking
Based on cross-correlation, tracking and object miss recapturing algorithm, Storm Eye-30IE-M 30x EO/IR triple sensor zoom camera can realize continuously stable object tracking on both daylight zoom camera and the thermal imager.


New generation Drone-Follow-Target (DFT) tracking
The surveillance VTOL can follow and inspect a static or moving target of interest during a routine patrol route when carrying the Strom Eye-30IE-M gimbal camera. Also, the target coordinates can be copied and shared with the command center. Once the inspection is completed, the VTOL drone can return to the patrol route.


Fast deploy and simple gimbal control
The 3-axis EO/IR drone gimbal supports YDPORT quick attach and release mechanism, making gimbal installation fast and convenient. Meanwhile,  the drone gimbal supports S.bus, TTL serial port, and ethernet. With the help of YDlink gimbal control software, gimbal control is simple and easy.


MAVLINK compatible
Storm Eye-30IE-M drone gimbal is compatible with drones powered by PX4 and Ardupilot, making integration relatively convenient.


Dimension and weight


Gimbal system
Input voltage 12V
Video output 1080P/720P 30fps Ethernet
Video recorded 1080P/720P 30fps MP4
Photo JPG(1920*1080)
Rotate range Pitch: ±90° Roll: ±45° Yaw: Unlimited
Angle amount of jitter Pitch and roll: ±0.02° Yaw: ±0.02°
Control interface S.Bus, UART and Ethernet
Working Current Static current: 1.0A(@12V)
Dynamic current: 3.3A(@12V)
Local storage TF card (Up to 128G, class 10, FAT32 or ex FAT format)
Mechanical feature
Total weight (gimbal and camera) 1,250g
Working temperature -25° ~ +60°
30x zoom camera
Sensor 1/2.8 inch 2.13MP CMOS SENSOR
Focal length 30x optical focal zoom, 4.3-129mm
Digital zoom 12x (360x with optical zoom)
Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
FOV 1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
720p mode: 63.7°(wide end) ~ 2.3°(tele end)
SD: 47.8°(wide end) ~ 1.7°(tele end)
Sync system Internal
S/N ratio More than 50dB
Min illumination Color 0.01lux@F1.6
Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
White balance Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
Defog Yes
Thermal imager
Lens 35mm
Working system Un-cooled long wave (8μm14μm)
Detector pixels 640×512
Pixel size 12μm
Focusing Athermalizing
FOV Horizontal: 12.5°
Vertical: 10°
Diagonal: 16°
Detective Distance (Man: 1.8x0.5m) 1458 meters
Recognize Distance (Man: 1.8x0.5m) 365 meters
Verified Distance (Man: 1.8x0.5m) 182 meters
Detective Distance (Car: 4.2x1.8m) 4472 meters
Recognize Distance (Car: 4.2x1.8m) 1118 meters
Verified Distance (Car: 4.2x1.8m) 559 meters
Emissivity correction Emissivity 0.01~1 adjustable
NETD ≤50mK(F1.0@25℃)
Image enhancement Automatically adjusts image brightness and contrast
Color palette White hot, black hot, pseudo color
Automatic non-uniformity Yes(with or without shutter)
Digital zoom 1x, 2x, 3x, and 4x
Time synchronization function Yes
3000m laser range-finder
Measuring distance
(Visibility no less than 5km, diffuse reflectance over 0.3, humidity less than 80%)
Over 3000m (car: 2.3m×2.3m)
Over 1500m (human: 1.75m×0.75m)
Over 5000m (building)
Laser Wavelengths 1535nm ± 5nm
Laser divergence angle Less than0.5mrad
Continuous measuring frequency 1~10Hz adjustable
Ranging accuracy No more than ±2m (RMS)
Accuracy rate Over 98%
Minimum range No more than 20m
Ranging resolution No more than 30m (multiple targets)
Operating temperature -40 ~ +65
Storage temperature -55 ~ +70
