Storm Eye-30IE-HT 3-Axis EO/IR Gimbal Camera for Monitoring, Inspection and Tracking
Overview

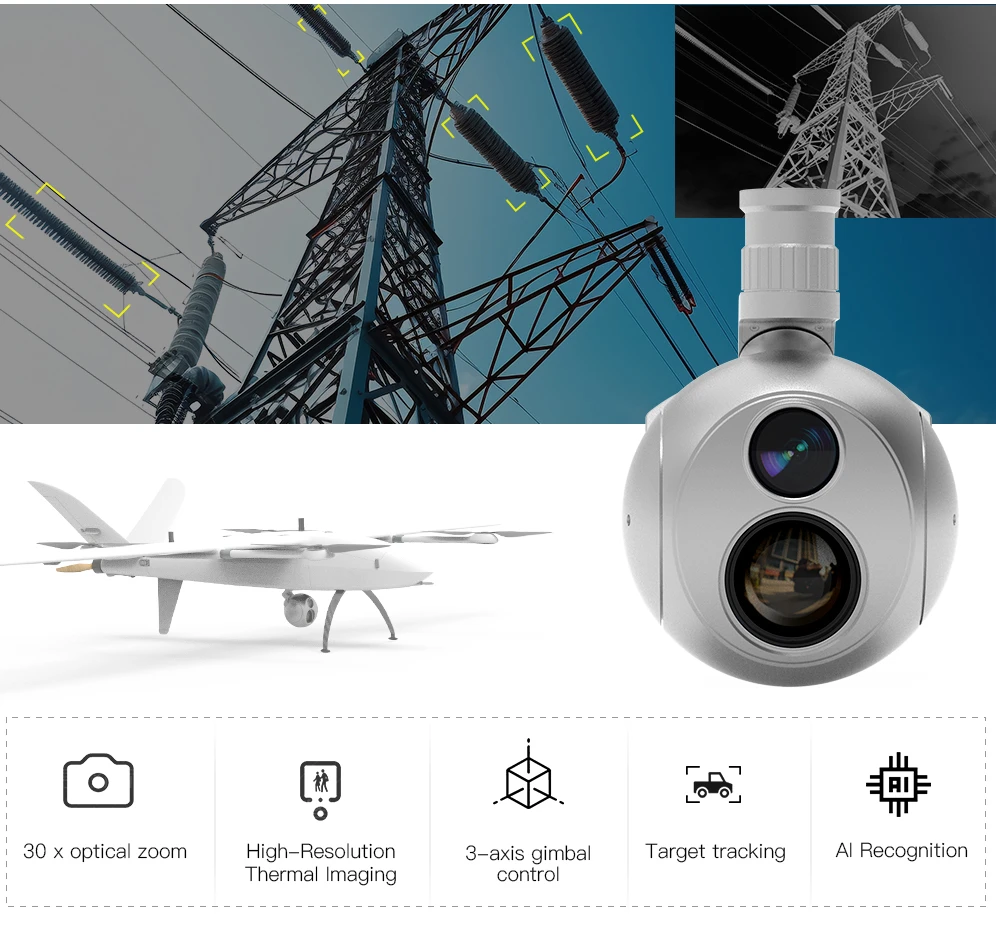

Powered by advanced imaging performance and AI algorithms, the Storm Eye-30IE-HT integrates aerial perception with autonomous tracking. Featuring a 1080P 30x zoom EO sensor for sharp daytime imaging, an ultra-high-definition thermal imager for accurate nighttime detection, AI tracking, and a 3-axis stabilized gimbal, it delivers stable and data-driven aerial imaging for industrial monitoring, inspection, and search-and-rescue operations.
Mission Fit
Why it Performs in Demanding Monitoring Missions

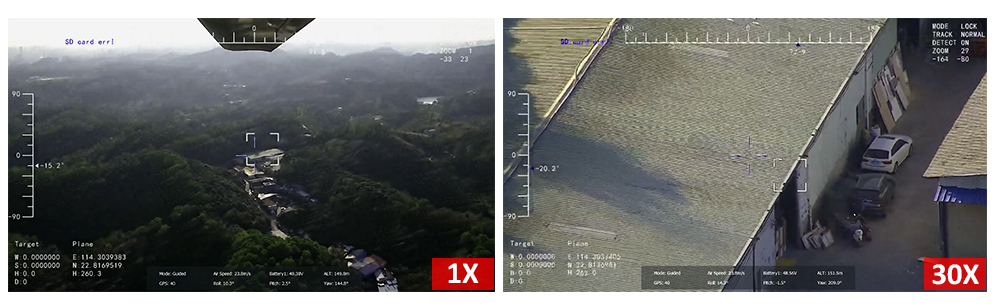

30x EO Zoom
Precision Long-Range Monitoring
Equipped with 30x optical zoom and 1920x1080 resolution, the Storm Eye-30IE-HT delivers reliable, detailed imaging at extended distances, providing reliable visual intelligence for continuous monitoring missions such as border security and disaster response.
50mm Thermal Imager
Built for UHD Day-and-Night Awareness
Powered by a 50 mm thermal imager with UHD 1280×1024 resolution, the Storm Eye-30IE-HT supports detection distances of up to 6 km, delivering sharp situational awareness with high sensitivity to temperature variations, environmental changes, and potential anomalies—especially in low-light or nighttime conditions.

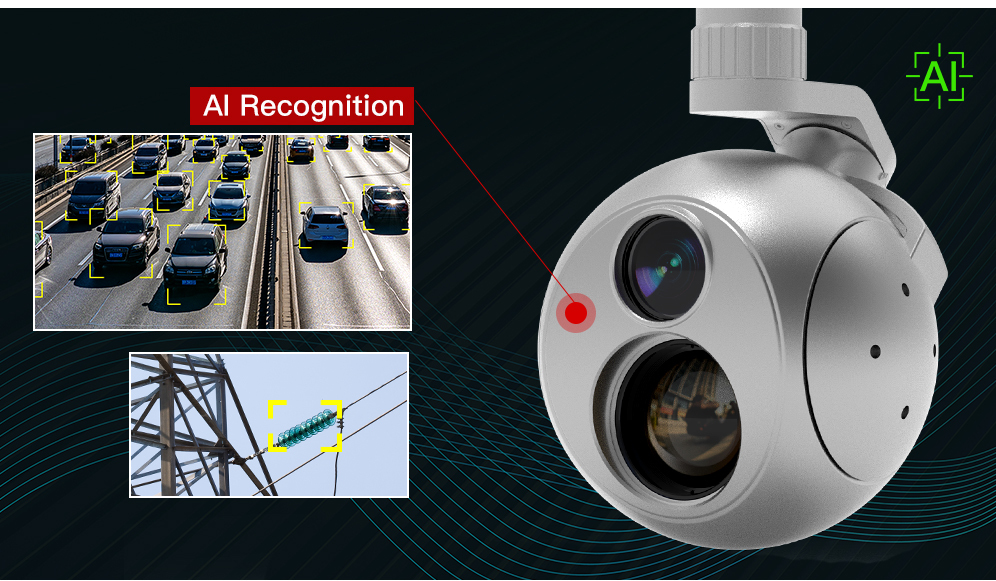

AI Tracking
Precise Target Control
Powered by real-time AI-powered recognition and auto-tracking, the Storm Eye-30IE-HT ensures continuous target awareness, minimizing the risk of target loss even in complex and dynamic environments.
3-Axis Gimbal
Plug-and-Play Integration
Designed with a quick-release mechanism, the 3-axis Storm Eye-30IE-HT enables tool-free installation and a secure physical connection,streamlining deployment while ensuring stable imaging in operation.
Designated Control System
Compatible to MAVLink
Powered by the in-house YDlink camera control software, the Storm Eye-30IE-HT supports MAVLink protocol and integrates with PX4 and ArduPilot flight control systems, enabling real-time telemetry, video transmission, and precise command execution for efficient and reliable aerial operations.
Highly Resilient
In Harsh Environments
Equipped with built-in thermal sensor protection, the Storm Eye-30IE-HT operates within a temperature range of -10°C to 50°C, ensuring reliable performance across diverse operating environments.

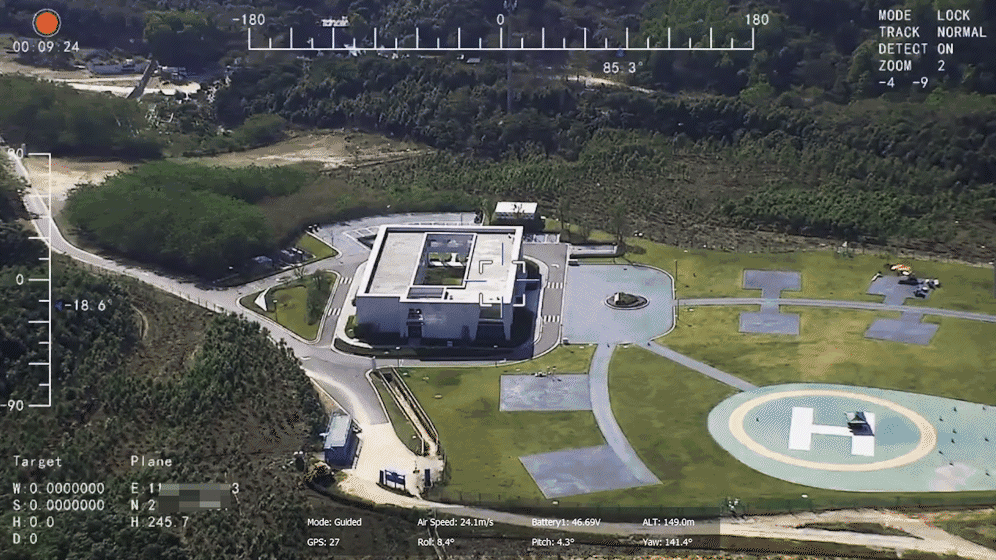

Target Tracking
Coordinated Camera-Drone Control
Through integration with the camera and drone control system, the Storm Eye-30IE-HT enables the drone to automatically adjust its flight path to follow the target. This ensures synchronized operation between the camera and the drone, maintaining readiness for real-time execution of target-related commands.
UAV, UGV, USV Compatible
All-Round Imaging Support
Featuring a stabilized gimbal platform, long-range zoom, clear day-and-night observation, and intelligent target detection and tracking, our gimbal cameras integrate seamlessly with UAVs, ground vehicles, marine vessels, and robotic platforms, delivering dependable imaging support for a wide range of industrial missions.
Best Fit For
Key Specifications
Platform Compatibility
Designed for efficient and practical UAV integration, including:
High Compatibility with
● Platforms: VTOL / multirotor drones
● Systems: PX4 / ArduPilot
● Protocol: MAVLink
● Interfaces: PWM / S.Bus / UART / Ethernet
In-House Operating Techn
● Operating System: YDlink control system
● Deployment: Quick-release mechanism
Recommended Applications
How to Choose
Choose This Model If You Need
For requirements of IR and LRF cameras, please refer to
● Stronger long-range EO observation
● Ultra high-resolution thermal visibility at night
● Built-in laser ranging
● An all-in-one payload for search, tracking, and ranging
| Gimbal system | AI recognition | General vehicles, human (Target recognition is trainable) |
| Target tracking | Support | |
| Input voltage | 12V | |
| Video output | 1080P/720P 30fps Ethernet | |
| Video recording | 1080P/720P 30fps MP4 | |
| Photo format | JPG(1920*1080) | |

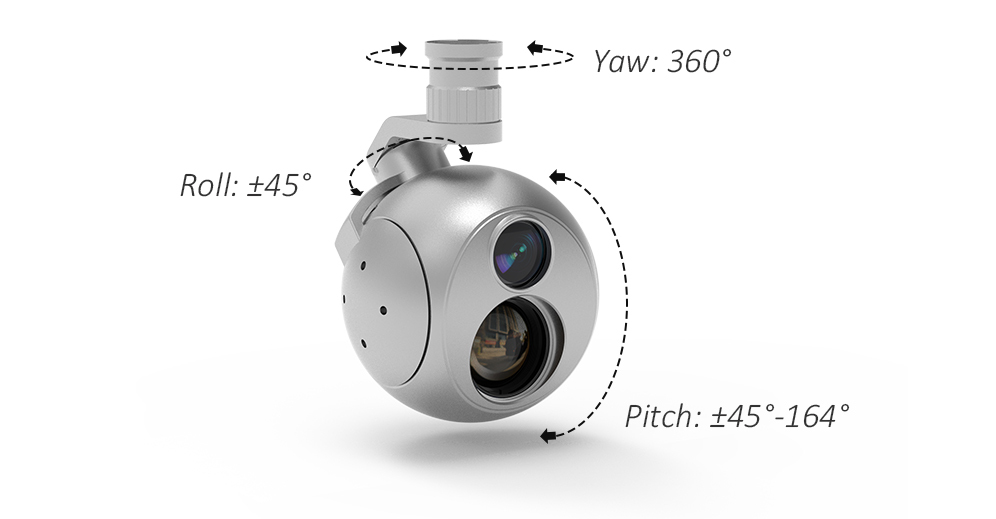

| Rotation range | Pitch：+45° ~ -164° Roll：±45° Yaw: Unlimited | |
| Angle jitter | Pitch and Roll：±0.01° Yaw：±0.02° | |
| Control interface | S.Bus, Serial commands and software control via Ethernet | |
| Working current | Static current: 650mA(@12V) | |
| Dynamic current: 850mA(@12V) | ||
| Local storage | TF card(up to 128G、Type 10, FAT32 or ex FAT format) | |
| Mechanical characteristic | Total weight (gimbal and camera) | 1,470g±5g |
| Operating temperature | -10° ~ +50° | |

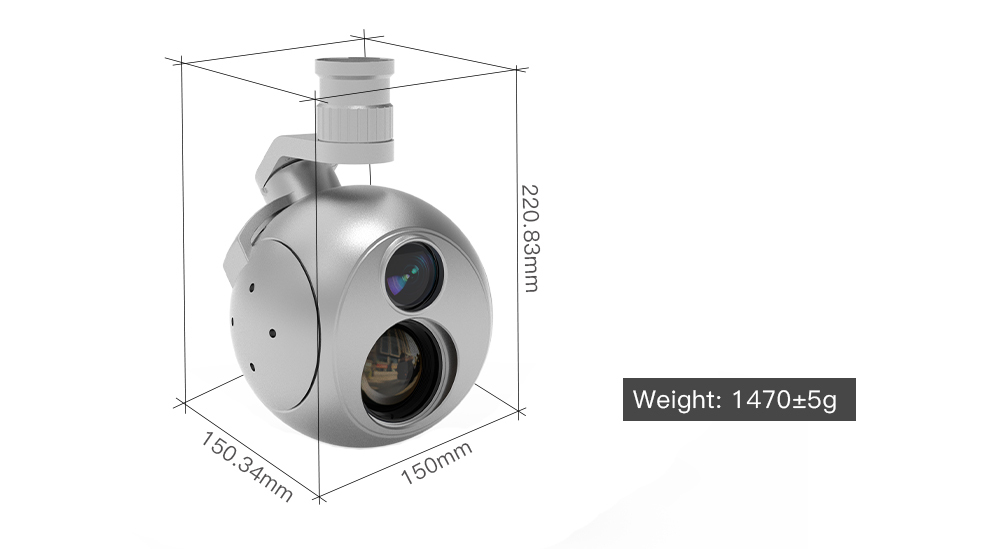

| Dimensions | 150*150.3*220.8mm | |
| mounting | Screw-type quick disassembly structure | |
| 30x zoom camera | sensor | 1/2.8 inch SNOY STARVIS CMOS sensor(2.13 million pixels） |
| Lens focal length range | 30x Optical zoom, f= 4.3 mm - 129 mm | |
| Digital zoom | 12x (360x Combined with optical zoom) | |
| Horizontal field of view（HFOV） | Image distortion correction off : Approx. 64.0° to 2.4° | |
| (Short focal length to long focal length) | Image distortion correction on : Approx. 61.5° to 2.3° | |
| Image signal-to-noise ratio(ISNR) | 50 dB（weighted） | |
| Auto Focus Speed | Infinity - Near：1.4 s | |
| Minimum illumination | ICR-OFF mode: 0.009 lx (Shutter Speed: 1/30 s), 0.0012 lx (Shutter Speed: 1/4 s or 1/3 s) | |
| (50%, High Sensitivity Mode on) | ICR-ON mode: 0.00008 lx (Shutter Speed: 1/30 s), 0.000005 lx (Shutter Speed: 1/4 s or 1/3 s, 30%） | |
| ICR-OFF mode: 0.09 lx (Shutter Speed: 1/30 s), 0.012 lx (Shutter Speed: 1/4 s or 1/3 s) | ||
| ICR-ON mode: 0.00063 lx (Shutter Speed: 1/30 s） | ||
| Minimum optical focusing distance (Short focal length to long focal length) | 10 mm - 1200 mm | |
| Aperture range | F1.6（wide-angle）~ F4.7（long-focus） | |
| Thermal imager | Lens | 50mm |
| Operating band | Uncooled vanadium oxide long wave（8μm~14μm） | |
| Pixels | 1280 x 1024 | |
| Pixel size | 12μm | |
| Digital zoom | 8x | |
| FOV | Horizontal: 17.5° | |
| Vertical: 14° | ||
| Diagonal: 22.3° | ||
| Detective Distance (Man: 1.8x0.5m) | 2083meters | |
| Recognize Distance (Man: 1.8x0.5m) | 521 meters | |
| Verified Distance (Man: 1.8x0.5m) | 260 meters | |
| Detective Distance (Car: 4.2x1.8m) | 6389 meters | |
| Recognize Distance (Car: 4.2x1.8m) | 1597 meters | |
| Verified Distance (Car: 4.2x1.8m) | 799 meters | |
| Encapsulation method | Ceramic encapsulation | |
| NETD | ≤30mk@f1.0/25℃ | |
| Operating band | 8～14um | |
| Frame frequency | 25HZ/30Hz/50Hz | |
| Digital video format | RAW/YUV/Matrix-Temp | |
| Image algorithm | Non-uniformity correction(NUC)/3D Image denoising(3DNR)/2D Noise Reduction (DNS)/ Wide Dynamic Range Compression (DRC)/ Edge Enhancement (EE) | |
| Pseudo-color | 10 kinds (White heat/Lava/Iron red/Hot iron/Medical/Arctic/Rainbow 1/ Rainbow 2/ Tracing red/Black heat) | |
| Thermal camera operating temperature range | -10℃～70℃ | |
| Steady-state power consumption | ＜1W/5V @25HZ 23±3℃（Without expansion components） | |
| Operating temperature | -40℃～+70℃ | |
| Storage temperature | -45℃～+85℃ | |
| Humidity | 5%~95%，No condensation | |
| Vibration | Sinusoidal vibration, frequency：10HZ～150HZ～10HZ，Peak：0.15mm，Axis: X axis, durability：8min/axis，Number of cycles: 2 times | |
| Shock | Half Sine Pulse, 30g/11ms, Impact direction X axis 3 times | |
| Burn prevention | Look directly at the sun for 30 seconds, and it will recover within 24 hours. | |
| Operating temperature | -40℃~ +65℃ | |
| Storage temperature | -55℃~ +70℃ |
