Introduction

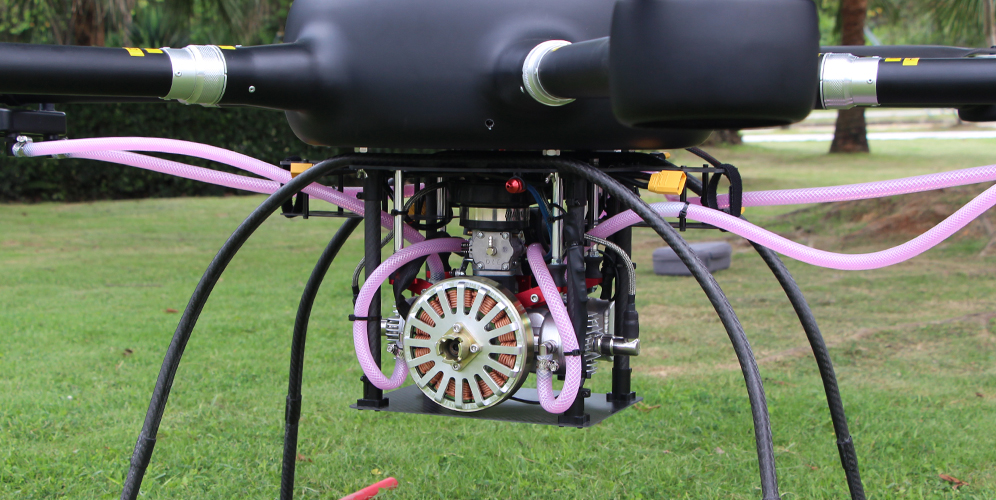

Have you ever encountered these problems on battery-powered multi-rotors: it is very hard to get a 45 minutes flight time with 5KG payload at an altitude of 4500 meters, due to the thin air up there. Or it is almost impossible for the multicopter to fly for 1 hour in the cold winter at a minus 10-degree temperature because the battery voltage will drop dramatically in this case. YANGDA YD6-1600L gas-electric hybrid drone is designed to overcome these drone flight time limits. It is using one powerful gas-driven electricity generator which will give you continuous and stable power supply despite the high/low temperature or high altitude, will enable you to carry out long-range inspection, survey, aerial photography, search, rescue, and public safety applications.
Three version generators
To realize different drone applications, we will adopt the most appropriate hybrid engine on YD6-1600L hybrid drone. Three hybrid engines are for options: 2.4kW version, 3.6kW version, and 6.0kW version.
Max 3.8 hours endurance
When equipped with a 2.4kW generator, the YD6-1600L fuel-electric drone can fly 3.8 hours with 3.4kg payload.
10.3KG payload capability
YANGDA YD6-1600L hybrid hexacopter can lift max 10.5kg payload when the 6.0kW engine is adopted.
High-performance and stable propulsion system
YD6-1600L hybrid power UAV is using T-Motor propulsion system, which is proved of high quality and stability.
Easy for transportation, quick to set up

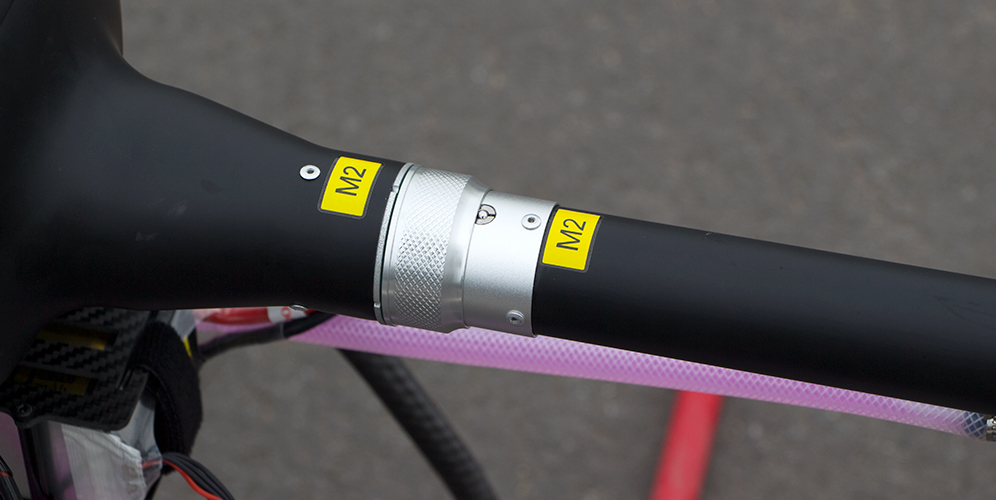

Pluggable arms of YD6-1600L frame makes the drone is easy for transportation. The drone set up can be done in 5 minutes by a single man.

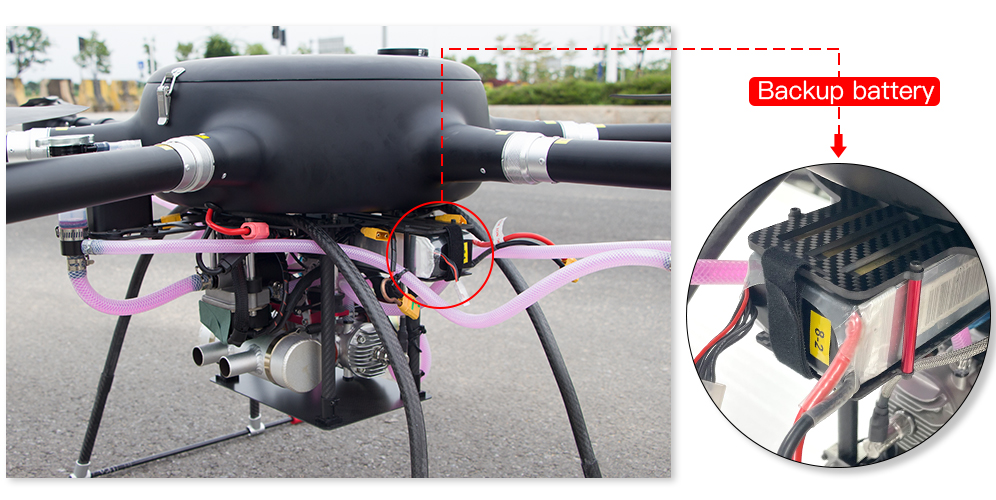

Backup battery
YD6-1600L hybrid drone provides 2 units 6S lipo batteries for 90 seconds emergency landing, just in case the gasoline-electric engine fails during the flight.
Multiple payload options
All YANGDA drone gimbal, camera and other payloads like drone megaphone can be installed on YD6-1600L hybrid UAV.
Video
Specification
2.4kW version YD6-1600L hybrid drone
| Wheelbase | 1600mm | Cruise speed | 11m/s |
| Wingspan | 2350mm | Altitude | Max 3500m ASL |
| Endurance | 3.8Hours (18kg take-off weight) | Generator weight | 4.2kg |
| Working temperature | -20°C ~ 40°C | Voltage of generator | 12S |
| No payload weight | 10.4kg(no fuel) | Generator output | Max: 2.4kW / Continuous: 2.0kW |
| Max take-off Weight | 18kg | Fuel consumption rate | 600g/kW·h (hovering: 1.5L/h) |
| Max payload | 3.4kg | Fuel tank | 5.7L(default), customizable(max 7.5L) |
3.6kW version YD6-1600L hybrid drone
| Wheelbase | 1600mm | Cruise speed | 11m/s |
| Wingspan | 2350mm | Altitude | Max 3500m ASL |
| Endurance | 1.42Hours (24kg take-off weight) | Generator weight | 5.7kg |
| Working temperature | -20°C ~ 40°C | Voltage of generator | 12S |
| No payload weight | 11.9kg(no fuel) | Generator output | Max: 3.6kW / Continuous: 3.0kW |
| Max take-off Weight | 24kg | Fuel consumption rate | 650g/kW·h (hovering: 4L/h) |
| Max payload | 7.8kg | Fuel tank | 5.7L(default), customizable(max 7.5L) |
6.0kW version YD6-1600L hybrid drone(customized version)
| Wheelbase | 1600mm | Cruise speed | 11m/s |
| Wingspan | 2350mm | Altitude | Max 3500m ASL |
| Endurance | 1.25Hours (30kg take-off weight) | Generator weight | 7.2kg |
| Working temperature | -20°C ~ 40°C | Voltage of generator | 12S |
| No payload weight | 13.4kg(no fuel) | Generator output | Max: 6.0kW / Continuous: 5.0kW |
| Max take-off Weight | 30kg | Fuel consumption rate | 700g/kW·h (hovering: 6L/h) |
| Max payload | 10.3kg | Fuel tank | 7.5L(default) |
YD6-1600L Hybrid Catalog Download
Your Purchase Includes
2.4kW version YD6-1600L hybrid drone
1 x YD6-1600L RTF heavy-lift hexacopter (without batteries)
1 x 2.4kW Generator
1 x 5.7L Fuel Tank
2 x 6S 2500mAh lipo batteries
1 x Generator accessory(starter, fuel level indicator, cable/wire etc)
1 x Assemble and test service
3.6kW version YD6-1600L hybrid drone
1 x YD6-1600L RTF heavy-lift hexacopter (without batteries)
1 x 3.6kW Generator
1 x 5.7L Fuel Tank
2 x 6S 2500mAh lipo batteries
1 x Generator accessory(starter, fuel level indicator, cable/wire etc)
1 x Assemble and test service
6.0kW version YD6-1600L hybrid drone(customized version)
1 x YD6-1600L RTF heavy-lift hexacopter (without batteries)
1 x 6.0kW Generator
1 x 7.5L Fuel Tank
2 x 6S 2500mAh lipo batteries
1 x Generator accessory(starter, fuel level indicator, cable/wire etc)
1 x Assemble and test service
Options
Flight controller: DJI A3, DJI A3 Pro
Video transmitter & receiver: Herelink(5-10KM range), Videopass-H15(15KM range), Videopass-H30(30KM range)
Delivery box: KUA Drop System
Photos
