YANGDA

Sky Eye-30HZ-S 1080P 30X Zoom Camera For Drone With Tracking And Geotagging

MSRP: €4,585.17
€4,360.06
(You save €225.11 )
Sku:
Sky Eye-30HZ-S
Weight:
0.85 KGS
Adding to cart… The item has been added

Product Overview

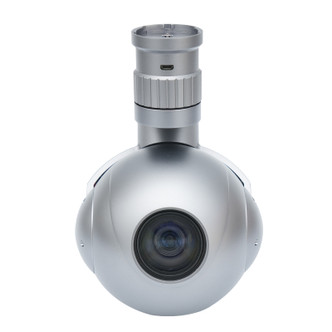

Sky Eye-30HZ-S is a 3-axis high stabilized gimbal with 1080P 30X zoom camera for drone inspection, surveillance, search and rescue applications. The camera block is SONY FCB-EV7520, which provides 1080P 60FPS full HD video streaming and up to 360X zoom capability, which will enable you to see every detail you need in the air even you are far away from the object.


Powerful zoom capability
30x optical zoom, 12x digital zoom, 1080P 30fps video streaming.

High-precise 3-axis gimbal with 360-degree rotation
Powered by a dedicated sensor, the high-performance 3-axis gimbal has a control accuracy of ±0.02°, giving you crystal clear video footage.

Auto object tracking
Based on cross-correlation, tracking and object miss recapturing algorithm, Sky Eye-30HZ-S 30x daylight zoom camera can realize continuously stable tracking.

Simple gimbal control
The 3-axis drone gimbal supports S.bus, TTL serial port, and ethernet. With the help of YDlink gimbal control software, gimbal control is simple and easy.

Clean wiring
The 30x daylight drone zoom camera have only one cable for the data and video transmission, making your internal wiring simple and clean.

Born for multiple flight platforms
The streamlined aerodynamic design of the gimbal can significantly reduce air drag during the flight, making it a perfect fit for multicopter and VTOL fixed-wing flight platforms.

MAVLINK compatible
Sky Eye-30HZ-S drone gimbal is compatible with drones powered by PX4 and Ardupilot, making integration relatively convenient.



What is included

1 x Sky Eye-30HZ-S 30X optical zoom camera

1 x Sky Eye-30HZ-S 3-axis high stabilized gimbal system

30X zoom camera(SONY FCB-EV7520)
Sensor 1/2.8 inch 2.13MP CMOS SENSOR
Video Output 1080P/60 HDMI and Ethernet
Video recorded 1080P/30 MP4
Focal length 30X optical focal zoom, 4.3-129mm
Digital zoom 12X(360X with optical zoom)
Horizontal viewing angle 1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
720p mode: 63.7°(wide end) ~ 2.3°(tele end)
SD: 47.8°(wide end) ~ 1.7°(tele end)
Wide Dynamic Up to 105dB
Auto focus Less than 1S
Low illumination 0.05lux@F1.6
Aperture Φ 16.0
Gimbal system
Input voltage 3S-4S
Rotate range Pitch: ±90° Roll: ±45° Yaw: ±150°
Angle amount of jitter Pitch and roll: ±0.02° Yaw: ±0.03°
Control interface PWM, S.Bus, serial command, and software control via Ethernet
Working Current Static current: 330mA(@12V)
Dynamic current: 450mA(@12V)
Mechanical feature
Total weight (gimbal and camera) 848g
Working temperature -25° ~ +60°
