Sky Eye-40HZ 3-Axis EO Gimbal Camera for Observation, Inspection and Security - YANGDA
Overview

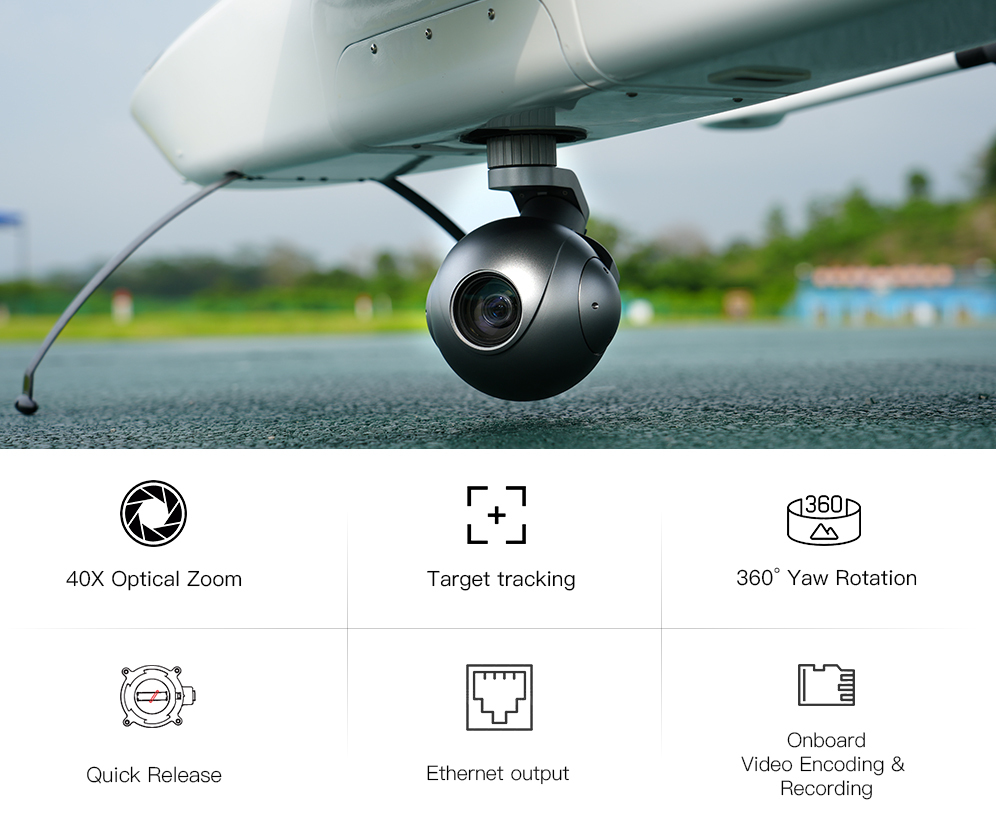

The Sky Eye-40HZ delivers flexible and reliable support for long-range aerial missions, including surveillance, inspection, and target tracking. Equipped with a 1080P EO camera with 40× optical zoom, AI-powered recognition and tracking, and a stable 3-axis gimbal, it enables sharp, high-resolution imaging and reliable tracking in visible-light conditions.
Mission Fit
Why it Performs in Demanding Monitoring Missions
40x EO Zoom
Long-Range Aerial Monitoring
40x powerful optical zoom, 1920x1080 resolution. The Sky Eye-40HZ delivers clear long-range monitoring, enabling detailed observation of individuals, vehicles, and infrastructure without approaching the target area.
910g Sleek Design
Built for Lightweight Operations
Designed for lightweight and flexible aerial deployment, the Storm Eye-10IE-MK weighs only 910 g, mitigating overall UAV payload burden while improving flight endurance and maneuverability.
AI Tracking
Precise Target Control
Powered by real-time AI-powered recognition and auto-tracking, the Sky Eye-40HZensures continuous target awareness, minimizing the risk of target loss even in complex and dynamic environments.
3-Axis Gimbal
Plug-and-Play Integration
Designed with a quick-release mechanism, the 3-axis Sky Eye-40HZ enables tool-free installation and a secure physical connection, streamlining deployment while ensuring stable imaging in operation.
UAV, UGV, USV Compatible
All-Round Imaging Support
Featuring a stabilized gimbal platform, long-range zoom, clear day-and-night observation, and intelligent target detection and tracking, our gimbal cameras integrate seamlessly with UAVs, ground vehicles, marine vessels, and robotic platforms, delivering dependable imaging support for a wide range of industrial missions.
Designated Control System
Compatible to MAVLink
Powered by the in-house YDlink camera control software, the Sky Eye-40HZsupports MAVLink protocol and integrates with PX4 and ArduPilot flight control systems, enabling real-time telemetry, video transmission, and precise command execution for efficient and reliable aerial operations.
Target Tracking via Coordinated Camera-Drone Control
Through integration with the camera and drone control system, the Sky Eye-40HZenables the drone to automatically adjust its flight path to follow the target. This ensures synchronized operation between the camera and the drone, maintaining readiness for real-time execution of target-related commands.
Highly Resilient in Harsh Environments
Equipped with built-in thermal sensor protection, the Sky Eye-40HZoperates within a temperature range of -10°C to 50°C, ensuring reliable performance across diverse operating environments.
Best Fit For
Platform Compatibility
Designed for efficient and practical UAV integration, including:
High Compatibility with
● Platforms: VTOL / multirotor drones
● Systems: PX4 / ArduPilot
● Protocol: MAVLink
● Interfaces: PWM / S.Bus / UART / Ethernet
In-House Operating Technologies
● Operating System: YDlink control system
● Deployment: Quick-release mechanism
Key Specifications
Recommended Applications
How to Choose
Choose This Model If You Need
For requirements of IR and LRF cameras, please refer to
● Advanced long-range EO observation
● Real-time target tracking
● An all-in-one payload for imaging and tracking
| 40X zoom camera | Sensor | 1/2.8" Sony STARVIS CMOS sensor |
| Video Output | Digital: LVDS, Analog: CVBS | |
| Video recorded | 1080P/30 MP4 | |
| Focal length | 40X optical focal zoom, 4.25-170mm | |
| Digital zoom | 32X(1280X with optical zoom) | |
| Horizontal viewing angle | D: 73.80°(wede end)~2.16°(tele end) | |
| H: 66.35°(wede end)~1.90°(tele end) | ||
| V: 39.98°(wede end)~1.11°(tele end) | ||
| Wide Dynamic | Up to 105dB | |
| Auto focus | Less than 1S | |
| Min. illumination (50%) | Color(1/30s, 79.5dB): 0.01 lux , BW(1/30s, 79.5dB): 0.002 lux | |
| Color DSS(1/1s, 79.5dB): 0.001 lux , BW DSS(1/1s, 79.5dB): 0.0002 lux | ||
| Aperture ratio | F1.6 (wide) ~ F4.95 (tele) | |
| Gimbal system | Input voltage | 12V |
| Rotate range | Pitch: +45° ~ -164°; Roll: ±45° Yaw: Unlimited | |
| Control interface | PWM, S.Bus, serial command, and software control via Ethernet | |
| Working Current | Static current: 650mA(@12V) | |
| Dynamic current: 850mA(@12V) | ||
| Mechanical feature | Total weight (gimbal and camera) | 910g |
| Working temperature | -10℃~ +50℃ |
Meet Sky Eye-40HZ: 40X daylight drone zoom camera with AI and target tracking

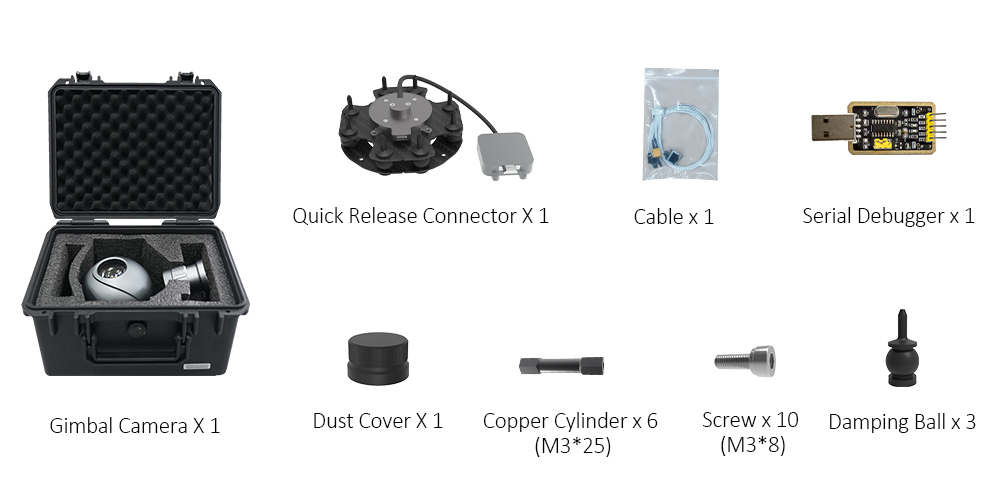

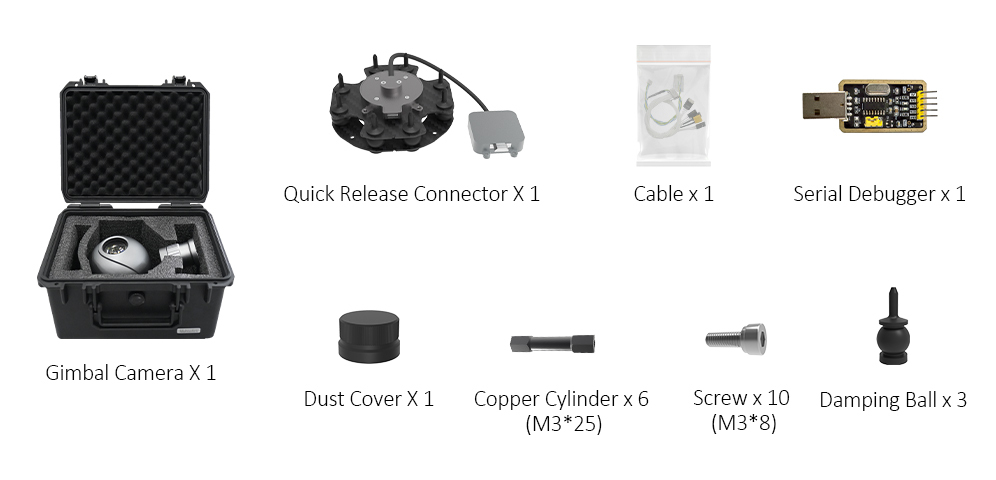

Packing List
