INTRODUCTION

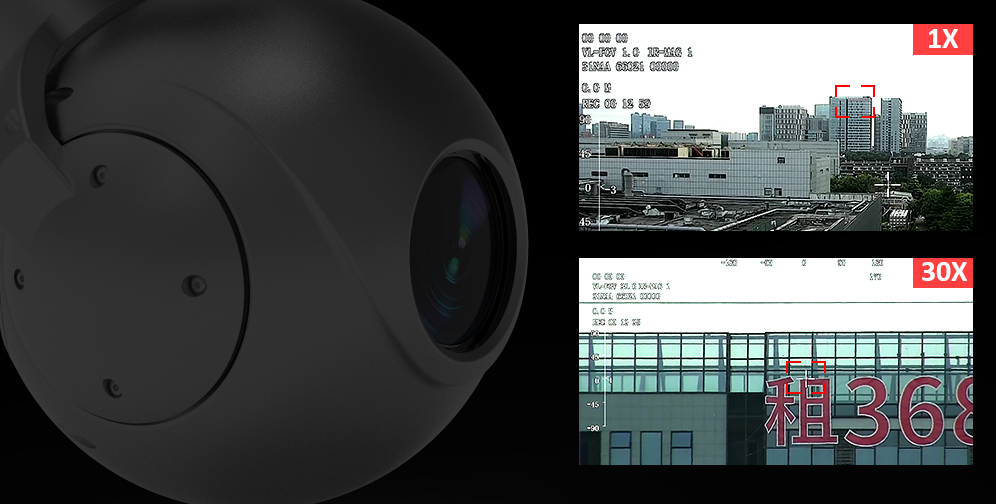

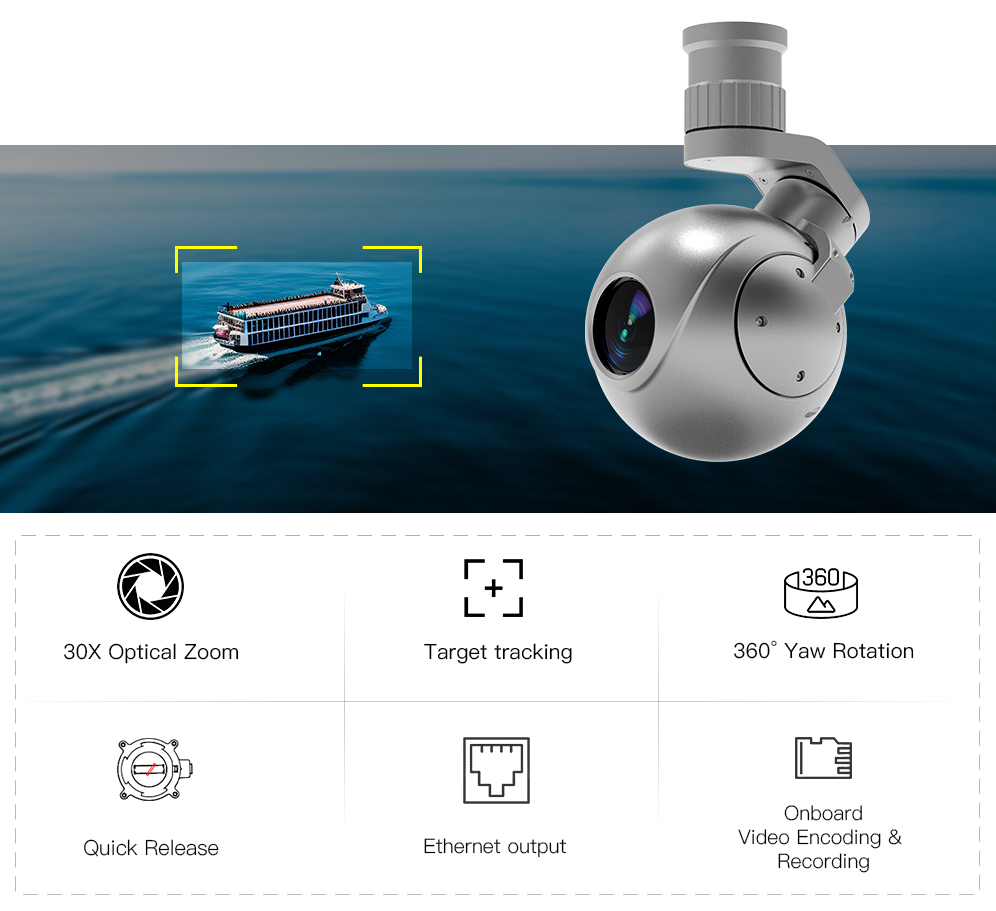

Sky Eye-30HZ-S is a 3-axis high stabilized gimbal with 1080P 30X zoom camera for drone inspection,surveillance,search and rescue applications.The camera block is SONY FCB-EV7520, which provides 1080P 60FPS full HD video streaming and up to 360X zoom capability,which will enable you to see every detail you need in the air even you are far away from the object. High-performance 3-axis gimbal is using advanced FOC(field-oriented control) motor control technology which will enable you to get a 0.01 degree incredible precise control, so the gimbal will give you crystal clear and stable video footage.

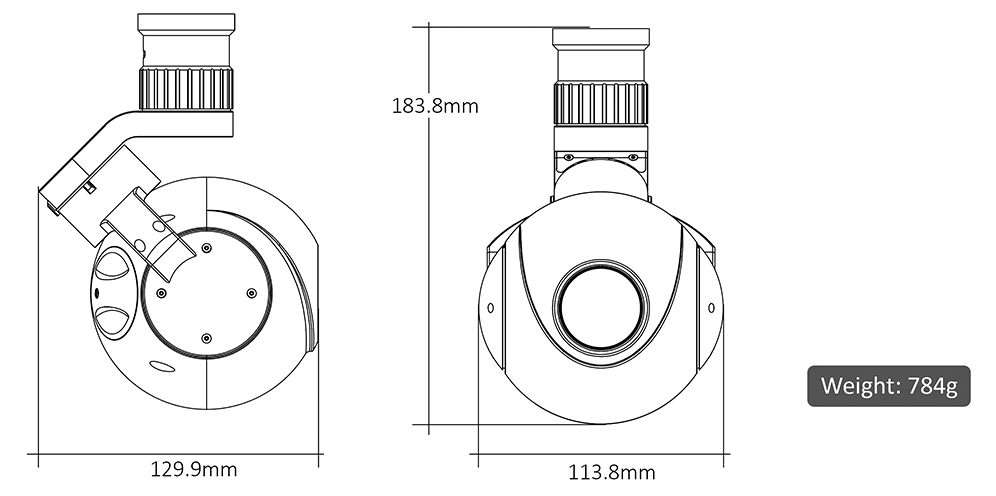

Compact and lightweight
Sky Eye-30HZ-S weighs as little as 848g to help you meet your payload weight allowance.
Easy for integration
Sky Eye-30HZ-S comes with an amazing advantage that the gimbal can not only be controlled via PWM signal,but also serial command.Also gimbal data(like Yaw/Pitch/Roll angle,zoom status etc) can be obtained by sending serial command to the gimbal via its serial port, which is really useful for precise gimbal control and system integration.
Dual video output
There are 2 video streaming outputs: HD-SDI and Ethernet, which will give you the flexibility to choose the video transmitter for your drone.

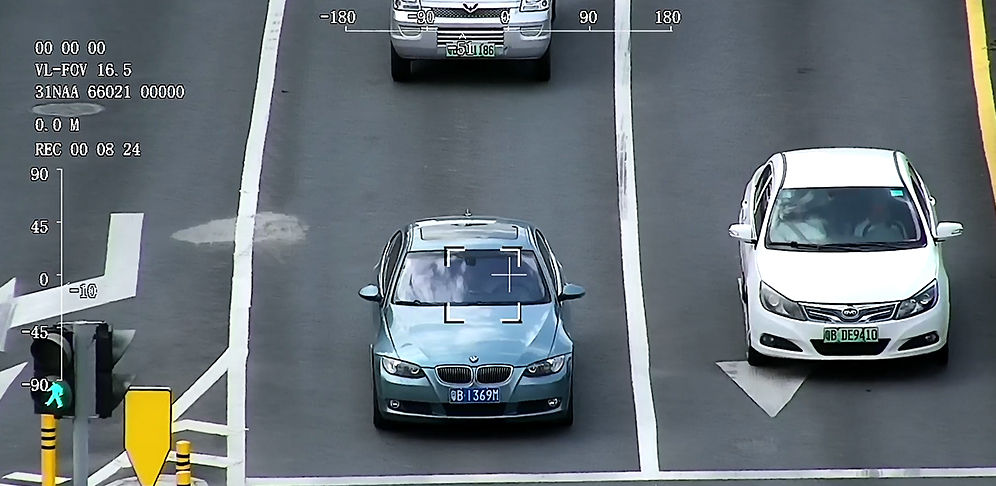

Auto object tracking
With onboard object tracking module, Sky Eye-30HZ-S is able to track static or moving target easily, keeping it in the center of the frame.
Geo-referencing
GPS coordinates from a Pixhawk flight controller will be led to the gimbal and you can read it from photo EXIF file.
Clean and simple wiring
Sky Eye-30HZ-S provides an outstanding wiring hub design for RC receiver and video output port(AV and HDMI),which makes wiring pretty easily. Also the gimbal offers 2 smart speed modes:FAST speed and LOW speed.Fast speed mode is used for small zooming range,which makes the gimbal control sensitive and quick.LOW speed mode is used for large zoom range,will enable you to target the object more accurately.

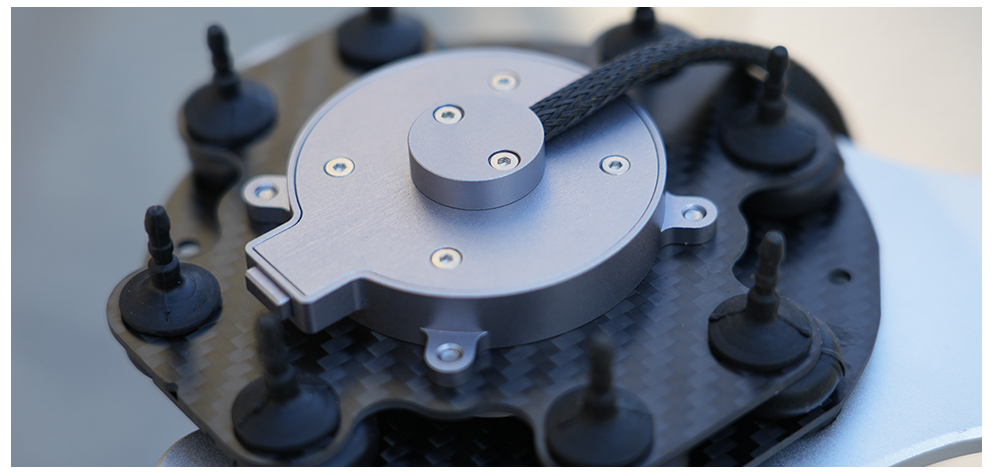

Gimbal quick-release mechanism
This feature is avalable for this camera, please check HERE to get more information.
FEATURES
1) 848grams,light weight
2) 1/2.8 inch 2.13MP CMOS SENSOR
3) 30X optical zoom, 1080P/60 HD-SDI and Ethernet output for video downlink
4) 1080P/30 H.264 video recorded for on-board TF card
5) Auto object tracking
6) Geotagging
7) PWM control and serial command control
8) Convenient wiring hub for RC receiver and video output
9) 3-aixs high stabilized gimbal system
10) Adjustable control speed: SLOW speed for large zoom range,accurate.FAST speed for small zoom range,sensitive and quick
Video
System Specification
| 30X zoom camera(SONY FCB-EV7520) | |
| Sensor | 1/2.8 inch 2.13MP CMOS SENSOR |
| Video Output | 1080P/60 HD-SDI and Ethernet 720P |
| Video recorded | 1080P/30 H.264 |
| Focal length | 30X optical focal zoom, 4.3-129mm |
| Digital zoom | 12X(360X with optical zoom) |
| Wide Dynamic | Up to 105dB |
| Auto focus | Less than 1S |
| Low illumination | 0.05lux@F1.6 |
| Aperture | Φ 16.0 |
| Gimbal system | |
| Input voltage | 3S-4S |

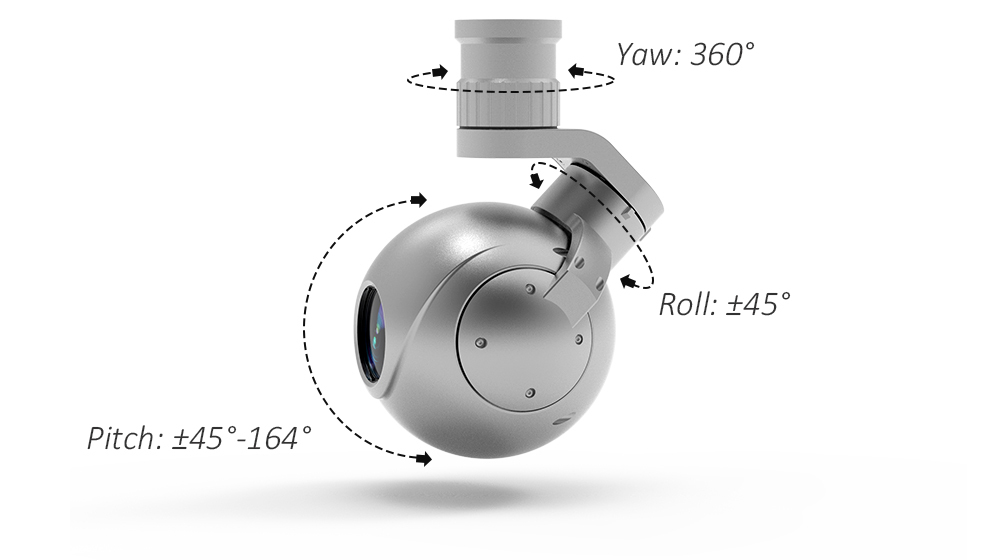

| Rotate range | Pitch: ±90° Roll: ±45° Yaw: ±150° |
| Angle amount of jitter | Pitch and roll: ±0.02° Yaw: ±0.03° |
| Control interface | PWM and serial command |
| Working Current | Static current: 330mA(@12V) Dynamic current: 450mA(@12V) |
Download Sky Eye-30HZ-S Datasheet

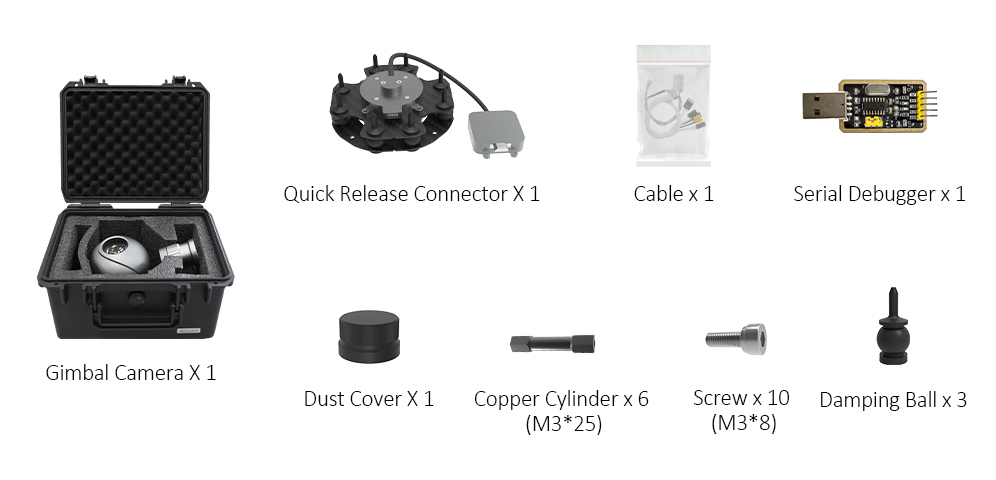

YOUR PURCHASE INCLUDES
1 x Sky Eye-30HZ-S 30X optical zoom camera
1 x Sky Eye-30HZ-S 3-axis high stabilized gimbal system
