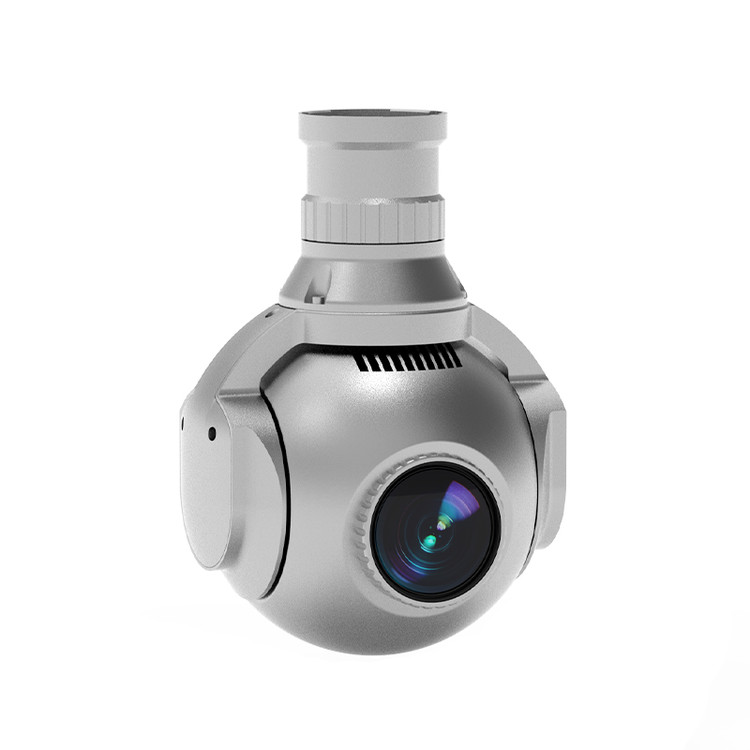

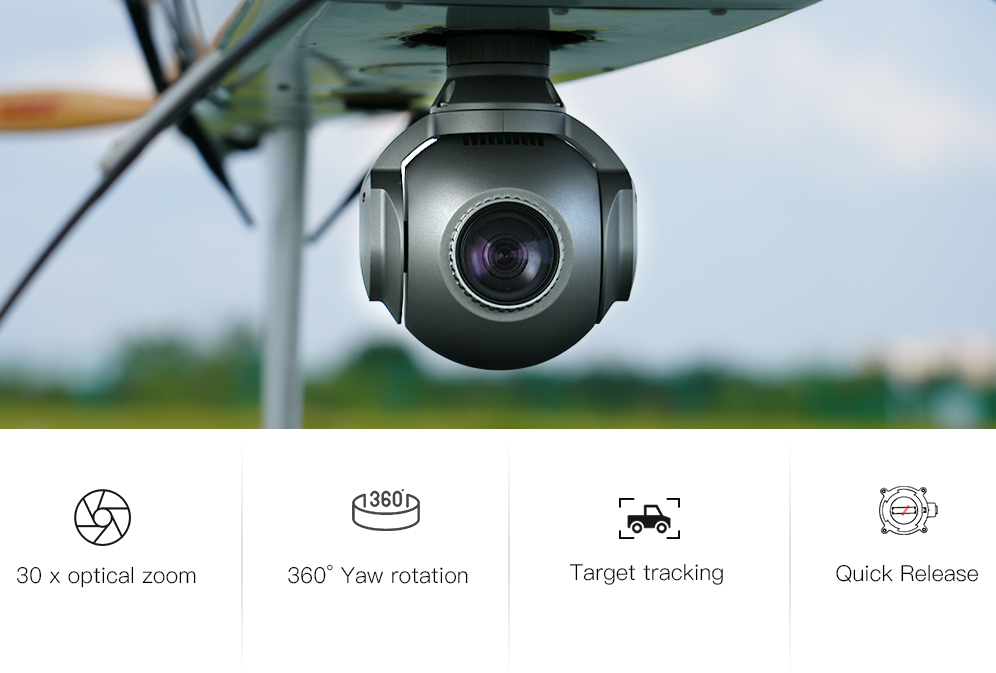

Sky Eye-U30 gyro-stabilized camera payload can be mounted on any fixed-wing or VTOL Unmanned Aerial Vehicle. It combines cutting-edge technologies in lightweight, affordable, gyro-stabilised gimbal system. Which makes it a perfect choice for applications like inspection, surveillance, search and rescue.

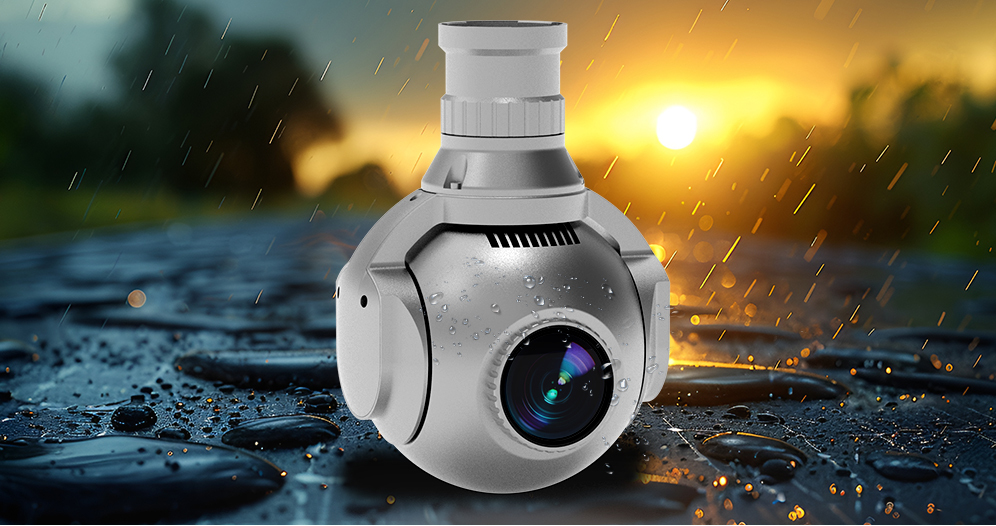

Compact and lightweight

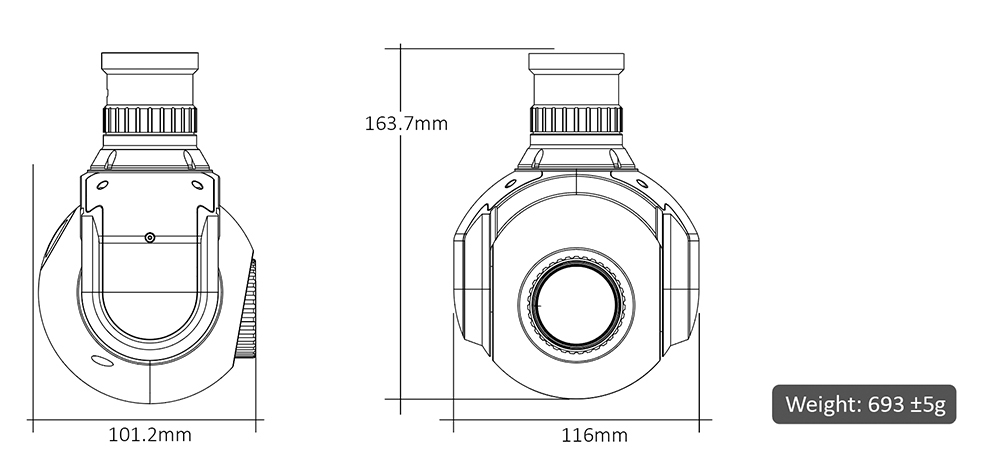

Sky Eye-U30 weighs as little as 690g to help you meet your payload weight allowance.

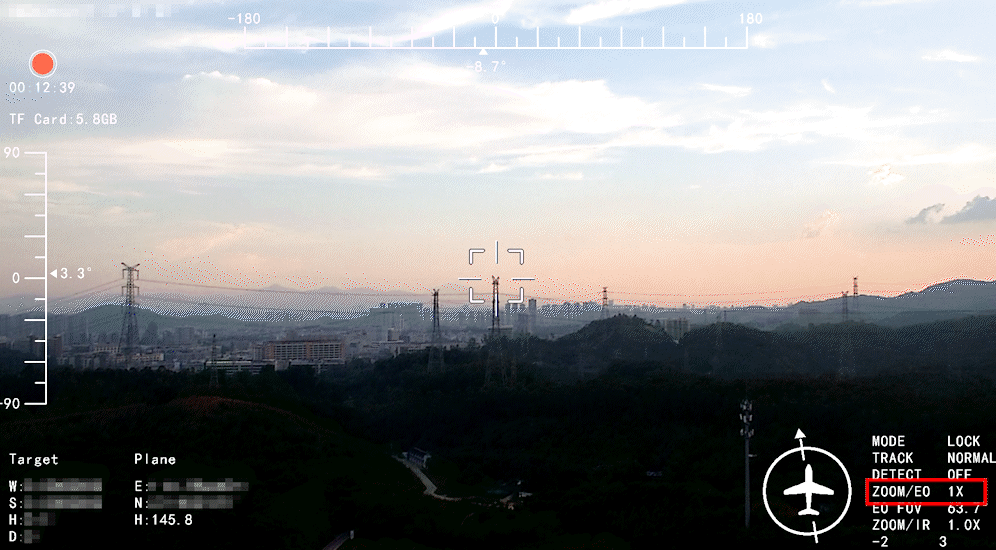

High quality video sensor
Sky Eye-U30 is using SONY FCB-EV7520 camera block, which provides 1080P 60FPS full HD video streaming and up to 360X zoom capability. It also features anti-fog, video enhancement and some other advanced features.
Continuous 360-degree rotation
The gimbal has continuous 360-degree rotation, which will enable the gimbal to track targets freely without any angle limit.

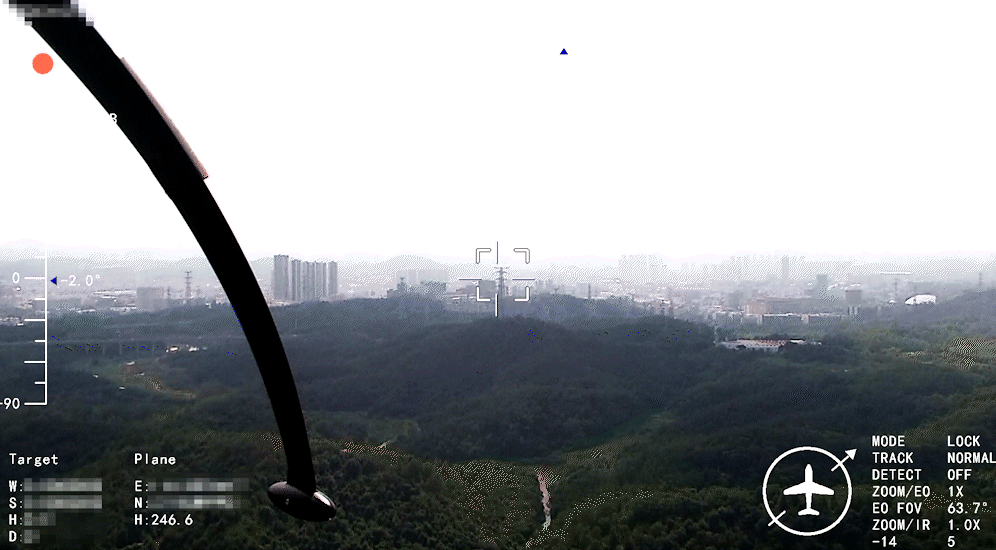

Auto object tracking
With onboard object tracking module, Sky Eye-U30 is able to track static or moving target easily, keeping it in the center of the frame.

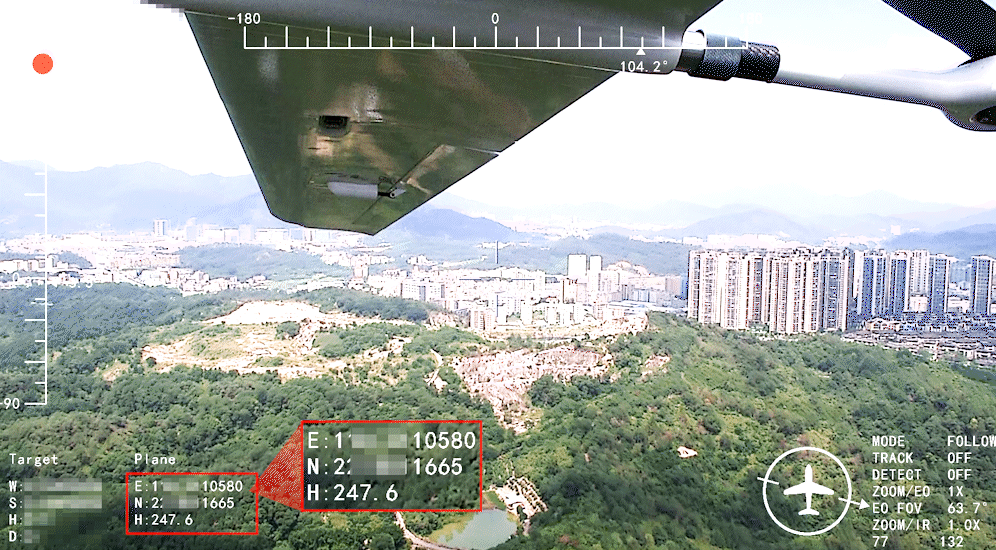

GPS coordinates from a Pixhawk flight controller will be led to the gimbal and you can read it from photo EXIF file.
Dual video output
There are 2 video streaming outputs: HD-SDI and Ethernet, which will give you the flexibility to choose the video transmitter for your drone.

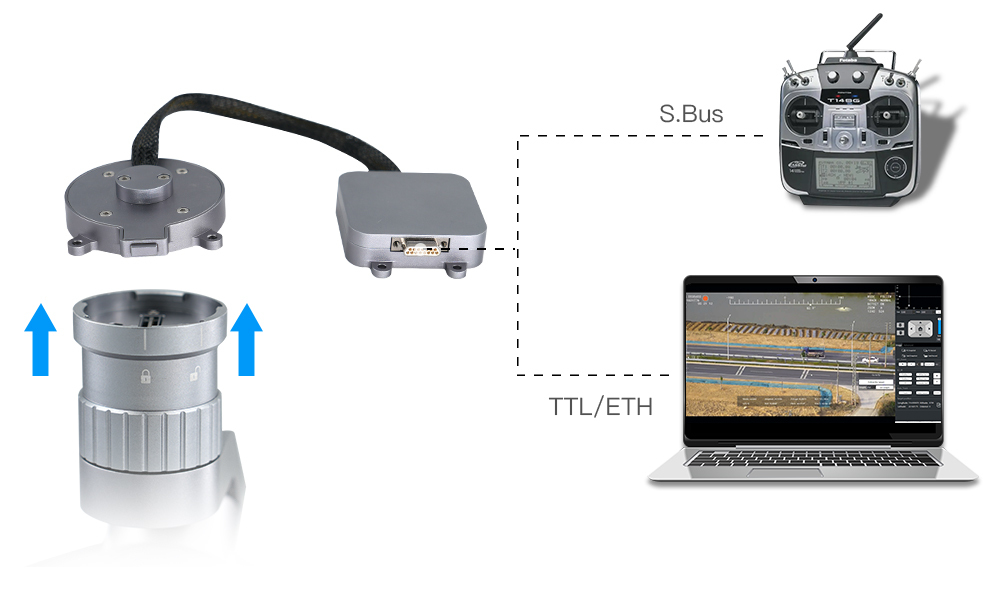

Easy for integration
Sky Eye-U30 can not only be controlled via PWM signal, but also serial command. Also, gimbal status(like Yaw/Pitch angle,zoom position etc) can be obtained by sending serial command to the gimbal via its serial port, which is really useful for precise gimbal control and system integration.
Clean and simple wiring
Sky Eye-U30 comes with one wiring hub for RC receiver and video output port, which makes wiring pretty easy and clean. Also the gimbal offers 2 smart speed modes:FAST speed and LOW speed.Fast speed mode is used for small zooming range,which makes the gimbal control sensitive and quick.LOW speed mode is used for large zoom range, will enable you to target the object more accurately.

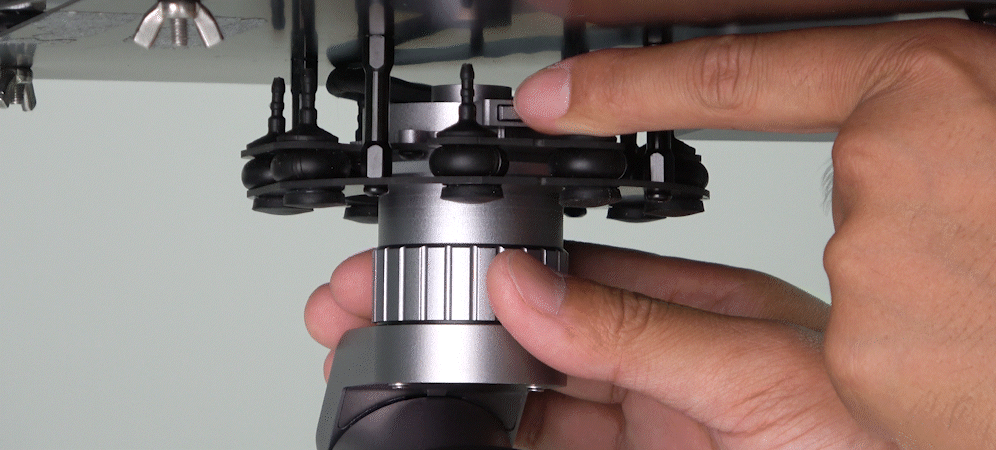

Gimbal quick-release mechanism
This feature is avalable for this camera, please check HERE to get more information.
|30X zoom camera(SONY FCB-EV7520)|
|Sensor||1/2.8-type Exmor CMOS|
|Video Output||1080P/60 HD-SDI and Ethernet|
|Video recorded||1080P/30 MP4|
|Focal length||30X optical focal zoom, 4.3-129mm|
|Digital zoom||12X(360X with optical zoom)|
|Horizontal viewing angle||1080p mode: 63.7°(wide end) ~ 2.3°(tele end)|
|720p mode: 63.7°(wide end) ~ 2.3°(tele end)|
|SD: 47.8°(wide end) ~ 1.7°(tele end)|
|Wide Dynamic||Up to 105dB|
|Auto focus||Less than 1S|
|Low illumination||Color: 0.01 lx (F1.6,AGC on,1/30s)|
|Rotate range||Pitch: ±90° Yaw: Unlimited|
|Angle amount of jitter||Pitch: ±0.02° Yaw: ±0.03°|
|Control interface||PWM, S.Bus, serial command, and software control via Ethernet|
|Working Current||Static current: 330mA(@12V)
Dynamic current: 450mA(@12V)
|Total weight (gimbal and camera)||690g|
|Working temperature||-25° ~ +60°|
Your Purchase Includes
1 x Sky Eye-U30 30X optical zoom camera
1 x Sky Eye-U30 2-axis high stabilized gimbal system
