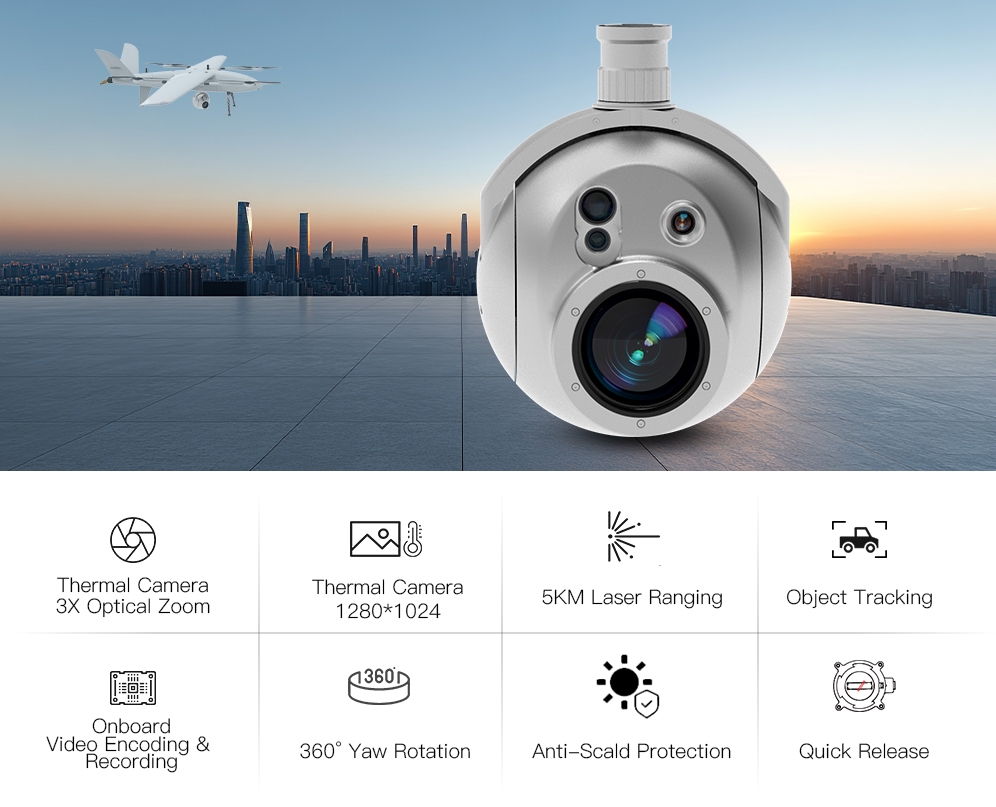

Sky Eye-3HT-MU 2-Axis IR/LRF Wide Gimbal Camera for Night Monitoring, Inspection and Tracking
Overview
The Sky Eye-3HT-MU is a 2-axis gimbal camera designed for low-light and nighttime aerial monitoring and inspection. Featuring an advanced thermal imager with a 25–75mm adjustable infrared lens, 3× optical zoom, 8× digital zoom, and a built-in AI tracking function, it delivers stable, accurate, and reliable visual imaging and data support for demanding aerial operations.
Mission Fit
Why it Performs in Demanding Monitoring Missions

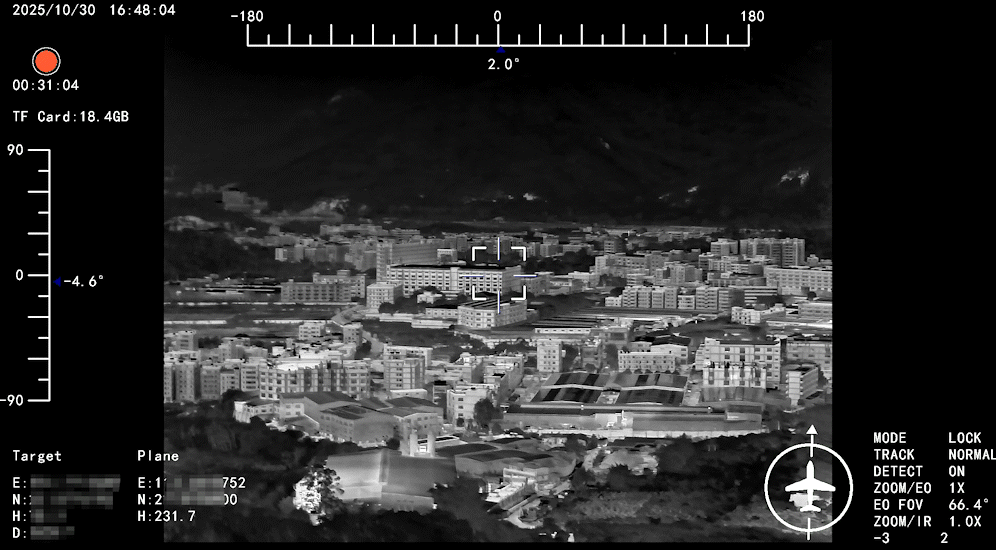

25–75mm Wide
Range IR Lens for Enhanced DRI Performance
The Sky Eye-3HT-MU integrates a UHD 1280×1024 thermal imager with a versatile 25–75mm infrared lens, enabling both wide-angle thermal observation and ultra-long-range target detection of up to 9 km. Combining flexible focal coverage with high-resolution thermal imaging, it delivers clear and accurate infrared visuals for nighttime inspection and monitoring missions, providing reliable situational awareness in demanding low-light environments.

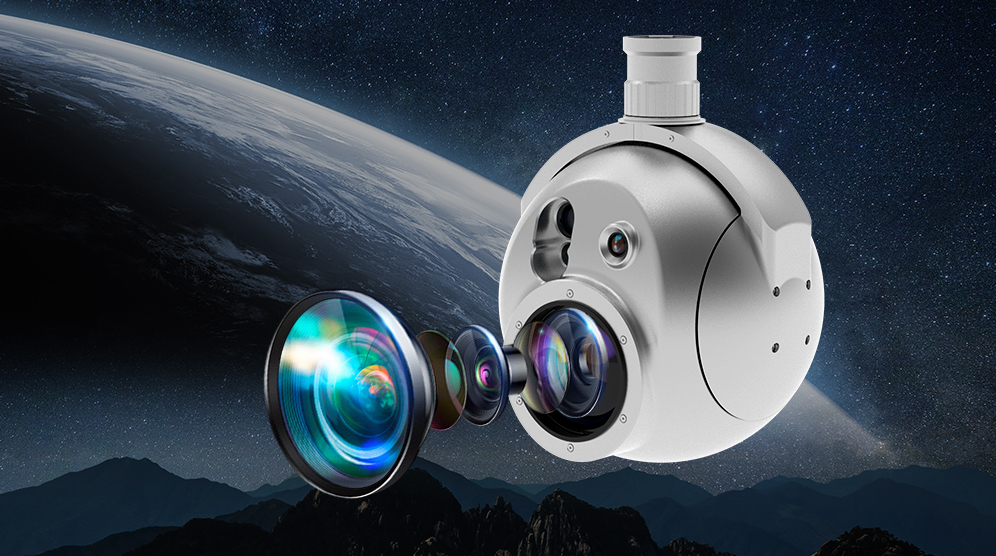

3x Optical / 8x Digital Zoom
Enhanced Night Detail Capture
Equipped with 8× digital zoom and an upgraded 3× optical zoom system, the Sky Eye-3HT-MU delivers clearer, sharper, and more detailed nighttime imaging. This enhanced zoom capability supports industrial operators in achieving more efficient, data-driven night monitoring, even at medium-range observation distances.

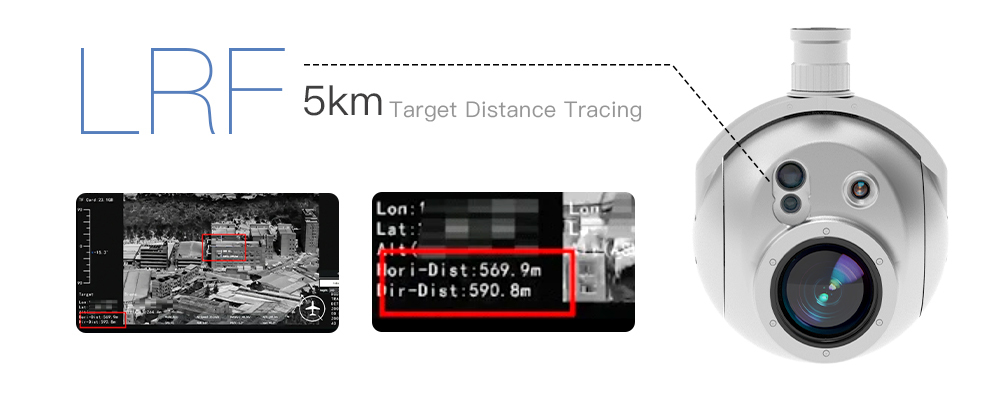

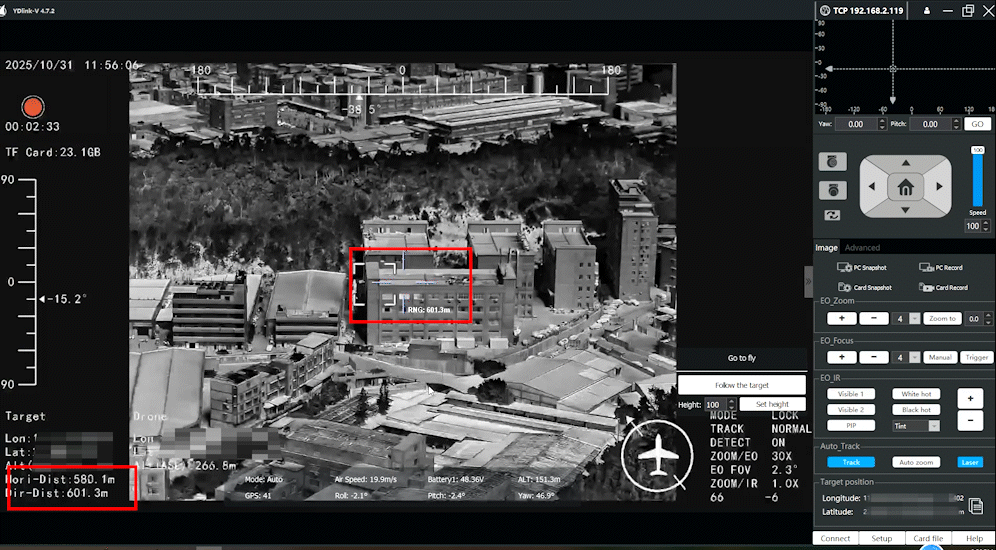

5km LRF & AI Tracking
Precise Target Control
Real-time target ranging up to 5 km, combined with AI-powered recognition and auto-tracking. The Sky Eye-3HT-MU ensures continuous target awareness, minimizing the risk of target loss even in complex and dynamic environments.

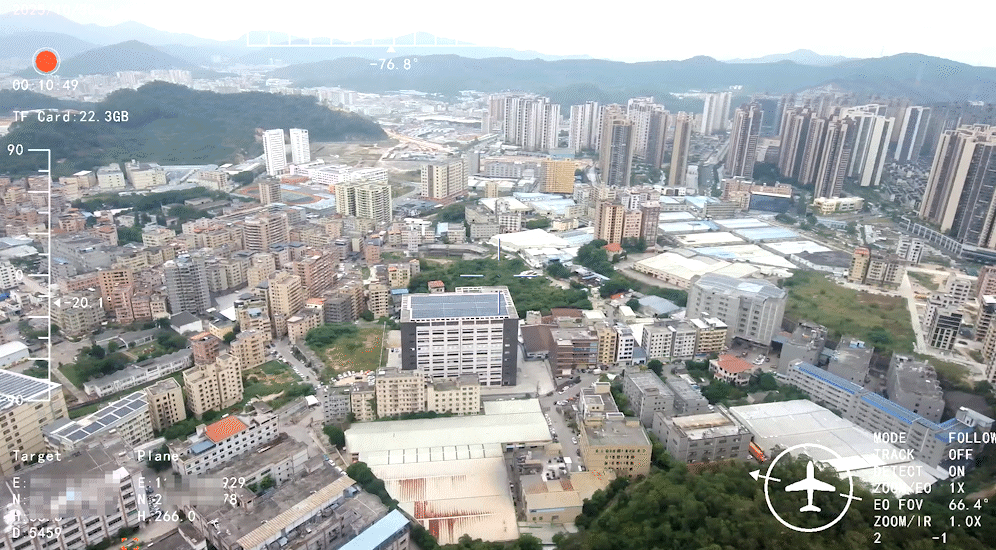

4K Wide-Angle
Expanded Field of View
With a 3840x2160 resolution and a 125° diagonal FOV wide-angle lens, the Sky Eye-3HT-MU delivers an ultra-wide field of view, enabling full-area visibility and enhanced coverage of large areas, effectively reducing mission time.

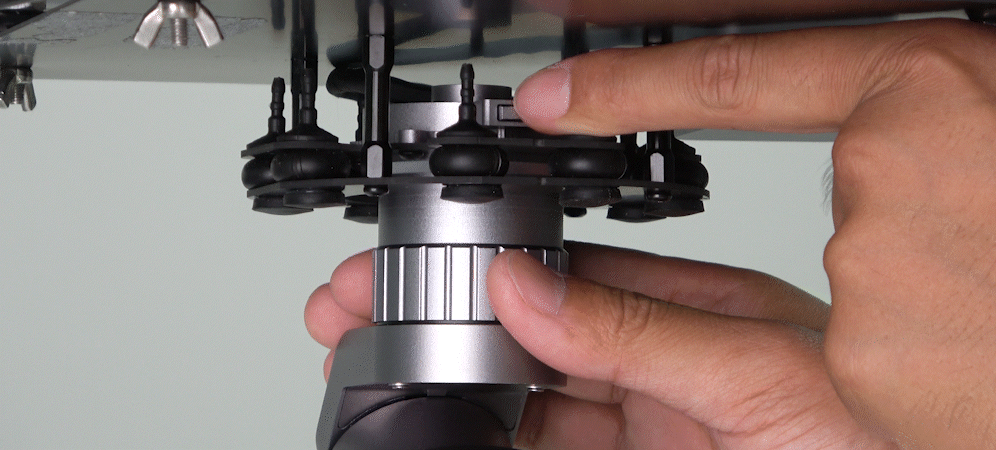

2-Axis Gimbal
Plug-and-Play Integration
Designed with a quick-release mechanism, the 2-axis Sky Eye-3HT-MU enables tool-free installation and flexible switching between aerial views, streamlining deployment while maximizing operational flexibility.

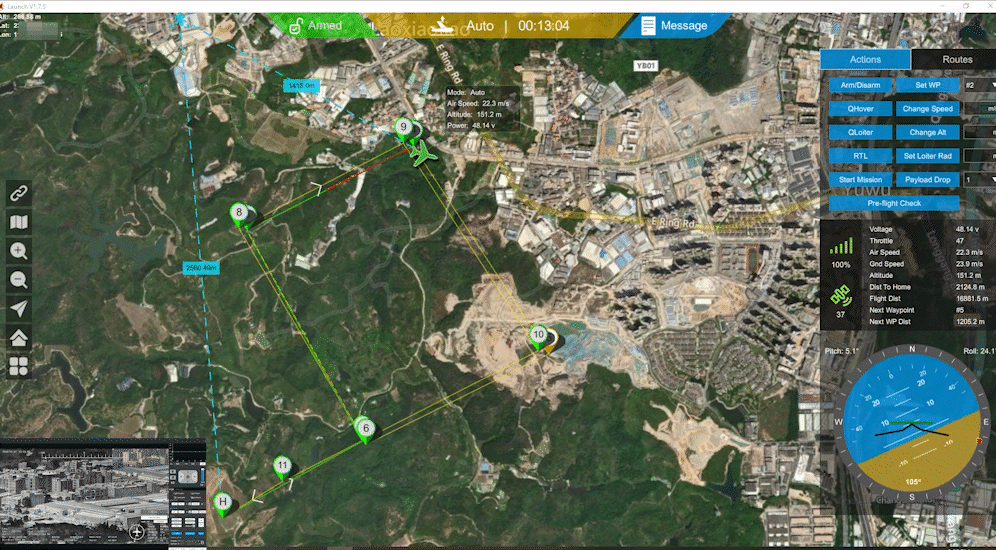

Designated Control System
Compatible to MAVLink

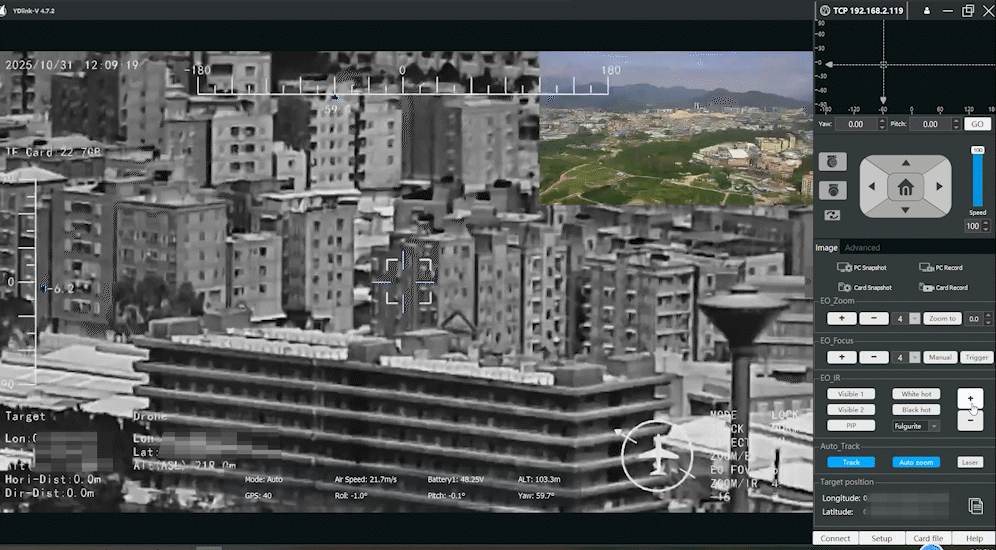

Powered by the in-house YDlink camera control software, the Sky Eye-3HT-MU supports MAVLink protocol and integrates with PX4 and ArduPilot flight control systems, enabling real-time telemetry, video transmission, and precise command execution for efficient and reliable aerial operations.
Highly Resilient
In Harsh Environments
Equipped with built-in thermal sensor protection, the Sky Eye-3HT-MU operates within a temperature range of -10°C to 55°C and withstands up to 30 seconds of direct sunlight exposure, ensuring reliable performance across diverse operating environments.
Target Tracking
Via Coordinated Camera-Drone Control
Through integration with the camera and drone control system, the Sky Eye-3HT-MU enables the drone to automatically adjust its flight path to follow the target. This ensures synchronized operation between the camera and the drone, maintaining readiness for real-time execution of target-related commands.
UAV, UGV, USV Compatible
All-Round Imaging Support
Featuring a stabilized gimbal platform, long-range zoom, clear day-and-night observation, and intelligent target detection and tracking, our gimbal cameras integrate seamlessly with UAVs, ground vehicles, marine vessels, and robotic platforms, delivering dependable imaging support for a wide range of industrial missions.
Best Fit For
Platform Compatibility
Designed for efficient and practical UAV integration, including:
High Compatibility with
● Platforms: VTOL / multirotor drones
● Systems: PX4 / ArduPilot
● Protocol: MAVLink
● Interfaces: PWM / S.Bus / UART / Ethernet
In-House Operating Technologies
● Operating System: YDlink control system
● Deployment: Quick-release mechanism
Key Specifications
Recommended Applications
How to Choose
Choose This Model If You Need
For requirements of IR and LRF cameras, please refer to
● High-resolution thermal visibility at night
● Efficient thermal detection
● Built-in laser ranging
● An all-in-one payload for search, tracking, and ranging
Sky Eye-3HT-MU night vision camera: UHD 3X optical zoom thermal imager, 5km LRF, 4K wide angle
| Gimbal system | Input voltage | 12V |
| Video output | 1080P/720P 30fps Ethernet | |
| Video recorded | 1080P/720P 30fps MP4 | |
| Photo | JPG(1920*1080) | |

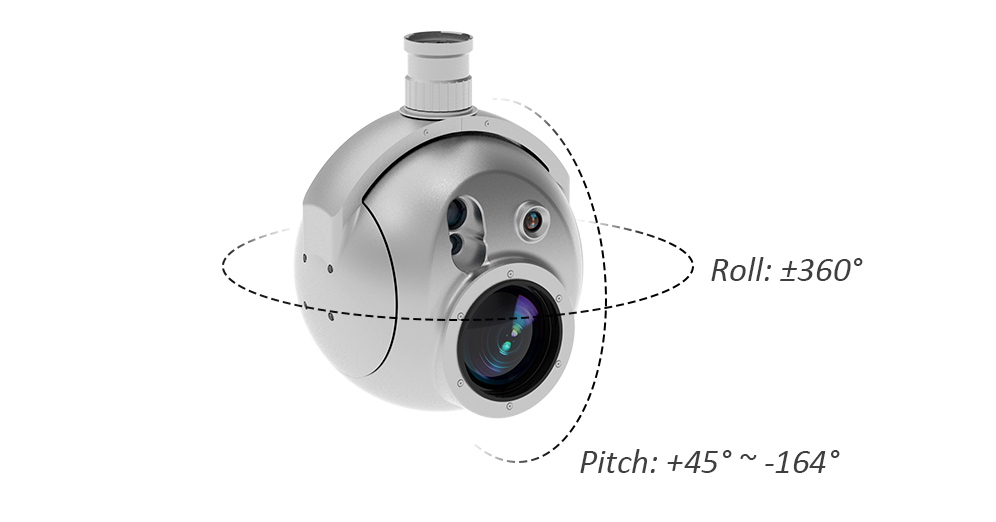

| Rotate range | Pitch: +45° ~ -164° Yaw: Unlimited | |
| Angle amount of jitter | Pitch: ±0.02° Yaw: ±0.02° | |
| Control interface | PMW, S.Bus, UART and Ethernet | |
| Working Current | Static current: 650 mA(@12V) | |
| Dynamic current: 850 mA(@12V) | ||
| Local storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) | |
| Mechanical feature | Total weight (gimbal and camera) | 2740g±5g |
| Working temperature | -10° ~ +50° | |
| 4K Wide angle camera | Resolution | 8MP |
| FOV | 125°x114°x73° | |
| Thermal imager | Lens | 25-75mm |
| Working system | Un-cooled long wave (8μm～14μm) | |
| Detector pixels | 1280×1024 | |
| Pixel size | 12μm | |
| Focusing | Athermalizing | |
| Focal length | 3x optical focal zoom | |
| Digital zoom | 8x | |
| FOV | Horizontal: 11.7~34.2° | |
| Vertical: 9.4~27.6° | ||
| Diagonal: 14.9~43° | ||
| 25~75mmDetective Distance (Man: 1.8x0.5m) | 1042~3125 meters | |
| 25~75mmRecognize Distance (Man: 1.8x0.5m) | 260~781 meters | |
| 25~75mmVerified Distance (Man: 1.8x0.5m) | 130~391 meters | |
| 25~75mmDetective Distance (Car: 4.2x1.8m) | 3194~9583 meters | |
| 25~75mmRecognize Distance (Car: 4.2x1.8m) | 799~2396 meters | |
| 25~75mmVerified Distance (Car: 4.2x1.8m) | 399~1198 meters | |
| Emissivity correction | Emissivity 0.01~1 adjustable | |
| NETD | ≤30mk@f1.0/25℃ | |
| Image enhancement | Automatically adjusts image brightness and contrast | |
| Color palette | White hot, black hot, pseudo color | |
| Automatic non-uniformity | Yes(with or without shutter) | |
| correctionfunction | Yes(with or without shutter) | |
| Time synchronization function | Yes | |
| Anti-Scald | 30s of direct sun exposure; recovery within 24 hours. | |
| 5000m laser range-finder | Measuring distance | Over 3000m (car: 2.3m×2.3m) |
| (Visibility no less than 5km, diffuse reflectance over 0.3, humidity less than 80%) | Over 1500m (human: 1.75m×0.75m) | |
| Over 5000m (building) | ||
| Laser Wavelengths | 1535nm ± 5nm | |
| Laser divergence angle | Less than0.5mrad | |
| Continuous measuring frequency | 1~10Hz adjustable | |
| Ranging accuracy | No more than ±2m (RMS) | |
| Accuracy rate | Over 98% | |
| Minimum range | No more than 20m | |
| Ranging resolution | No more than 30m (multiple targets) | |
| Operating temperature | -40℃~ +65℃ | |
| Storage temperature | -55℃~ +70℃ |
