ATOM-II AI Tracking Board For Thermal Camera
Overview

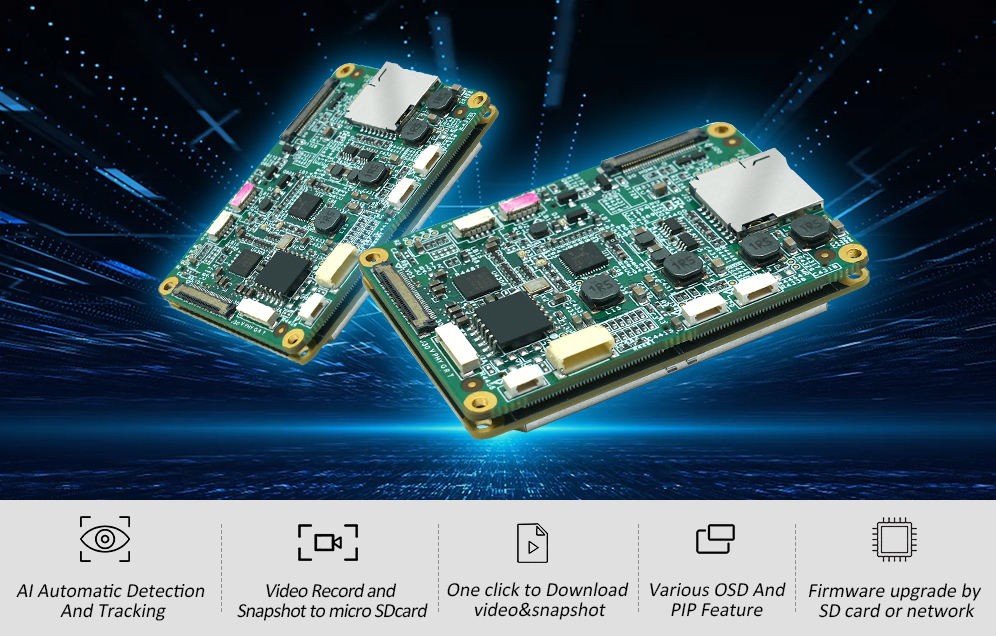

Weighing only 25g, ATOM-II is a compact high-end module designed for intelligent drone imaging. Equipped with advanced algorithms and typically paired with EO/IR sensors, it delivers accurate real-time recognition and tracking of target vehicles and individuals, enabling autonomous visual and data support for demanding aerial missions such as border patrol and disaster response.

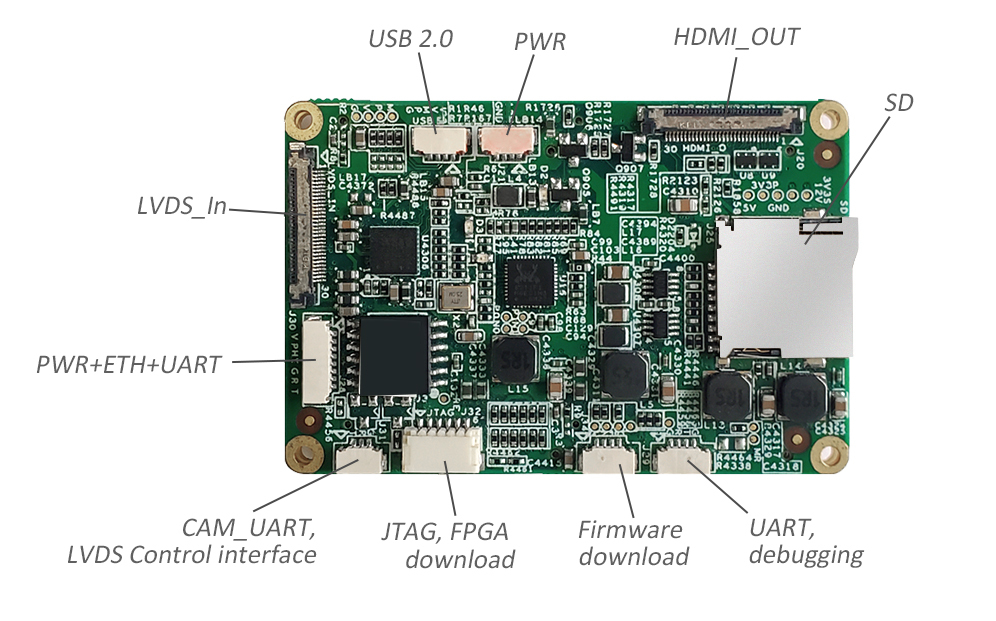

High-Quality Materials
Intuitive Interface
Featuring a compact double-layer snap-on board and precision-engineered components, ATOM-II uses premium electronic materials and an intuitive, professional interface, ensuring easy installation and reliable performance in field applications.
Accurate AI Identification
Designed for real-time
Designed for real-time, high-precision target recognition, ATOM-II combines AI algorithms with EO and IR imaging. It delivers reliable automatic detection and classification for efficient aerial operations.

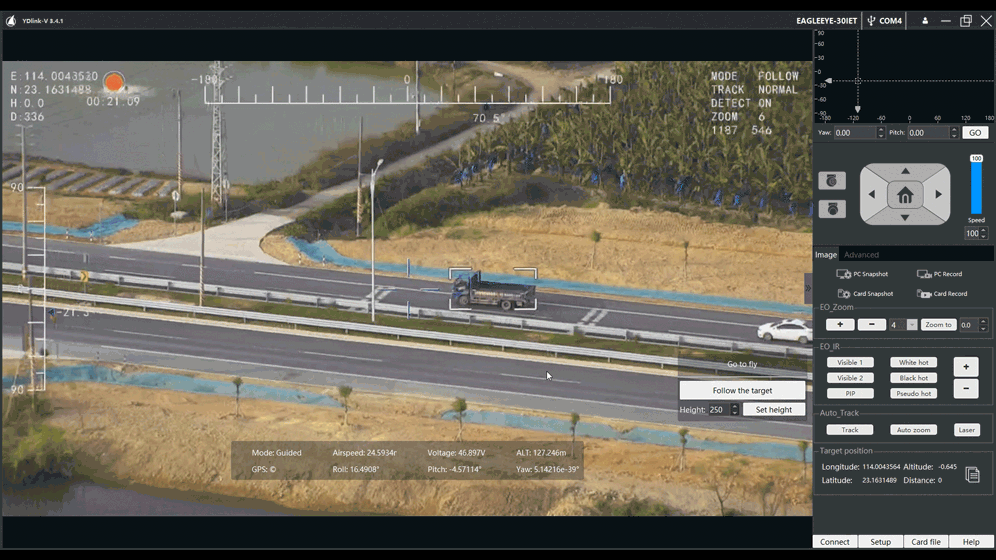

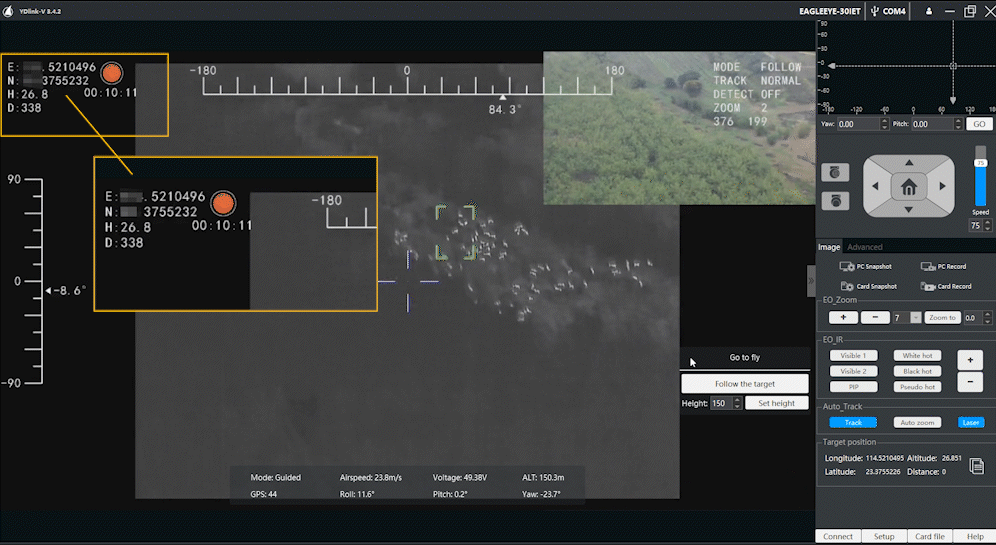

Intelligent Target Tracking
Intelligent EO/IR Target Tracking
Powered by advanced AI algorithms and EO/IR sensors, ATOM-II enables real-time, high-precision tracking of vehicles and individuals with intelligent occlusion handling.
Customizable On-Screen Display
Configurable Multi-Information OSD
ATOM-II supports customizable on-screen display, allowing multiple types of information to be displayed simultaneously on the screen, including aircraft coordinates, camera angle, and recording time, enhancing monitoring efficiency and operational convenience.

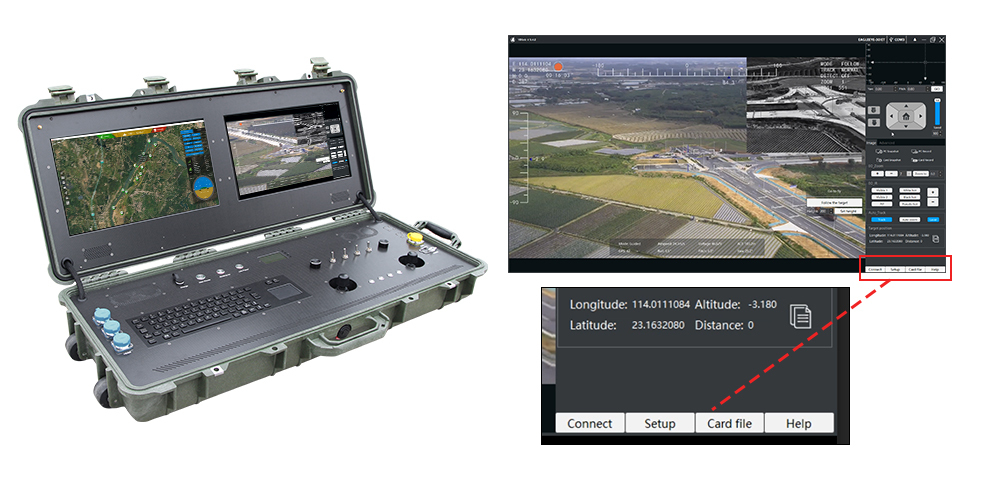

Quick Footage Export
Rapid Video & Image Download
Paired with YDlink, YANGDA's self-developed camera software, operators can quickly download target videos and snapshots for sharing with team members and saving for future review and storage.
Strong Environmental Adaptability
ATOM-II Wide Temperature Range Adaptability
Exhibiting strong environmental adaptability from -20°C to 50°C, ATOM-II supports quick startup and continuous operation across diverse operational conditions.

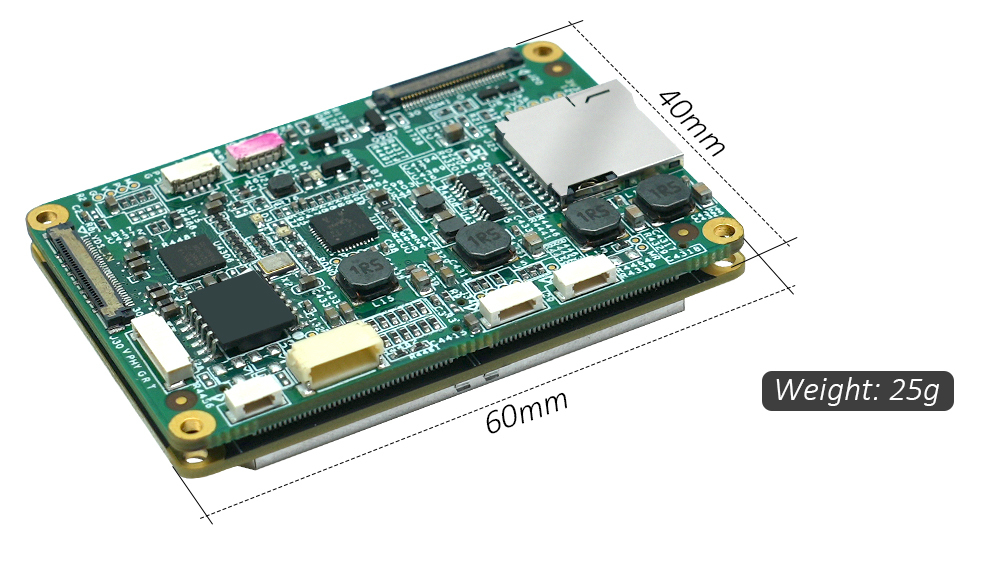

Product size
- Size: 40*60mm
- Weight: 25g
- Power Consumption: Stable power consumption＜7W
- Input Interface: Compatible with Sony LVDS visible light video interface(1920*1080 30fps)or USB visible light video interface(1920*1080 30fps，MPEG/H264), Support Guide/Infiray thermal imaging USB interface(640*512 30fps), HDMI visible light video interface(1920*1080 30fps)or USB visible light video interface(1920*1080 30fps，MPEG/H264), Support Guide/Infiray thermal imaging USB interface(640*512 30fps)
| Size | 40*60mm |
| Weight | 25g |
| Power Consumption | Stable power consumption＜7W |
| Input Interface | Compatible with Sony LVDS visible light video interface(1920*1080 30fps)or USB visible light video interface(1920*1080 30fps，MPEG/H264) |
| Support Guide/Infiray thermal imaging USB interface(640*512 30fps) | |
| HDMI visible light video interface(1920*1080 30fps)or USB visible light video interface(1920*1080 30fps，MPEG/H264) | |
| Support Guide/Infiray thermal imaging USB interface(640*512 30fps) | |
| Output Interface | HDMI output(1920*1080 30fps/60fps) |
| Network output RTSP/UDP/TSCompress video(1920*1080 30fps, h264/h265) | |
| Control Interface | One TTL serial port / 100 Mbit/s network port |
| Video encoding and decoding | Support 1 channel 1920*1080 30fps video H264/MPEG decoding |
| Supports 2-channel 1920*1080 30fps video H264/H265 encoding for output and storage, with adjustable compression bit rate | |
| Detection | Detect typical vehicles and human targets in real time and assist in selecting and tracking targets. |
| The target number of typical vehicles and people can be counted and output. | |
| Support user-defined model update function. | |
| Tracking | High-precision tracking of fixed and moving targets in acquired ground scene images. |
| Voltage | 12V |
| Operating temperature | -20℃~50℃ |
