Behind the Scenes on How YANGDA Produces Its High-Precision Gimbal Cameras

YANGDA has been a trusted drone manufacturer since 2014. We are also a popular manufacturer of drone gimbal cameras. Aside from providing high-quality products, we also place high importance on our customers by providing technical consultation and 24/7 chat through our website. For this reason, it’s not surprising that YANGDA has become an established name for gimbal cameras worldwide.

You don’t have to take our word for it. In this article, you will witness the step-by-step process of how we produce our YANGDA gimbal cameras. Here’s the behind-the-scenes look at how we do it, from assembly to testing.

The Manufacturing Journey

We understand that every detail matters, from real-time surveillance to saving lives. Therefore, we have decided to be transparent about our services and show you the behind-the-scenes of how we produce our gimbal cameras. Because you matter to us, you can be assured that our quality control starts when the parts arrive at our plant and continues until the cameras are available on the market.

Precision Assembly

Behind The Scenes on How YANGDA Produces Its High-Precision Gimbal Cameras 1

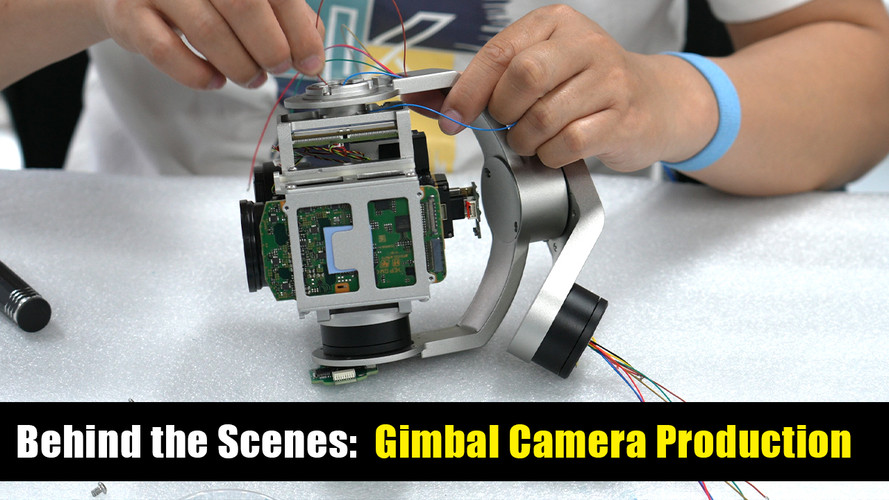

The quality assessment begins when the parts and materials arrive at our factory. Our materials undergo strict material inspections of their dimensional accuracy, surface integrity, and structural quality. Only components that pass YANGDA’s standards will proceed to the next phase.

The different parts, such as the motors, bearings, and wiring harnesses, are installed with utmost care. Every screw is tightened, and every cable is connected to the right areas to ensure the durability.

As for the camera lens, we assemble it by hand for precise alignment, as we are aware that even a small mistake can compromise its functionality.

Technical Debugging

Behind The Scenes on How YANGDA Produces Its High-Precision Gimbal Cameras 2

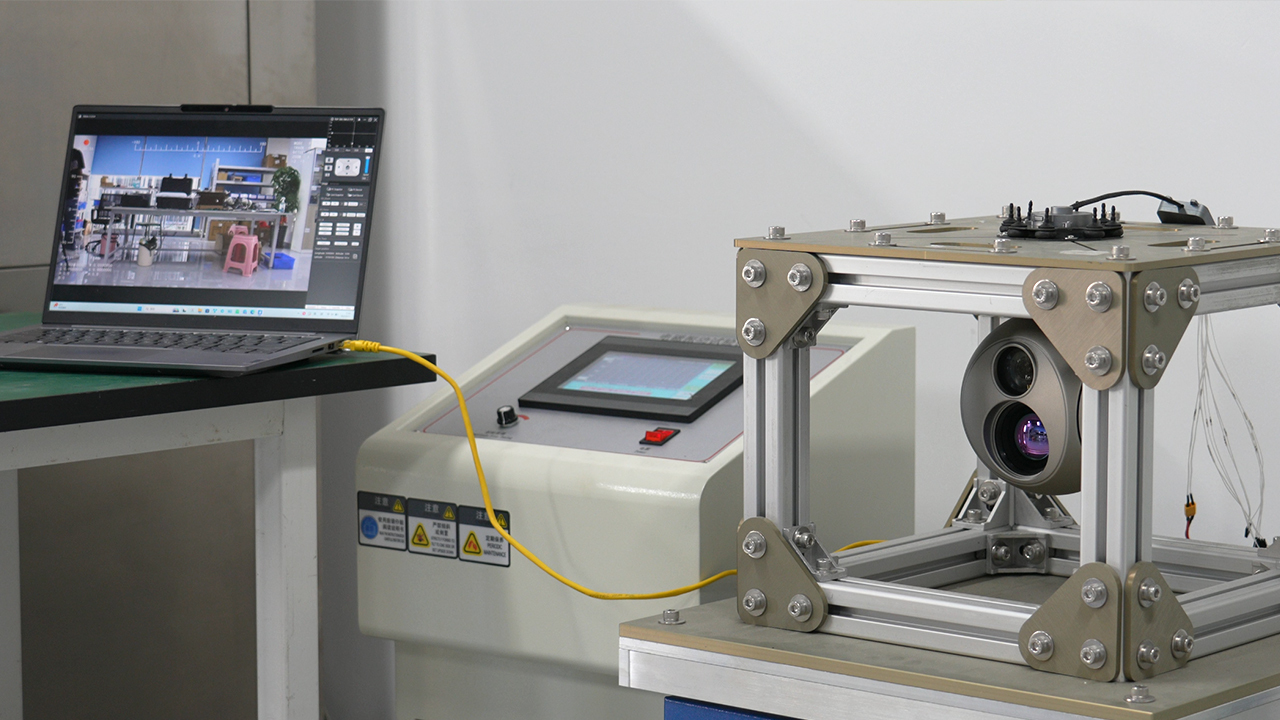

After basic assembly, the system undergoes its first tests. Mounted on specialized rigs, this piece is rotated and tilted through various angles to check the motion’s smoothness, response accuracy, and mechanical balance.

This step detects mechanical or calibration issues before they become bigger problems in the future. Finally, when all the intricate parts are working, that’s when we put together all the other parts to complete the final form of our gimbal camera.

Rigorous Testing

But the initial test is not enough. Gimbal cameras are subjected to extreme environmental conditions, and we have to make sure that our camera can withstand these harsh environments.

Lab Tests

Behind The Scenes on How YANGDA Produces Its High-Precision Gimbal Cameras 3

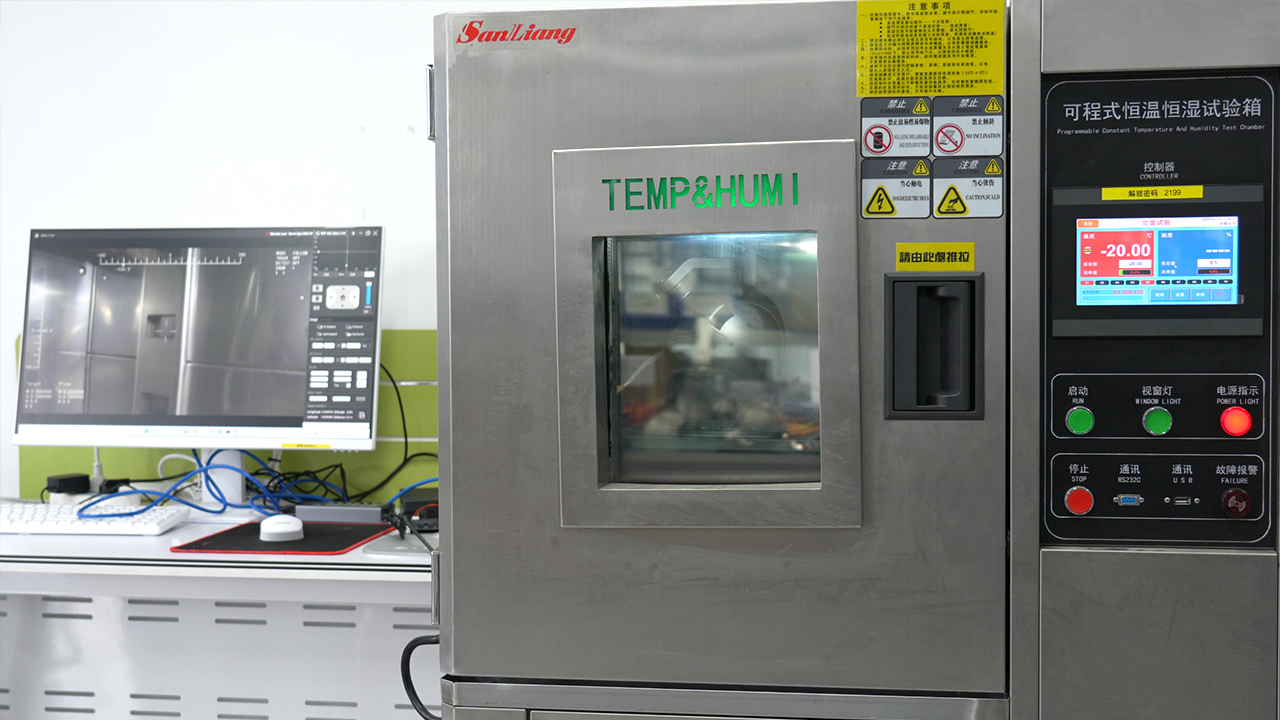

The resilience of the YANGDA gimbal camera is tested by subjecting it to low and high temperatures, ranging from -20°C to 55°C. It also undergoes the High-Frequency Vibration Image Stabilization test to ensure it can withstand extreme temperatures and turbulence.

We also need to ensure that the camera will last. That is why it also undergoes the aging test, where the gimbal cameras are operated continuously to ensure that they can be used for a long time.

“We monitor any sign of performance degradation to ensure that each camera maintains its precision even after an extended period.” - Yangda engineer

Field Trials

Behind The Scenes on How YANGDA Produces Its High-Precision Gimbal Cameras 4

To ensure that our gimbal cameras serve their purpose, as the final process, our engineers mount gimbals onto drones to test them live outdoors. By using specialized software, we fine-tune our gimbal cameras’ performance to optimize them for real-world missions.

The YANGDA Gimbal Series: Introducing the Storm Eye and the Sky Eye Series

We proudly introduce the Storm Eye and the Sky Eye series. Each of our Storm Eye and Sky Eye models has its own unique features that are useful in different applications.

YANGDA’s gimbal cameras are designed for industrial inspection, security surveillance, search and rescue, and UAV applications, offering high-performance multi-spectral imaging and intelligent tracking capabilities. The series includes mono (single), dual, and triple-sensor gimbal cameras, combining visible light, thermal, and laser rangefinding for all-weather, day/night operations. Here are some of YANGDA’s flagship models:

Storm Eye Series – Key Models

Storm Eye-30IE-HTM50:

30x optical zoom
UHD 1280x1024 thermal camera
5KM radar rangefinder
Target GPScoordinate
Auto-identity: auto detection and tracking
Fly by camera: autonomous tracking
Monitor target movement status via GCS
Anti-scald protection

Storm Eye-40lE:

40x optical zoom
640*512 resolution thermal imaging
3-axis gimbalcontrol
8x digital zoom
Auto-Identity: auto detection and tracking
Fast deploy and simple gimbal control

Storm Eye-20lE-MK:

4K UHD resolution
20x optical zoom
640x512 resolution thermal imaging
3KM radar rangefinder
AI recognition and tracking
Fly by camera
Monitor target movement status via GCS

Storm Eye-30lE-M:

30x optical zoom
640*512 resolution thermal imaging, 35mm lens
3KM radar rangefinder
Target GPS coordinate
Auto-identity: auto detection and tracking
Fly by camera
Onboard video encoding & recording

Storm Eye-30lE-M50:

30x optical zoom
640*512 resolution thermal imaging, 50mm lens
3KM radar rangefinder
Target GPS coordinate
Auto-identity: auto detection and tracking
Fly by camera
Monitor target movement status via GCS

Sky Eye Series – Key Models

Sky Eye-30HZ-S:

30x optical zoom
12x digital zoom
3-axis gimbalcontrol
Target tracking
Quick release
Onboard video encoding & recording

Sky Eye-40HZ:

40x optical zoom
32x digital zoom
3-axis gimbalcontrol
Target tracking
Quick release
Onboard video encoding & recording

Sky Eye-HT50:

UHD 1280x1024 thermal camera
3-axis gimbalcontrol
Target tracking
AI Recognition
Fast deploy and simple gimbal control

Engineered for Excellence

YANGDA gimbal cameras are engineered, tested, and perfected before they reach your hands. Each unit undergoes rigorous inspection and assembly, followed by a series of tests to ensure it can perform in drastic temperatures, intense vibration, and long-term use in the field.

Here at YANGDA, we never leave quality to chance. We are dedicated to providing a holistic approach by ensuring you get the best drone products and customer support.

Visit our website for full details on YANGDA gimbal drone cameras.
