YANGDA FW-320 Fixed Wing VTOL Plane

YANGDA FW-320 Fixed Wing VTOL Plane

$9,400.00
SKU:
FW-320
Weight:
52.00 KGS

Introduction

YANGDA FW-320 is a reliable and affordable VTOL fixed-wing plane designed for long-range inspection, survey, aerial photography, agriculture, search and rescue and public safety applications. As a fixed-wing UAV with VTOL and hover capabilities, the FW-320 features a modular airframe that can be set up in less than 10 minutes, does not require runway or catapult to get airborne. Once in the air, the aircraft transitions to horizontal flight as a push-prop fixed-wing.

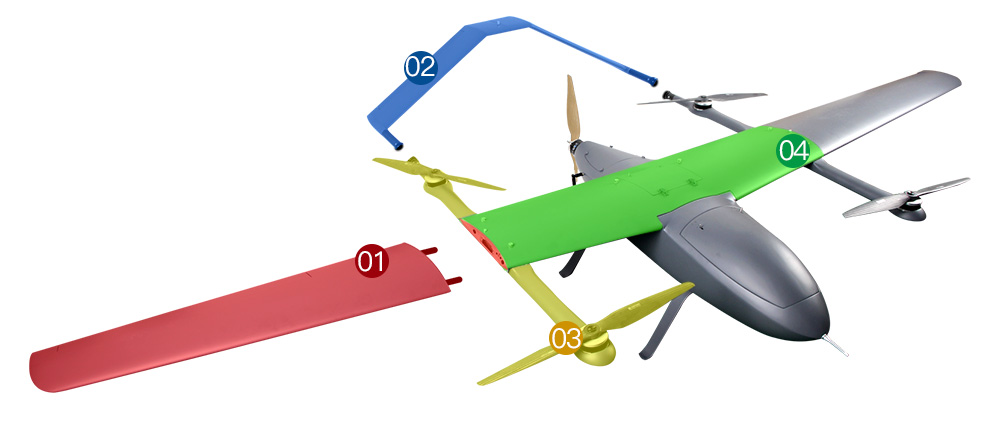

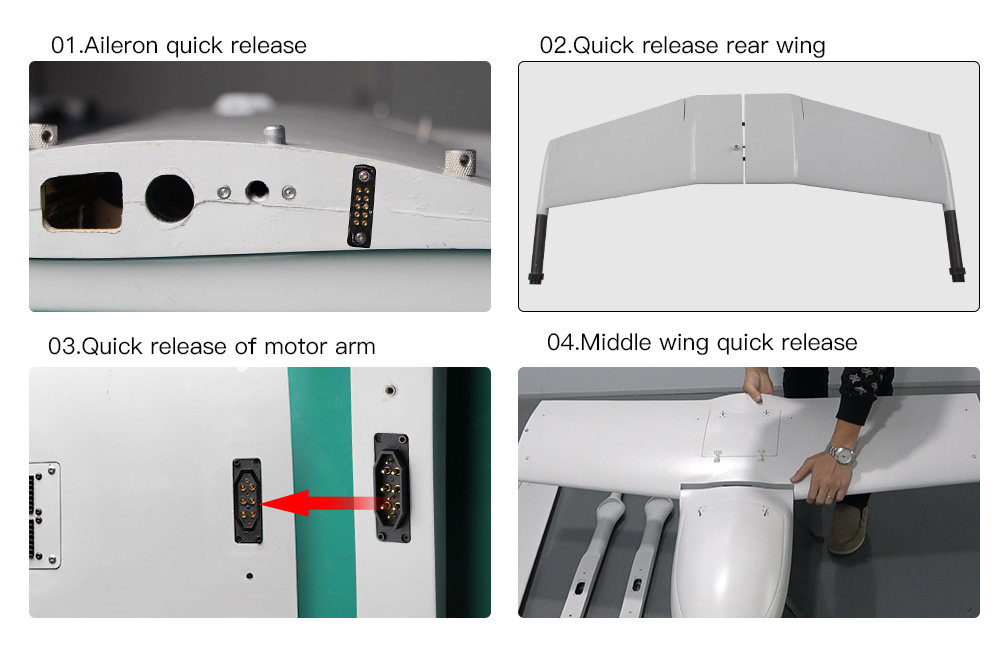

Tool-free assembly
Due to its modular airframe design, FW-320 fixed-wing plane can be set up in less than 10 minutes by a single man.

Long flight time
FW-320 airframe is using light-weight and high strength composite material, which will enable the fixed-wing plane to fly up to 2.5 hours at 23KG take-off weight, at an average cruising speed of 78KM/H.

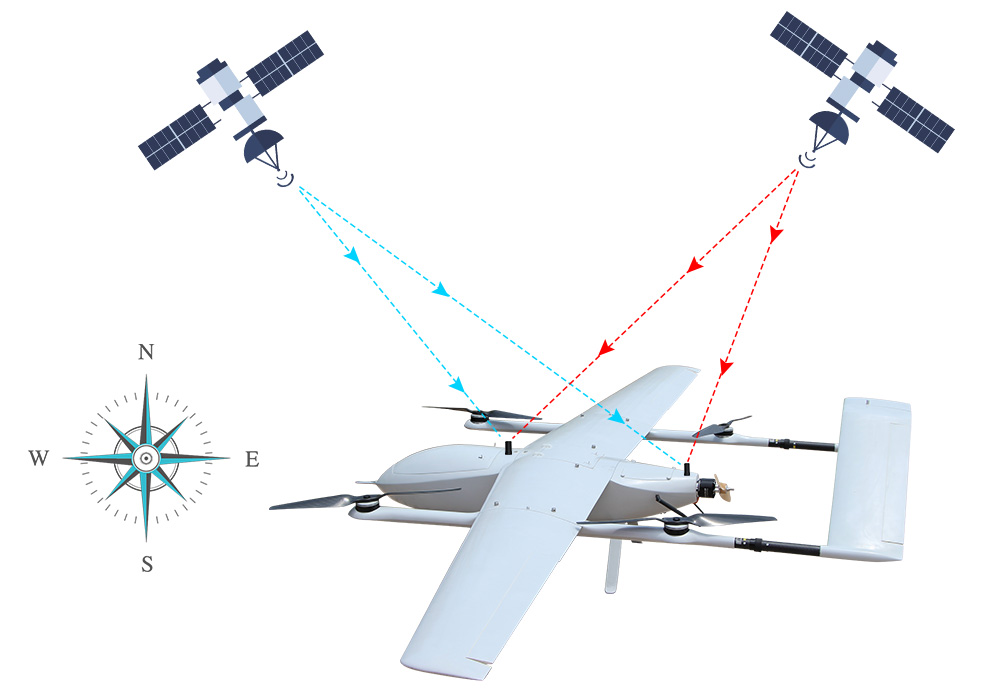

Compass calibration-free (optional)
The pilot does not need to do compass calibration on the VTOL UAV, saving lots of time in emergency tasks. Furthermore, the fixed-wing VTOL won't get affected by surrounding electromagnetic interference (EMI) anymore since the compass is replaced by DGPS, significantly improving the VTOL flight stability in the air.

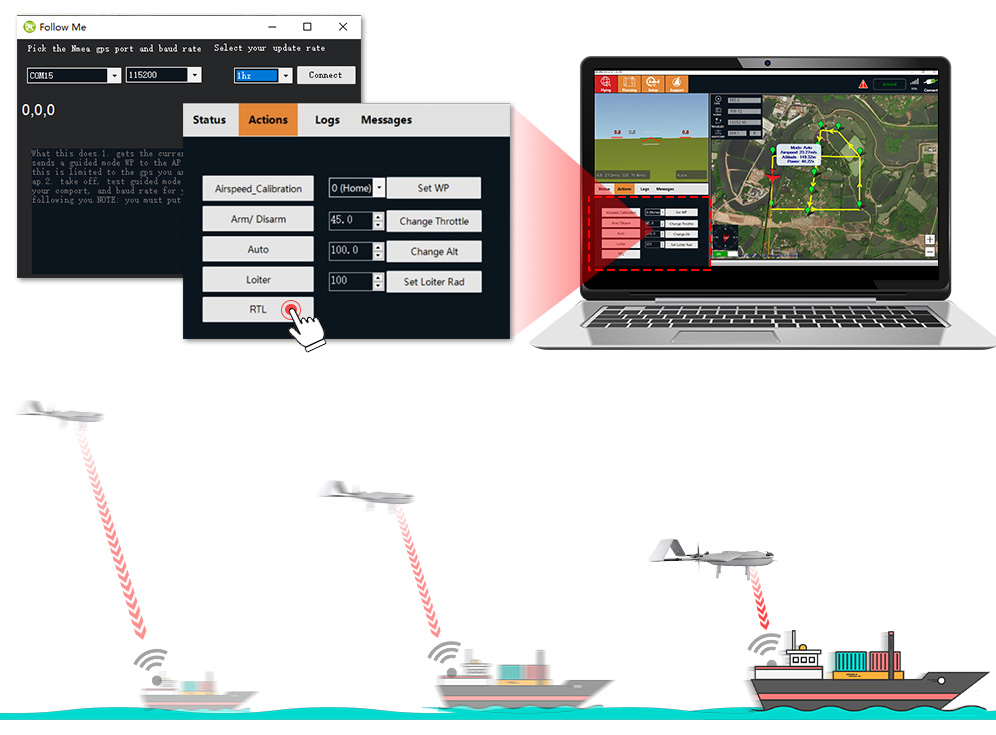

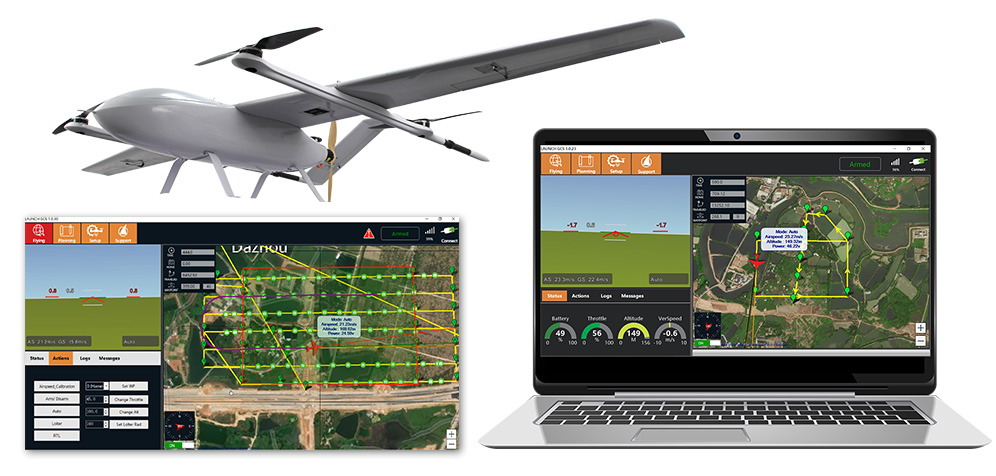

No piloting skills needed
The LAUNCH ground control software that FW-320 VTOL drone uses is developed for beginners, so a pilot without any flight experience can fly the drone well. Click HERE to learn more.

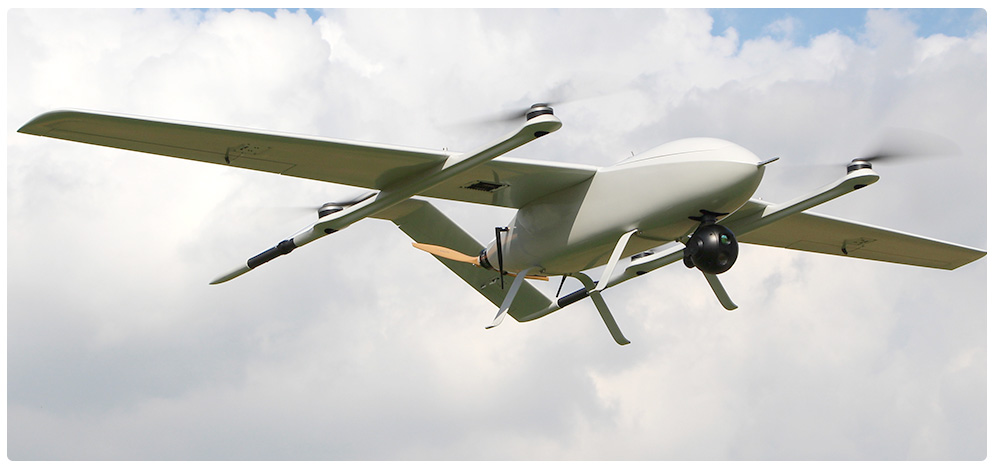

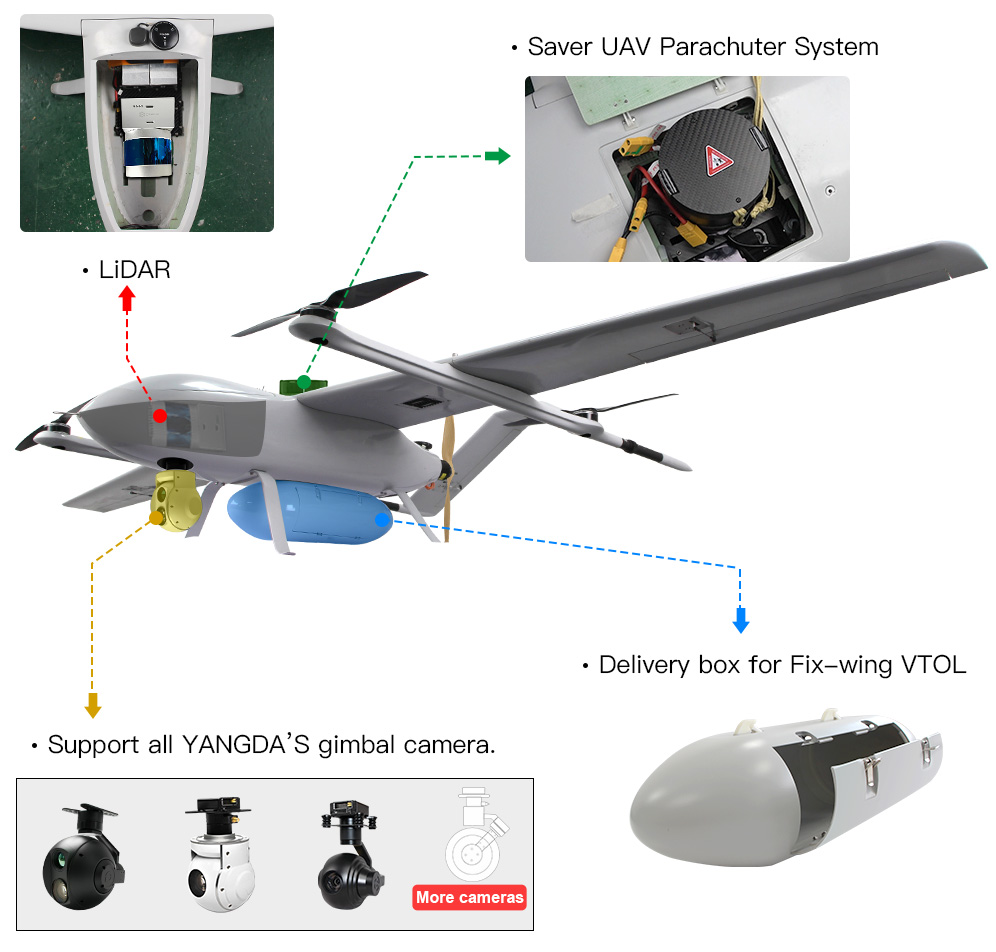

Versatile airborne platform
Thanks to its excellent stability and powerful payload-lift capability, FW-320 VTOL drone can be used in mapping, search, rescue, and surveillance applications. For mapping application, the VTOL supports these mapping cameras: SONY RX1R-II/A7R/A6000/A5100 camera, oblique camera and LiDAR. As to surveillance, it supports these cameras: 3-axis 30x zoom camera / 2-axis 30x zoom camera (for daytime missions), 3-axis 30x EO/IR camera / 2-axis 30x EO/IR camera (for daytime and nighttime missions).

Specification

MTOW 23kg
Weight without battery and payload 9.76kg
Wingspan 3,200 mm
Length 1,200 mm
Height 500 mm
Frame weight 3.2kg
Max payload (battery included) 13.24kg
Battery weight (Tattu 6S 32000mAh) 7.2kg
Suggested max payload weight 5kg
Endurance(23kg take-off weight) 2.5 hours
Cruise speed 78-90km/h
Max speed 100km/h
Stall speed 57.6km/h
Anti-wind capability 43.2km/h
Operating Altitude(Max.) 3,500m



FW-320 VTOL Catalog Download

Your Purchase Includes

1 x YANGDA FW-320 VTOL fixed-wing airframe
4 x T-motor Lift motor
4 x Hobbywing 12S 80A ESC for lift motr
2 x 2274 CF Propeller CW&CCW
1 x Hobbywing 12S 120A ESC for fixed-wing motor
1 x Dualsky fixed-wing motor
1 x Wood 19*12 Propeller CW
4 x KST Servo
1 x PX4 Air Speedometer
1 x Power Module For Flight Controller
1 x Pixhawk Cube Orange Standard Set With Here 3 GNSS
1 x WFLY ET07 radio controller
1 x Assembly and Flight Test Service

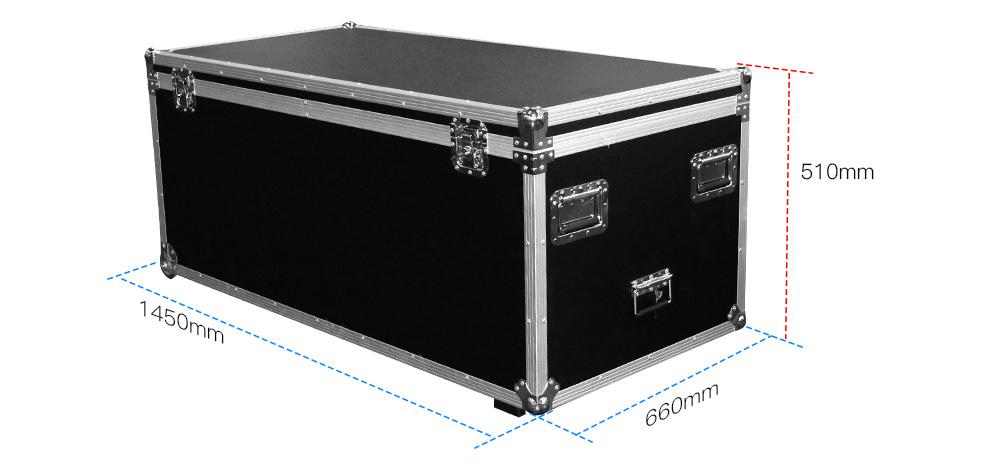

1 x Aviation box
1 x LAUNCH ground control software

Options

Delivery box: KUA Lite
Flight controller: CUAV V5+CUAV X7 and X7 Pro
Radio controller: YR16S Radio Controller
Battery: 2 x TATTU 6S 32000mAh 22.8V 10C Lipo battery
Long range HD video system: Videopass-H15(15KM range), Videopass-H30(30KM range)

What can the VTOL do?
Please click Here to learn more.
