YANGDA Sky Whale Max Electric Heavy Lift Long Endurance VTOL Drone

Inquire now: info@yangdaonline.com

Sku:
Sky Whale Max Electric
Weight:
30.50 KGS

Product Overview

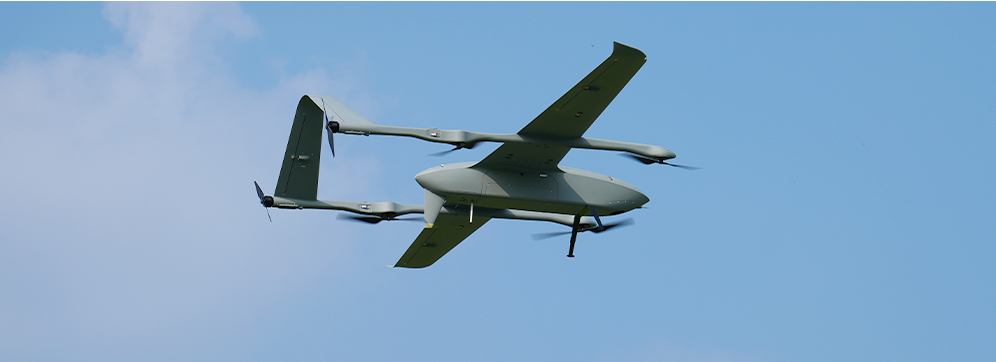

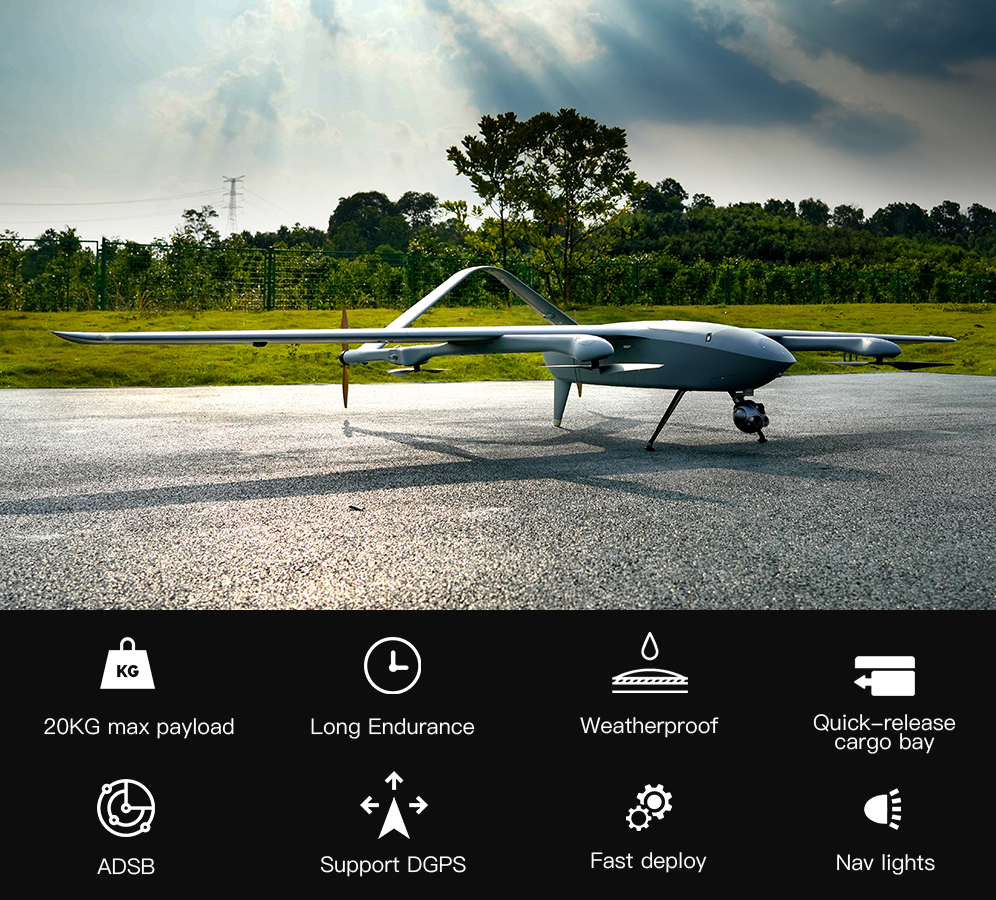

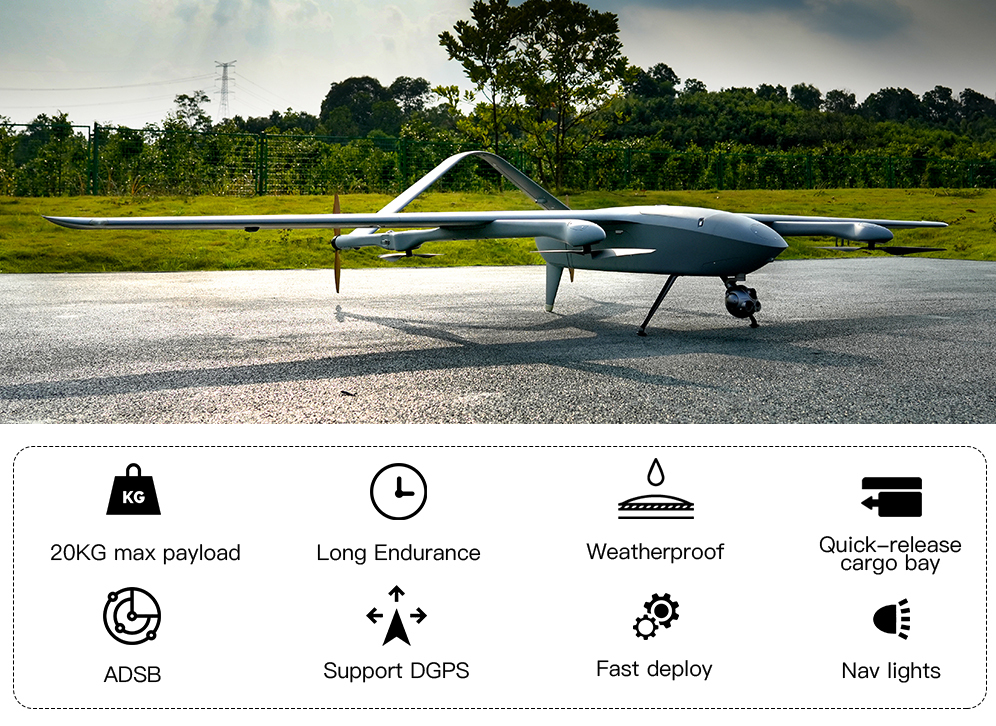

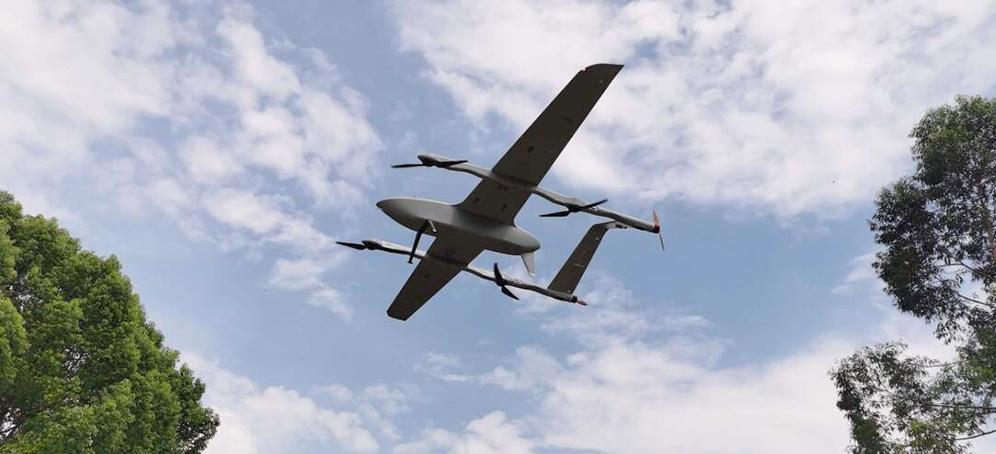

YANGDA Sky Whale Max Electric is a purely electric heavy-lift VTOL drone designed for LiDAR mapping, long-distance cargo delivery, transport, and security surveillance. It has four lift motors and two fixed-wing motors, enabling it to take off vertically like a quadcopter. Upon reaching a certain altitude, the drone transitions to horizontal flight as a push-prop fixed-wing aircraft.





Heavy-lift and long-endurance
Sky Whale Max Electric VTOL drone can fly for 4 hours with 2kg payload, 2 hours with 15kg payload.

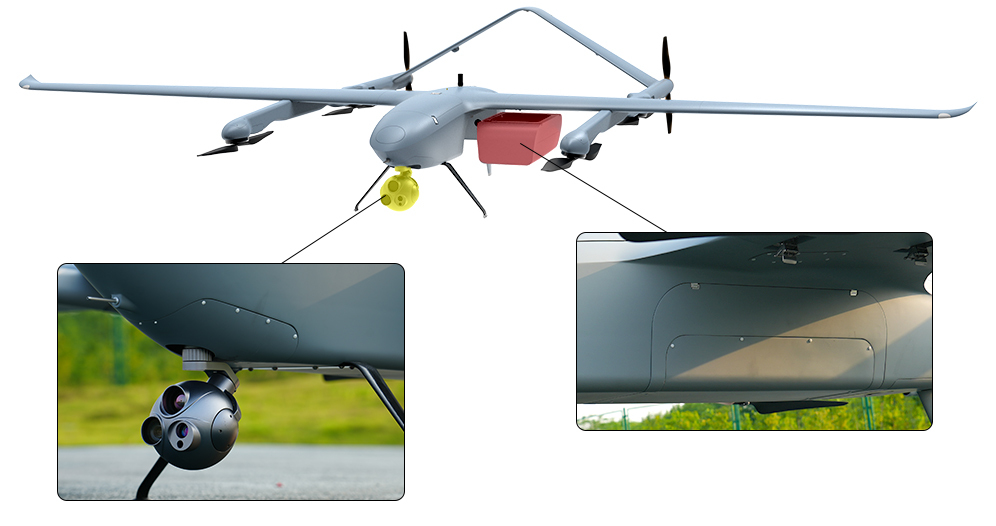

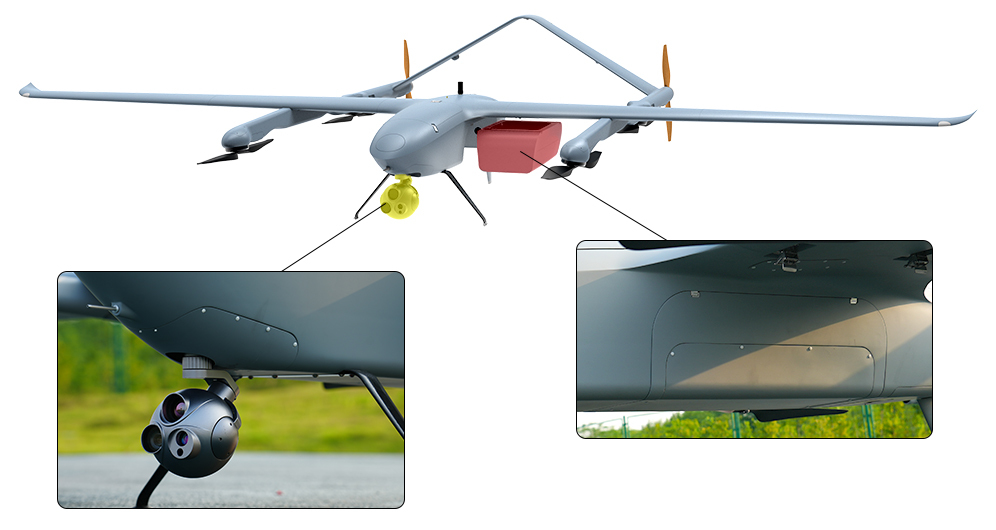

Separate camera bin
Sky Whale Max Electric UAV comes with a separate bin for gimbal camera installation, allowing it to search for targets through an onboard camera when carrying a heavy payload.

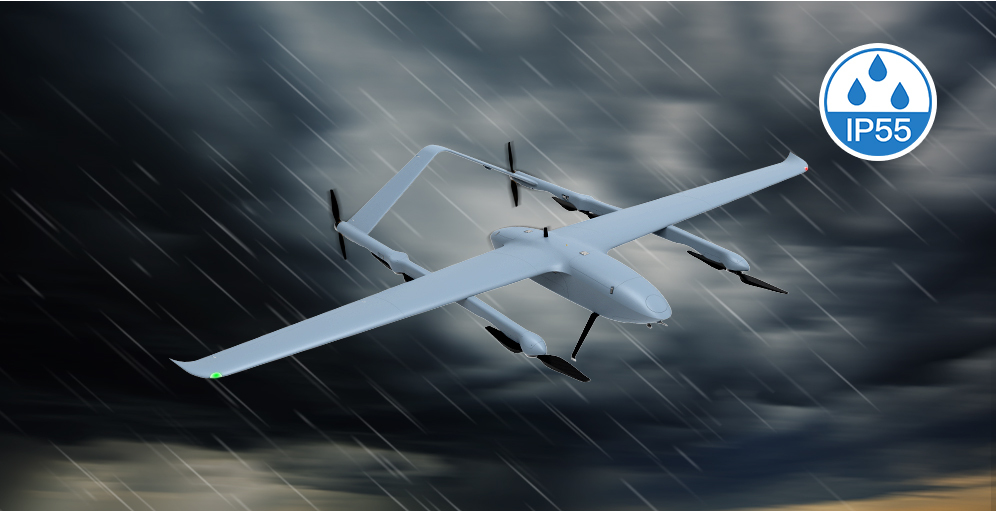

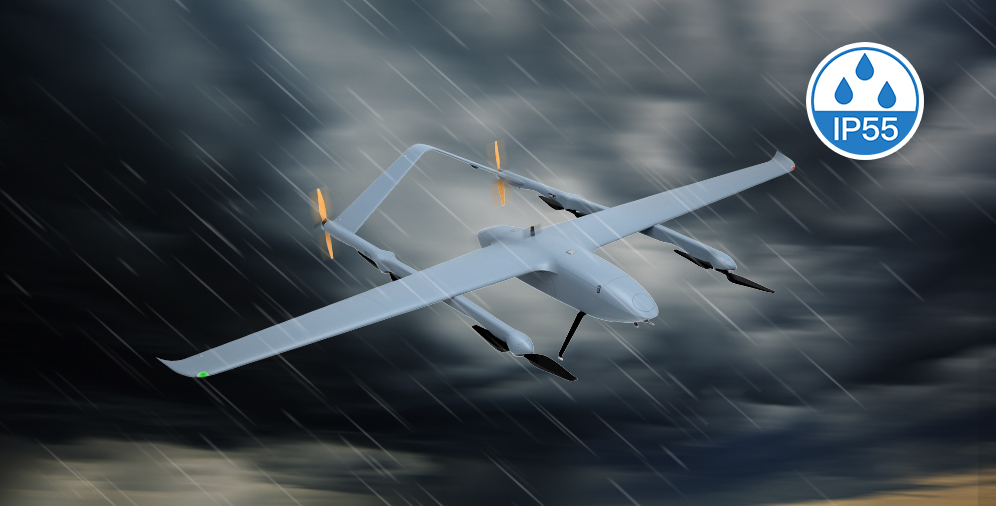

Weatherproof
Due to its anti-water design on the fuselage, the Sky Whale Max Electric VTOL drone is weatherproof and can reach an IP55 rating. In this case, the waterproof VTOL aircraft can carry out urgent missions on rainy days, like search and rescue.

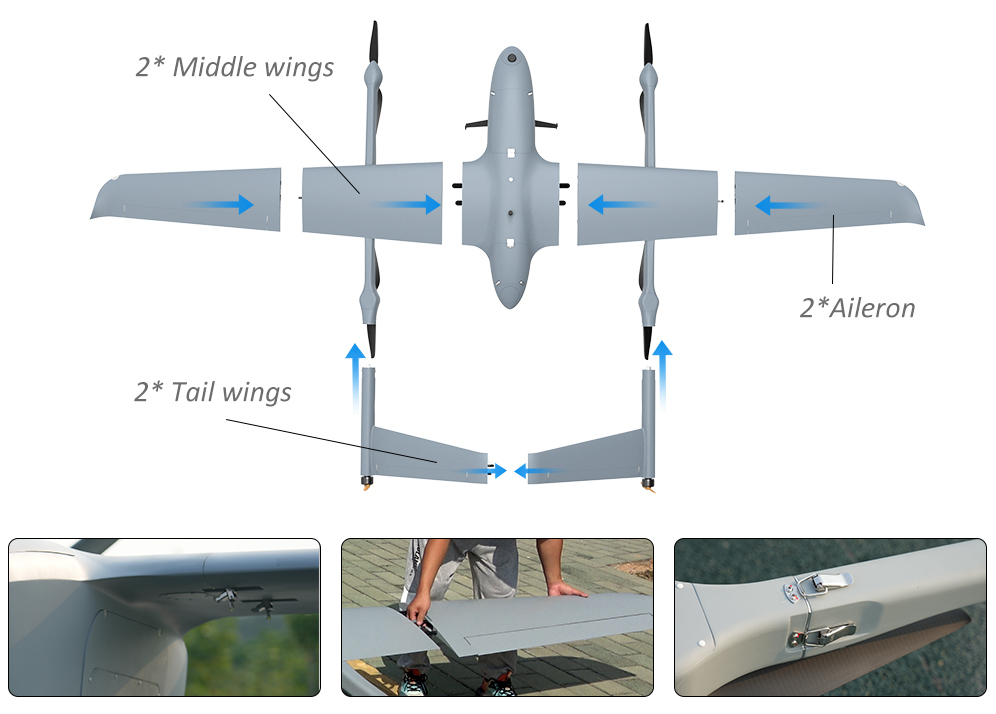

Fast deploy

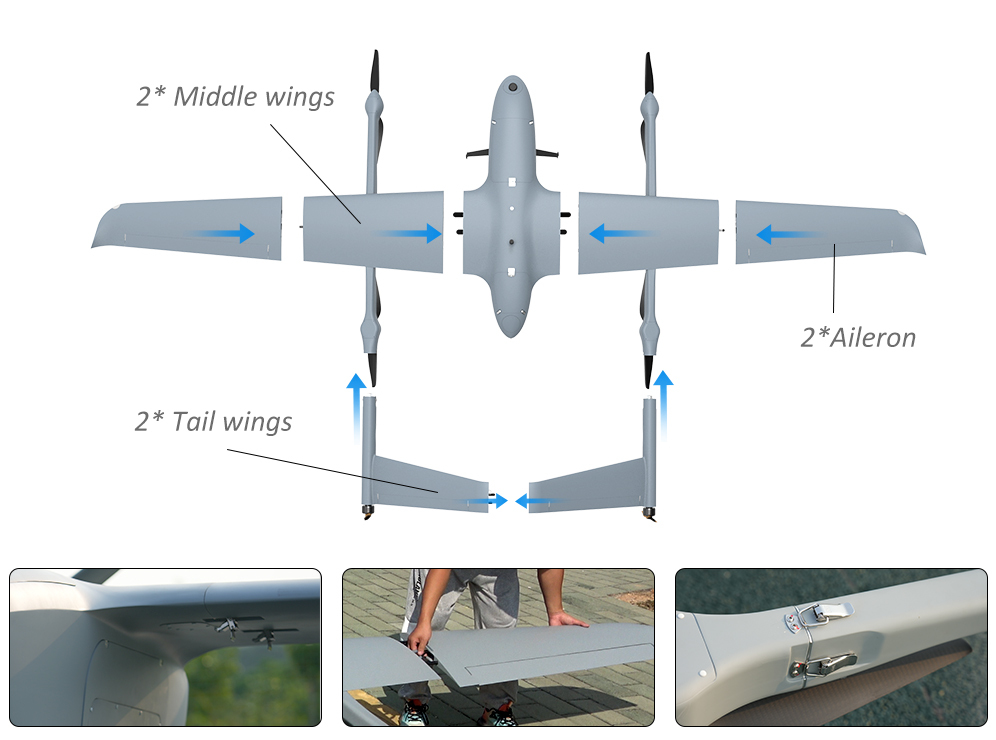

The fixed-wing UAV is adapting the most advanced quick-detach technology on both airframe and cable connector, making assembly and disassembly becomes super easy.

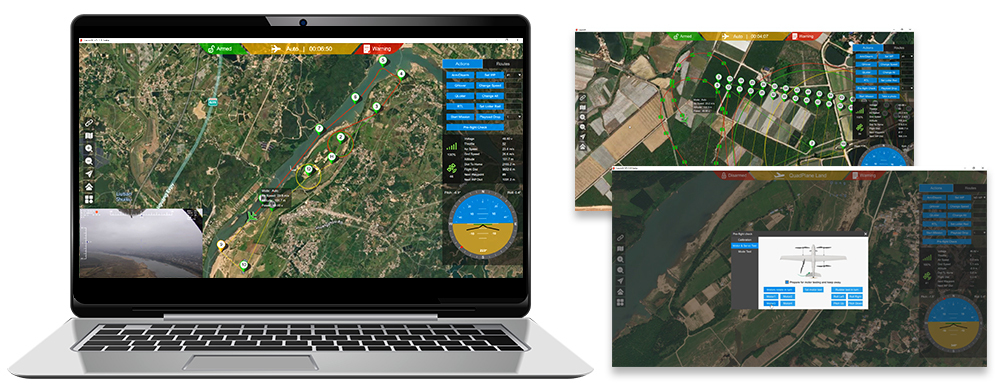

No piloting skills needed

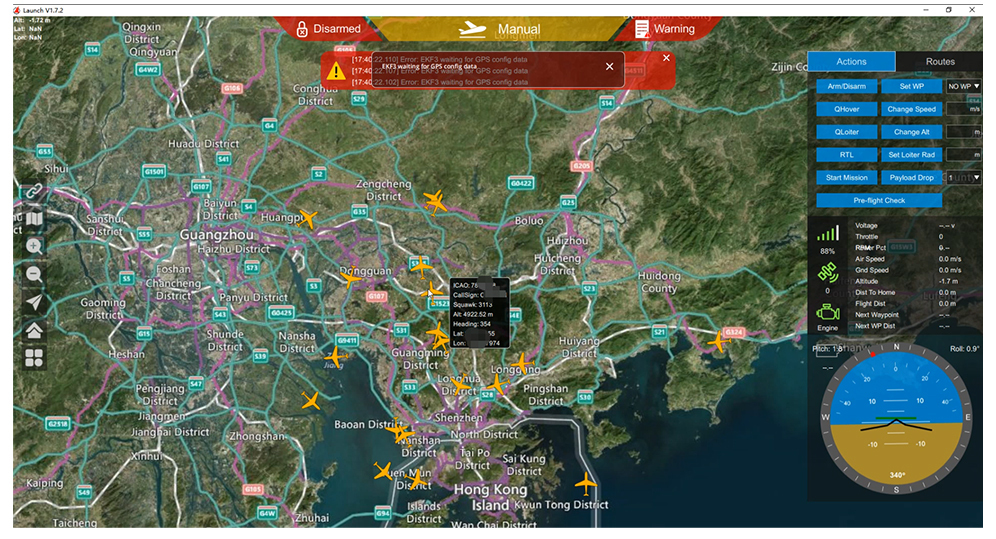

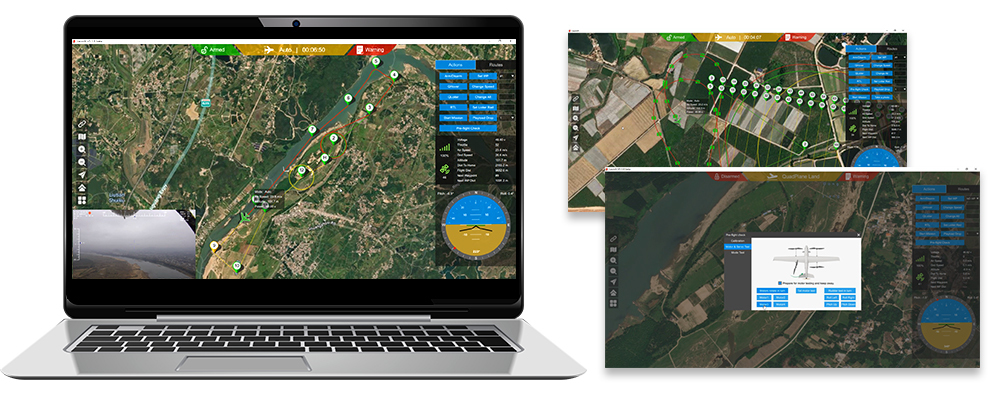

The LAUNCH ground control software that Sky Whale Max Electric VTOL drone uses is developed for beginners, so a pilot without any flight experience can fly the drone well.





Working day and night

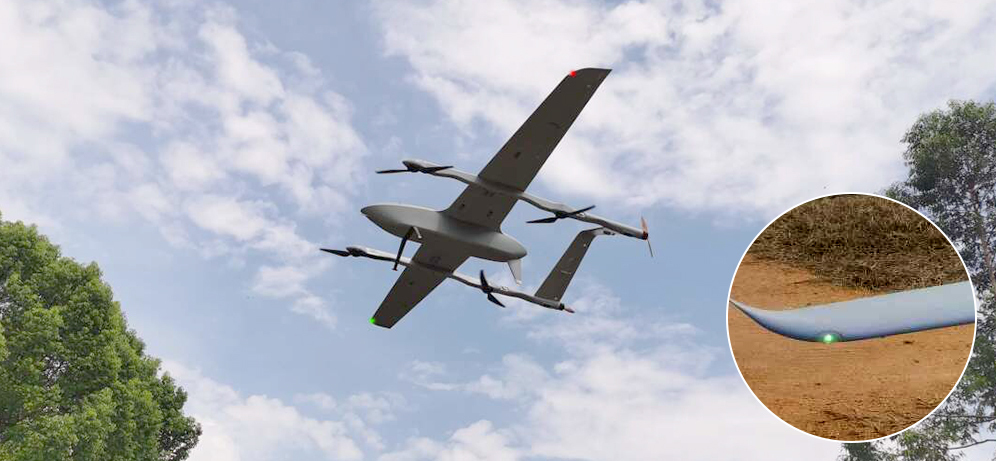

Sky Whale Max Electric VTOL can be easily identified in the air with onboard aviation lights, especially at night.

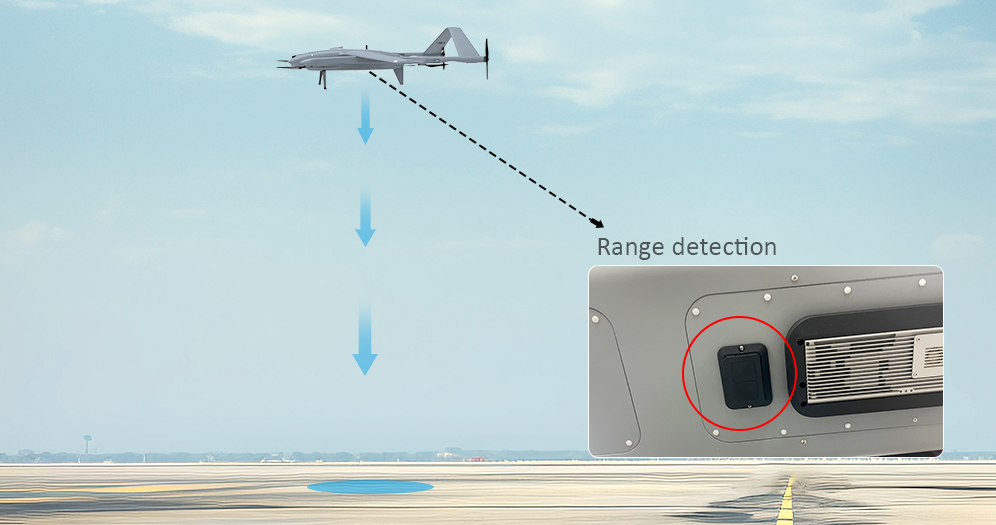

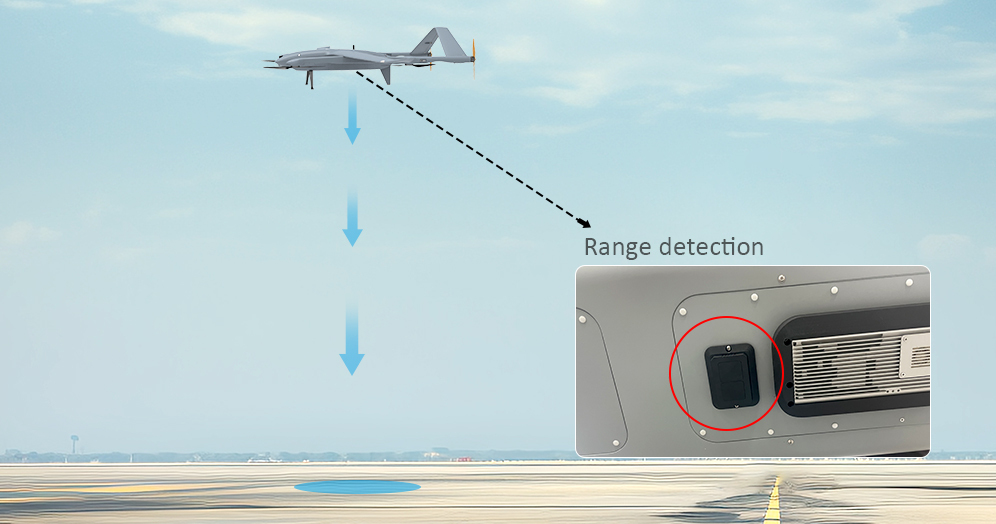

Built-in TOF landing assistance
The landing is gentle and safe with one range detection radar device.

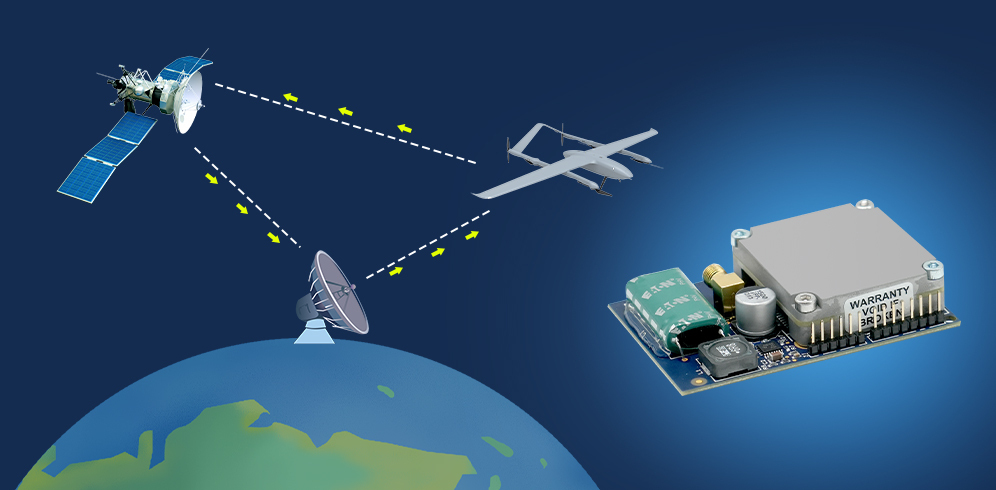

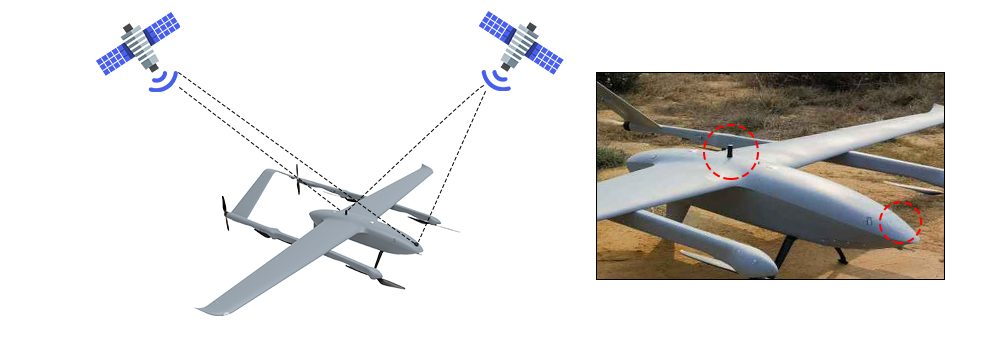

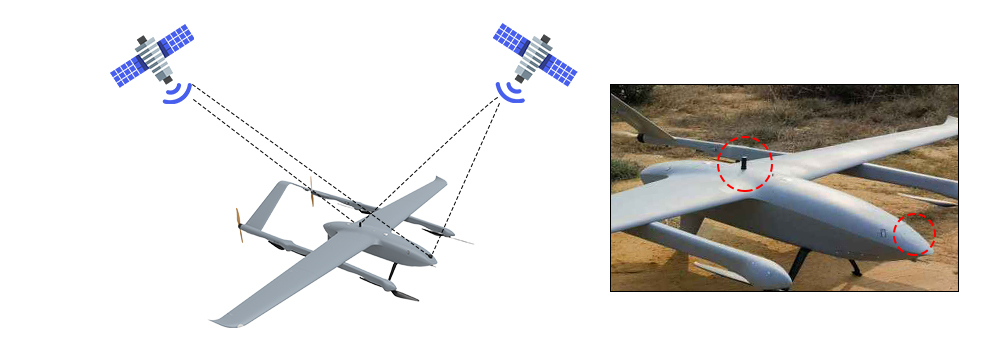

Compass calibration-free (differential GPS)
The pilot does not need to do compass calibration on the Sky Whale Max Electric VTOL UAV, saving lots of time in emergency tasks. Furthermore, the fixed-wing VTOL won't get affected by surrounding electromagnetic interference (EMI) anymore since the compass is replaced by DGPS, significantly improving the VTOL flight stability in the air.

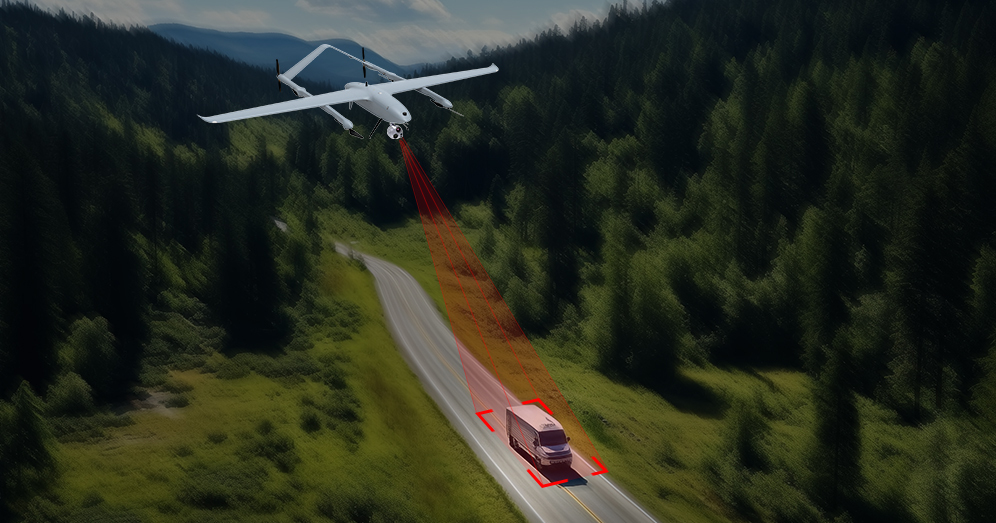

Fly by camera (optional)
This surveillance VTOL can follow and monitor a stationary or moving target of interest along a routine patrol route if the onboard drone zoom camera tracks it. Additionally, the target's coordinates can be copied and shared with the command center. Once the monitoring is complete, the VTOL drone can return to its original patrol route.

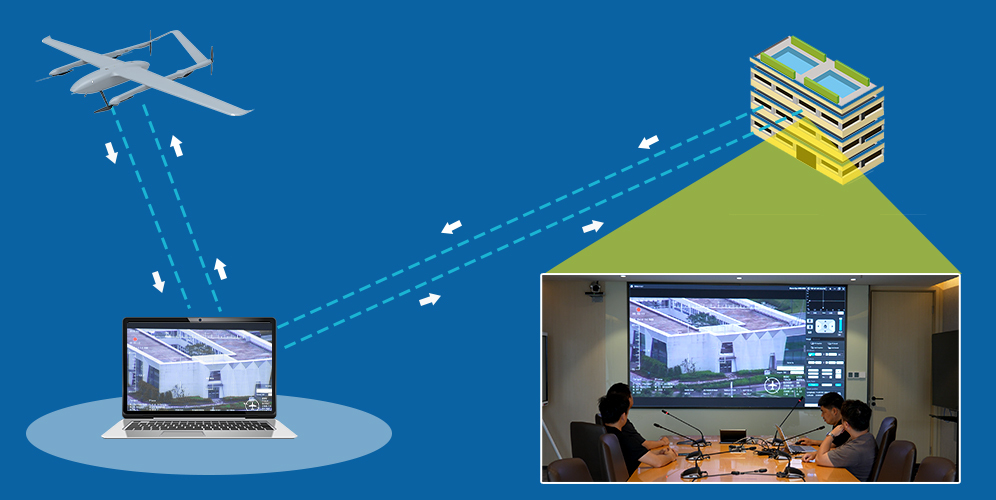

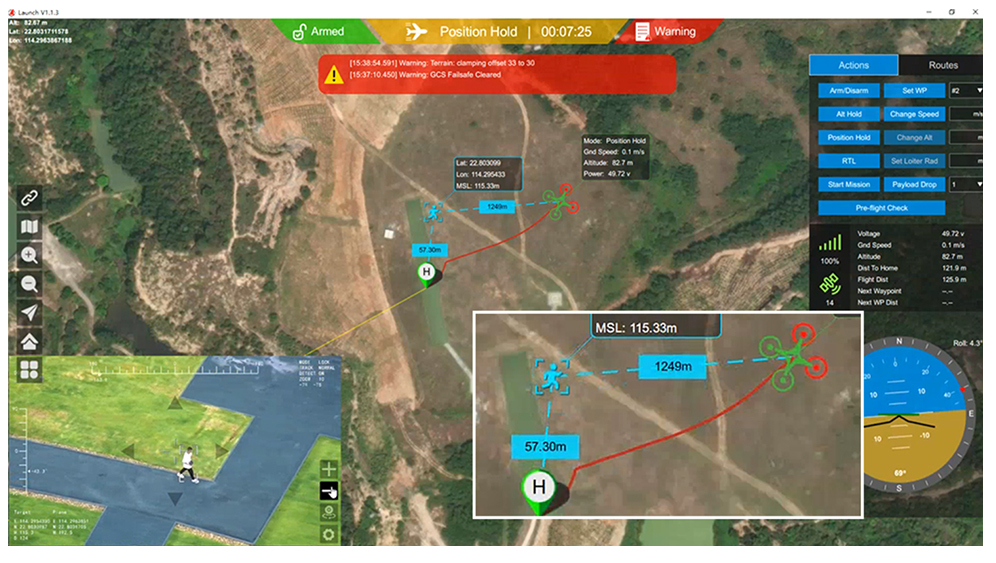

Monitor target movement status on GCS (optional)
The pilot can use the LAUNCH GCS to monitor the target's movement status, such as real-time updated GPS coordinates, the distance between the target and the drone, as well as the distance between the target and the HOME position.

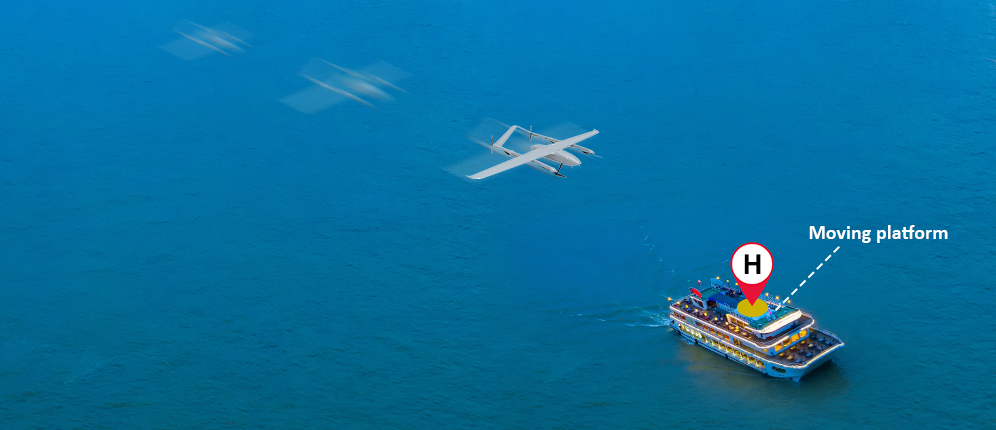

Follow Me feature (optional)
Sometimes, the flight platform, such as a boat or a vehicle, needs to move after the drone takes off to complete a mission. In this scenario, the drone must be capable of following the moving flight platform and landing once the task is completed. This feature is very useful when the VTOL drone is conducting a surveillance or monitoring mission on the sea.

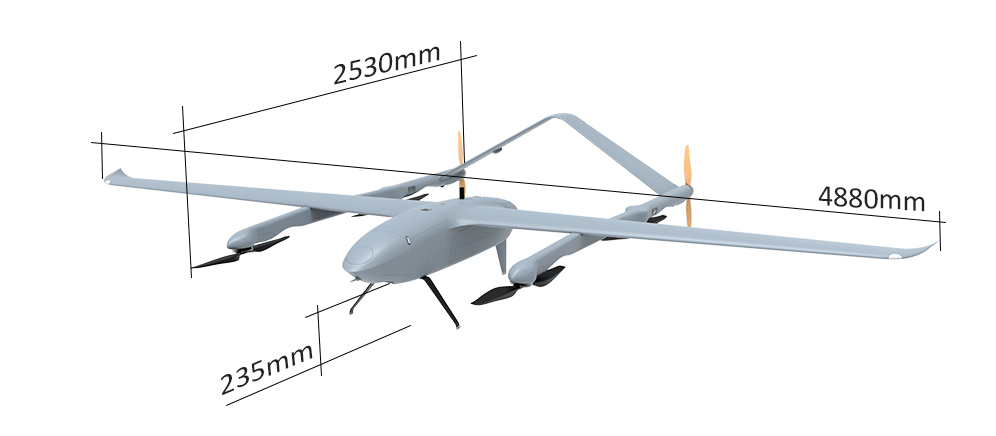

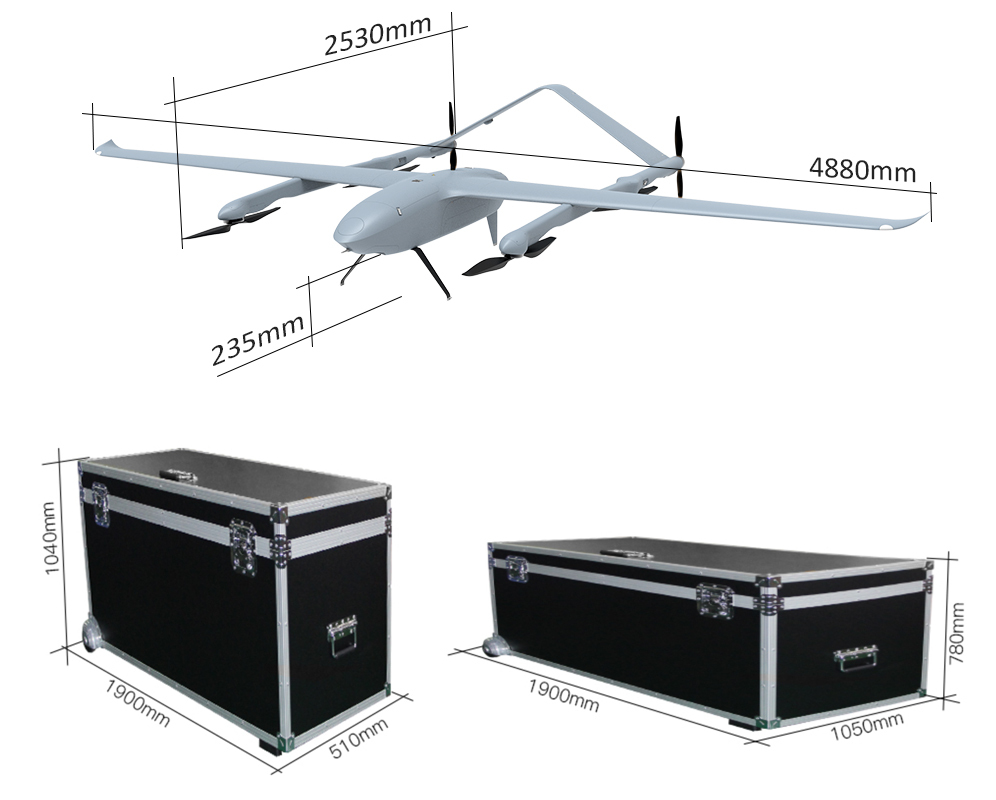

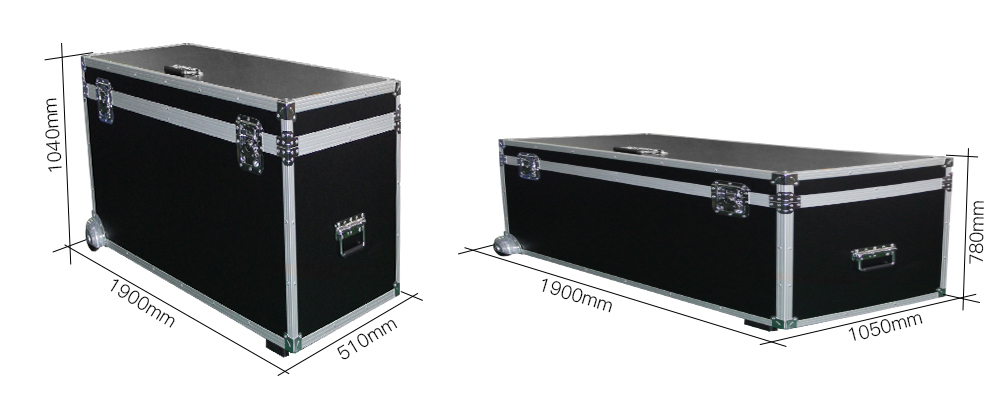

Size and packing dimension





What is included

1 x YANGDA Sky Whale Max Electric VTOL fixed-wing airframe
4 x Lift motor
4 x 200A ESC for lift motor
2 x 30-inch CF propeller CW&CCW
2 x Fixed-wing motor
2 x 130A ESC for fixed-wing motor
1 x 22-inch wood propeller CW&CCW for fixed-wing motor
4 x Servo
1 x CAN air Speedometer
1 x Power module for flight controller
1 x Pixhawk Cube Orange+ flight controller & Differential GPS
1 x TOF
1 x Futaba T6K V3S radio controller
1 x Assembly and flight test service
2 x Aviation box
1 x LAUNCH ground control software





Optional payloads

Sky Eye-40HZ daylight zoom camera

Lightweight 3-axis gimbal with 40X optical zoom camera and object tracking

Eagle Eye-30IE Pro EO/IR gimbal camera

Lightweight 3-axis gimbal with 30X optical zoom camera and thermal sensor, and object tracking

Storm Eye-40IE EO/IR gimbal camera

Lightweight 3-axis gimbal with 40X optical zoom camera and thermal sensor, and object tracking

Storm Eye-30IE-M EO/IR gimbal camera

3KM Laser Rangefinder EO/IR camera with AI Auto-Identify, target tracking and GPS coordinate



Optional video & data link

 Videopass-N30

 30KM transmission range, video and telemetry in one, two frequencies, ultra-low latency

Videopass-N60

60KM transmission range, video and telemetry in one, two frequencies, ultra-low latency

Videopass-N150

150KM transmission range, video and telemetry in one, two frequencies, ultra-low latency

Shadow auto antenna tracker

Follow the drone to extend the transmission range



Optional ground control station

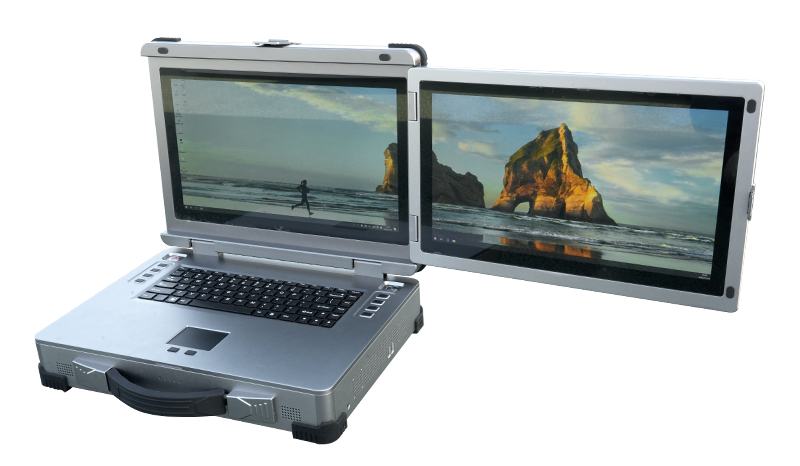

ROCK ground control station

Portable 15.6 inch dual-screen ground control station for drone mission planning and flight control, and payloads control



ROCK-II ground control station

Rugged 17.3 inch dual-screen ground control station for drone mission planning and flight control, and payloads control

MTOW 68kg
Wingspan 4,880mm
Length 2,530mm
Height 235mm
Weight without battery and payload 32kg
Standard battery pack 4 x 12S 30Ah (payload less than 15kg)
3 x 12S 30Ah (payload over 15kg)
Suggested max payload weight 20kg
Endurance 20kg@1H / 15kg@2H / 10kg@2.5H / 2kg@4H
Cruise speed 75-90km/h
Max speed 130km/h
Stall speed 57.6km/h
Max ascend speed 14.4km/h
Max descend speed 18km/h
Anti-wind capability 43.2km/h
Operating Altitude(Max.) 4,500m ASL
