12S 33000mAh Solid State Smart Drone Battery
Ardupilot and PX4 compatible drone battery, built with intelligent BMS and smart RTH.
We also offer compatible UAV solutions, including gimbal cameras, video and data links, and GCS. Choose your solutions below and send an inquiry to get started.
5.0
Model:
Intelligent 12S 33Ah
MOQ:
1 pcs
Brand:
YANGDA
Price terms:
EXW, FOB, CIF
Place of Origin:
Shenzhen, China
Delivery:
Ways Air/ Sea as requested
Payment terms:
T/T, L/C, Western Union, Paypal
Sample:
Provide samples check quality before bulk orders
Date of delivery:
Samples 10-14days, bulk orders 14-30days(according to quantity)
Weight:
5.65 KGS
Sku:
XTurbo Intelligent 12S 33Ah
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Required Products
Total price discount:
02 (26)
Overview
The YANGDA 12S 33000mAh smart battery is designed for industrial drones, featuring specialized cells and an intelligent Battery Management System (BMS) with data logging and management functions. It delivers high safety and long lifespan, along with a smart Return-to-Home (RTH) function deeply integrated with drone systems to prevent unexpected or premature landings.

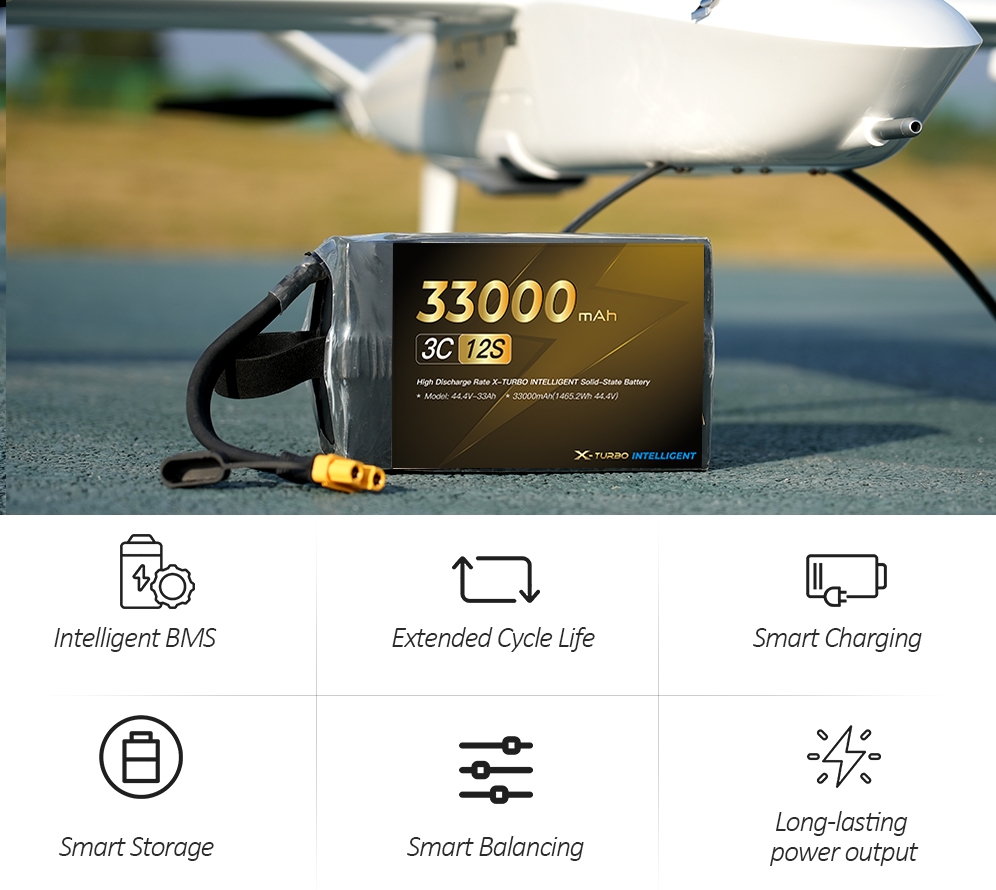

Intelligent BMS
Extended Cycle Life
Smart Charging
Smart Storage
Smart Balancing
Long-lasting power output
Drone Battery
a07 (1)
a07 (2) (2)
Why It Performs
Real-Time Battery Monitoring
YANGDA Smart Battery with Intelligent BMS
Powered by a smart Battery Management System (BMS), the YANGDA smart battery enables real-time monitoring of key battery parameters in drone control software, including voltage, current, temperature, remaining battery percentage,and more, providing accurate data for faster and more informed decision-making.
Smarter Return-to-Home Procedures
Smart Return Home Function
Supported by the BMS and advanced built-in algorithms, the YANGDA smart battery enhances return-to-home performance by upgrading it from a simple low-voltage trigger to a more accurate system based on real-time battery level estimation. By analyzing power consumption patterns and optimizing return route planning, it improves RTH accuracy while reducing unnecessary or premature return-to-home actions.
Smart Charging
Storage and Balancing
The YANGDA smart battery is upgraded with multiple protection mechanisms, featuring smart charging, storage, and balancing. Smart charging provides alerts for overvoltage, overcurrent, and overheating; smart storage automatically discharges the battery to storage voltage for safe long-term preservation; and smart balancing maintains cell voltage differences within 20 mV. Together, these functions significantly enhance battery safety and lifespan management.

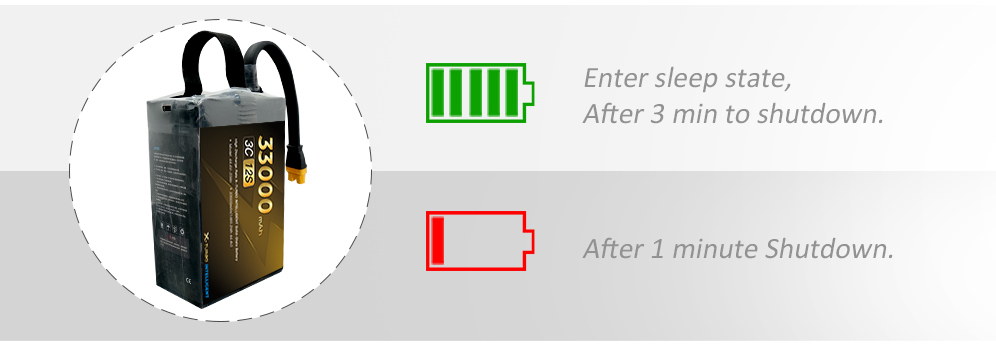

Auto Sleep Mode for Power Saving
Auto Sleep Mode for Power Saving
The YANGDA smart battery also features an auto sleep mode for power saving. When powered on but inactive, the battery automatically shuts down after 3 minutes at a high battery level and after 1 minute at a low battery level. This effectively reduces unnecessary power consumption, minimizes idle battery drain, and helps extend battery service life.

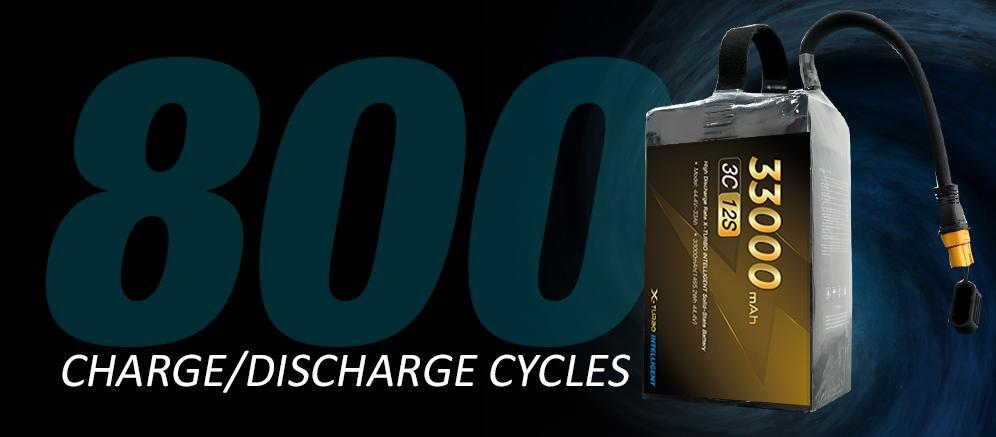

Up to 800 Charge - Discharge Cycles
Long Cycle Life Smart Battery
Built with advanced configurations, the YANGDA smart battery supports up to 800 charge- discharge cycles, serving as a strong backup for long-term applications.

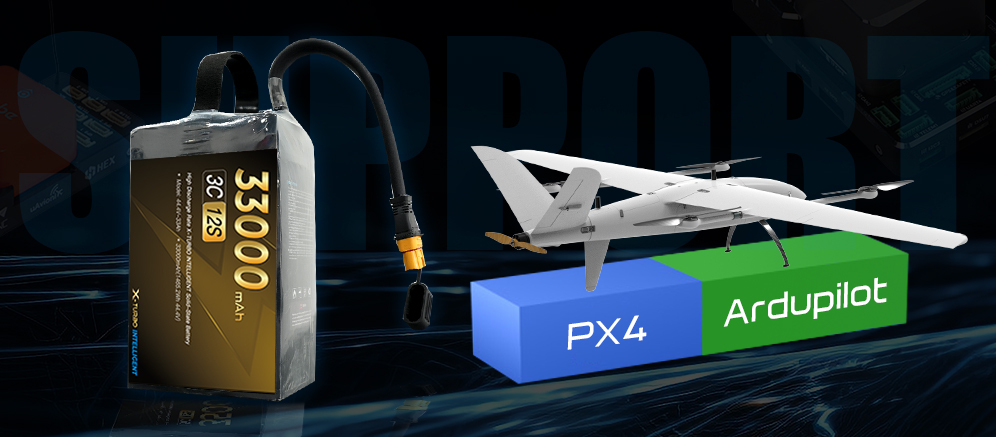

Ardupilot and PX4 Compatible
Multi-Firmware Compatibility
The YANGDA smart battery is compatible with flight platforms running ArduPilot and PX4 firmware, enabling seamless integration and stable power delivery for continuous and reliable aerial mission operations.
Specifications
Storage Temperature
● -20°C to 45°C (short-term, within 1 month)
● -10°C to 35°C (long-term, within 6 months)
Lifetime
● 800 cycles (0.5C/0.5C: 100% DOD)
● 500 cycles (0.5C/3C: 100% DOD)
● 200 cycles (0.5C/5C: 80% DOD)

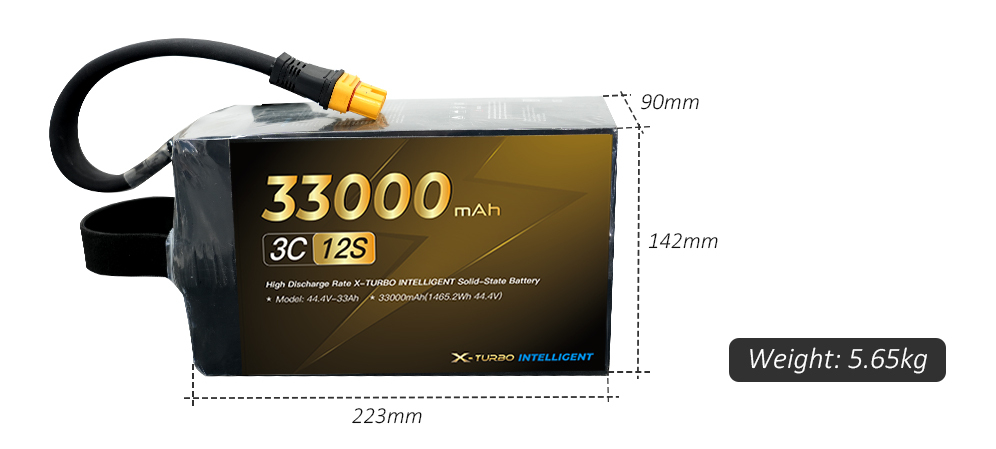

Size And Weight
Weight
5650g
Size
223 × 142 × 90 mm (±15 mm)
| Item | 12S 33000mAh |
| Weight | 5650g |
| Energy | 1425Wh |
| Size | 223 × 142 × 90 mm（±15 mm） |
| Cell Configuration | 12S1P / 44.4V / 12 cells |
| Operating Voltage | 36V–50.4V |
| Nominal Charging Current | 0.5C/16.5A |
| Nominal Discharge Current | 0.5C/16.5A |
| MAX. Continuous Charging Current | 1C/33A |
| Recommended charging current | 1C/33A |
| MAX. Continuous Discharge Current | 3C / 99A at 25 °C for 10 minutes (66A continuous to full discharge) |
| Maximum Operating Discharge Current | 10C at 330A, <10 seconds |
| Over-discharge Voltage | TYP.3.0V |
| Lifetime | 800 cycles (0.5C/0.5C：100% DOD) |
| 500 cycles (0.5C/3C：100% DOD) | |
| 200 cycles (0.5C/5C：80% DOD) | |
| Discharge Operating Temperature. | -10℃～55℃ |
| Charging Operating Temperature. | 0℃～45℃ |
| Storage Temperature | -20℃ ～ 45℃ (short-term, within 1 month) |
| -10℃ ～ 35℃ (long-term, within 6 months) |
1
Q1: What is the difference between YANGDA smart batteries and other standard drone batteries?
YANGDA smart batteries are optimized based on 8 years of real flight data. The core differences lie in the following aspects: an integrated intelligent BMS (Battery Management System) that allows real-time monitoring of battery data and status; verified flight endurance data without exaggerated claims; compatibility with various UAV models and ground control stations to enable smart return-to-home landing.
2
Q2: What's the difference of Smart Return-to-Home (SRTH)?
Unlike traditional return-to-home procedures triggered by low battery voltage, SRTH uses AI algorithms to predict remaining battery capacity based on the drone's power consumption patterns and distance from home. This improves the accuracy of battery level estimation and reduces unexpected or premature RTH activations.
3
Q3: Does the battery support real-time monitoring during flight?
Yes. It provides real-time data such as voltage, current, temperature, remaining capacity, and power status through drone control software for better mission decision-making.
4
Q4: What safety features does the battery's BMS provide?
The intelligent BMS offers real-time status monitoring and accordingly offers multiple protections, including smart charging provides alerts for overvoltage, overcurrent, and overheating; smart storage automatically discharges the battery to storage voltage for safe long-term preservation; smart balancing maintains cell voltage differences within 20 mV; and auto sleep mode for power saving.
5
Q5: What drones is the YANGDA smart battery compatible with?
It is fully compatible with industrial drones running ArduPilot and PX4 firmware, ensuring seamless integration and stable power support.
