YANGDA FW-320 Pro Fixed Wing VTOL Plane
Overview

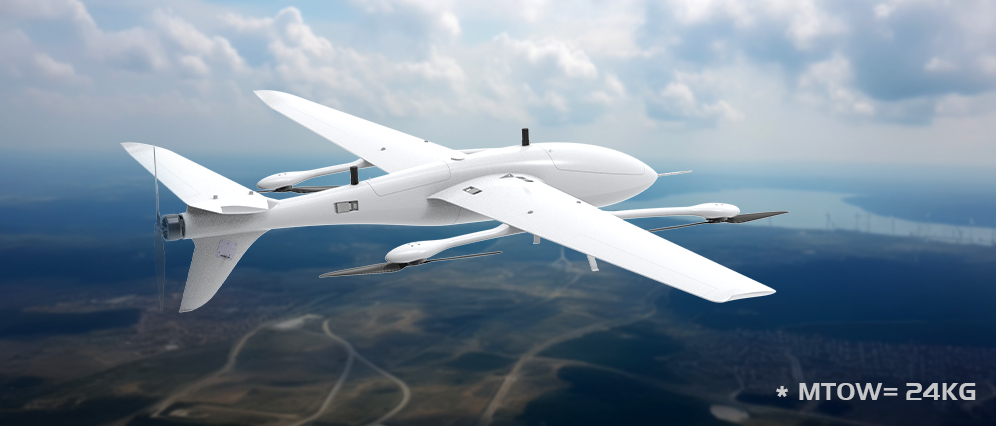

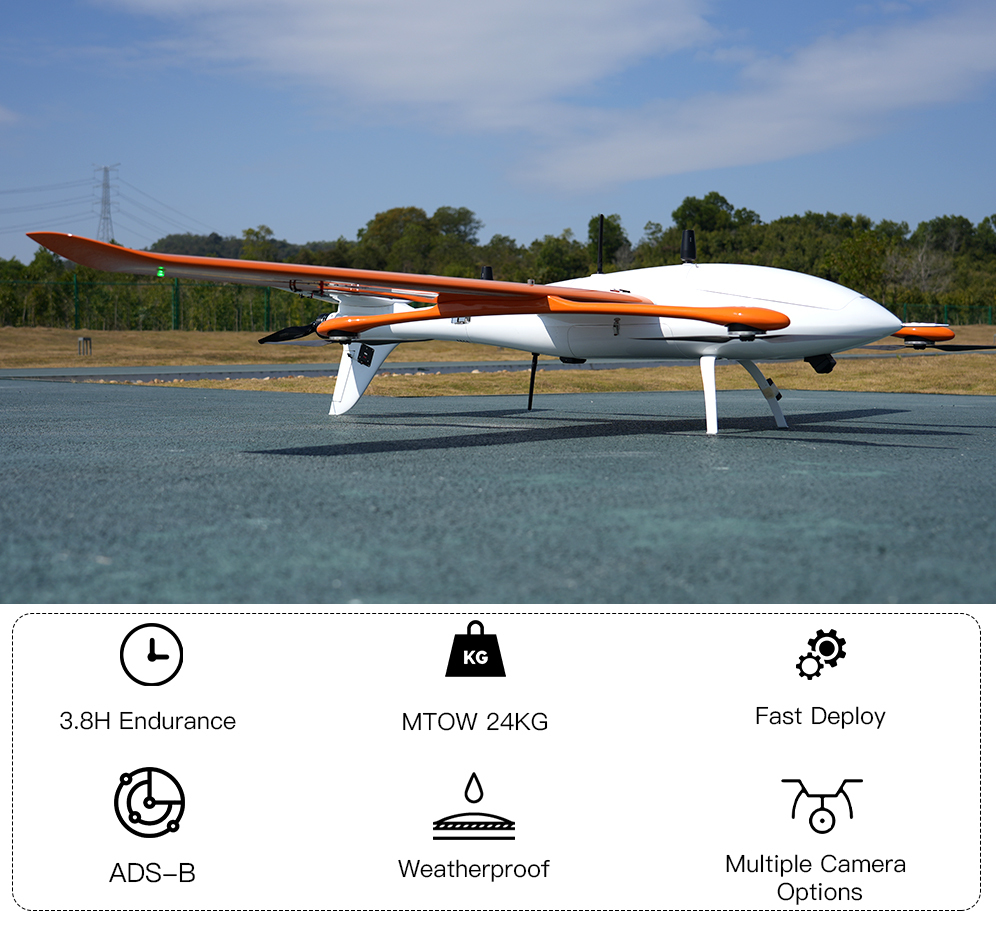

Built with high-strength carbon-fiber materials and featuring a 24 kg MTOW, the FW320 Pro Electric VTOL supports a wide range of mission payloads while delivering up to 3.8 hours of stable and continuous flight endurance. With wind resistance up to 12 m/s and an operating temperature range of -20°C to 45°C, it adapts reliably to diverse operational environments and mission conditions. Combining long endurance, environmental adaptability, and operational efficiency, it is well suited for applications including industrial inspection, environmental research, and perimeter surveillance.
Fast Deployment
One-Person Setup in 3 Minutes

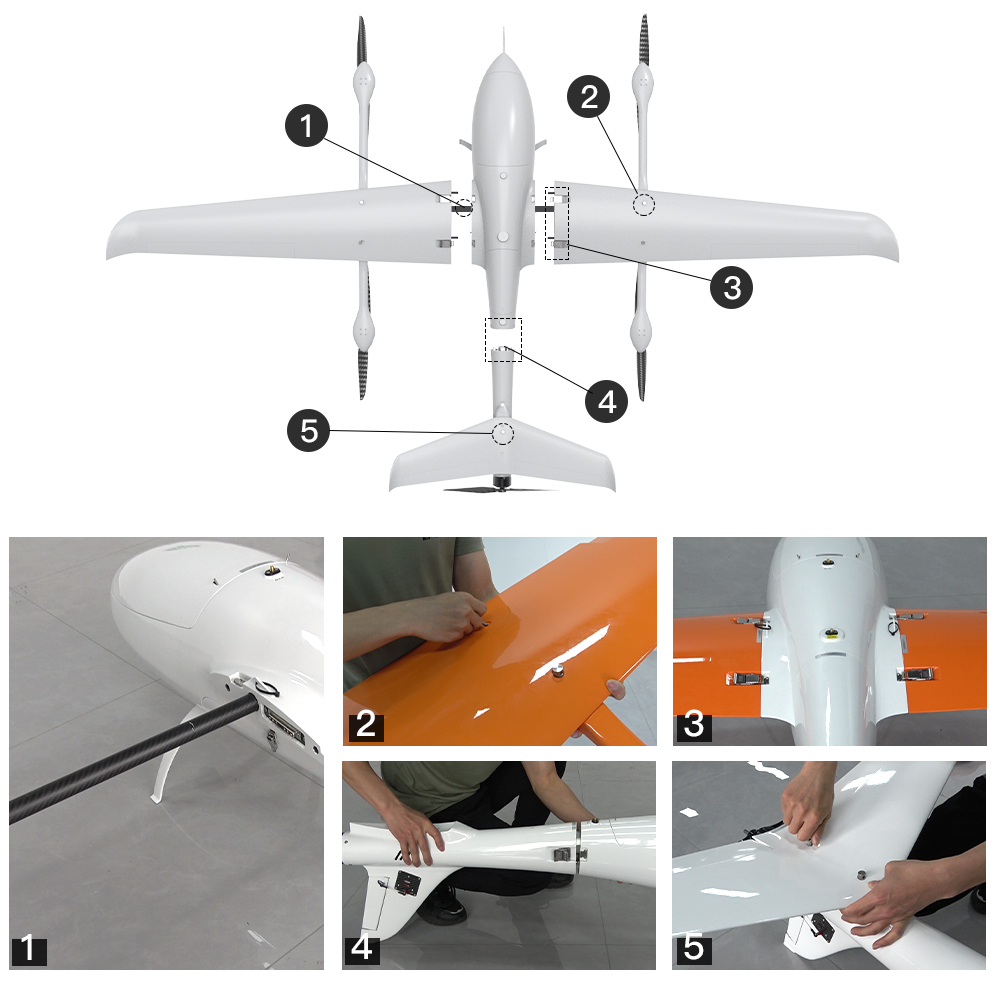

Featuring a quick-release mechanism for arms and wiring harnesses, the FW320 Pro Electric VTOL enables a hassle-free full assembly in 3 minutes.Designed for single-operator convenience with a single flight case solution, it helps capture critical operational windows in emergency missions.
Ready for Harsh Environments
Wide‑temperature carbon‑fiber framework
Built with a robust carbon-fiber structure, the FW320 Pro Electric VTOL operates reliably across temperatures ranging from -20°C to 45°C. For missions such as open-pit mining inspection and fire rescue, this wide operating temperature range helps improve mission efficiency while reducing unnecessary human exposure in challenging environments.
Smart Battery System
Safer Flight with SRTH Algorithm
The FW320 Pro Electric VTOL can be equipped with the XTurbo intelligent battery, featuring the SRTH (Smart Return-to-Home) algorithm. SRTH dynamically predicts remaining flight endurance based on real-time power consumption, flight distance, and battery health. Compared with traditional voltage-triggered return, it provides greater accuracy and reliability, effectively reducing the risk of low-battery forced landings.
Hassle-Free Operation
Easy for Beginners

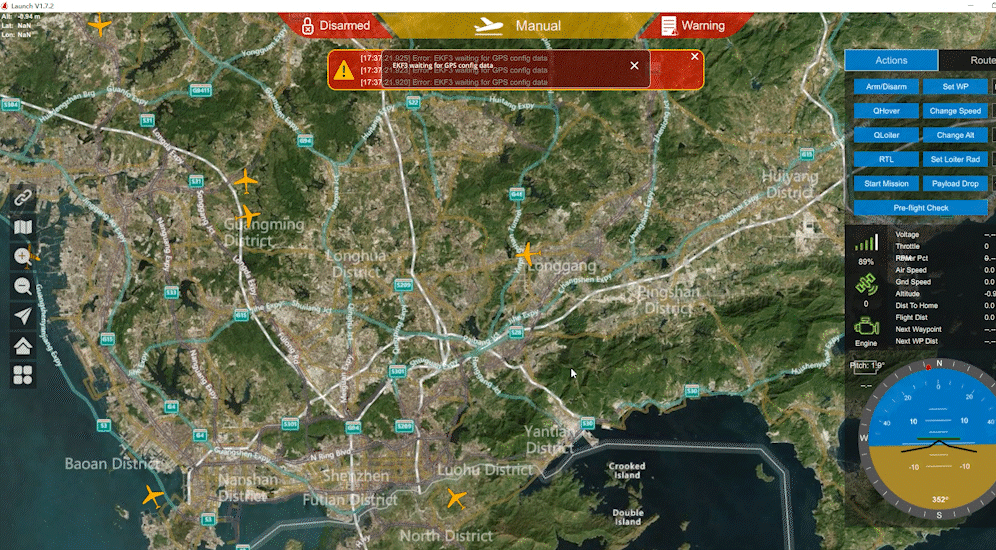

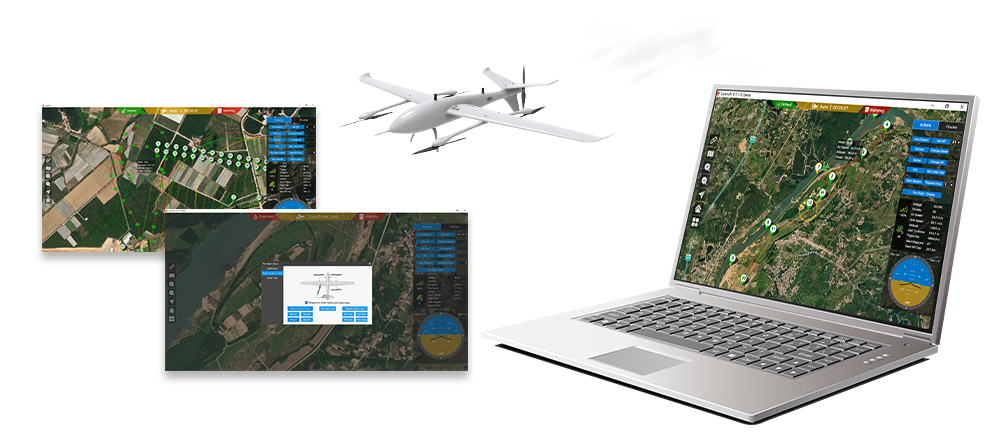

Paired with the LAUNCH ground control software featuring a clean interface and intuitive logic, the FW320 Pro Electric VTOL supports one-click takeoff, automated mission planning, and intelligent return-to-home. Even operators with no prior flight experience can carry out missions independently after short-term training.
Stable Performance in Harsh Conditions
12m/s Wind Resistance

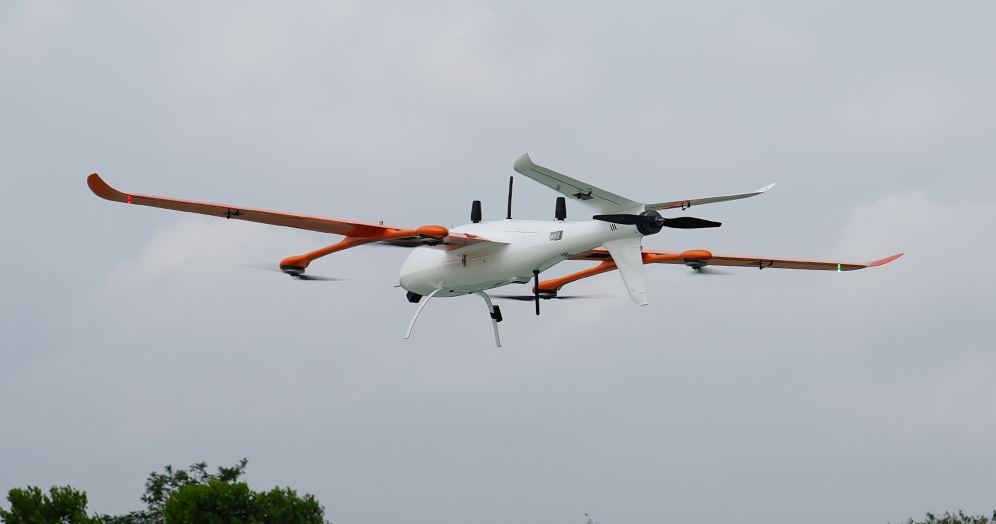

With a powerful propulsion system combined with aerodynamic optimization, the FW320 Pro Electric VTOL maintains stable flight even in wind speeds of up to 12m/s. It is well suited for operations in high-wind applications, especially patrol missions in costal, mountainous or high-altitude regions.
Drone Life-Safe Design
More Reliable Flight
Hot-Swappable Battery System: With an built-in extra auxiliary flight battery,the system enables uninterrupted system power during battery swap.This allows continuous operation and multiple back-to-back missions.
What is Included
1 x YANGDA FW320 Pro VTOL Fixed-Wing Airframe
4 x T-motor Lift Motor
4 x T-motor ESC for Lift Motor
1 x T-motor ESC for Fixed-Wing Motor
2 x Rotor Propellers CW&CCW
1 x T-motor Fixed-Wing Motor
1 x Fixed Wing Propeller CW
4 x KST Servo
1 x Air Speedometer
1 x Pixhawk Cube Orange+ Flight Controller
1 x Futaba T6K Radio Controller
1 x D-GPS
1 x Assembly and Flight Test Service
1 x Aviation Box
1 x LAUNCH Ground Control Software

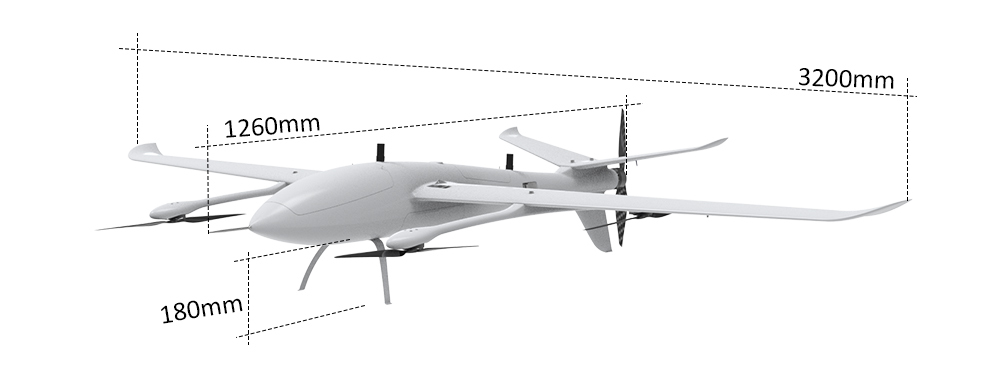

Size And Packing Dimension
Applications and Solutions
Surveying & Geospatial Information
Challenge: Limited coverage per flight, weak signal in mountainous areas, and difficulties in data transmission.

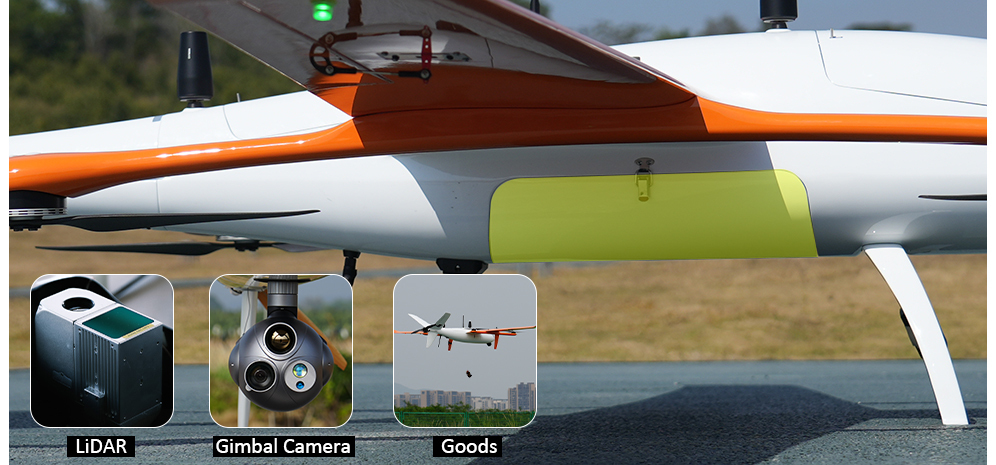

FW320 Pro Electric VTOL Solution: With a 24kg MTOW, FW320 Pro Electric VTOL can simultaneously carry a LiDAR system and high-precision INS. Its 3.8-hour extended endurance significantly reduces takeoff and landing cycles. Its optional 4G or Starlink communication enables real-time flight data and video transmission, improving operational efficiency by over 50%.
Recommended Configuration: LiDAR + PPK module + 4G data link.
Security Surveillance & Border Patrol
User Pain Points: Difficulty in target identification at night and the need for continuous hovering during long-range patrols.
FW320 Pro Electric VTOL Solution: With the optional "Fly by Camera" function, the VTOL system can automatically lock onto and track ground vehicles or individual while continuously updating target coordinates in real time. With the navigation lights enhancing nighttime identification, and a thermal imaging gimbal extending night vision capability, it enables all-weather, wide-area surveillance with improved operational safety.

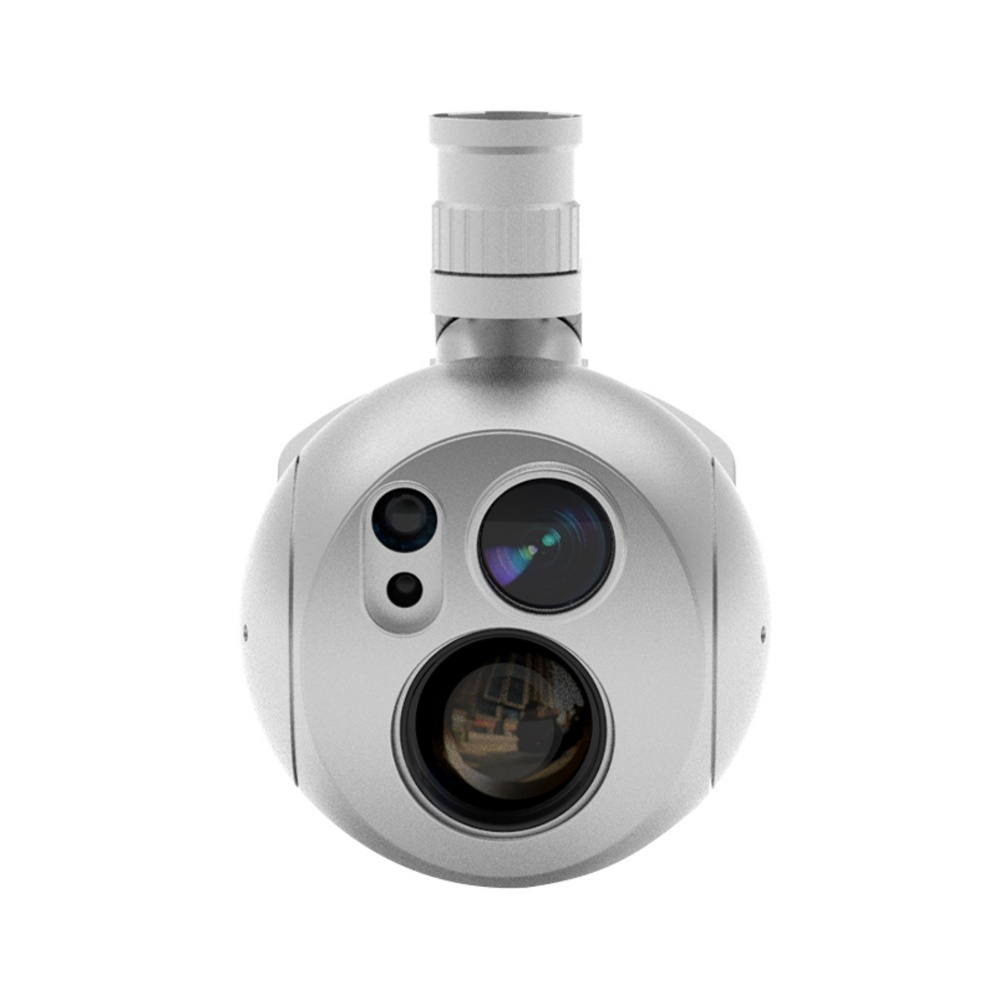

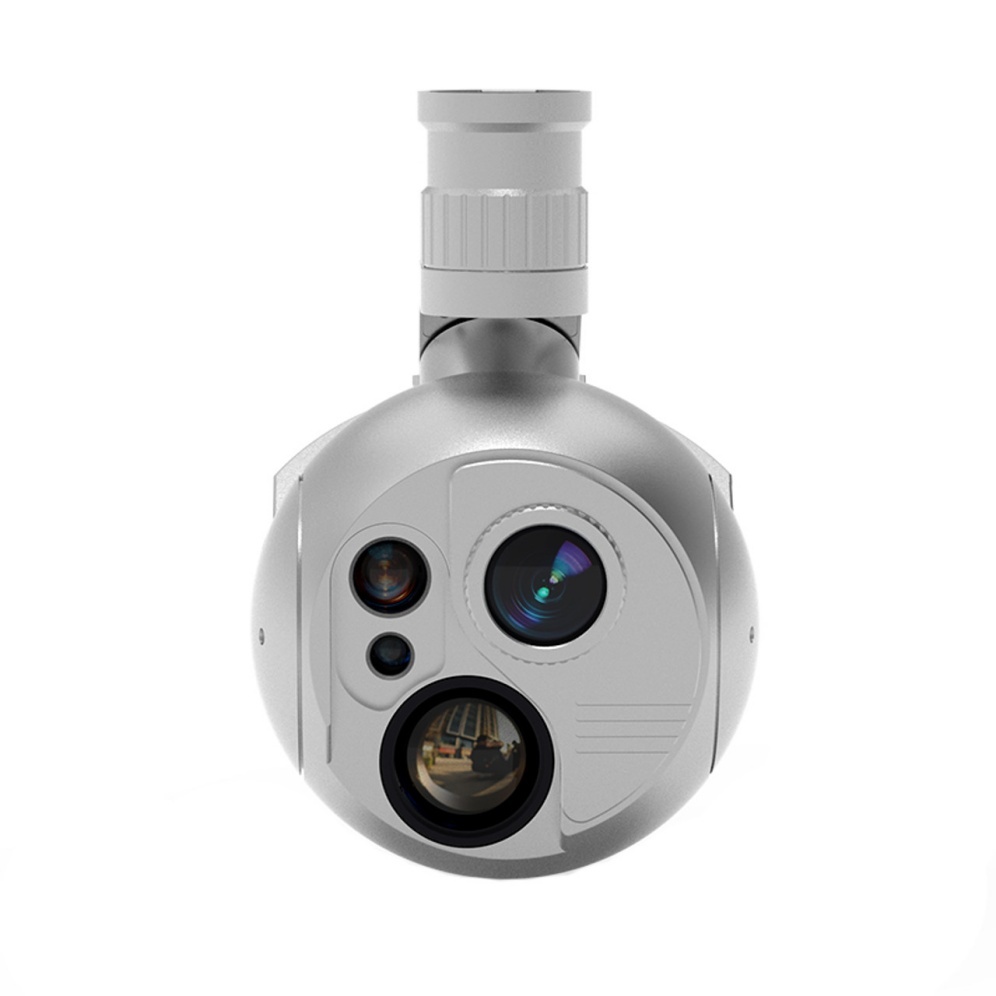

Recommended Configuration: Storm Eye EO/IR gimbal camera + N150 long-range video & data link.
Emergency Material Transport
Challenge: Since roads and urban infrastructure are damaged in disaster zones, emergency material transport demands higher precision and can't be achieved via traditonal transportation methods.
FW320 Pro Electric VTOL Solution: A quick-release cargo bay design enables the delivery of emergency supplies, including medical supplies, communication equipment, and life-saving gear. The system supports multi-point landing and remote delivery capabilities, ensuring precise deployment in complex terrain.
Recommended Configuration: Quick-release cargo bay + remote delivery module + parachute system.
Maritime Operations
Challenge: Shipboard takeoff and landing are difficult due to the lack of fixed reference points and compass interference.

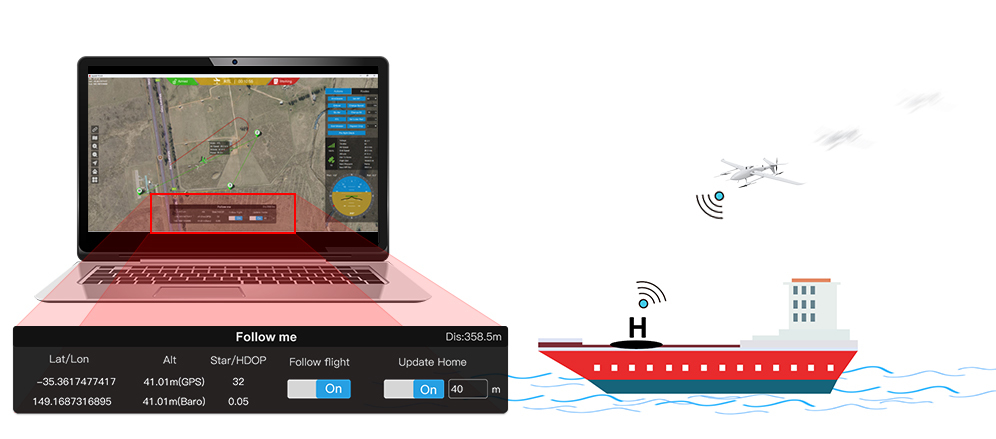

FW320 Pro Electric VTOL Solution: The "Follow Me" mode enables the UAV to take off from and land on moving vessels. While the differential GPS frees the VTOL from compass calibration and is resistant to vessel electromagnetic interference. And the ptional 4G or Starlink communication enable beyond-visual-line-of-sight operations.
Recommended Configuration: 4G data link + waterproof protection kit.
Optional Configurations & Additional Capabilities
The FW320 Pro Electric VTOL is not only a high-performance industrial UAV, but also a flexible mission platform. With a range of optional features designed for diverse operational requirements, it enables seamless integration tailored to your specific mission needs.

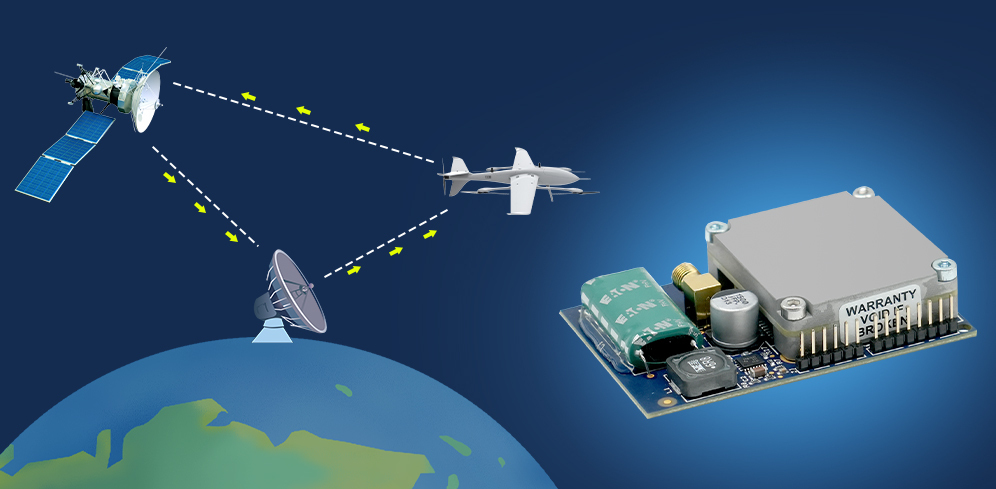

Satellite Communication System
Satellite Communication System
Starlink:
Enables global, uninterrupted connectivity via Low Earth Orbit (LEO) satellites, supporting real-time HD video transmission, precise telemetry, and remote command and control.
Entry-Level Satellite Communication:
Provides basic telemetry data and UAV control link transmission, meeting fundamental requirements for beyond visual line-of-sight (BVLOS) operations.
User Value
Breaks through the limitations of terrestrial network coverage, maintaining real-time UAV connectivity in no-signal environments such as oceans, deserts, and remote mountainous areas, ensuring mission controllability and reliable data return.
Application Scenarios
● Offshore oil and gas platform inspection
● Long-range patrol in deserts and uninhabited regions
● Emergency response in disaster zones with communication loss
● Cross-border long-endurance missions
Operations Training
Training is provided in three formats to ensure your team quickly achieves operational readiness:
After-sales Support
Technical Support & Downloads
Newly Launched! YANGDA FW320 Pro VTOL Drone 3-Hour Flight Test
Smart Return Home feature demonstration
| MTOW | 24kg | Max ascend speed | 5.6m/s |
| Weight (w/o battery and payload) | 9.76kg | Max descend speed | 9.6m/s |
| Wingspan | 3200mm | Anti-wind capability | 12m/s |
| Length | 1260mm | Operating altitude(max.) | 4000m |
| Max payload (battery included) | 5kg | Battery specification | 12S 33000mAh x 2 |
| Endurance (1kg payload) | 3.8 hours | Lift motor | 4*brushless motors |
| Endurance (2.5kg payload) | 3 hours | Pusher motor | 1*brushless motors |
| Cruise speed | 20m/s | GCS software | LAUNCH GCS |
| Max speed | 26m/s | Operating temperature | -20℃-45℃ |
| Stall speed | 17m/s |
