YANGDA Mapird Pro Long Endurance VTOL Drone

Overview

Fast Deployment

One-Person Setup in 3 Minutes

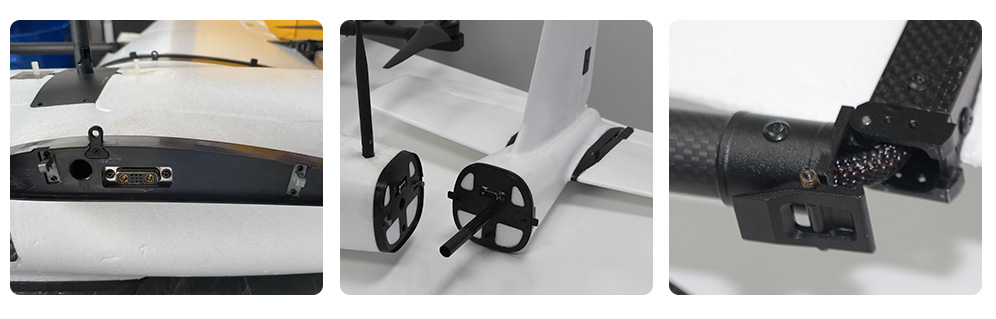

Featuring a quick-release mechanism for arms and wiring harnesses, the Maprid Pro Electric VTOL enables a hassle-free full assembly in 3 minutes.Designed for single-operator convenience with a single flight case solution, it helps capture critical operational windows in emergency missions.

Ready for Harsh Environments

Reliably across temperatures ranging from -10°C to 40°C

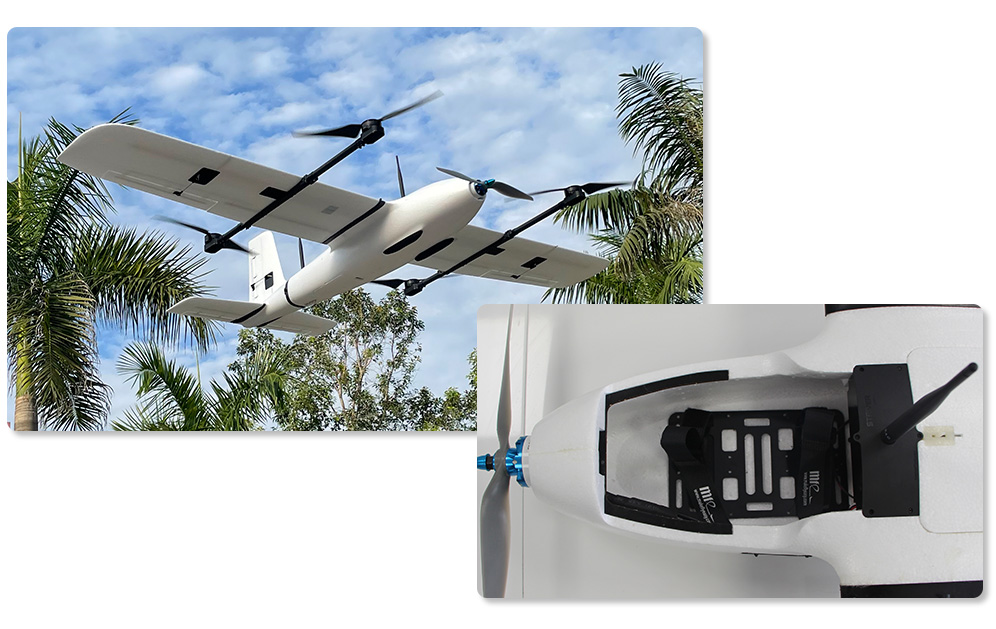

Built with a robust carbon-fiber structure, the Maprid Pro Electric VTOL operates reliably across temperatures ranging from -10°C to 40°C. For missions such as open-pit mining inspection and fire rescue, this wide operating temperature range helps improve mission efficiency while reducing unnecessary human exposure in challenging environments.

Smart Battery System

Safer Flight with SRTH Algorithm

The Maprid Pro Electric VTOL can be equipped with the XTurbo intelligent battery, featuring the SRTH (Smart Return-to-Home) algorithm. SRTH dynamically predicts remaining flight endurance based on real-time power consumption, flight distance, and battery health. Compared with traditional voltage-triggered return, it provides greater accuracy and reliability, effectively reducing the risk of low-battery forced landings.

Hassle-Free Operation

Easy for Beginners

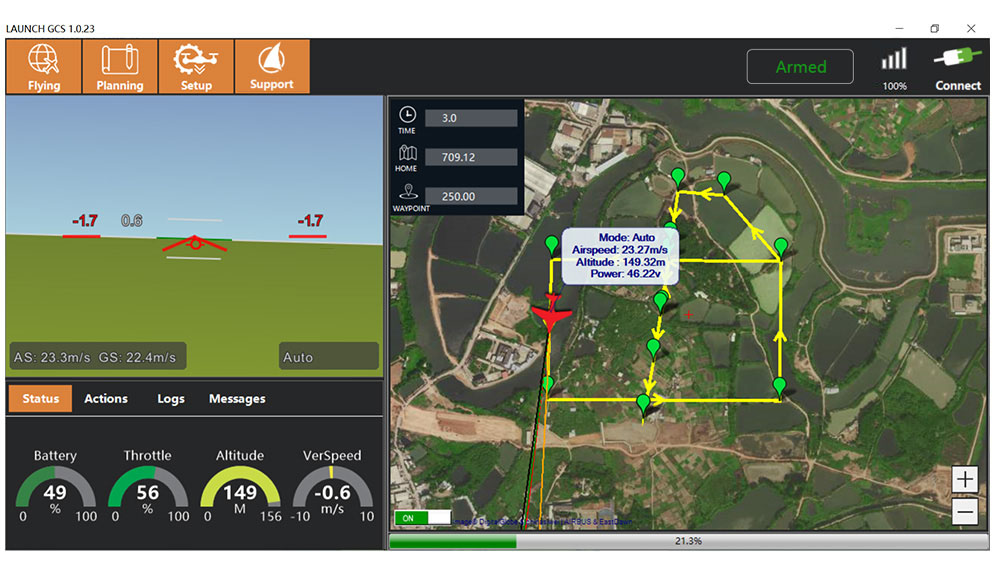

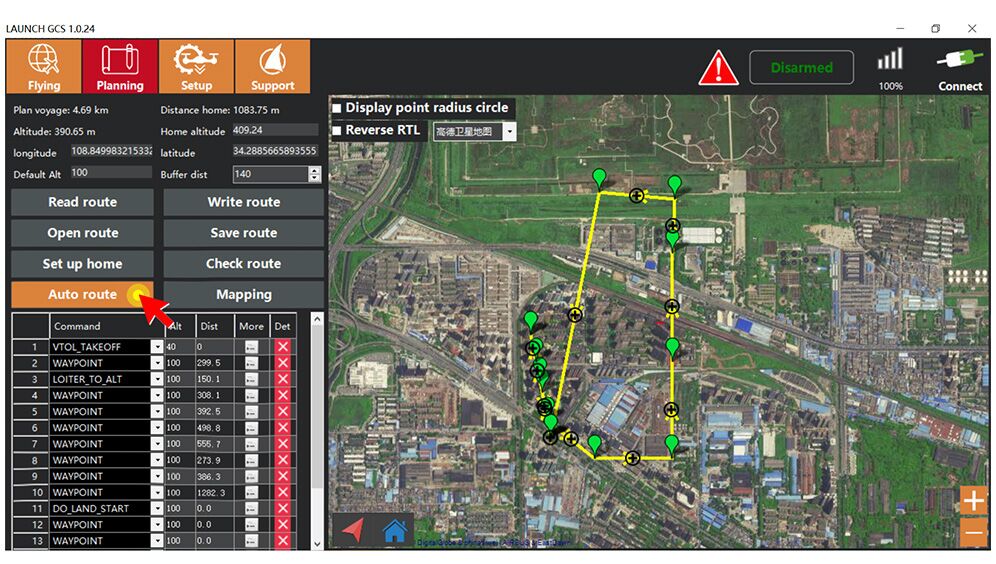

Paired with the LAUNCH ground control software featuring a clean interface and intuitive logic, the Maprid Pro Electric VTOL supports one-click takeoff, automated mission planning, and intelligent return-to-home. Even operators with no prior flight experience can carry out missions independently after short-term training.

Stable Performance in Harsh Conditions

38km/h Wind Resistance

With a powerful propulsion system combined with aerodynamic optimization, the Maprid Pro Electric VTOL maintains stable flight even in wind speeds of up to 38km/h. It is well suited for operations in high-wind applications, especially patrol missions in costal, mountainous or high-altitude regions.

Drone Life-Safe Design

More Reliable Flight

Hot-Swappable Battery System: With an built-in extra auxiliary flight battery,the system enables uninterrupted system power during battery swap.This allows continuous operation and multiple back-to-back missions.

What is Included

1 x YANGDA Mapird Pro Airframe (with Landing Gear)

4 x Lift Motor

4 x Lift Motor ESC

4 x Lift Motor Propeller

1 x Fixed-Wing Motor

1 x Fixed-Wing Motor ESC

1 x Fixed-Wing Propeller

4 x Wing Servo

1 x CAN Air Speedometer

1 x Pixhawk Cube Orange + Standard Set With Here 3 GNSS

1 x WFLY ET10 Radio Controller

1 x Assembly and Flight Test Service

1 x Carton Transportation Box

1 x YANGDA LAUNCH Ground Control Software

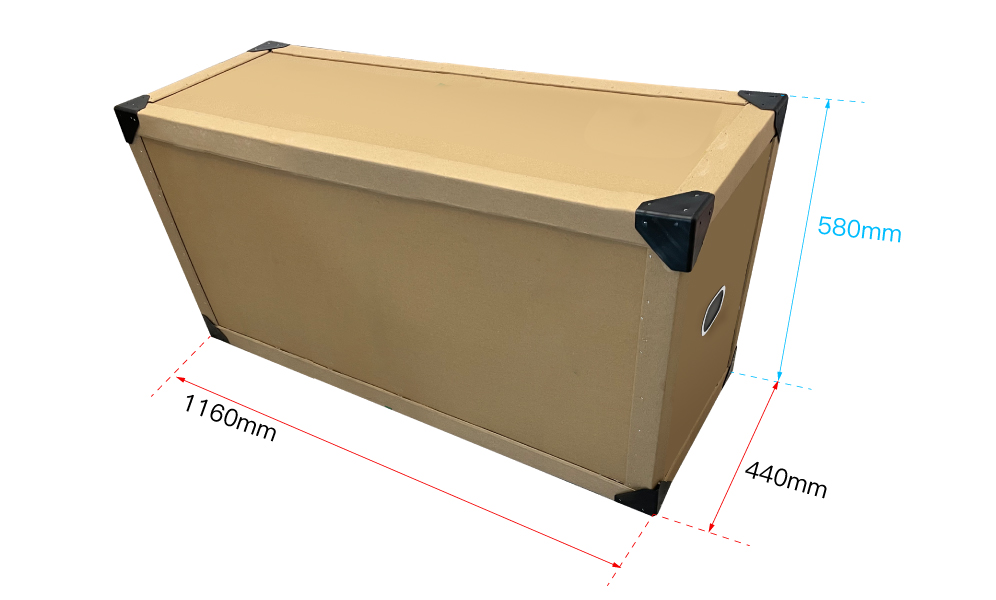

Size And Packing Dimension

Surveying & Geospatial Information

Challenge: Limited coverage per flight, weak signal in mountainous areas, and difficulties in data transmission.

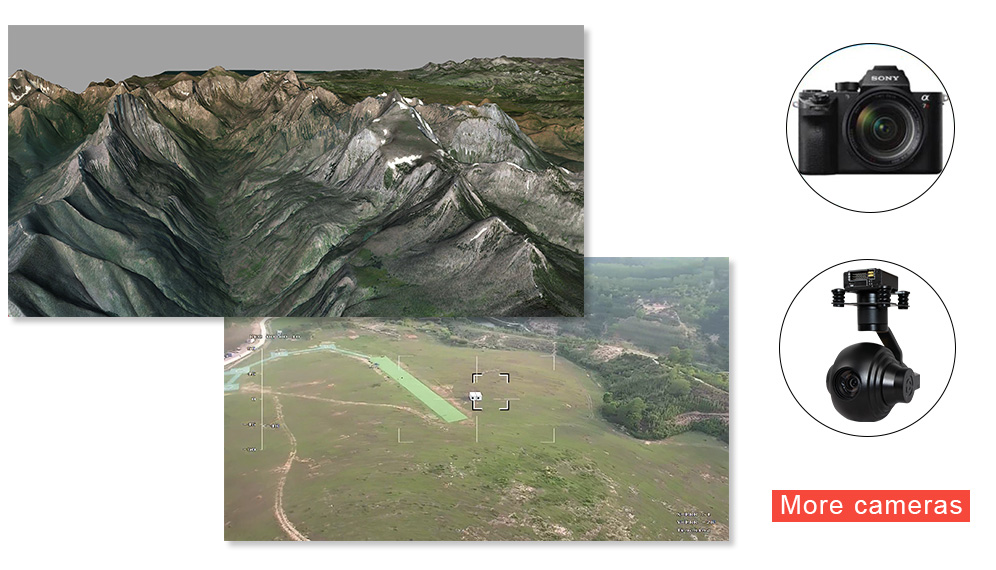

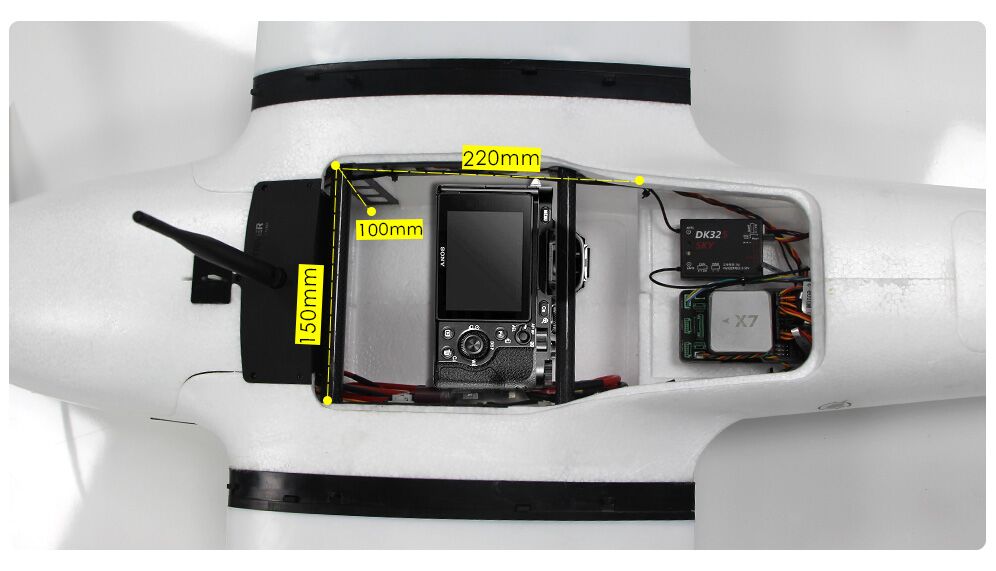

Maprid Pro Electric VTOL Solution: With a 1.1 kg payload capacity, Maprid Pro Electric VTOL can simultaneously carry a LiDAR system and high-precision INS. Its 2-hour extended endurance significantly reduces takeoff and landing cycles. Its optional 4G or Starlink communication enables real-time flight data and video transmission, improving operational efficiency by over 50%.

Recommended Configuration: LiDAR + PPK module + 4G data link.

Security Surveillance & Border Patrol

User Pain Points: Difficulty in target identification at night and the need for continuous hovering during long-range patrols.

Maprid Pro Electric VTOL Solution: With the optional "Fly by Camera" function, the VTOL system can automatically lock onto and track ground vehicles or individual while continuously updating target coordinates in real time. With the navigation lights enhancing nighttime identification, and a thermal imaging gimbal extending night vision capability, it enables all-weather, wide-area surveillance with improved operational safety.

Recommended Configuration: Storm Eye EO/IR gimbal camera + N150 long-range video & data link.

Research and Rescue in Disaster Zones

Challenge: In disaster zones where roads and urban infrastructure are severely damaged, conventional transportation and rescue methods often struggle to access affected areas efficiently.

Maprid Plus Electric VTOL Solution: With a payload capacity of up to 1.1 kg, the Sky Fury Electric VTOL can be equipped with optical or thermal imaging sensors to provide real-time, long-range aerial monitoring of disaster areas. By quickly identifying affected zones and locating people in need, it enables faster rescue response while reducing manpower requirements and operational time.

Recommended Configuration: Storm Eye EO/IR gimbal camera + N150 long-range video & data link.

Maritime Operations

Challenge: Shipboard takeoff and landing are difficult due to the lack of fixed reference points and compass interference.

Maprid Plus Electric VTOL Solution:

The "Follow Me" mode enables the UAV to take off from and land on moving vessels. While the differential GPS frees the VTOL from compass calibration and is resistant to vessel electromagnetic interference. And the ptional 4G or Starlink communication enable beyond-visual-line-of-sight operations.

Recommended Configuration: 4G data link + waterproof protection kit.
