Sky Eye-HT50 3-Axis IR Gimbal Camera for Night Monitoring, Inspection and Tracking
Overview

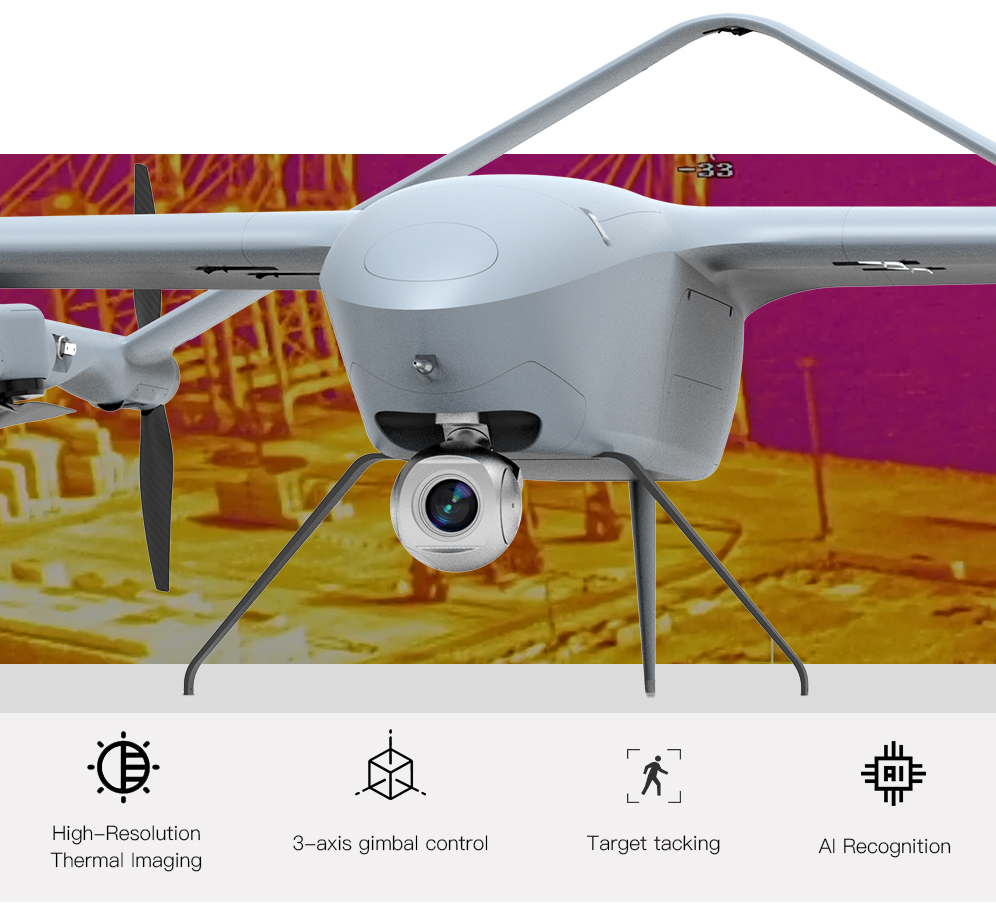

Sky Eye-HT50 is a high-resolution thermal imaging camera designed to deliver precision and clarity in low-light environments. Powered by a 50mm lens and a 1280 × 1024 thermal sensor with 12 μm pixel size, combined with advanced image processing algorithms and a 3-axis stabilized gimbal, it delivers flexible, sharp, and highly detailed thermal imagery even in challenging nighttime conditions. This makes it ideal for nighttime monitoring, security, inspection, and other industrial aerial applications.
Mission Fit
Why it Performs in Demanding Monitoring Missions
50mm UHD Thermal Imager
Precise Infrared Detection
Designed for nighttime applications, the Sky Eye-HT50 is equipped with a high-performance thermal imager featuring 1280x1024 resolution, a 50mm lens, 8× digital zoom, and an infrared detection range of up to 6.5 km. Delivering sharp thermal imaging and accurate target detection in low-light and nighttime conditions, it enables operators to maintain enhanced situational awareness throughout demanding missions.

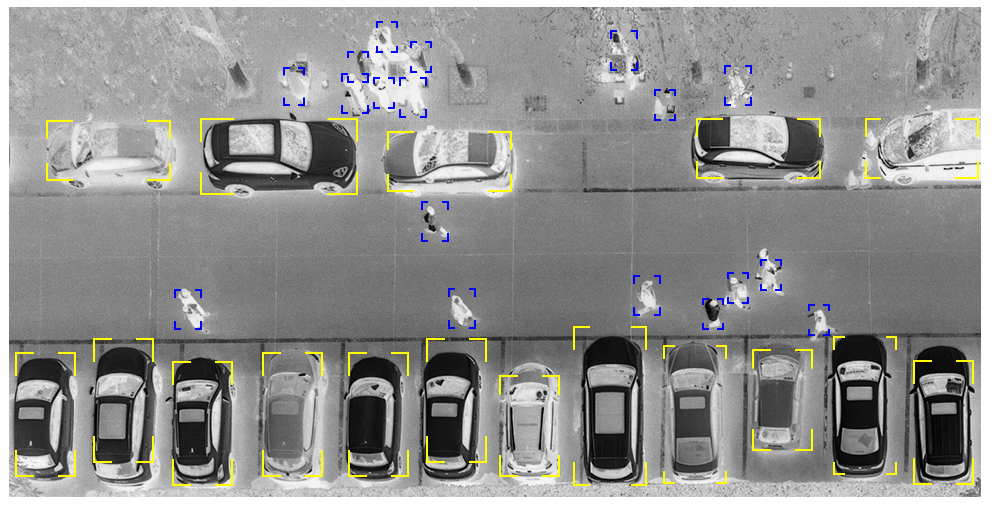

AI Tracking
Precise Target Control
Powered by real-time AI-powered recognition and auto-tracking, the Sky Eye-HT50 ensures continuous target awareness, minimizing the risk of target loss even in complex and dynamic environments.

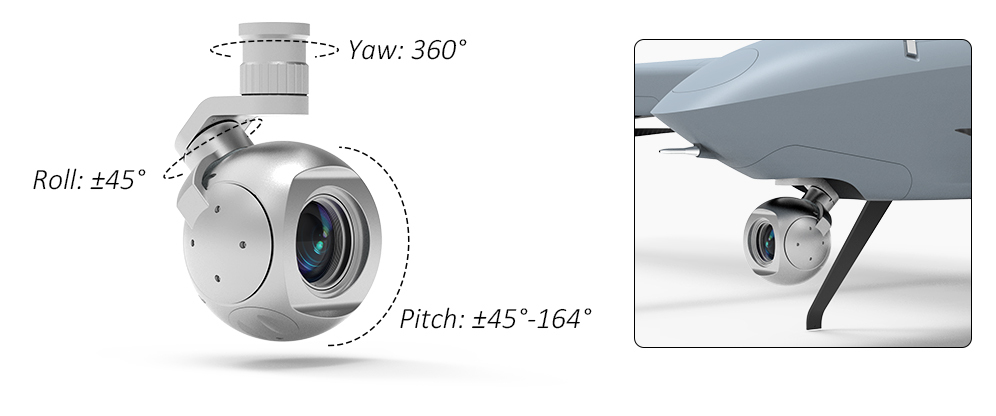

3-Axis Gimbal
Plug-and-Play Integration
Designed with a quick-release mechanism, the 3-axis Sky Eye-HT50 enables tool-free installation and a secure physical connection,streamlining deployment while ensuring stable imaging in operation.
Designated Control System
Compatible to MAVLink
Powered by the in-house YDlink camera control software, the Sky Eye-HT50 supports MAVLink protocol and integrates with PX4 and ArduPilot flight control systems, enabling real-time telemetry, video transmission, and precise command execution for efficient and reliable aerial operations.
Highly Resilient
In Harsh Environments
Equipped with built-in thermal sensor protection, the Sky Eye-HT50 operates within a temperature range of -25°C to 60°C, ensuring reliable performance across diverse operating environments.

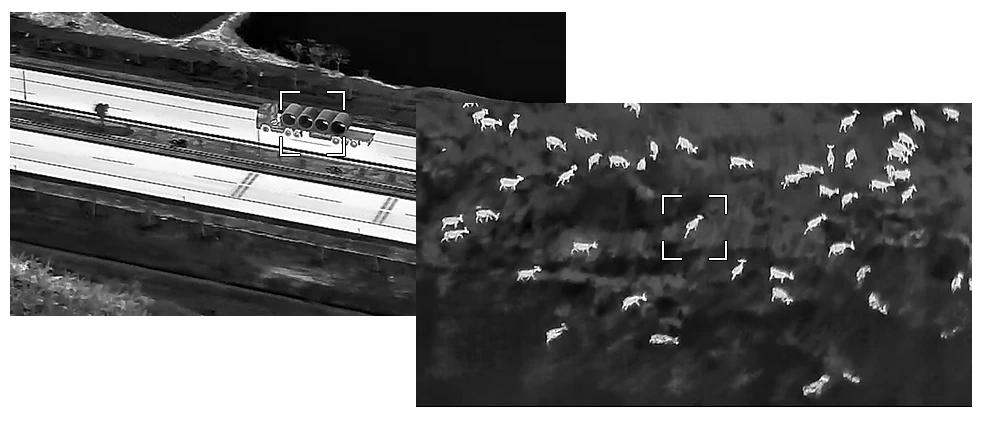

Target Tracking
Via Coordinated Camera-Drone Control
Through integration with the camera and drone control system, the Sky Eye-HT50 enables the drone to automatically adjust its flight path to follow the target. This ensures synchronized operation between the camera and the drone, maintaining readiness for real-time execution of target-related commands.
UAV, UGV, USV Compatible
All-Round Imaging Support
Featuring a stabilized gimbal platform, long-range zoom, clear day-and-night observation, and intelligent target detection and tracking, our gimbal cameras integrate seamlessly with UAVs, ground vehicles, marine vessels, and robotic platforms, delivering dependable imaging support for a wide range of industrial missions.
Best Fit For
Platform Compatibility
Designed for efficient and practical UAV integration, including:
High Compatibility with
● Platforms: VTOL / multirotor drones
● Systems: PX4 / ArduPilot
● Protocol: MAVLink
● Interfaces: PWM / S.Bus / UART / Ethernet
In-House Operating Technologies
● Operating System: YDlink control system
● Deployment: Quick-release mechanism
Key Specifications
Recommended Applications
How to Choose
Choose This Model If You Need
For requirements of IR and LRF cameras, please refer to
● High-resolution thermal visibility at night
● Efficient thermal detection
● An all-in-one payload for search & tracking
| Gimbal Camera | Input voltage | 12V |
| Video output | 1080P/720P 30fps Ethernet | |
| Video recorded | 1080P/720P 30fps MP4 | |
| Photo | JPG(1920*1080) | |
| Rotate range | Pitch: ±90° Roll: ±45° Yaw: Unlimited | |
| Angle amount of jitter | Pitch and roll: ±0.02° Yaw: ±0.02° | |
| Control interface | S.Bus, UART and Ethernet | |
| Working Current | Static current: 1.0A(@12V) | |
| Dynamic current: 3.3A(@12V) | ||
| Local storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) | |

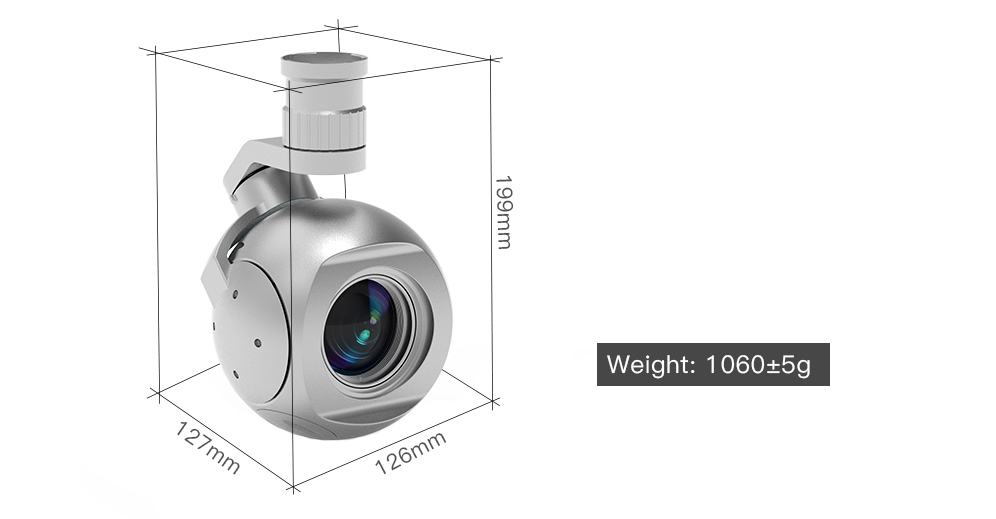

| Mechanical feature | Total weight (gimbal and camera) | 1060g±5g |
| Working temperature | -25° ~ +60° | |
| Thermal imager | Lens | 50mm |
| Working system | Un-cooled long wave (8μm～14μm) | |
| Detector pixels | 1280x1024 | |
| Pixel size | 12μm | |
| Focusing | Athermalizing | |
| Digital zoom | 8x | |
| FOV | Horizontal: 17.5° | |
| Vertical: 14° | ||
| Diagonal: 22.3° | ||
| Detective Distance (Man: 1.8x0.5m) | 2083 meters | |
| Recognize Distance (Man: 1.8x0.5m) | 521 meters | |
| Verified Distance (Man: 1.8x0.5m) | 260 meters | |
| Detective Distance (Car: 4.2x1.8m) | 6389 meters | |
| Recognize Distance (Car: 4.2x1.8m) | 1597 meters | |
| Verified Distance (Car: 4.2x1.8m) | 779 meters | |
| Emissivity correction | Emissivity 0.01~1 adjustable | |
| NETD | ≤50mK(F1.0@25℃) | |
| Image enhancement | Automatically adjusts image brightness and contrast | |
| Color palette | White hot, black hot, pseudo color | |
| Automatic non-uniformity | Yes(with or without shutter) | |
| Correctionfunction | ||
| Time synchronization function | Yes |
