Introducing ROCK Fold GCS: foldable dual 1080p touchscreens and 6 hours endurance
The ROCK Fold GCS is a 10 kg, collapsible ground control stati...
ROCK Fold Dual-Touchscreen Ground Control Station
Industrial portable GCS with dual-touchscreen for smarter UAV operation.
We also offer compatible UAV solutions, including gimbal cameras, video and data links, and GCS. Choose your solutions below and send an inquiry to get started.
5.0
Model:
ROCK Fold GCS
MOQ:
1 pcs
Brand:
YANGDA
Price terms:
EXW, FOB, CIF
Place of Origin:
Shenzhen, China
Delivery:
Ways Air/ Sea as requested
Payment terms:
T/T, L/C, Western Union, Paypal
Sample:
Provide samples check quality before bulk orders
Date of delivery:
Samples 10-14days, bulk orders 14-30days(according to quantity)
Weight:
10.00 KGS
Sku:
ROCK Fold GCS
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Required Products
Total price discount:
01-ROCK-FOLD-GCS
Overview
The ROCK Fold GCS is a portable ground control station with a foldable dual-touchscreen design and 10 kg lightweight build. It features a built-in high-capacity battery and premium display, enabling up to 6 hours of intuitive UAV control and real-time monitoring. With water resistance and wide temperature tolerance, it delivers reliable performance across diverse missions and harsh environments.

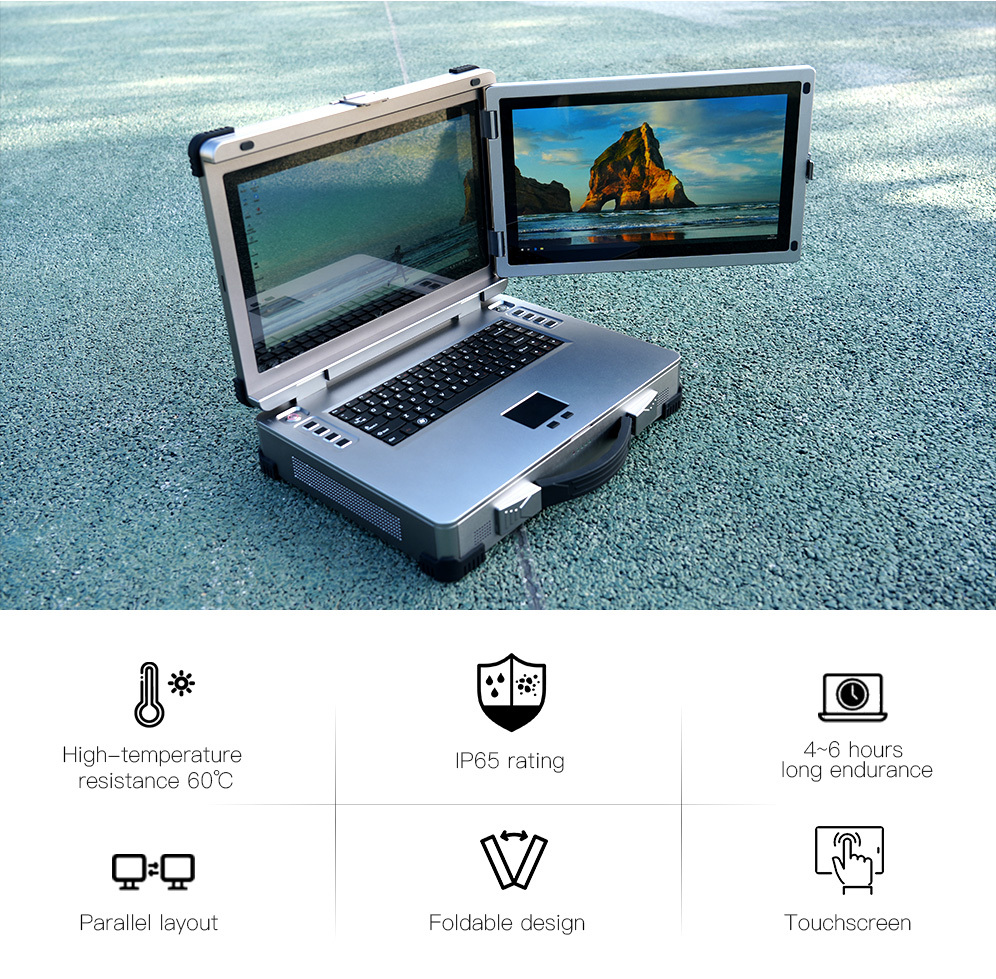

High-temperature resistance 60℃
IP65 rating
4~6 hours long endurance
Parallel layout
Foldable Design
Touchscreen
Mission Fit

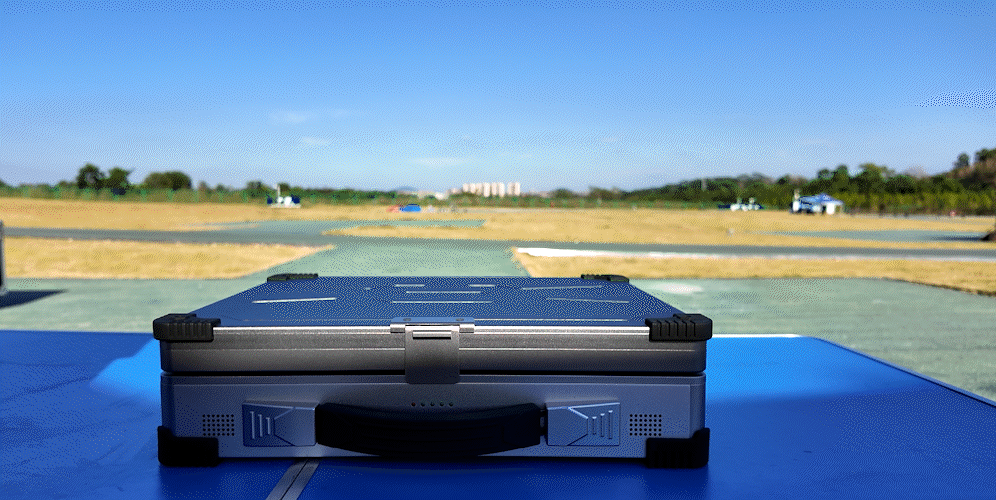

Foldable Design, Faster Deployment
Built for faster and more efficient real-world deployment, the ROCK Fold GCS features a foldable dual-screen design with a secure side handle, ensuring easy portability even for single-operator missions.

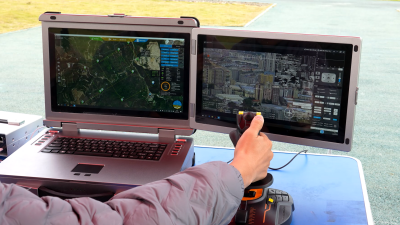

Dual-Touchscreen, Smarter Control & Monitoring
Powered by dual screens simultaneously delivering real-time feedback from drone and camera control software, together with upgraded 10-point multi-touch screens, the ROCK Fold GCS enables smarter monitoring and smoother operation, redefining UAV control with advanced technology.
Reliable Mission Communication
Powered by 512GB SSD and full compatibility with Windows 10 and Linux systems, the ROCK Fold GCS delivers fast, smooth processing with low-latency performance. This ensures robust and reliable communication for continuous mission operations.
Sustained Endurance, Strong Environmental Adaptation
Featuring a 1000-nit high-brightness display, IP65 water resistance, and a wide operating temperature range from -10°C to 60°C, the ROCK Fold GCS delivers up to 6 hours of operation with reliable performance across diverse outdoor environments.
Why it Performs in Demanding Aerial Missions

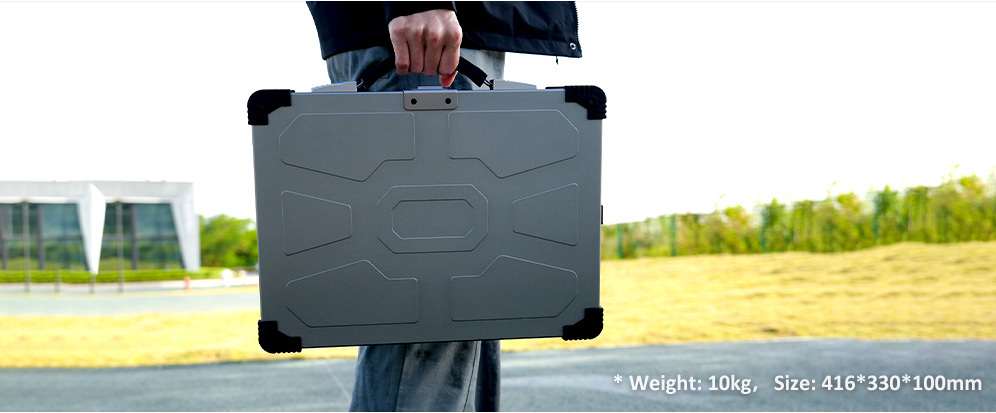

Industrial-Grade Portability
Weighing 10kg
Designed with a foldable structure and industrial-grade keyboard, the ROCK Fold GCS weighs only 10kg-lighter than most dual-screen GCS systems on the market. Combined with a built-in side handle, it enables easier and faster deployment even for single-operator missions.

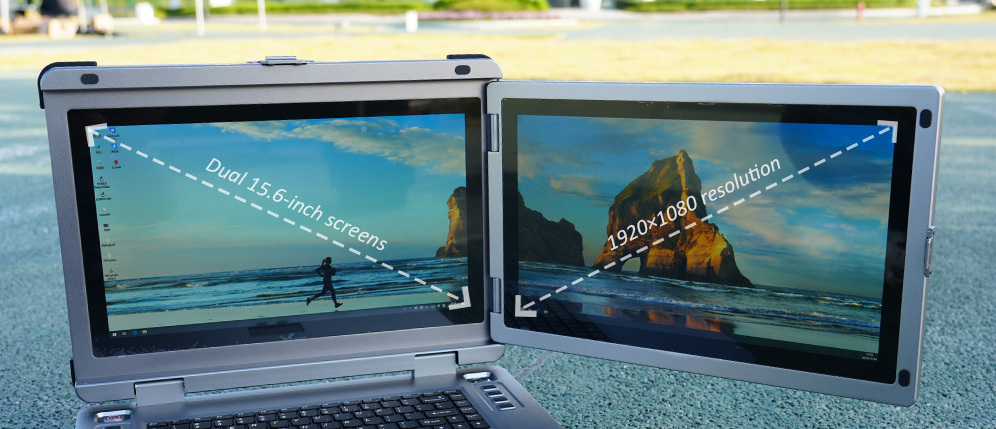

15.6-Inch 1080P Dual Screens
Sharp Visual Clarity
The ROCK Fold GCS is designed with two parallel 1080P 15.6-inch displays. Paired with the in-house YANGDA software - LAUNCH GCS for drone control and YDlink for camera control - it enables simultaneous real-time monitoring of both drone and camera operations.

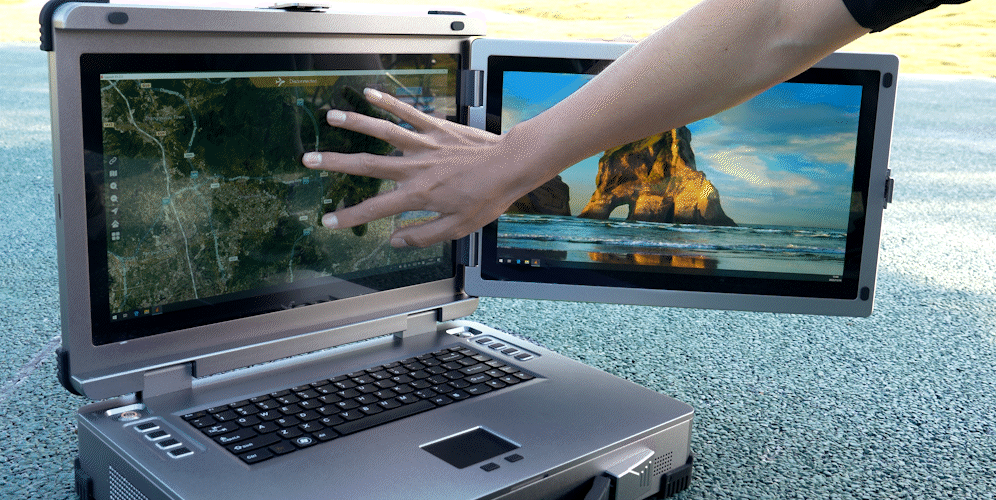

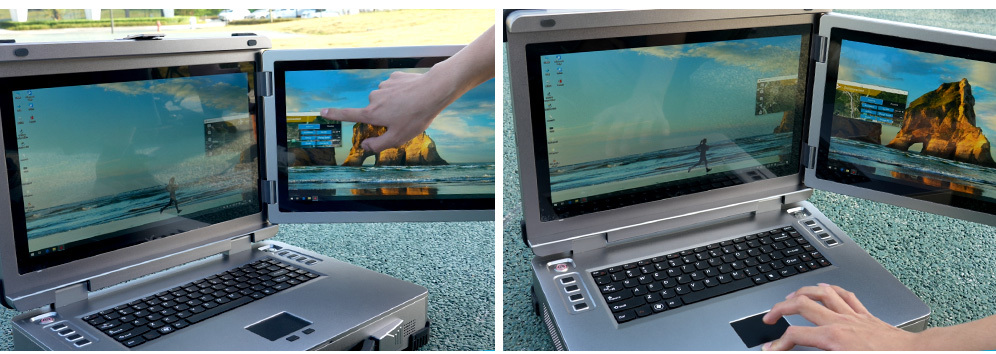

10-Point Touchscreens
More Flexible Operation
The ROCK Fold GCS features an upgraded 10-point multi-touch display for faster and more intuitive interaction, while also supporting traditional input methods such as a built-in keyboard and external joystick. This flexible control design enables operators to adapt efficiently to different mission scenarios and operating preferences.
1000-Nit Brightness
Built for Outdoor Operation
Built with 1000-nit brightness, the screens of the ROCK Fold GCS deliver clear visibility even under strong sunlight, ensuring accurate monitoring and reliable control in demanding outdoor environments.

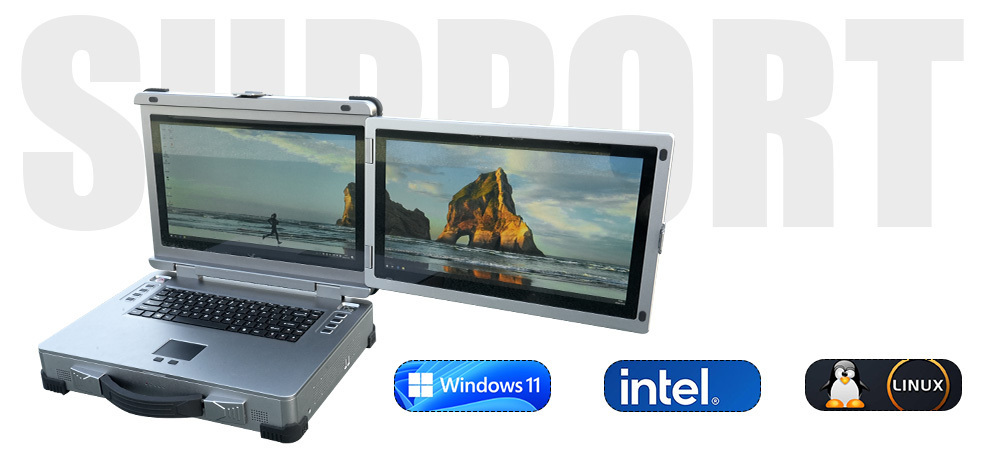

High Compatibility & Low Latency
Reliable Mission Communication
Powered by 512GB SSD and full compatibility with Windows 10 and Linux systems, the ROCK Fold GCS delivers fast, smooth processing with low-latency performance. This ensures robust and reliable communication for continuous mission operations.

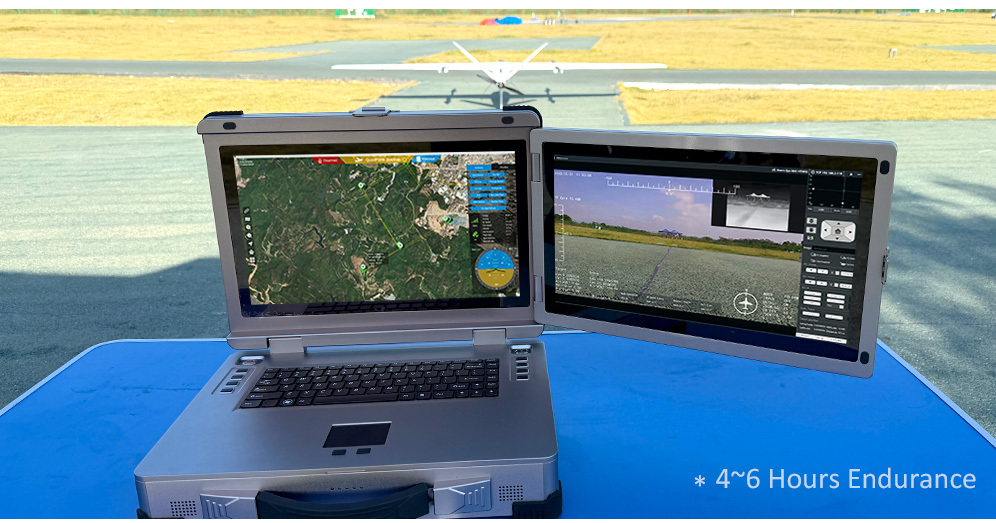

6-Hour Endurance
6-Hour Endurance
Equipped with a built-in high-capacity battery, the ROCK Fold GCS delivers up to 6 hours of endurance, providing reliable backup power for field operations that require long-range and sustained monitoring.

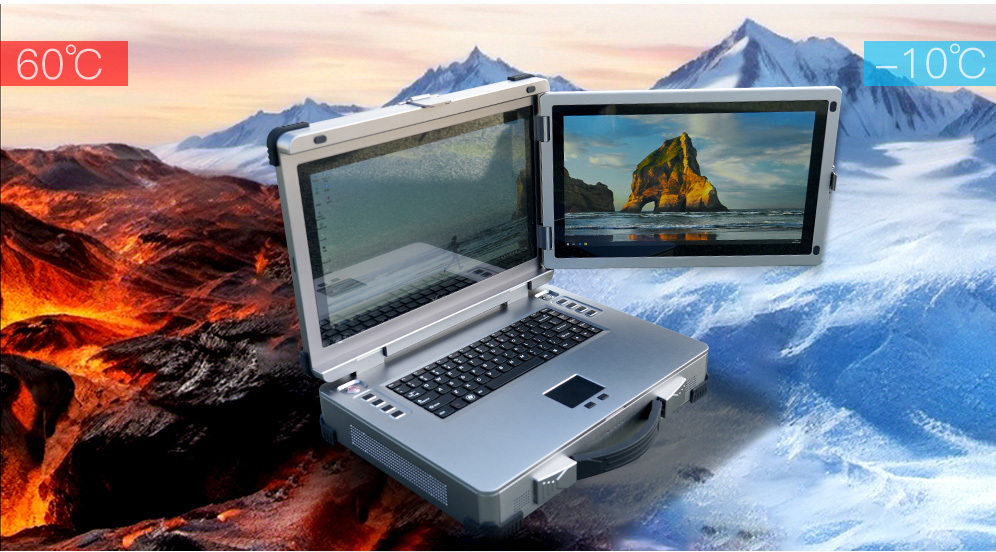

Environmentally Adaptable
Always All-Weather Ready
Featuring IP65 water resistance and a wide operating temperature range from -10°C to 60°C, the ROCK Fold GCS is engineered to maintain stable and reliable performance in harsh and unpredictable outdoor environments.
Best Fit For
UAV system integrators developing security or inspection drone solutions
Industrial drone operators requiring real-time video, data, and command communication
Public safety and emergency response teams requiring high-demand mission progress monitoring
04 (16)

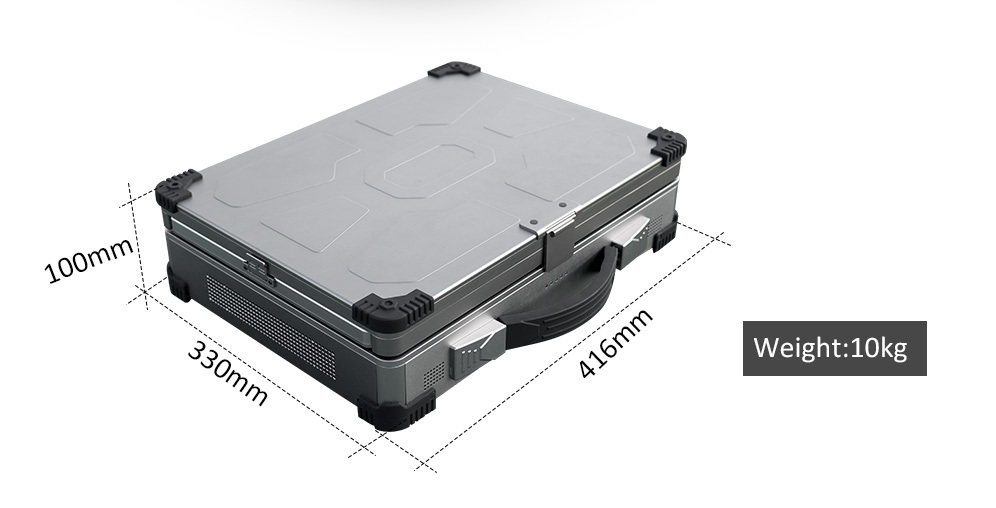

Ground station box
● Box type: Military-grade protection box
● Size: 416*330*100mm
● Overall weight: 10KG
● Box material: Aviation Alloy
● Working temperature: -10°C ~ 60°C
● Protection class: IP65
● Color: Silver
Computer specification
● Processor: Intel i7-11th CPU
● Operating system: Windows 10 / Linux
● Memory: 16GB RAM
● Hard disk: 512GB SSD
● Graphics: Intel lris(R) Xe Graphics
● Network card: 1000M
Key Specifications
Overall weight
10KG
Size
416*330*100mm
Recommended Applications
Border Patrol and Security Monitoring
Professional Inspection in Pipeline, Mining Industry
Tactical Overwatch and Rapid Deployment
Emergency Response and Incident Assessment
How to Choose
Choose This Model If You Need
Click here for GCS with wider displays
● Stable and reliable UAV communication in complex environments
● Real-time video, telemetry, and target monitoring during missions
● An integrated UAV operation platform for sensing, data processing, and mission execution
| Ground station box | |
| Box type | Military-grade protection box |
| Size | 416*330*100mm |
| Overall weight | 10KG |
| Box material | Aviation Alloy |
| Working temperature | -10°C ~ 60°C |
| Protection class | IP65 |
| Color | Silver |
| Computer specification | |
| Processor | Intel i7-11th CPU |
| Operating system | Windows 10 / Linux |
| Memory | 16GB RAM |
| Hard disk | 512GB SSD |
| Graphics | Intel lris(R) Xe Graphics |
| Network card | 1000M |
| Wi-Fi | 2.4G / 5.8G, Bluetooth 4.0 |
| Touchscreen | 10-point multi-touch |
| Dual screens | |
| Size | Dual 15.6-inch |
| Resolution | 1920*1080 |
| Screen ratio | 16:9 |
| Back-light type | LED |
| Max brightness | 1000 nit |
| Input interface | HDMI, USB 3.0, Type C, Audio In |
| Operation panel | |
| Panel material | Aviation Alloy |
| Interface | 2*USB2.0/2*USB3.0/1*HDMI/1*LAN/Lin out/Mic in |
| Feeders and interfaces | Support N and SMA interface |
| Interactive | Industrial mouse key set, button |
| Switch parameters | Total power supply, power button, link power supply |
| Other equipment | Industrial cooling fans |
| Physical Controls | 8 buttons |
| Battery and power | |
| Power type | Built-in battery and external power supply |
| Battery Capacity | 399Wh |
| Display content | Voltage & current, left capacity, power consuption |
| Management system protection | Overcurrent protection, overvoltage protection, low voltage protection |
| Overcapacity protection, overpower protection | |
| Battery protection | Overcurrent protection, overtemperature protection |
| Overvoltage protection, low voltage protection | |
| Battery endurance | 6 hours |
1
Q1: What's the main feature of the ROCK Fold GCS?
The ROCK Fold GCS features dual foldable 15.6-inch touchscreens, expanding operation options alongside traditional controls including a built-in keyboard and external joystick support. Designed for portable and flexible deployment, it supports efficient UAV control workflows, including single-operator field deployments.
2
Q2: Will there be any lag when using the ROCK Fold GCS?
The ROCK Fold GCS delivers smooth and responsive performance during operation. Equipped with 16GB RAM and 512GB SSD storage, it enables faster boot-up, smoother multitasking, and improved data access speeds, ensuring reliable and responsive operation even in mobile or outdoor environments.
3
Q3: Can it be connected with external joystick?
Yes, the ROCK Fold GCS supports external joystick. You can find our recommended one in the Optional Configurations Tab, and contact our sales engineer for more information.
4
Q4: What is the runtime of the ROCK Fold GCS?
Powered by a 399Wh built-in battery, the ROCK Fold GCS delivers up to 6 hours of runtime, ensuring reliable backup power for mission continuity.
5
Q5: What systems is it compatible with?
The ROCK Fold GCS supports both Windows 10 and Linux system.
6
Q6: Can it be used in harsh outdoor environments?
Yes. Equipped with IP65-rated water resistance and a wide operating temperature range of -10°C to 60°C, the ROCK Fold GCS demonstrates strong environmental adaptability, enabling stable performance in challenging outdoor conditions such as dust, rain, and extreme temperatures.
7
Q7: What are typical use cases for the ROCK Fold GCS?
As an industrial-portable GCS, the ROCK Fold GCS features innovative dual touchscreens, smooth system performance, long battery life, and strong environmental adaptability. This makes it well-suited for long-range and demanding aerial missions such as border patrol, pipeline inspection, and disaster response.
