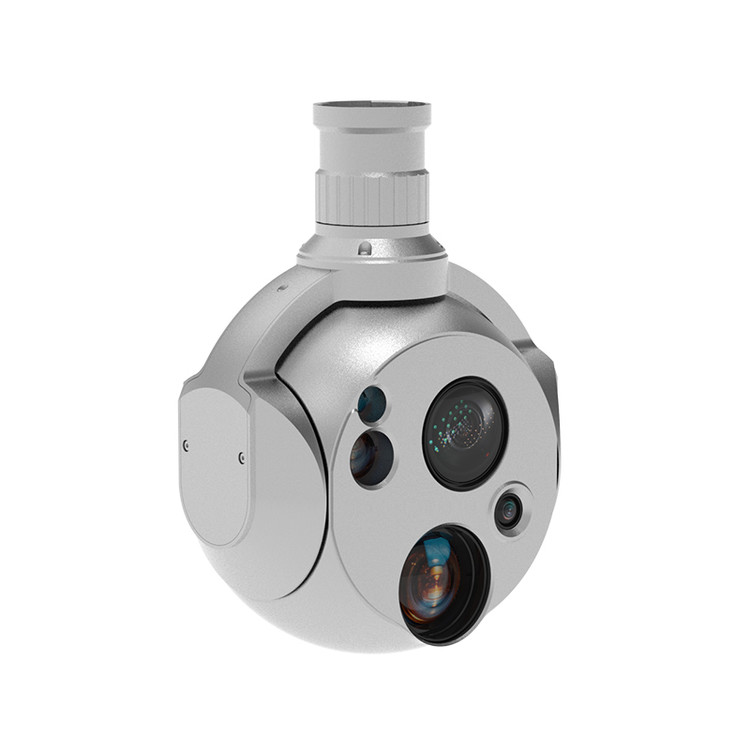

Storm Eye-30IE-MU 2-Axis EO/IR/LRF Wide Gimbal Camera for Observation, Inspection and Security
Overview

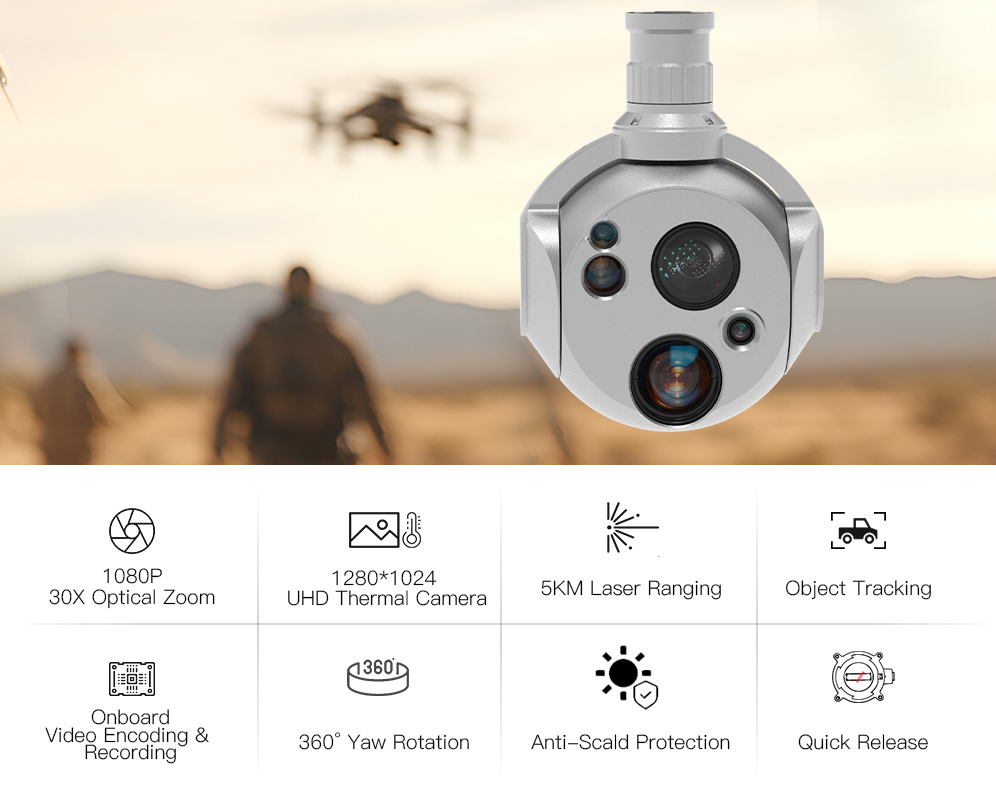

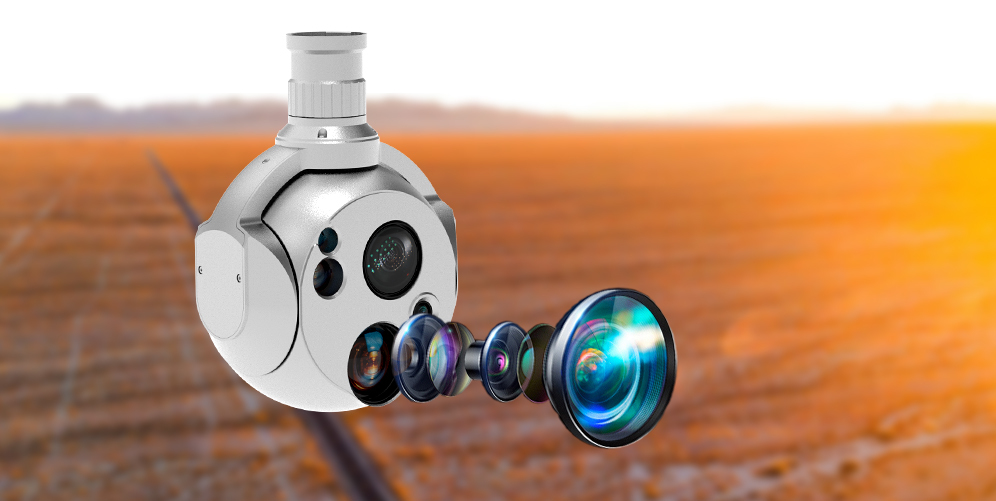

The Storm Eye-30IE-MU is engineered for efficient aerial monitoring, featuring a 30× EO zoom camera, 5 km LRF, 4K wide-angle vision, and a UHD 35 mm thermal imager that balances ranging and coverage. It delivers reliable long-range imaging and target tracking for day-and-night aerial missions.
Mission Fit
Why it Performs in Demanding Monitoring Missions

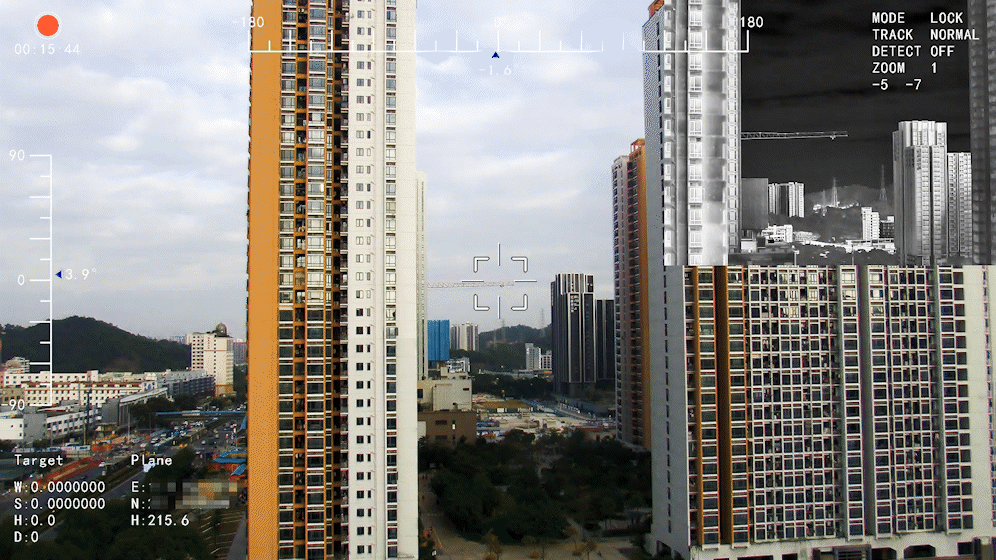

30x EO Zoom for Long
Distance Visual Intelligence
The Storm Eye-30IE-MU integrates a 30x optical zoom camera with 1920x1080 resolution, capturing high-detail imagery from extended distances and enabling accurate observation of people, vehicles, and infrastructure without close-range operation.

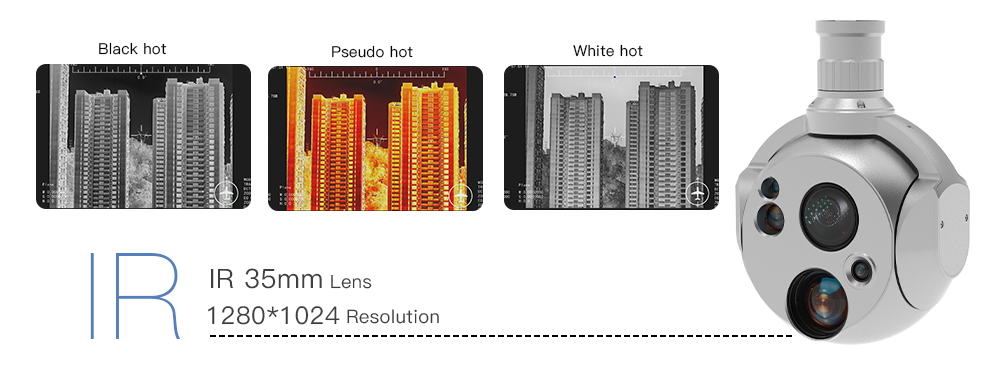

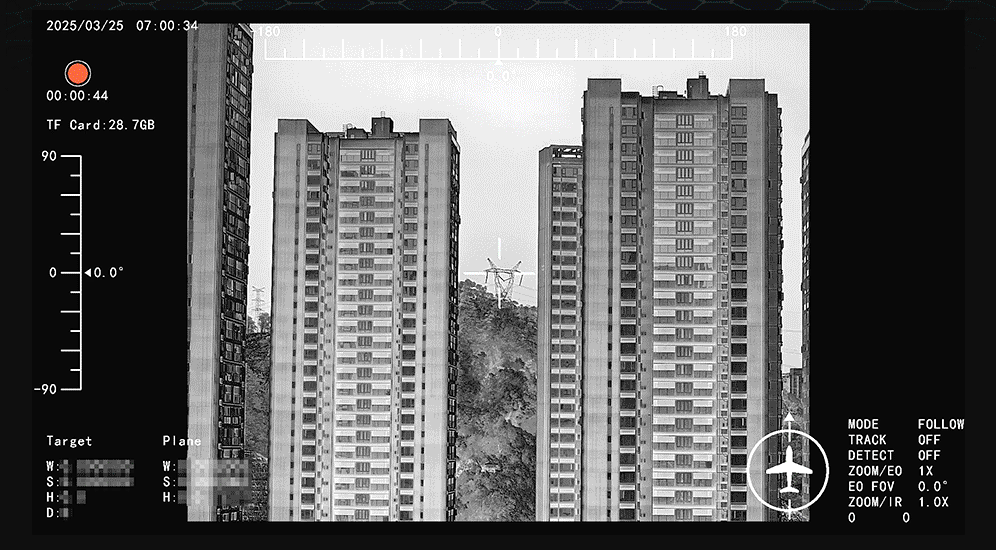

35mm Thermal Imager
Built for UHD Day-and-Night Awareness
Equipped with a 35 mm thermal imager featuring UHD 1280×1024 resolution, the Storm Eye-30IE-MU provides thermal vision with a balanced field of view and detection range for low-light and nighttime monitoring, delivering precise infrared detection across day-and-night operations.

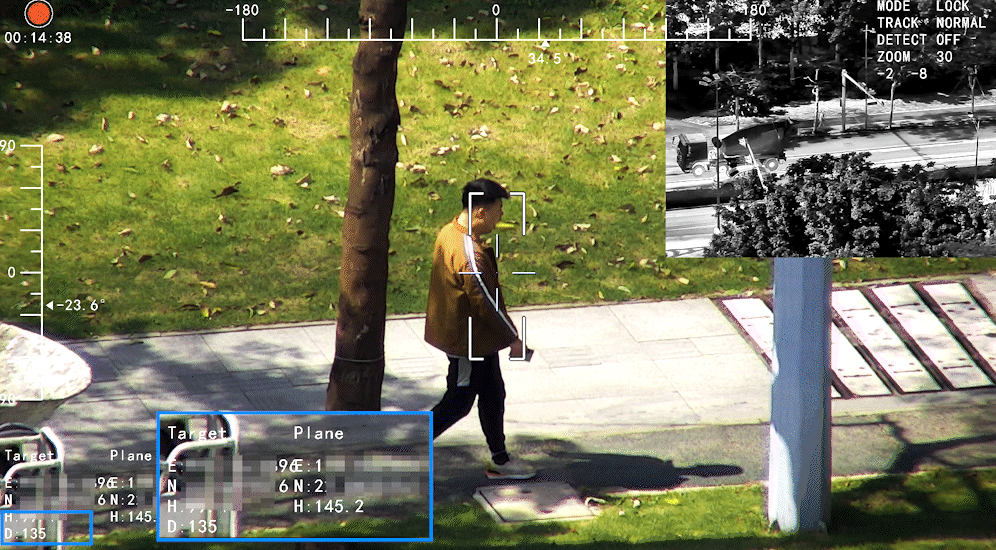

5 km LRF and AI Tracking for Precise Target Control
Combining up to 5 km laser ranging with AI-powered recognition and auto-tracking, the Storm Eye-30IE-MU maintains continuous target awareness, reducing the risk of target loss in complex and dynamic environments.

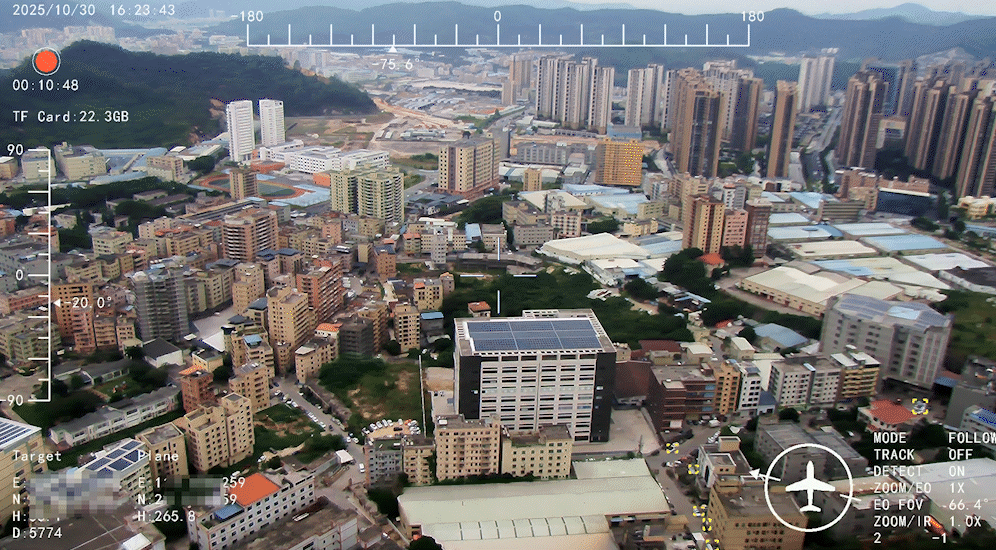

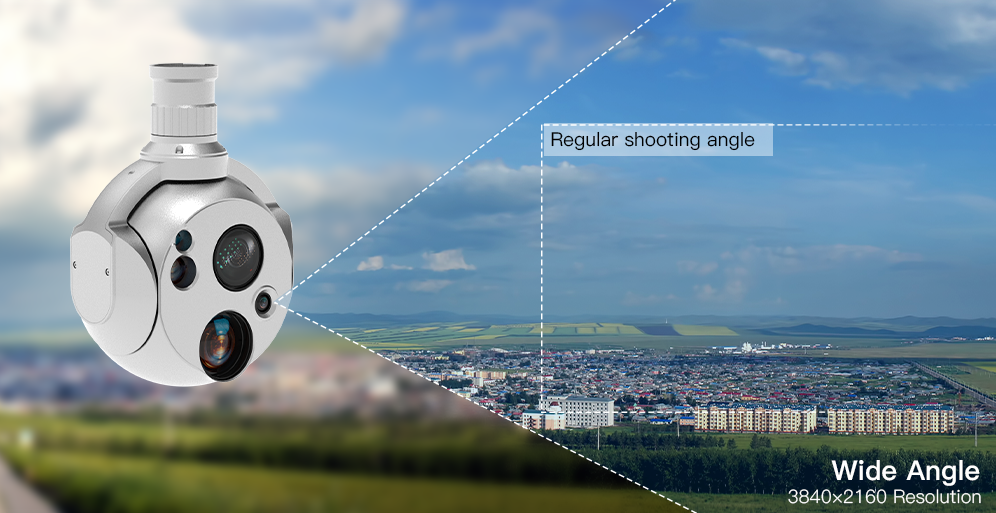

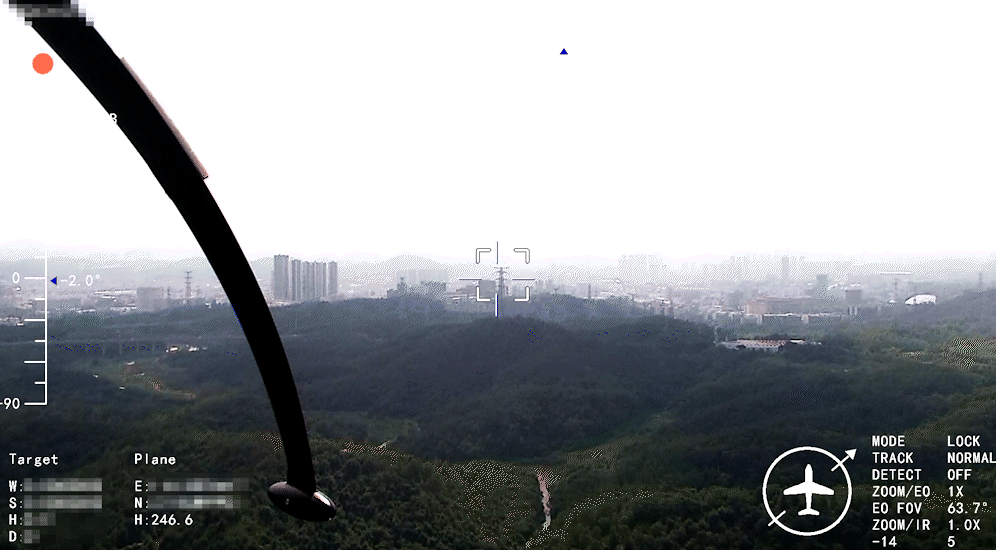

4K Wide-Angle for Expanded Field Coverage
Featuring 3840×2160 resolution and a 125° diagonal FOV, the Storm Eye-30IE-MU captures ultra-wide scenes with enhanced area coverage, improving situational visibility and reducing mission time.

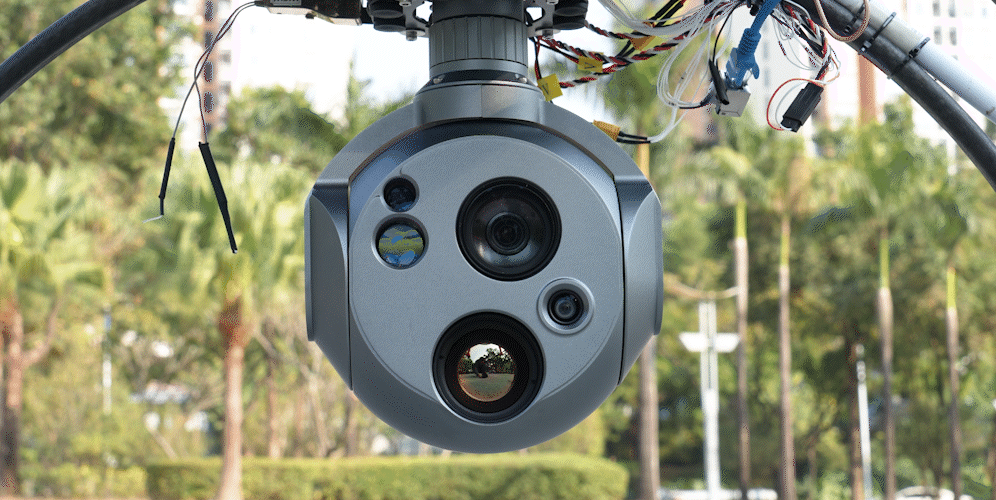

2-Axis Gimbal for Plug-and-Play Integration
2-Axis Storm Eye-30IE-MU

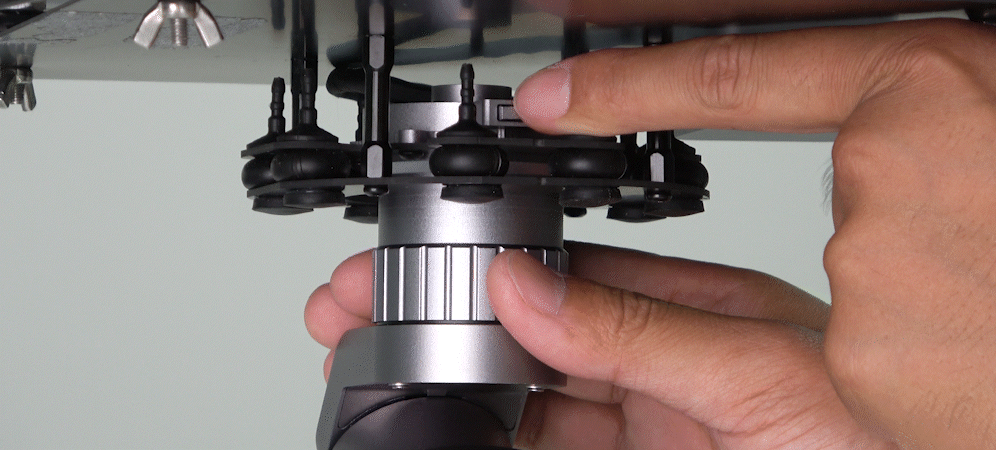

Designed with a quick-release mechanism, the 2-axis Storm Eye-30IE-MU enables tool-free installation and flexible switching between aerial views, streamlining deployment while maximizing operational flexibility.
UAV, UGV, USV Compatible
All-Round Imaging Support
Featuring a stabilized gimbal platform, long-range zoom, clear day-and-night observation, and intelligent target detection and tracking, our gimbal cameras integrate seamlessly with UAVs, ground vehicles, marine vessels, and robotic platforms, delivering dependable imaging support for a wide range of industrial missions.
Designated Control System
Compatible to MAVLink
Powered by the in-house YDlink camera control software, the Storm Eye-30IE-MU supports MAVLink protocol and integrates with PX4 and ArduPilot flight control systems, enabling real-time telemetry, video transmission, and precise command execution for efficient and reliable aerial operations.
Highly Resilient in Harsh Environments
Equipped with built-in thermal sensor protection, the Storm Eye-30IE-MU operates within a temperature range of -10°C to 50°C and withstands up to 30 seconds of direct sunlight exposure, ensuring reliable performance across diverse operating environments.

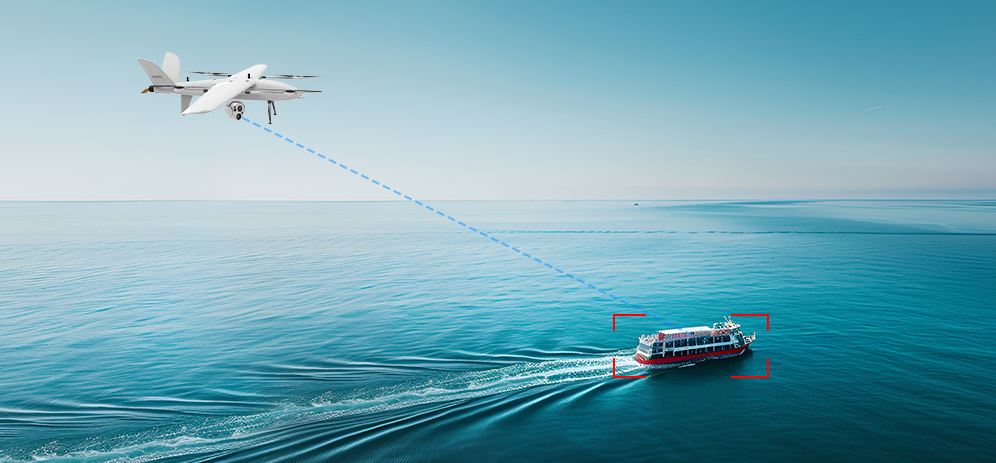

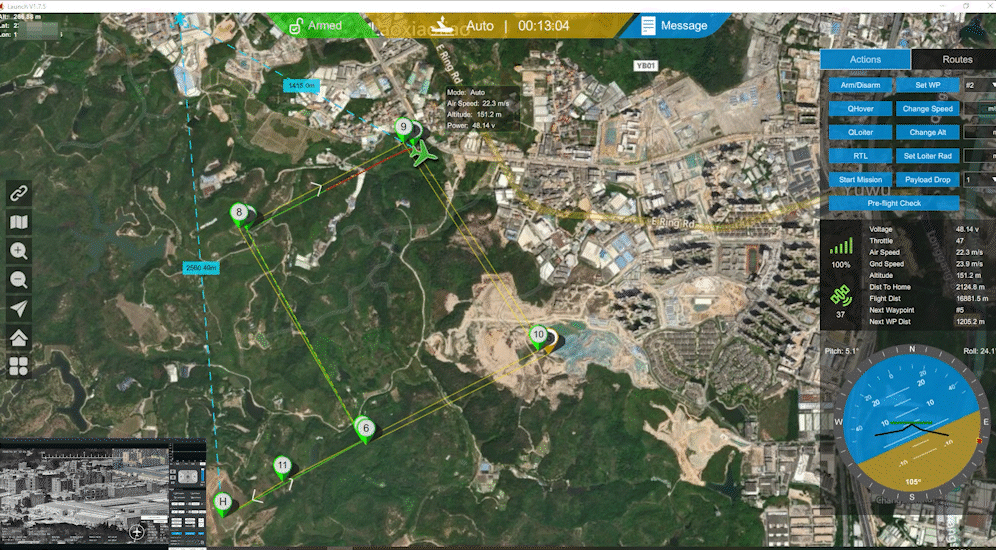

Target Tracking via Coordinated Camera-Drone Control
Through integration with the camera and drone control system, the Storm Eye-30IE-MU enables the drone to automatically adjust its flight path to follow the target. This ensures synchronized operation between the camera and the drone, maintaining readiness for real-time execution of target-related commands.
Best Fit For
Platform Compatibility
Designed for efficient and practical UAV integration, including:
High Compatibility with
● Platforms: VTOL / multirotor drones
● Systems: PX4 / ArduPilot
● Protocol: MAVLink
● Interfaces: PWM / S.Bus / UART / Ethernet
In-House Operating Technologies
● Operating System: YDlink control system
● Deployment: Quick-release mechanism
Key Specifications
Recommended Applications
How to Choose
Choose This Model If You Need
For requirements of lighter weight or non-LRF cameras, please refer to
● Stronger long-range EO observation
● UHD thermal imaging with balanced coverage and detective
● Built-in laser ranging
● An all-in-one payload for search, tracking, and ranging

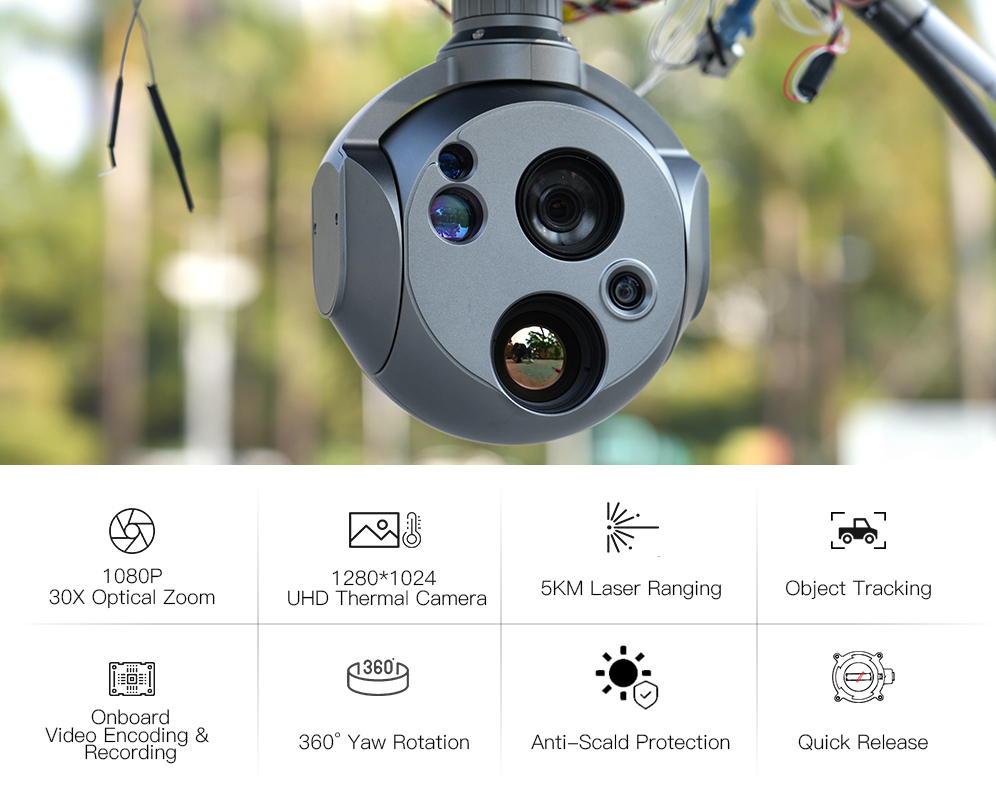

Meet Storm Eye-30IE-MU: lightweight 2-axis gimbal with EO/IR/LRF and 4K wide-angle
| Gimbal system | Input voltage | 12V |
| Video output | 1080P/720P 30fps Ethernet | |
| Video recorded | 1080P/720P 30fps MP4 | |
| Photo | JPG(1920*1080) | |

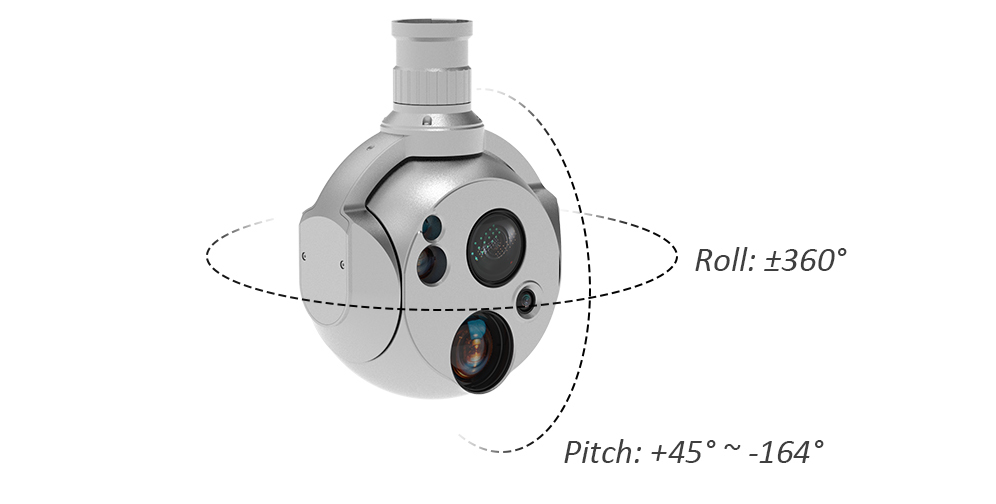

| Rotate range | Pitch: +45° ~ -164° Yaw: Unlimited | |
| Control interface | PMW, S.Bus, UART and Ethernet | |
| Working Current | Static current: 650 mA(@12V) | |
| Dynamic current: 850 mA(@12V) | ||
| Local storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) | |
| Mechanical feature | Weight | 1210g±5g |
| Working temperature | -10℃~ +50℃ | |
| 4K Wide angle camera | Resolution | 8MP |
| FOV | 125°x114°x73° | |
| 30x zoom camera | Sensor | 1/2.8 inch 2.13MP CMOS SENSOR |
| Focal length | 30x optical focal zoom, 4.3-129mm | |
| Digital zoom | 12x (360x with optical zoom) | |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm | |
| FOV | 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) | |
| 720p mode: 63.7°(wide end) ~ 2.3°(tele end) | ||
| SD: 47.8°(wide end) ~ 1.7°(tele end) | ||
| Sync system | Internal | |
| S/N ratio | More than 50dB | |
| Min illumination | Color 0.01lux@F1.6 | |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE | |
| White balance | Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) | |
| Shutter speed | 1/1s to 1/10,000s, 22 steps | |
| Backlight compensation | Yes | |
| Aperture control | 16 steps | |
| Defog | Yes | |
| OSD | Yes | |
| Thermal imager | Lens | 35mm |
| Working system | Un-cooled long wave (8μm～14μm) | |
| Detector pixels | 1280×1024 | |
| Pixel size | 12μm | |
| Focusing | Athermalizing | |
| Digital zoom | 8x | |
| FOV | Horizontal: 24.8° | |
| Vertical: 19.9° | ||
| Diagonal: 31.4° | ||
| Detective Distance (Man: 1.8x0.5m) | 1458 meters | |
| Recognize Distance (Man: 1.8x0.5m) | 365 meters | |
| Verified Distance (Man: 1.8x0.5m) | 182 meters | |
| Detective Distance (Car: 4.2x1.8m) | 4472 meters | |
| Recognize Distance (Car: 4.2x1.8m) | 1118 meters | |
| Verified Distance (Car: 4.2x1.8m) | 559 meters | |
| Emissivity correction | Emissivity 0.01~1 adjustable | |
| NETD | ≤30mk@f1.0/25℃ | |
| Image enhancement | Automatically adjusts image brightness and contrast | |
| Color palette | White hot, black hot, pseudo color | |
| Automatic non-uniformity | Yes(with or without shutter) | |
| correctionfunction | Yes(with or without shutter) | |
| Time synchronization function | Yes | |
| Anti-Scald | 30s of direct sun exposure; recovery within 24 hours. | |
| 5000m laser range-finder | Measuring distance | Over 3000m (car: 2.3m×2.3m) |
| (Visibility no less than 5km, diffuse reflectance over 0.3, humidity less than 80%) | Over 1500m (human: 1.75m×0.75m) | |
| Over 5000m (building) | ||
| Laser Wavelengths | 1535nm ± 5nm | |
| Laser divergence angle | Less than0.5mrad | |
| Continuous measuring frequency | 1~10Hz adjustable | |
| Ranging accuracy | No more than ±2m (RMS) | |
| Accuracy rate | Over 98% | |
| Minimum range | No more than 20m | |
| Ranging resolution | No more than 30m (multiple targets) | |
| Operating temperature | -40℃ ~ +65℃ | |
| Storage temperature | -55℃ ~ +70℃ |

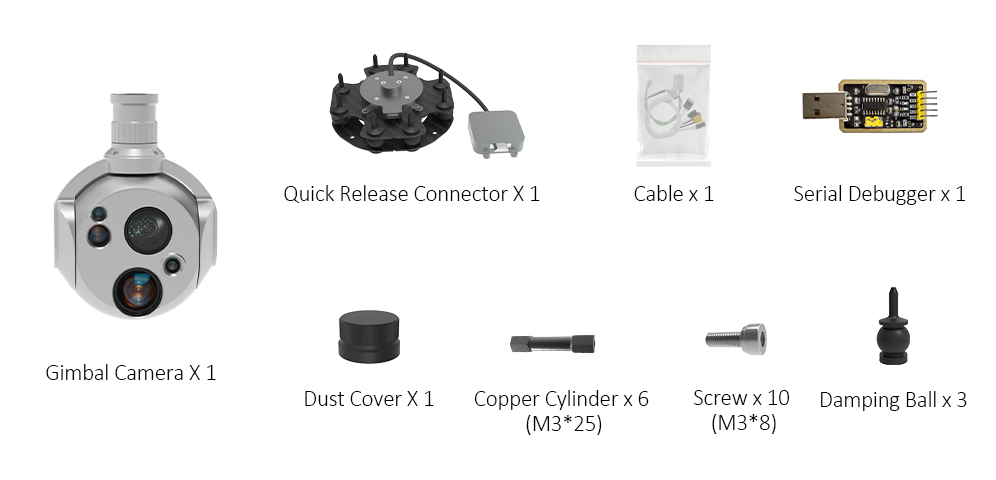

Packing List
