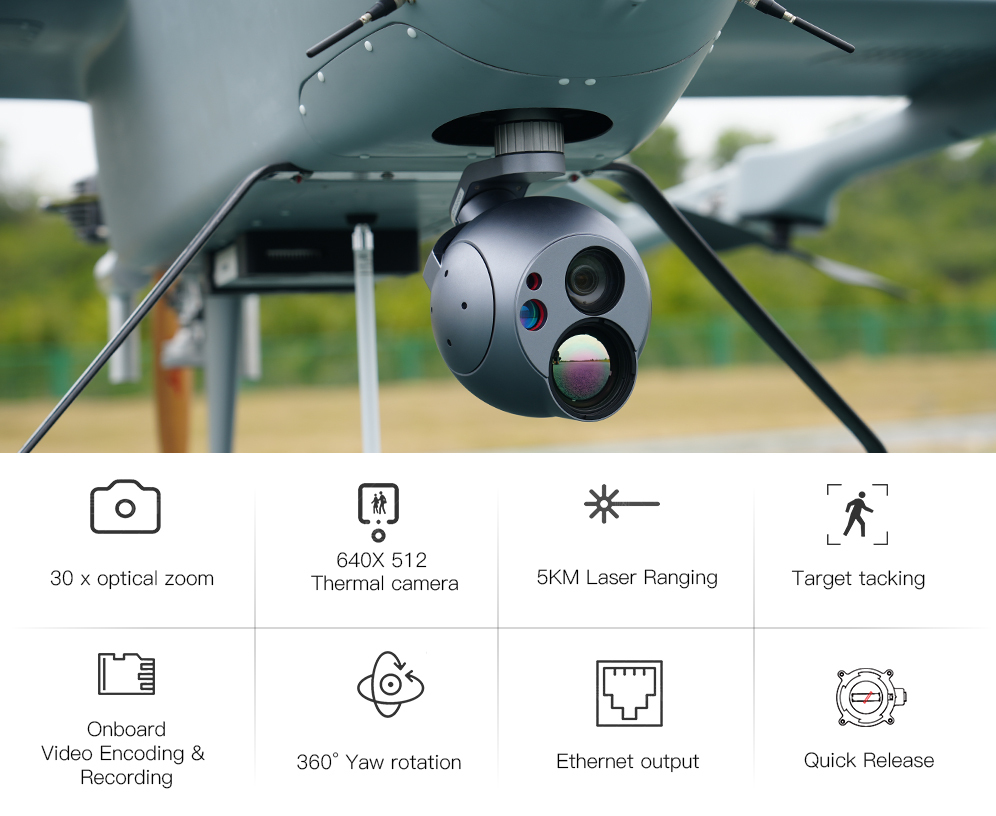

Storm Eye-30IE-M50 3-Axis EO/IR/LRF Gimbal Camera for Obsevation, Inspection and Security
Overview
Equipped with a 30× EO zoom camera, 640 × 512 thermal imager, 5 km LRF, and AI-powered target tracking, the Storm Eye-30IE-M50 is designed for UAV operations that require balanced day-and-night observation and anomaly tracking.
Mission Fit
Why it Performs in Demanding Monitoring Missions

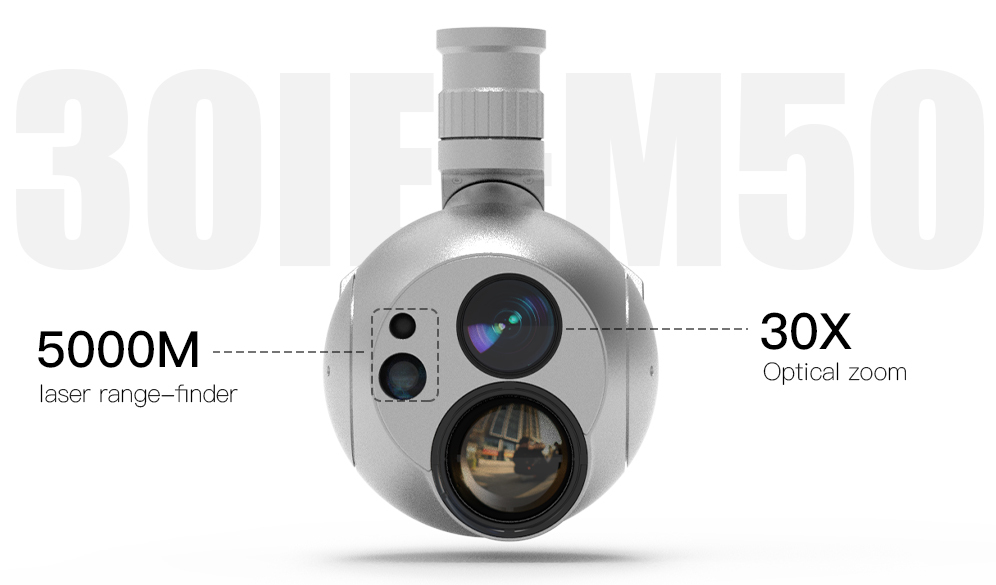

30x EO Zoom for Long
Range Aerial Monitoring
Featuring a 30x optical zoom camera with 1920x1080 resolution, the Storm Eye-30IE-M50 delivers clear, high-detail imaging at long distances, enabling precise observation of individuals, vehicles, and infrastructure without the need for close-range operation.
50mm Thermal Imager
Built for Day-and-Night Awareness
Equipped with a 640x512 thermal imaging sensor featuring a 50 mm long-range lens, the Storm Eye-30IE-M50 supports detection distances of up to 6 km under low-light and nighttime conditions. Powered by precise infrared detection, heat signatures and environmental anomalies can be identified early, reducing the risk of missed dangers in complex environments.
5 km LRF and AI Tracking for Reliable Target Control
With up to 5 km laser ranging combined with AI-powered recognition and auto-tracking, the Storm Eye-30IE-M50 delivers continuous target awareness and stable tracking performance, minimizing the risk of target loss in complex and dynamic environments.
3-Axis Gimbal
Plug-and-Play Integration
Designed with a quick-release mechanism, the 3-axis Storm Eye-30IE-M50 enables tool-free installation and a secure physical connection,streamlining deployment while ensuring stable imaging in operation.
UAV, UGV, USV Compatible
All-Round Imaging Support
Featuring a stabilized gimbal platform, long-range zoom, clear day-and-night observation, and intelligent target detection and tracking, our gimbal cameras integrate seamlessly with UAVs, ground vehicles, marine vessels, and robotic platforms, delivering dependable imaging support for a wide range of industrial missions.
Designated Control System
Compatible to MAVLink
Powered by the in-house YDlink camera control software, the Storm Eye-30IE-M50 supports MAVLink protocol and integrates with PX4 and ArduPilot flight control systems, enabling real-time telemetry, video transmission, and precise command execution for efficient and reliable aerial operations.
Highly Resilient in Harsh Environments
Equipped with built-in thermal sensor protection, the Storm Eye-30IE-M50 operates within a temperature range of -25°C to 60°C , ensuring reliable performance across diverse operating environments.
Target Tracking via Coordinated Camera-Drone Control
Through integration with the camera and drone control system, the Storm Eye-30IE-M50 enables the drone to automatically adjust its flight path to follow the target. This ensures synchronized operation between the camera and the drone, maintaining readiness for real-time execution of target-related commands.
Best Fit For
Platform Compatibility
Designed for efficient and practical UAV integration, including:
High Compatibility with
● Platforms: VTOL / multirotor drones
● Systems: PX4 / ArduPilot
● Protocol: MAVLink
● Interfaces: PWM / S.Bus / UART / Ethernet
In-House Operating Technologies
● Operating System: YDlink control system
● Deployment: Quick-release mechanism
Key Specifications
Recommended Applications
How to Choose
Choose This Model If You Need
For requirements of lighter weight or non-LRF cameras, please refer to
● Stronger long-range eo observation
● High-resolution thermal visibility at night
● Built-in laser ranging
● An all-in-one payload for search, tracking, and ranging
| Gimbal system | Input voltage | 12V |
| Video output | 1080P/720P 30fps Ethernet | |
| Video recorded | 1080P/720P 30fps MP4 | |
| Photo | JPG(1920*1080) | |
| Rotate range | Pitch: ±90° Roll: ±45° Yaw: Unlimited | |
| Control interface | S.Bus, UART and Ethernet | |
| Working Current | Static current: 1.0A(@12V) | |
| Dynamic current: 3.3A(@12V) | ||
| Local storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) | |
| Mechanical feature | Total weight (gimbal and camera) | 1,392g |
| Working temperature | -25℃~ +60℃ | |
| 30x zoom camera | Sensor | 1/2.8 inch 2.13MP CMOS SENSOR |
| Focal length | 30x optical focal zoom, 4.3-129mm | |
| Digital zoom | 12x (360x with optical zoom) | |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm | |
| FOV | 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) | |
| 720p mode: 63.7°(wide end) ~ 2.3°(tele end) | ||
| SD: 47.8°(wide end) ~ 1.7°(tele end) | ||
| Sync system | Internal | |
| S/N ratio | More than 50dB | |
| Min illumination | Color 0.01lux@F1.6 | |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE | |
| White balance | Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) | |
| Shutter speed | 1/1s to 1/10,000s, 22 steps | |
| Backlight compensation | Yes | |
| Aperture control | 16 steps | |
| Defog | Yes | |
| OSD | Yes | |
| Thermal imager | Lens | 50mm |
| Working system | Un-cooled long wave (8μm～14μm) | |
| Detector pixels | 640×512 | |
| Pixel size | 12μm | |
| Focusing | Athermalizing | |
| Digital zoom | 8x | |
| FOV | Horizontal: 8.8° | |
| Vertical: 7° | ||
| Diagonal: 11.2° | ||
| Detective Distance (Man: 1.8x0.5m) | 2083 meters | |
| Recognize Distance (Man: 1.8x0.5m) | 521 meters | |
| Verified Distance (Man: 1.8x0.5m) | 260 meters | |
| Detective Distance (Car: 4.2x1.8m) | 6389 meters | |
| Recognize Distance (Car: 4.2x1.8m) | 1597 meters | |
| Verified Distance (Car: 4.2x1.8m) | 799 meters | |
| Emissivity correction | Emissivity 0.01~1 adjustable | |
| NETD | ≤50mK(F1.0@25℃) | |
| Image enhancement | Automatically adjusts image brightness and contrast | |
| Color palette | White hot, black hot, pseudo color | |
| Automatic non-uniformity | Yes(with or without shutter) | |
| Correctionfunction | ||
| Time synchronization function | Yes | |
| 5000m laser range-finder | Measuring distance | Over 3000m (car: 2.3m×2.3m) |
| (Visibility no less than 5km, diffuse reflectance over 0.3, humidity less than 80%) | Over 1500m (human: 1.75m×0.75m) | |
| Over 5000m (building) | ||
| Laser Wavelengths | 1535nm ± 5nm | |
| Laser divergence angle | Less than0.5mrad | |
| Continuous measuring frequency | 1~10Hz adjustable | |
| Ranging accuracy | No more than ±2m (RMS) | |
| Accuracy rate | Over 98% | |
| Minimum range | No more than 20m | |
| Ranging resolution | No more than 30m (multiple targets) | |
| Operating temperature | -40℃ ~ +65℃ | |
| Storage temperature | -55℃ ~ +70℃ |
Meet Storm Eye-30IE-M50 3-axis gimbal: all-round aerial Surveillance with EO/IR/LRF sensors
VTOL Drone Fly By Camera Demo

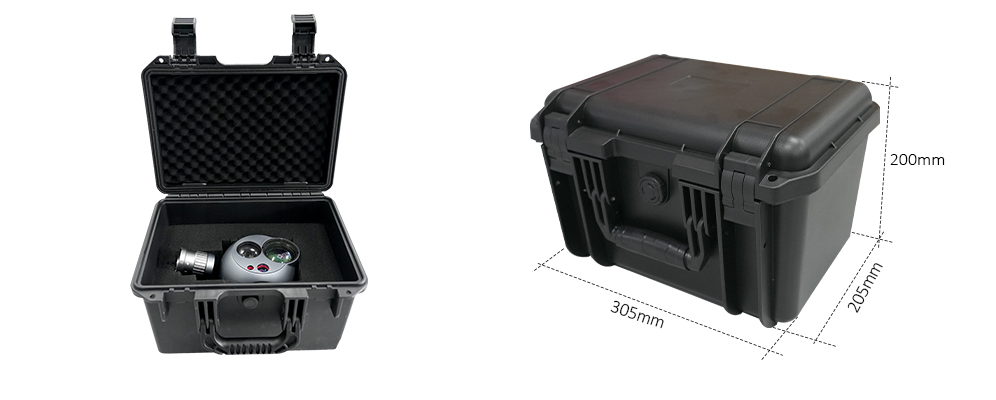

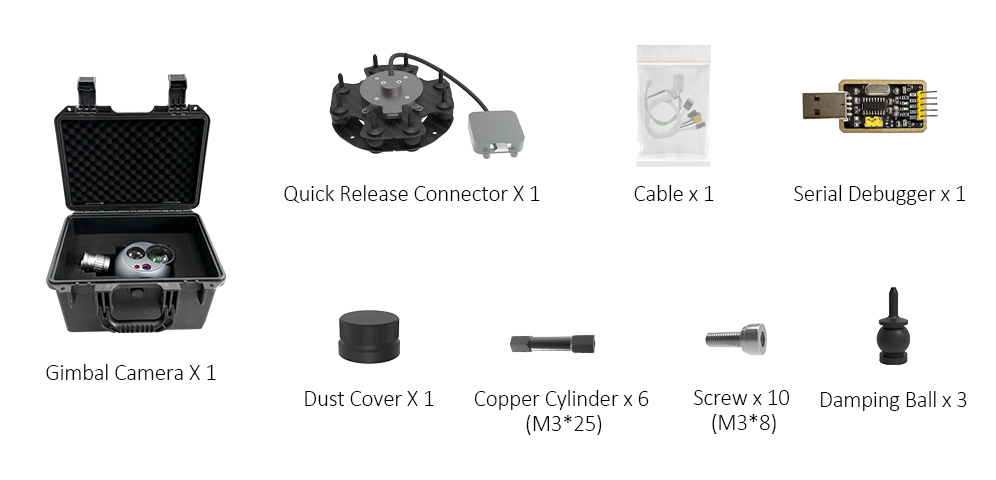

Packing List
