Storm Eye-30IE-U 2-Axis EO/IR Gimbal Camera for Monitoring, Inspection and Security
Overview

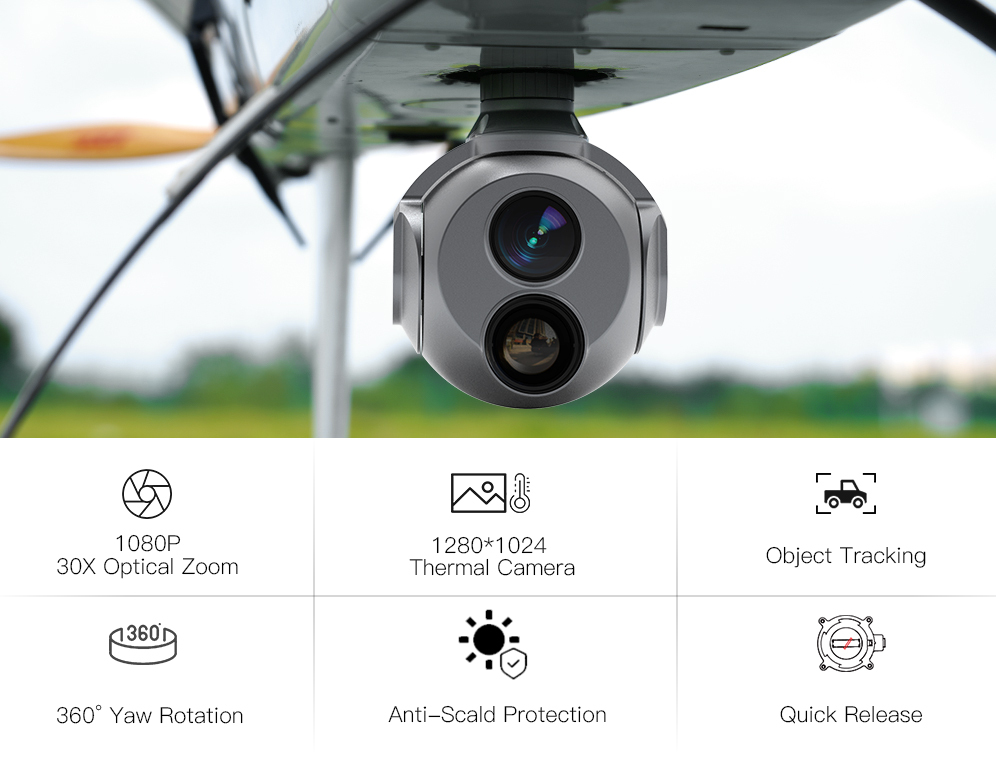

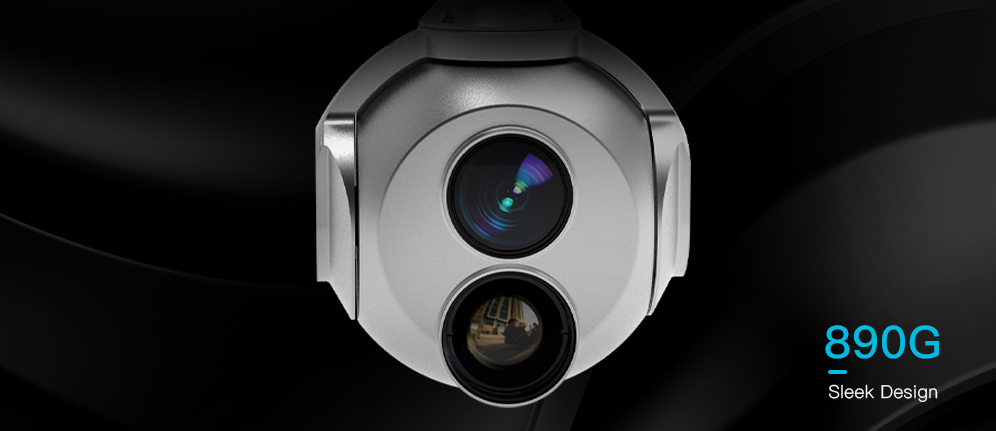

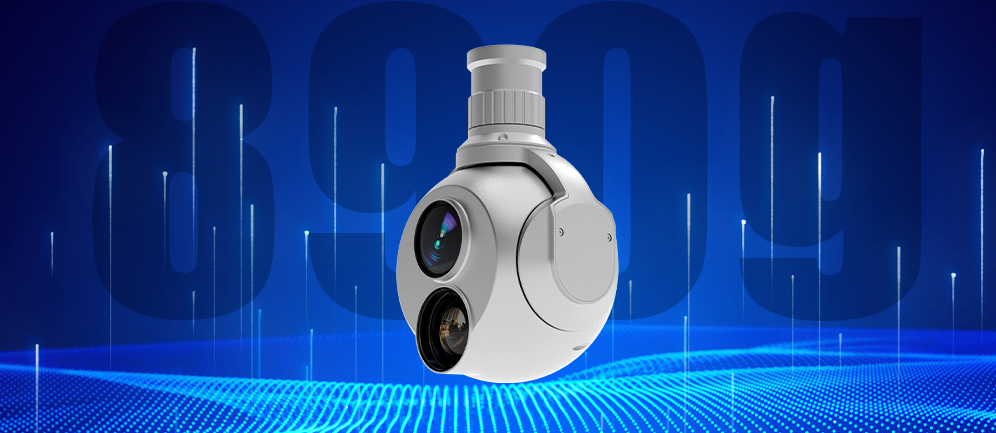

Mounted on a lightweight 2-axis gimbal and weighing just 1 kg, the Storm Eye-30IE-U is designed for flexible and reliable aerial imaging operations. It integrates a 1080P EO camera with 30× optical zoom, an ultra-high-definition thermal imager with up to 4.5 km detection range, and built-in AI tracking capability for intelligent target observation and analysis. Combining visual perception, thermal awareness, and smart tracking in a compact payload, it enhances operational efficiency across applications including infrastructure inspection, perimeter security, and industrial monitoring.
Mission Fit
Why it Performs in Demanding Monitoring Missions

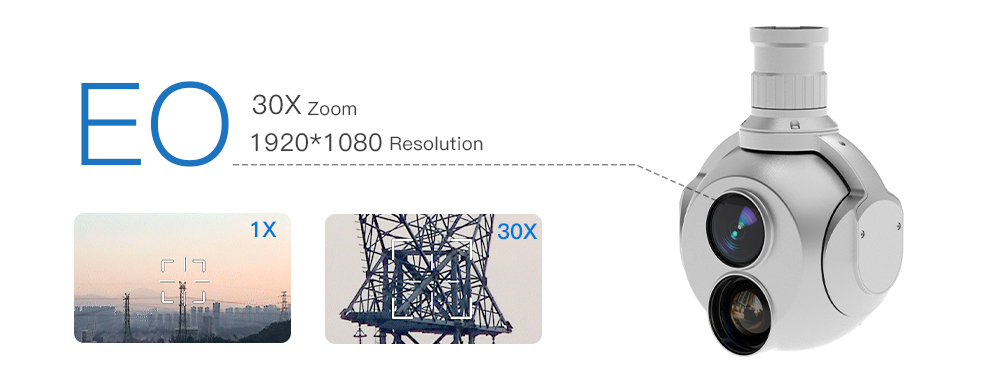

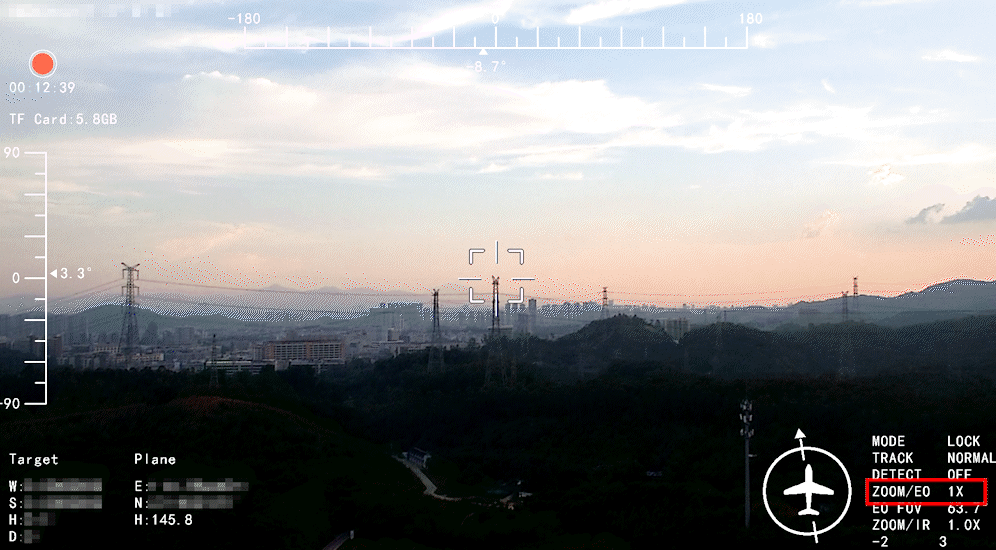

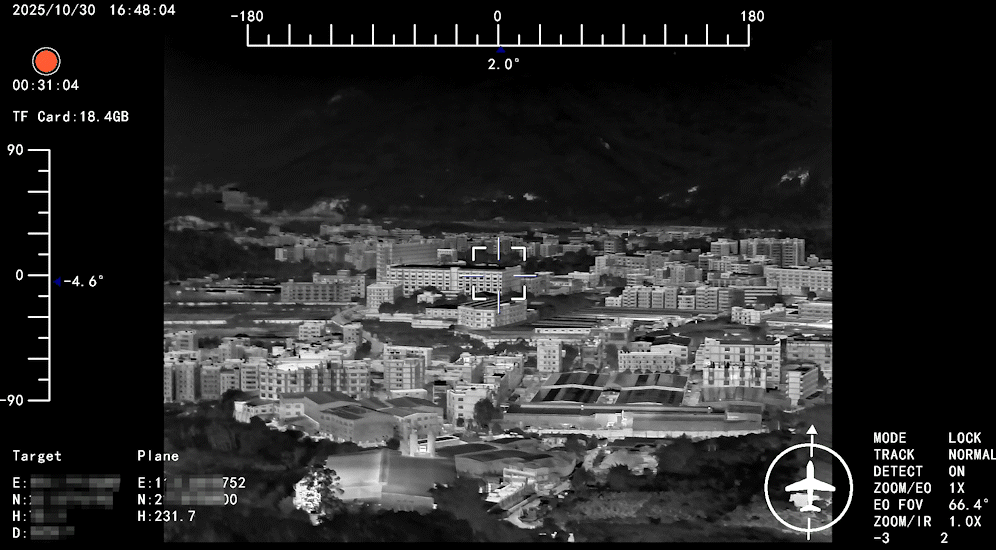

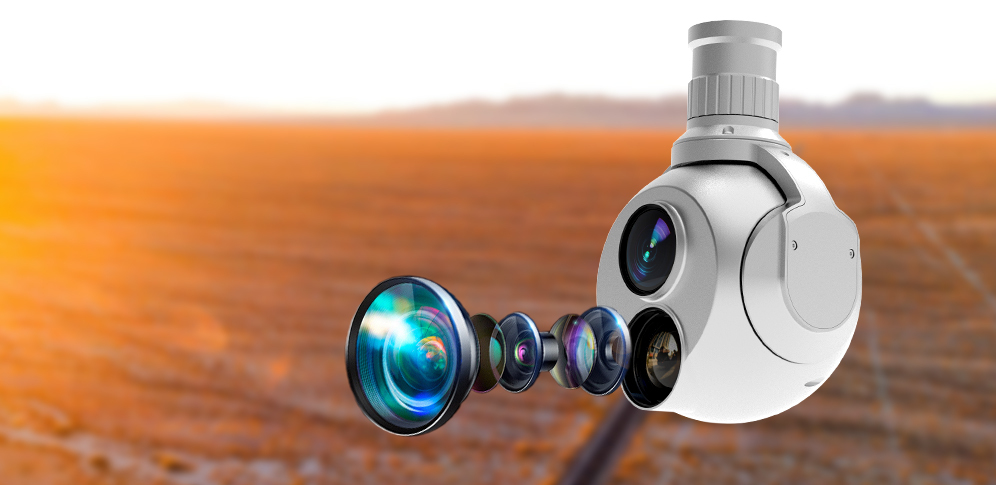

30× Optical Reach
For Precision Aerial Observation
Equipped with a 30× optical zoom EO camera and 1920×1080 full HD resolution, the Storm Eye-30IE-U delivers clear long-range visual intelligence without requiring close-proximity flight. From personnel identification to vehicle tracking and infrastructure inspection, it enables safer and more precise aerial observation across demanding mission environments.

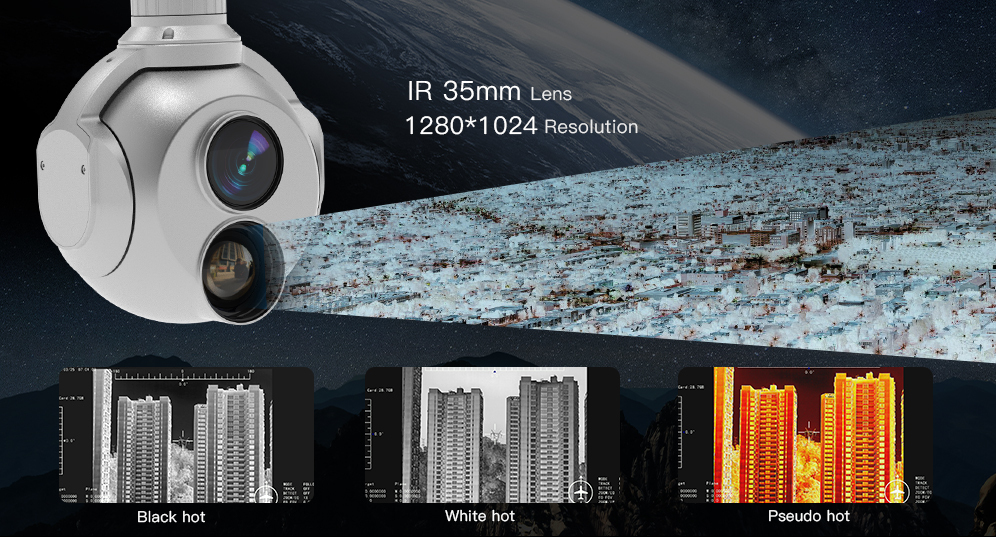

UHD Thermal Vision
For Around-the-Clock Detection
Integrating a 35 mm thermal imaging sensor with ultra-high-definition 1280×1024 resolution, the Storm Eye-30IE-U delivers sharp infrared awareness across both daytime and nighttime missions. Combining a balanced field of view with reliable long-range thermal detection, it enables accurate target observation and enhanced situational awareness in low-visibility and low-light environments.

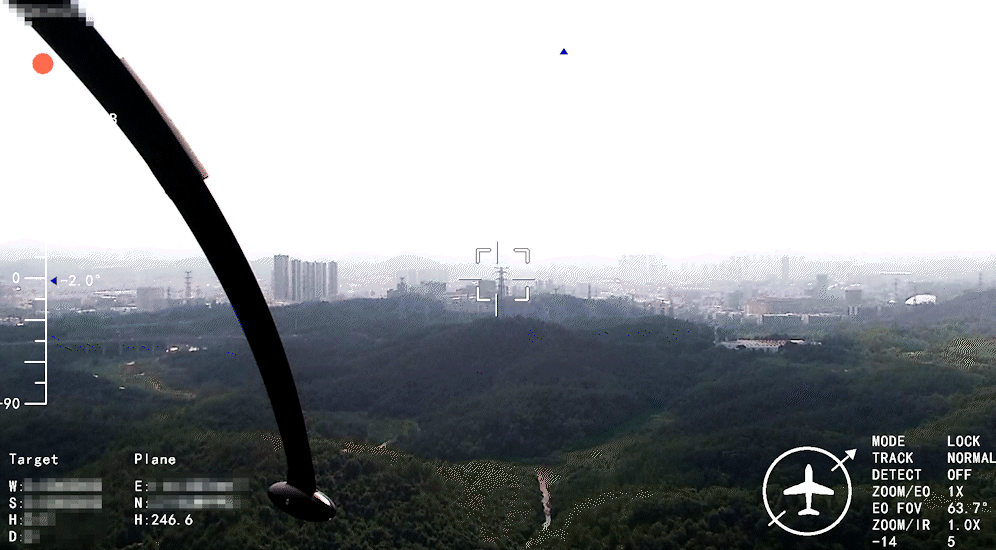

AI Tracking
Precise Target Control
Powered by real-time AI-powered recognition and auto-tracking, the Storm Eye-30IE-U ensures continuous target awareness, minimizing the risk of target loss even in complex and dynamic environments.

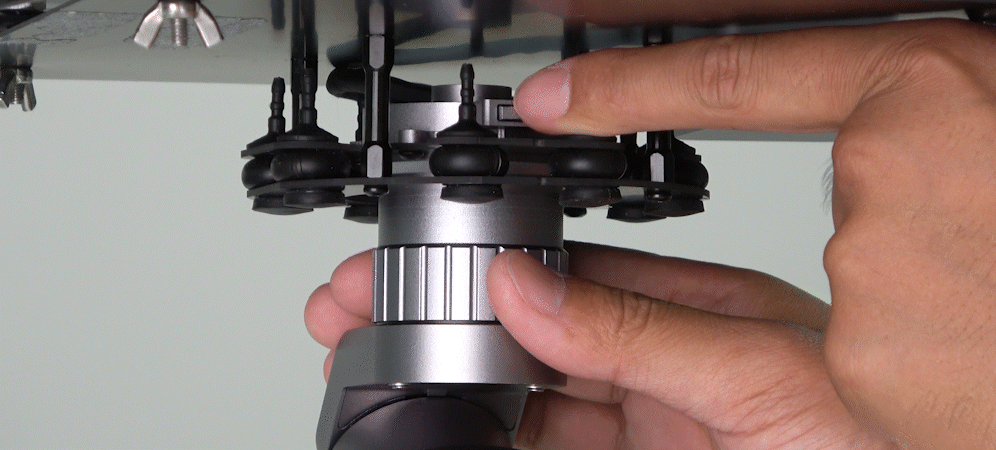

2-Axis Gimbal
Plug-and-Play Integration
Designed with a quick-release mechanism, the 2-axis Storm Eye-30IE-U enables tool-free installation and flexible switching between aerial views, streamlining deployment while maximizing operational flexibility.

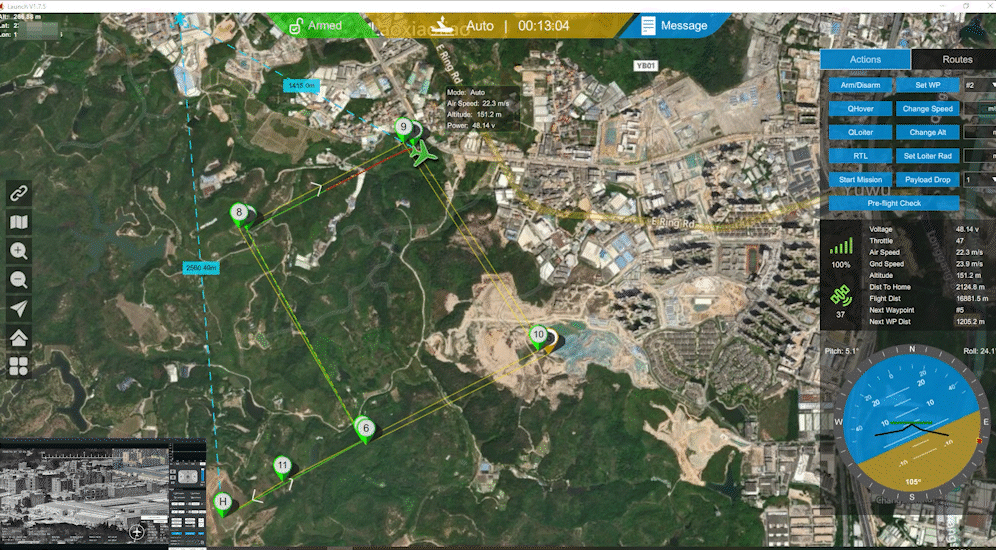

Designated Control System
Compatible to MAVLink
Powered by the in-house YDlink camera control software, the Storm Eye-30IE-U supports MAVLink protocol and integrates with PX4 and ArduPilot flight control systems, enabling real-time telemetry, video transmission, and precise command execution for efficient and reliable aerial operations.
Highly Resilient
In Harsh Environments
Equipped with built-in thermal sensor protection, the Storm Eye-30IE-U operates within a temperature range of -10°C to 50°C and withstands up to 30 seconds of direct sunlight exposure, ensuring reliable performance across diverse operating environments.
Target Tracking
Coordinated Camera-Drone Control
Through integration with the camera and drone control system, the Storm Eye-30IE-U enables the drone to automatically adjust its flight path to follow the target. This ensures synchronized operation between the camera and the drone, maintaining readiness for real-time execution of target-related commands.
UAV, UGV, USV Compatible
All-Round Imaging Support
Featuring a stabilized gimbal platform, long-range zoom, clear day-and-night observation, and intelligent target detection and tracking, our gimbal cameras integrate seamlessly with UAVs, ground vehicles, marine vessels, and robotic platforms, delivering dependable imaging support for a wide range of industrial missions.
Best Fit For
Key Specifications
Platform Compatibility
Designed for efficient and practical UAV integration, including:
High Compatibility with
● Platforms: VTOL / multirotor drones
● Systems: PX4 / ArduPilot
● Protocol: MAVLink
● Interfaces: PWM / S.Bus / UART / Ethernet
In-House Operating Techn
● Operating System: YDlink control system
● Deployment: Quick-release mechanism
Recommended Applications
How to Choose
Choose This Model If You Need
For requirements of IR and LRF cameras, please refer to
● Stronger long-range EO observation
● Sharp night imaging and thermal detection
● UHD thermal imaging with balanced coverage and detective
● An all-in-one payload for search and tracking
| Gimbal system | Input voltage | 12V |
| Video output | 1080P/720P 30fps Ethernet | |
| Video recorded | 1080P/720P 30fps MP4 | |
| Photo | JPG(1920*1080) | |

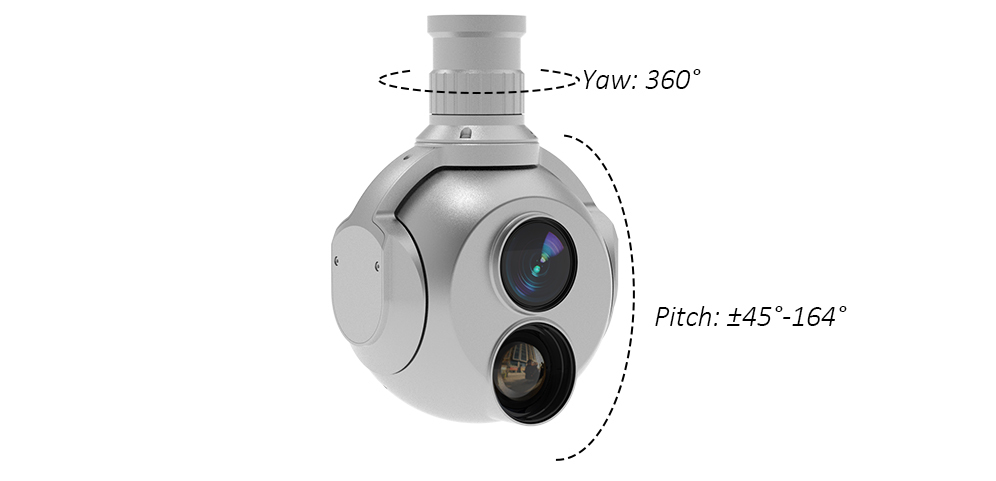

| Rotate range | Pitch: +45° ~ -164° Yaw: Unlimited | |
| Angle amount of jitter | Pitch: ±0.02° Yaw: ±0.02° | |
| Control interface | PMW, S.Bus, UART and Ethernet | |
| Working Current | Static current: 650 mA(@12V) | |
| Dynamic current: 850 mA(@12V) | ||
| Local storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) | |
| Mechanical feature | Total weight (gimbal and camera) | 1000g |
| Working temperature | -10° ~ +50° | |
| 30x zoom camera | Sensor | 1/2.8 inch 2.13MP CMOS SENSOR |
| Focal length | 30x optical focal zoom, 4.3-129mm | |
| Digital zoom | 12x (360x with optical zoom) | |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm | |
| FOV | 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) | |
| 720p mode: 63.7°(wide end) ~ 2.3°(tele end) | ||
| SD: 47.8°(wide end) ~ 1.7°(tele end) | ||
| Sync system | Internal | |
| S/N ratio | More than 50dB | |
| Min illumination | Color 0.01lux@F1.6 | |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE | |
| White balance | Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) | |
| Shutter speed | 1/1s to 1/10,000s, 22 steps | |
| Backlight compensation | Yes | |
| Aperture control | 16 steps | |
| Defog | Yes | |
| OSD | Yes | |
| Thermal imager | Lens | 35mm |
| Working system | Un-cooled long wave (8μm～14μm) | |
| Detector pixels | 1280×1024 | |
| Pixel size | 12μm | |
| Focusing | Athermalizing | |
| Digital zoom | 8x | |
| FOV | Horizontal: 24.8° | |
| Vertical: 19.9° | ||
| Diagonal: 31.4° | ||
| Detective Distance (Man: 1.8x0.5m) | 1458 meters | |
| Recognize Distance (Man: 1.8x0.5m) | 365 meters | |
| Verified Distance (Man: 1.8x0.5m) | 182 meters | |
| Detective Distance (Car: 4.2x1.8m) | 4472 meters | |
| Recognize Distance (Car: 4.2x1.8m) | 1118 meters | |
| Verified Distance (Car: 4.2x1.8m) | 559 meters | |
| Emissivity correction | Emissivity 0.01~1 adjustable | |
| NETD | ≤30mk@f1.0/25℃ | |
| Image enhancement | Automatically adjusts image brightness and contrast | |
| Color palette | White hot, black hot, pseudo color | |
| Automatic non-uniformity | Yes(with or without shutter) | |
| correctionfunction | Yes(with or without shutter) | |
| Time synchronization function | Yes | |
| Anti-Scald | 30s of direct sun exposure; recovery within 24 hours. |
