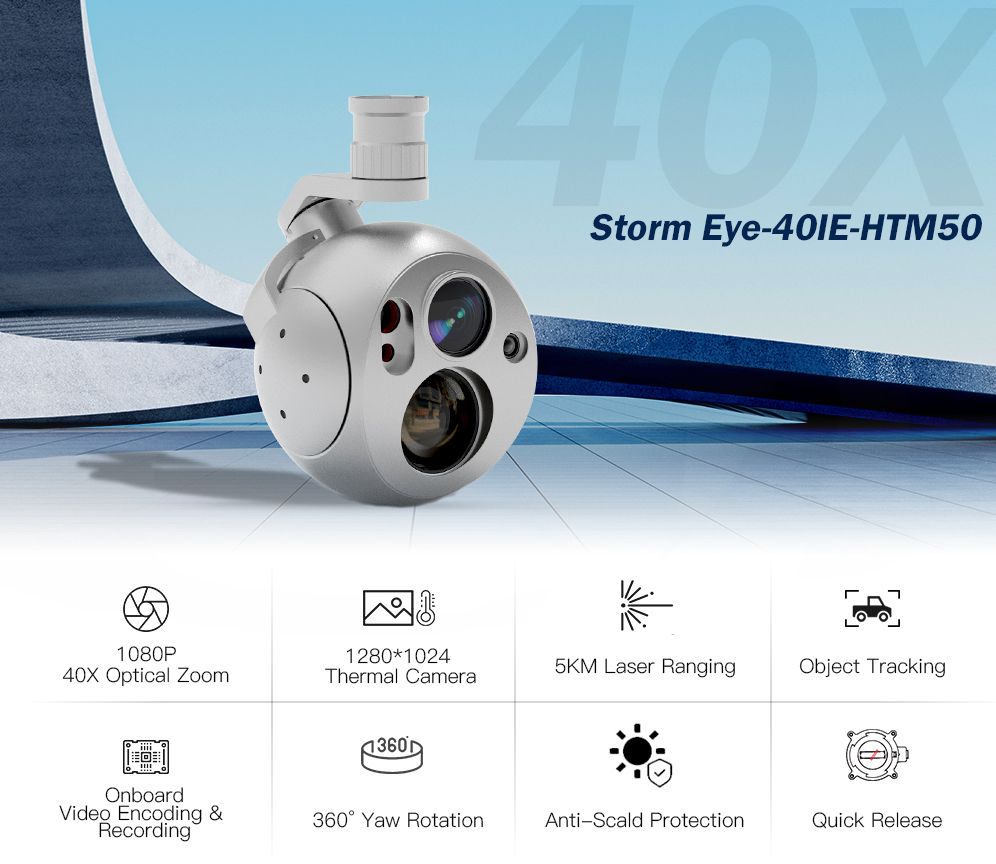

Storm Eye-40IE-HTM50 3-Axis EO/IR/LRF Wide Gimbal Camera for Observation, Inspection and Security
Overview
Equipped with a 3-axis gimbal, the Storm Eye-40IE-HTM50 features a 40x EO zoom, UHD thermal imaging, a 4K wide-angle camera, and a 5 km LRF with AI tracking. Powered by the integration of advanced imaging and autonomy, it significantly improves mission efficiency, especially in coordinated operations.
Mission Fit
Why it Performs in Demanding Monitoring Missions

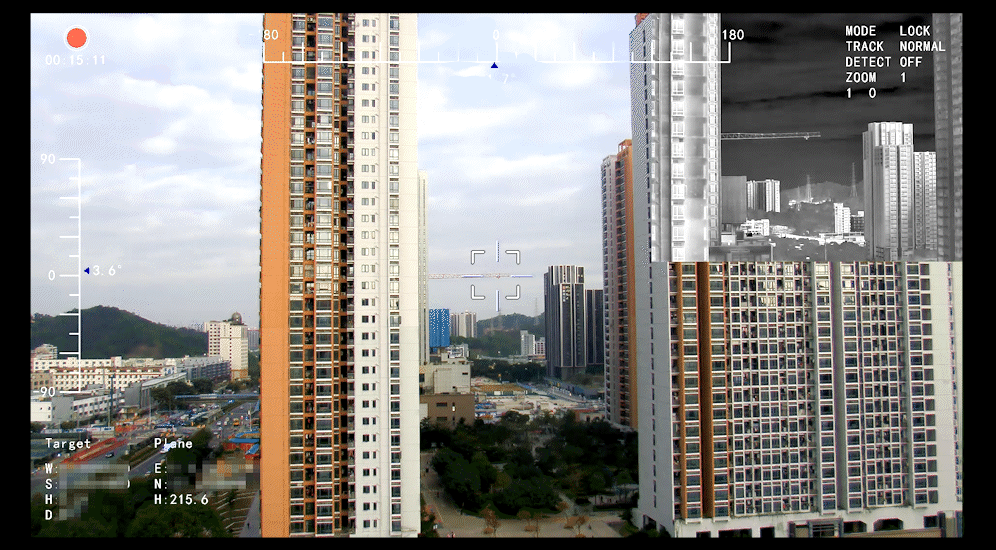

40x EO Zoom
Long-Range Aerial Monitoring
40x powerful optical zoom, 1920×1080 resolution. The Storm Eye-40IE-HTM50 delivers clear long-range monitoring, enabling detailed observation of individuals, vehicles, and infrastructure without approaching the target area.

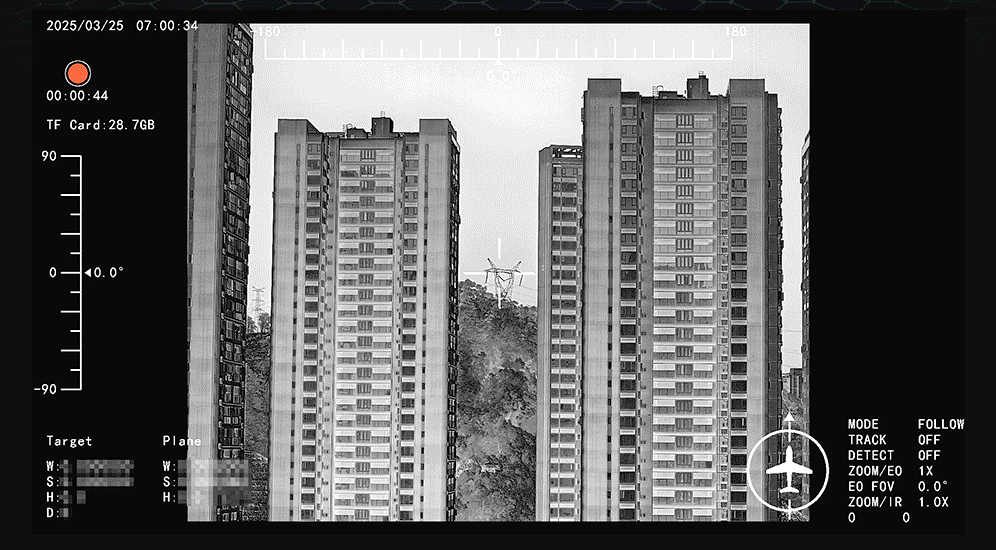

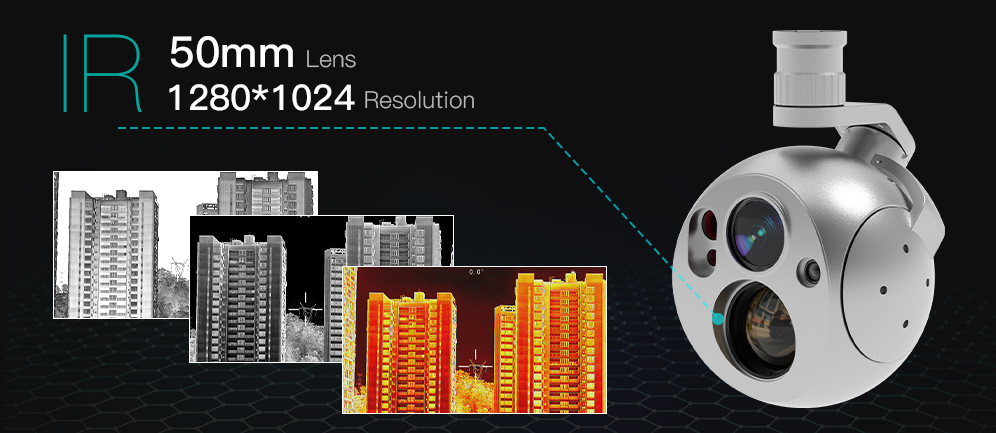

50mm Thermal Imager
Built for UHD Day-and-Night Awareness
50mm thermal imager, UHD 1280x1024 resolution, with a detection distance of up to 6 km. The Storm Eye-40IE-HTM50 maintains observation capability even in low light or complete darkness, delivering high-precision infrared-based detection and ensuring reliable mission continuity.

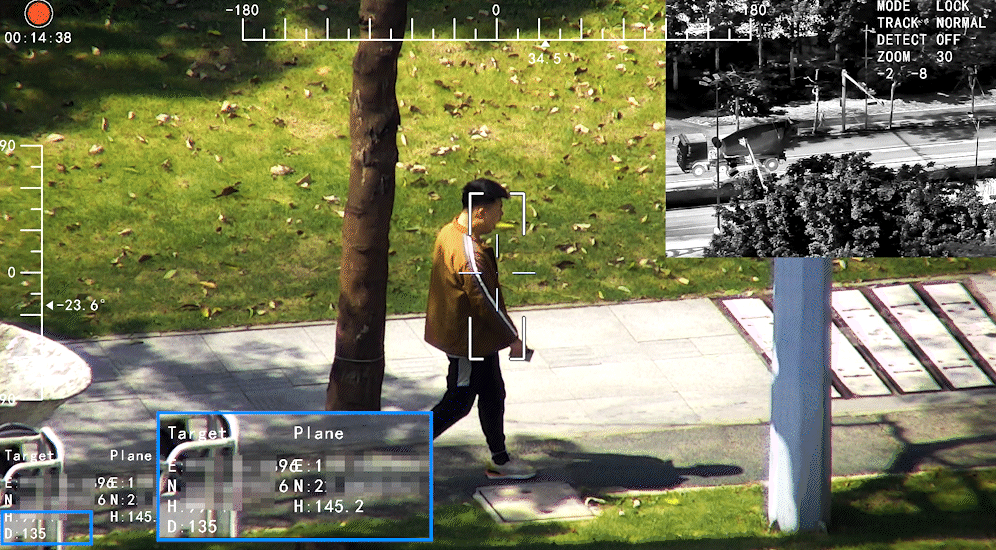

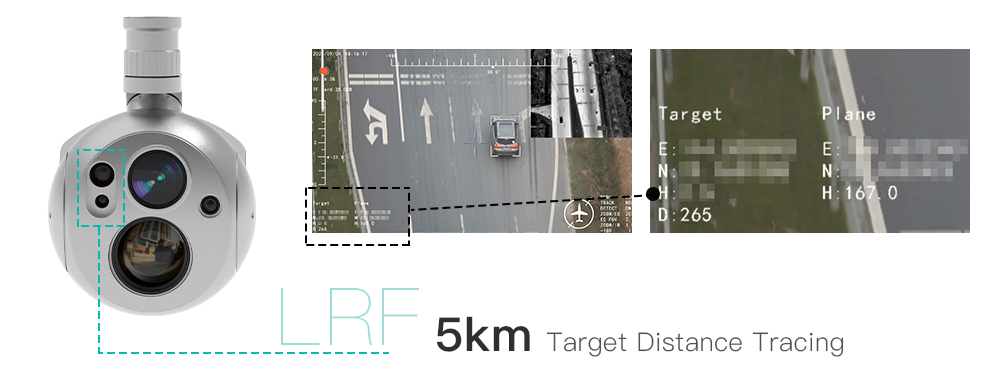

5km LRF & AI Tracking
Precise Target Control
Real-time target ranging up to 5 km, combined with AI-powered recognition and auto-tracking. The Storm Eye-40IE-HTM50 ensures continuous target awareness, minimizing the risk of target loss even in complex and dynamic environments.

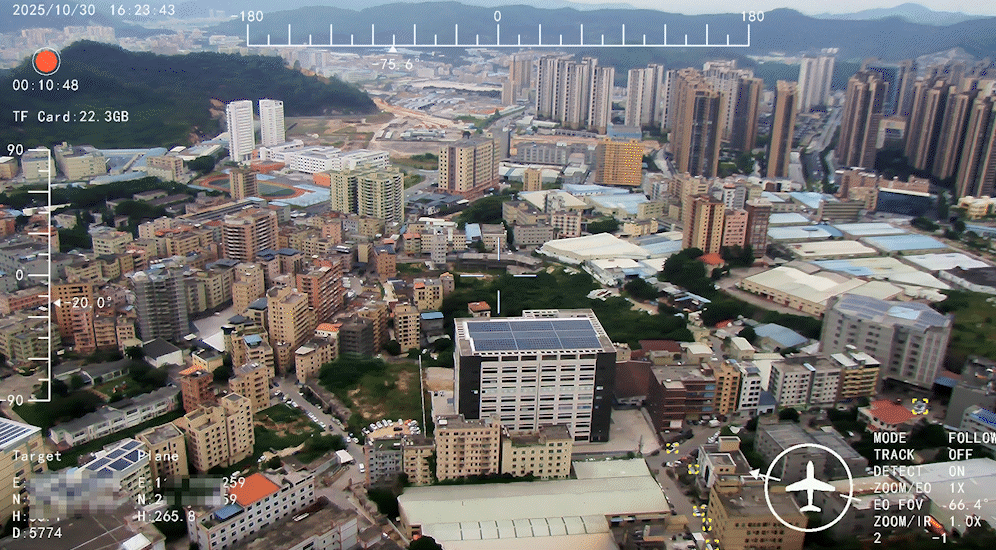

4K Wide-Angle
Expanded Field of View
With a 3840x2160 resolution and a 125° diagonal FOV wide-angle lens, the Storm Eye-40IE-HTM50 delivers an ultra-wide field of view, enabling full-area visibility and enhanced coverage of large areas, effectively reducing mission time.

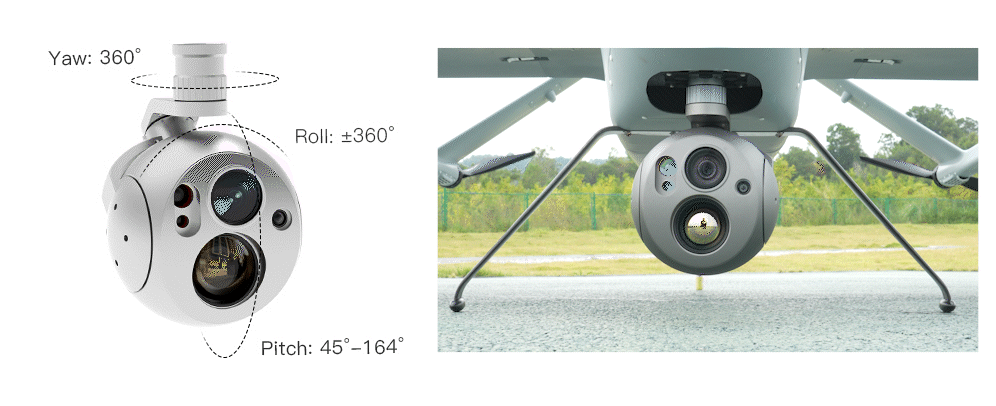

3-Axis Gimbal
Plug-and-Play Integration
Designed with a quick-release mechanism, the 3-axis Storm Eye-40IE-HTM50 enables tool-free installation and a secure physical connection,streamlining deployment while ensuring stable imaging in operation.
UAV, UGV, USV Compatible
All-Round Imaging Support
Featuring a stabilized gimbal platform, long-range zoom, clear day-and-night observation, and intelligent target detection and tracking, our gimbal cameras integrate seamlessly with UAVs, ground vehicles, marine vessels, and robotic platforms, delivering dependable imaging support for a wide range of industrial missions.
Designated Control System
Compatible to MAVLink
Powered by the in-house YDlink camera control software, the Storm Eye-40IE-HTM50 supports MAVLink protocol and integrates with PX4 and ArduPilot flight control systems, enabling real-time telemetry, video transmission, and precise command execution for efficient and reliable aerial operations.
Highly Resilient in Harsh Environments
Equipped with built-in thermal sensor protection, the Storm Eye-40IE-HTM50 operates within a temperature range of -10°C to 55°C and withstands up to 30 seconds of direct sunlight exposure, ensuring reliable performance across diverse operating environments.
Target Tracking via Coordinated Camera-Drone Control
Through integration with the camera and drone control system, the Storm Eye-40IE-HTM50 enables the drone to automatically adjust its flight path to follow the target. This ensures synchronized operation between the camera and the drone, maintaining readiness for real-time execution of target-related commands.
Best Fit For
Platform Compatibility
Designed for efficient and practical UAV integration, including:
High Compatibility with
● Platforms: VTOL / multirotor drones
● Systems: PX4 / ArduPilot
● Protocol: MAVLink
● Interfaces: PWM / S.Bus / UART / Ethernet
In-House Operating Technologies
● Operating System: YDlink control system
● Deployment: Quick-release mechanism
Key Specifications
Recommended Applications
How to Choose
Choose This Model If You Need
For requirements of lighter weight or non-LRF cameras, please refer to
● Ultra long-range EO observation
● Ultra high-resolution thermal visibility at night
● Built-in laser ranging
● An all-in-one payload for search, tracking, and ranging
| Gimbal system | Input voltage | 12V |
| Video output | 1080P/720P 30fps Ethernet | |
| Video recorded | 1080P/720P 30fps MP4 | |
| Photo | JPG(1920*1080) | |

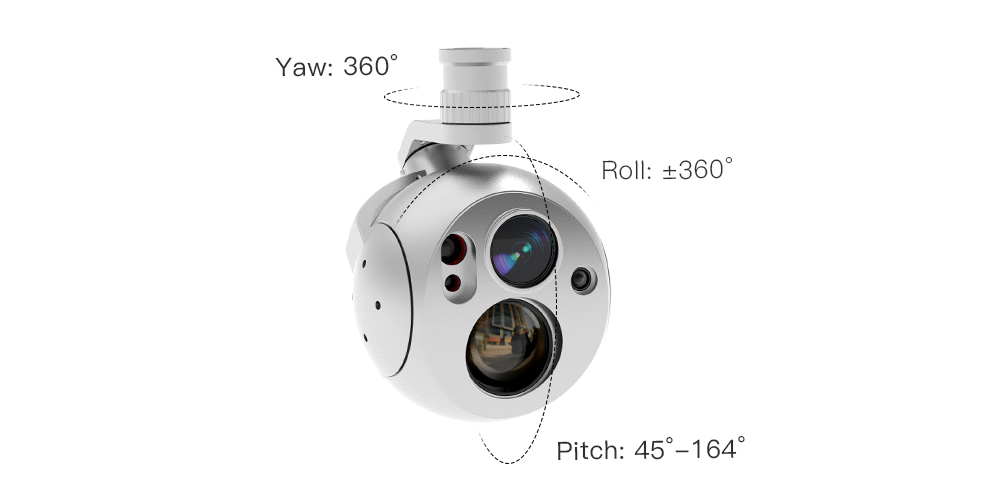

| Rotate range | Pitch: +45° ~ -164° Roll: ±45° Yaw: Unlimited | |
| Control interface | PMW, S.Bus, UART and Ethernet | |
| Working Current | Static current: 650 mA(@12V) | |
| Dynamic current: 850 mA(@12V) | ||
| Local storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) | |

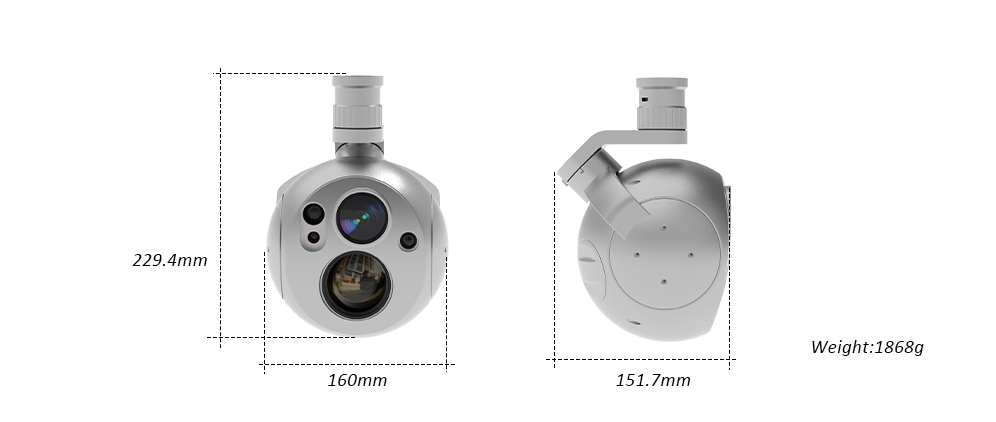

| Mechanical feature | Total weight (gimbal and camera) | 1,868g |
| Working temperature | -10℃~ +50℃ | |
| 4K Wide angle camera | Resolution | 8MP |
| FOV | 125°x114°x73° | |
| 40x zoom camera | Sensor | 1/2.8" Sony IMX462LQR-C CMOS Sensor |
| Focal length | 40x optical focal zoom | |
| Digital zoom | 32x digital zoom | |
| Min object distance 50% | 100mm | |
| FOV | (Wide) D: 73.8°/ H: 66.35° / V: 39.98° | |
| (Tele) D: 2.16°/ H: 1.9° / V: 1.11° | ||
| Sync system | Internal | |
| S/N ratio | more than 50dB (AGC off) | |
| Min illumination | Color(1/30s, 79.5dB) : 0.01 lux; BW(1/30s, 79.5dB) : 0.002 luxColor; DSS(1/1s, 79.5dB) : 0.001 lux ; BW DSS(1/1s, 79.5dB) : 0.0002 lux | |
| Exposure control | Auto / Iris. Priority / Shut. Priority / Manual | |
| White balance | Auto / One Push / Manual / Indoor / Outdoor | |
| Focal length | f = 4.25mm ~ 170.0mm | |
| Shutter speed | 1/1 ~ 1/30,000 sec | |
| Backlight compensation | Yes | |
| Aperture control | F1.6(Wide) ~ F4.95(Tele) | |
| Defog | Yes | |
| OSD | Yes | |
| Thermal imager | Lens | 50mm |
| Working system | Un-cooled long wave (8μm～14μm) | |
| Detector pixels | 1280×1024 | |
| Pixel size | 12μm | |
| Focusing | Athermalizing | |
| Digital zoom | 8x | |
| FOV | Horizontal: 17.5° | |
| Vertical: 14° | ||
| Diagonal: 22.3° | ||
| Detective Distance (Man: 1.8x0.5m) | 2083 meters | |
| Recognize Distance (Man: 1.8x0.5m) | 521 meters | |
| Verified Distance (Man: 1.8x0.5m) | 260 meters | |
| Detective Distance (Car: 4.2x1.8m) | 6389 meters | |
| Recognize Distance (Car: 4.2x1.8m) | 1597 meters | |
| Verified Distance (Car: 4.2x1.8m) | 799 meters | |
| Emissivity correction | Emissivity 0.01~1 adjustable | |
| NETD | ≤30mk@f1.0/25℃ | |
| Image enhancement | Automatically adjusts image brightness and contrast | |
| Color palette | White hot, black hot, pseudo color | |
| Automatic non-uniformity and correction function | Yes(with or without shutter) | |
| Time synchronization function | Yes | |
| Anti-Scald | 30s of direct sun exposure; recovery within 24 hours. | |
| 5km laser range-finder | Measuring distance | Over 3000m (car: 2.3m×2.3m) |
| (Visibility no less than 5km, diffuse reflectance over 0.3, humidity less than 80%) | Over 1500m (human: 1.75m×0.75m) | |
| Over 5000m (building) | ||
| Laser Wavelengths | 1535nm ± 5nm | |
| Laser divergence angle | Less than0.5mrad | |
| Repetition rates | Max. 10Hz | |
| Ranging accuracy | ≤ ±1m (RMS) | |
| False alarm rate | ≤1% | |
| Minimum range | 20m | |
| Multiple target detection | up to 3 targets | |
| Ranging resolution | No more than 30m (multiple targets) | |
| Operating temperature | -40°C to + 65°C | |
| Storage temperature | -55°C to + 70°C |

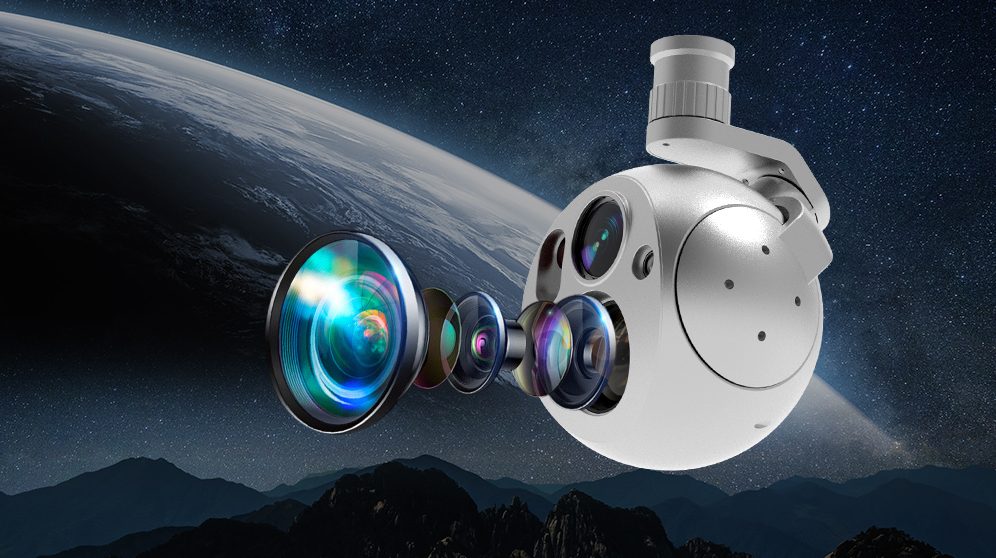

Meet Storm Eye-40IE-HTM50: A 4-Sensor Payload with 40X Zoom EO, UHD Thermal, 5km LRF, 4K Wide-Angle
