YANGDA Sky Whale Max Hybrid Heavy Lift Long Endurance VTOL Drone

Inquire now: info@yangdaonline.com

Sku:
Sky Whale Max Hybrid
Weight:
25.00 KGS

Product Overview

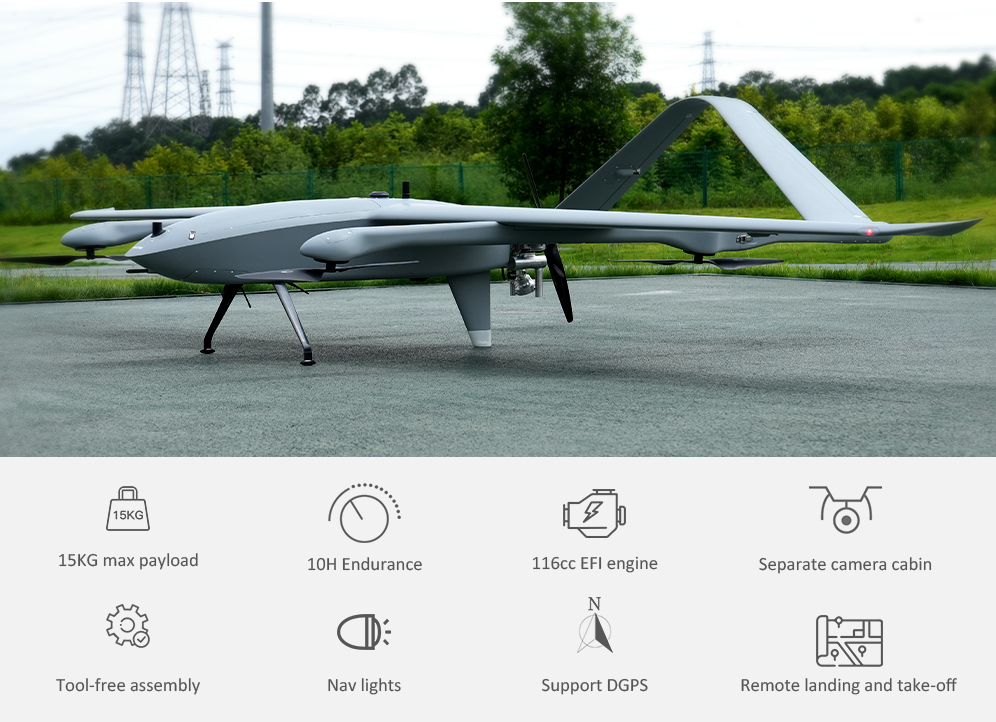

YANGDA Sky Whale Max hybrid (battery and petrol) fixed-wing VTOL drone is specially designed for missions that conventional electric VTOL drones can't do: 15kg heavy payload delivery and 10 hours of ultra-long endurance aviation. Given its stable structure and high reliability, it is an excellent UAV platform for emergency cargo delivery, long-distance coast patrol, oil pipeline inspection, border monitoring, etc.





10 hours ultra-long endurance
Sky Whale Max gasoline hybrid VTOL can fly for 10 hours with a 2kg payload.

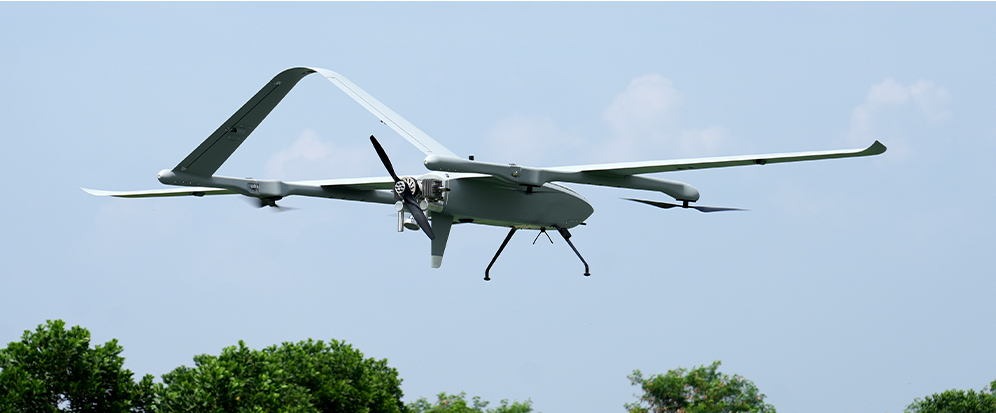

15kg payload
With the streamlined aerodynamic structure design, 65kg max take-off weight (MTOW), large wing area, and small wing loading,
the hybrid VTOL drone can carry a 15kg payload for 4 hours.

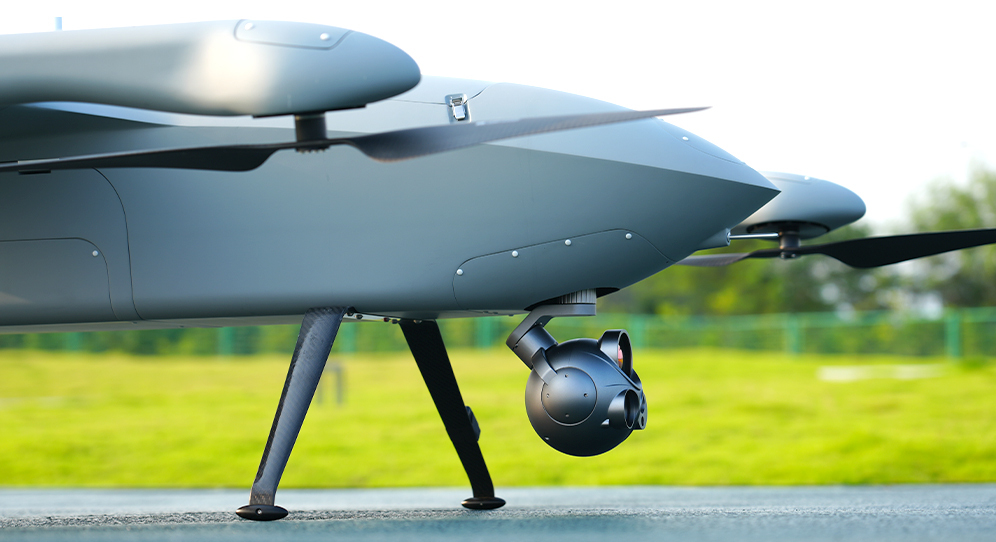

Separate camera bin
Sky Whale Max hybrid UAV comes with a separate bin for gimbal camera installation, allowing it to search for targets through an onboard camera when carrying a heavy payload.

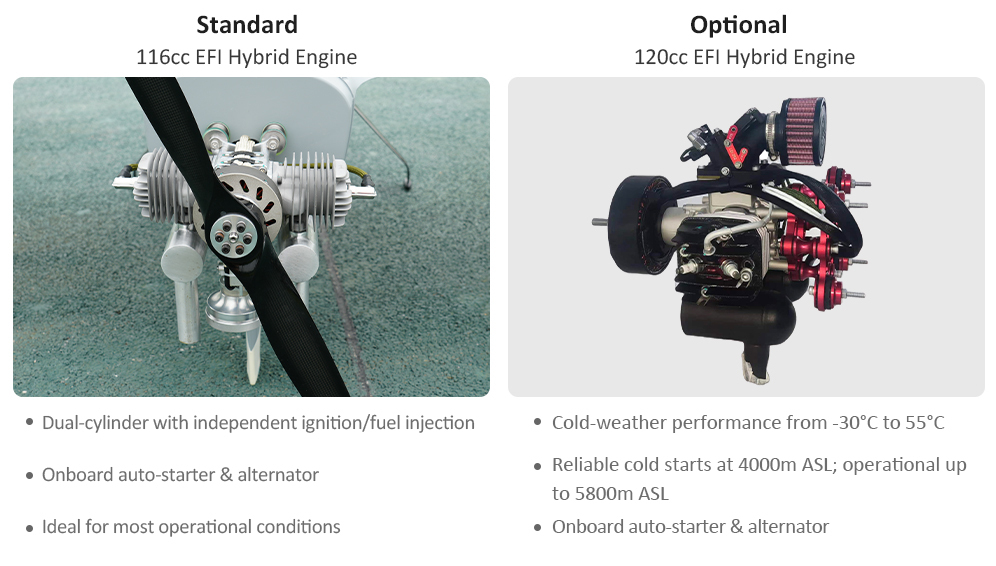

Stable and mighty power
The 116cc EFI hybrid engine has two cylinders with independent ignition and independent fuel feeding. Also, it has an onboard auto starter and alternator, enabling it to output continuous and stable power for the VTOL.

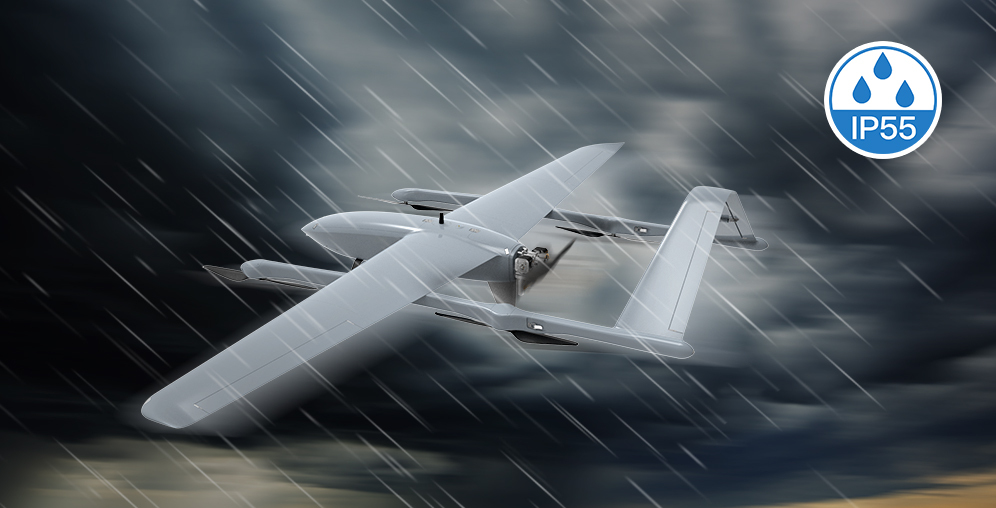

Weatherproof
Due to its anti-water design on the fuselage, the Sky Whale Max gas VTOL drone is weatherproof and can reach an IP55 rating. In this case, the waterproof VTOL aircraft can carry out urgent missions on rainy days, like search and rescue.

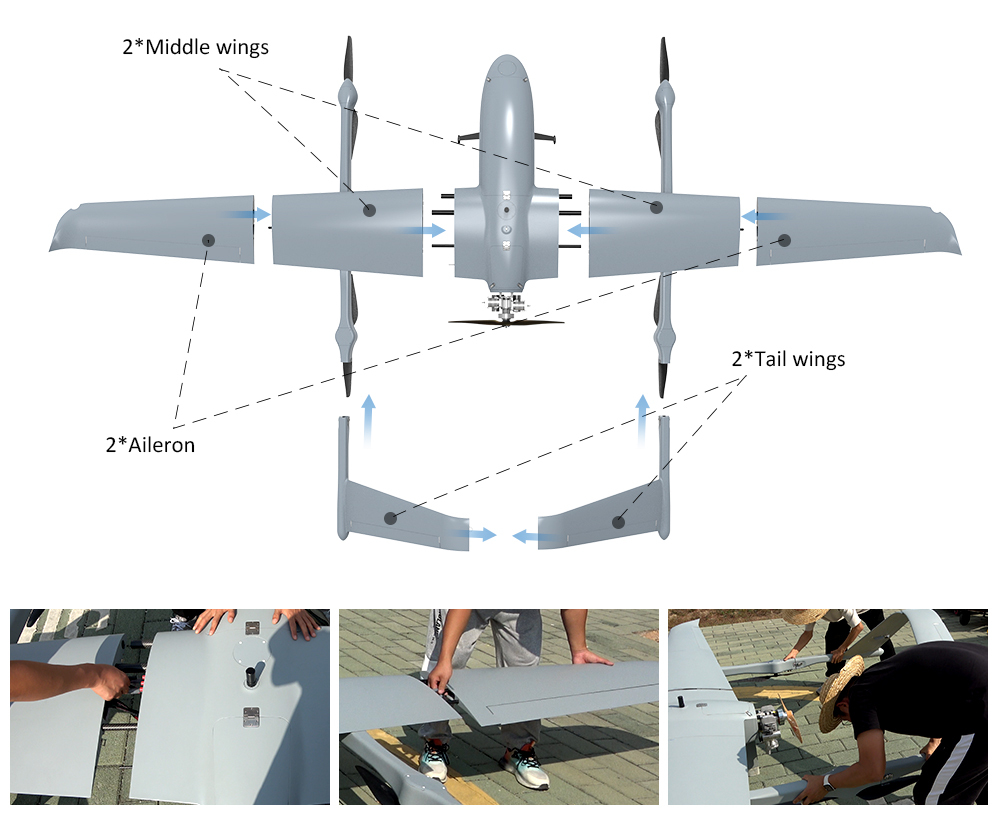

Fast deploy
The fixed-wing UAV is adapting the most advanced quick-detach technology on both airframe and cable connector, making assembly and disassembly becomes super easy.



No piloting skills needed
The LAUNCH ground control software that Sky Whale Max hybrid VTOL drone uses is developed for beginners, so a pilot without any flight experience can fly the drone well. Click HERE to learn more.





Working day and night
Sky Whale Max can be easily identified in the air with onboard aviation lights, especially at night.





Built-in TOF landing assistance
The landing is gentle and safe with one 8m range radar detection device.

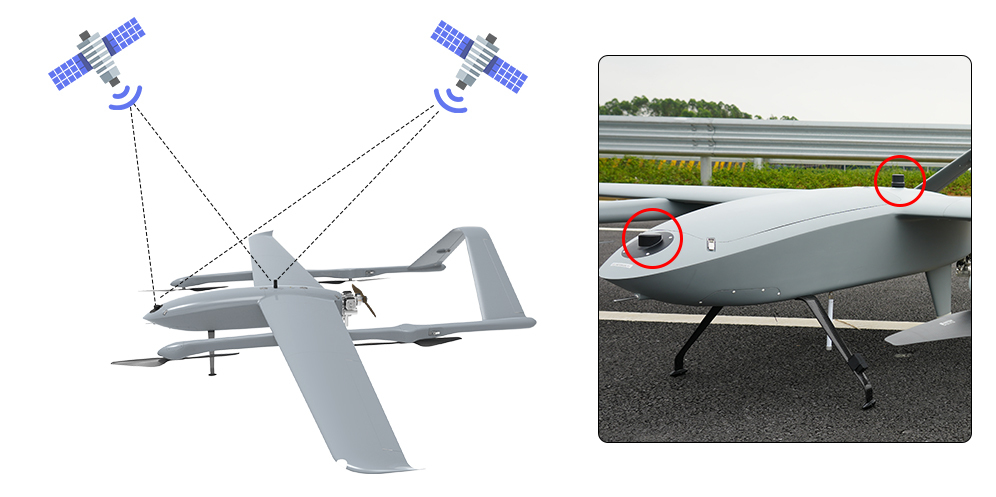

Compass calibration-free (differential GPS)
The pilot does not need to do compass calibration on the Sky Whale Max VTOL UAV, saving lots of time in emergency tasks. Furthermore, the fixed-wing VTOL won't get affected by surrounding electromagnetic interference (EMI) anymore since the compass is replaced by DGPS, significantly improving the VTOL flight stability in the air.



Fly by camera (optional)
This surveillance VTOL can follow and monitor a stationary or moving target of interest along a routine patrol route if the onboard drone zoom camera tracks it. Additionally, the target's coordinates can be copied and shared with the command center. Once the monitoring is complete, the VTOL drone can return to its original patrol route.

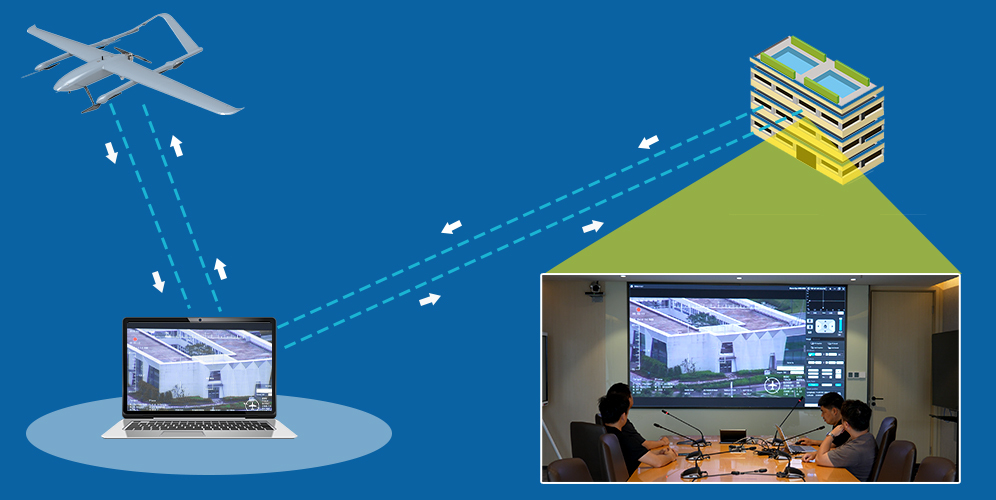

Monitor target movement status on GCS (optional)
The pilot can use the LAUNCH GCS to monitor the target's movement status, such as real-time updated GPS coordinates, the distance between the target and the drone, as well as the distance between the target and the HOME position.

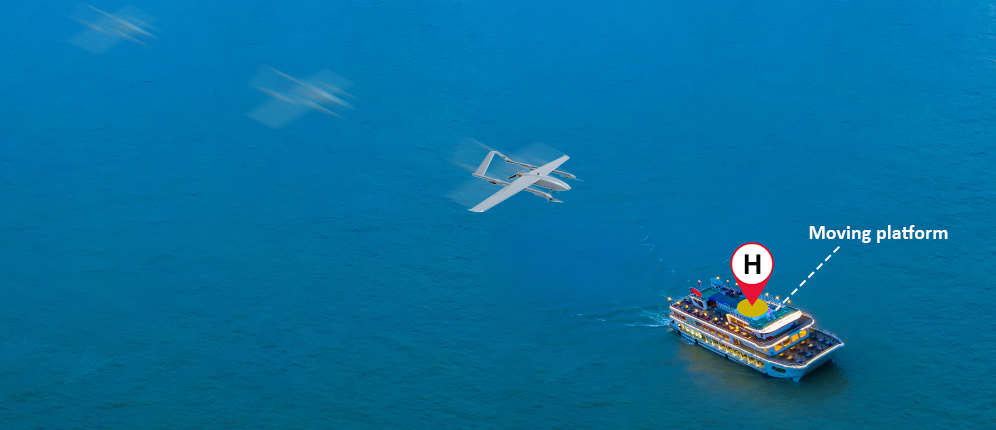

Follow Me feature
Sometimes, the flight platform, such as a boat or a vehicle, needs to move after the drone takes off to complete a mission. In this scenario, the drone must be capable of following the moving flight platform and landing once the task is completed. This feature is very useful when the VTOL drone is conducting a surveillance or monitoring mission on the sea.



Size and packing dimension







What is included

1 x YANGDA Sky Whale Max VTOL fixed-wing airframe
4 x Lift motor
4 x ESC for lift motor
2 x 30 inch CF Propeller CW&CCW
1 x 26 inch wood Propeller CW for engine
4 x Servo
1 x CAN air Speedometer
1 x Power Module For Flight Controller
1 x CUAV X7 Pro flight controller with differential GPS
1 x TOF
1 x Futaba T6K V3S radio controller
1 x DLA116 EFI engine
1 x 18L fuel tank
4 x 6S 25000mAh HV Lipo battery
1 x 6S 16000mAh Li-ion battery
1 x Assembly and Flight Test Service
2 x Aviation box
1 x LAUNCH ground control software





Optional payloads

Sky Eye-40HZ daylight zoom camera

Lightweight 3-axis gimbal with 40X optical zoom camera and object tracking

Eagle Eye-30IE Pro EO/IR gimbal camera

Lightweight 3-axis gimbal with 30X optical zoom camera and thermal sensor, and object tracking

Storm Eye-40IE EO/IR gimbal camera

Lightweight 3-axis gimbal with 40X optical zoom camera and thermal sensor, and object tracking

Storm Eye-30IE-M EO/IR gimbal camera

3KM Laser Rangefinder EO/IR camera with AI Auto-Identify, target tracking and GPS coordinate



Optional video & data link

 Videopass-N30

 30KM transmission range, video and telemetry in one, two frequencies, ultra-low latency

Videopass-N60

60KM transmission range, video and telemetry in one, two frequencies, ultra-low latency

Videopass-N150

150KM transmission range, video and telemetry in one, two frequencies, ultra-low latency

Shadow auto antenna tracker

Follow the drone to extend the transmission range

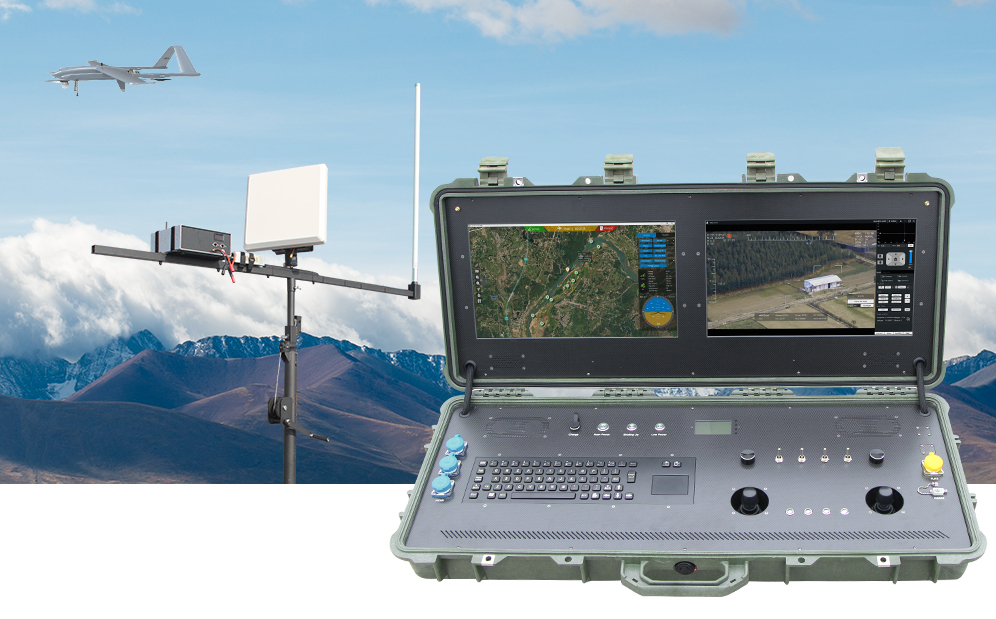

Optional ground control station



ROCK ground control station

Portable 15.6 inch dual-screen ground control station for drone mission planning and flight control, and payloads control



ROCK-II ground control station

Rugged 17.3 inch dual-screen ground control station for drone mission planning and flight control, and payloads control



MTOW 65kg
Wingspan 4,800mm
Length 2,580mm
Height 850mm
Weight without battery and fuel 37.5kg
Standard battery pack 4 x 6S 16000mAh HV Lipo battery
1 x 6S 10000mAh HV Lipo battery
Suggested max payload weight 15kg (battery not included)
Endurance 4 hours (15kg payload) / 10 hours (2kg payload)
Hybrid engine DLA116 116cc EFI. Auto-starter & alternator, 2 in 1
Fuel type 92#, 93# petrol
Fuel tank 18L
Fuel consumption rate 1.37L/h
Cruise speed 85-100km/h
Max speed 130km/h
Max ascend speed 14.4km/h
Max descend speed 18km/h
Anti-wind capability 43.2km/h
Material Carbon fiber, glass fiber, and Kevlar
Working temperature -10~60
Operating Altitude(Max.) 4200m ASL
