YANGDA Sky Whale Heavy Lift Long Endurance Electric VTOL Drone

Inquire now: info@yangdaonline.com

Sku:
Sky Whale
Weight:
16.00 KGS

Product Overview

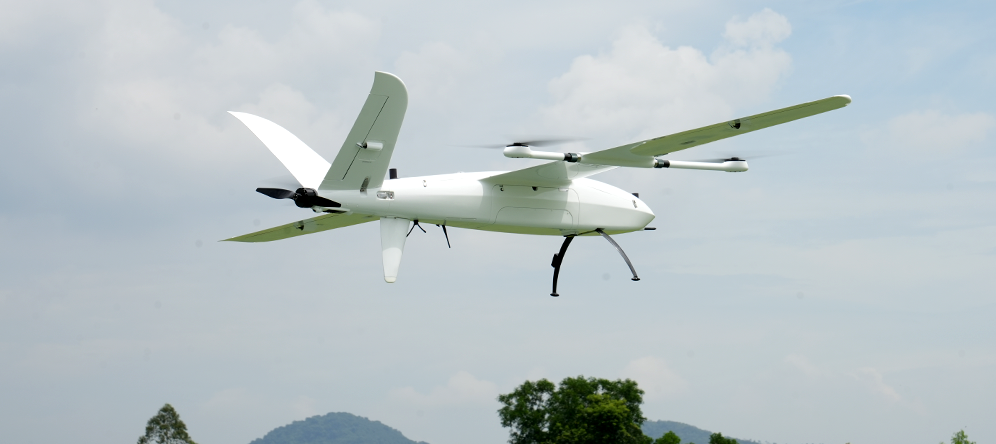

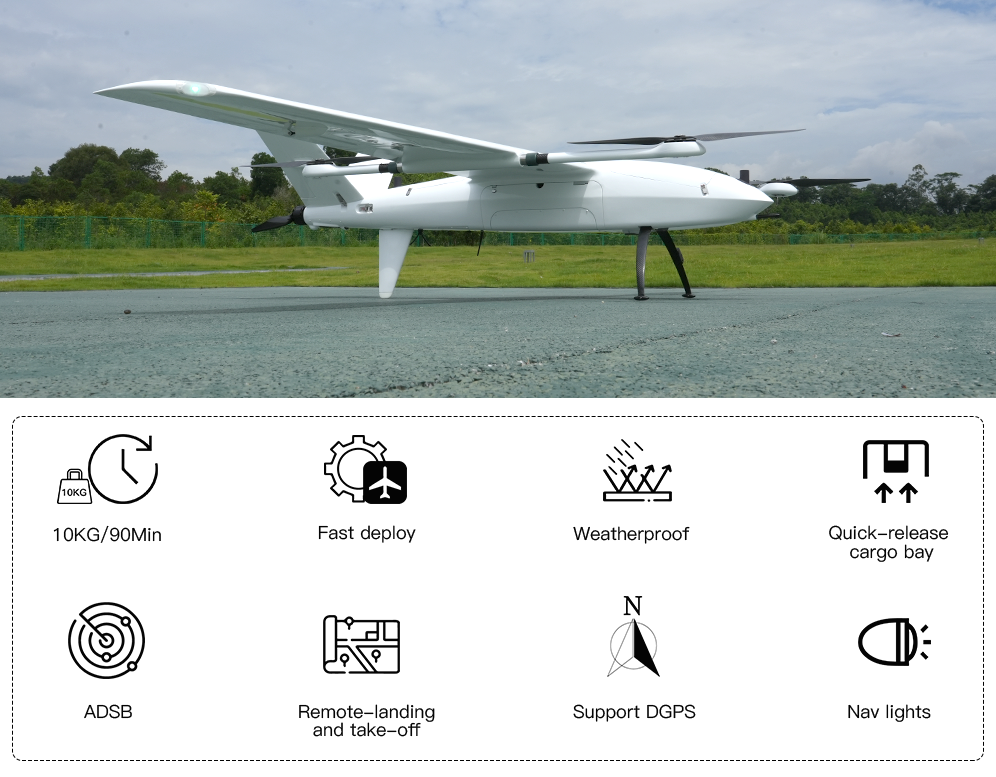

YANGDA Sky Whale heavy-lift electric VTOL drone is specially developed for LiDAR mapping, long-distance cargo delivery & transport and security & surveillance. It comes with four lift motors and one fixed-wing motor, which will allow the fixed-wing VTOL to ascend like a quadcopter. Once in the air, the aircraft transitions to horizontal flight as a push-prop fixed-wing.

Heavy-lift and long-endurance
Sky Whale VTOL drone can fly 3.5 hours with 2kg payload, 2 hours with 6kg payload and 90 minutes with 10kg payload.

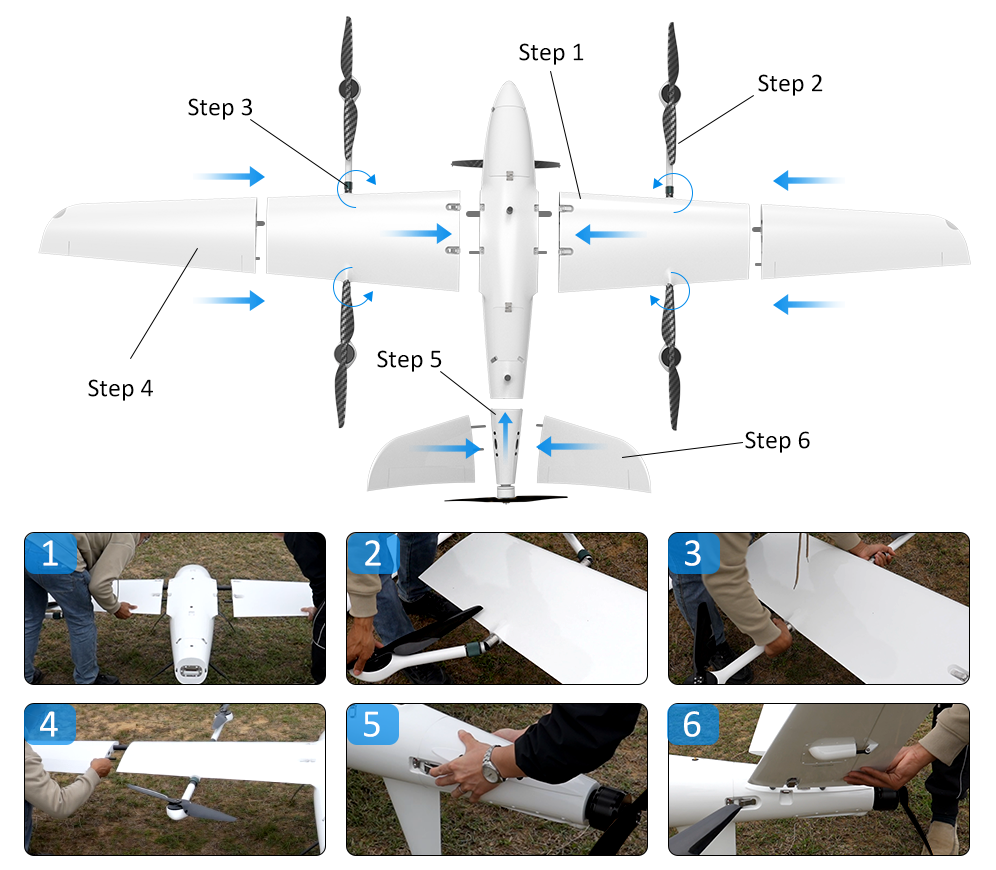

Fast deploy
The fixed-wing UAV is adapting the most advanced quick-detach technology on both airframe and cable connector, making assembly and disassembly becomes super easy. In this case, the Sky Whale VTOL plane can be set up in 3 minutes by a single man. Learn more.



Quick-release cargo bay
This design will give you more flexibility to switch among different payloads, like a surveillance camera, LiDAR, or medical supplies.



Weatherproof
Due to its anti-water design on the fuselage and air speedometer, the Sky Whale VTOL drone is weatherproof and can reach an IP55 rating. In this case, the waterproof VTOL aircraft can carry out urgent missions on rainy days, like search and rescue.



No piloting skills needed
The LAUNCH ground control software that Sky Whale VTOL drone uses is developed for beginners, so a pilot without any flight experience can fly the drone well. Click HERE to learn more.



Working day and night
Sky Whale can be easily identified in the air with onboard aviation lights, especially at night.

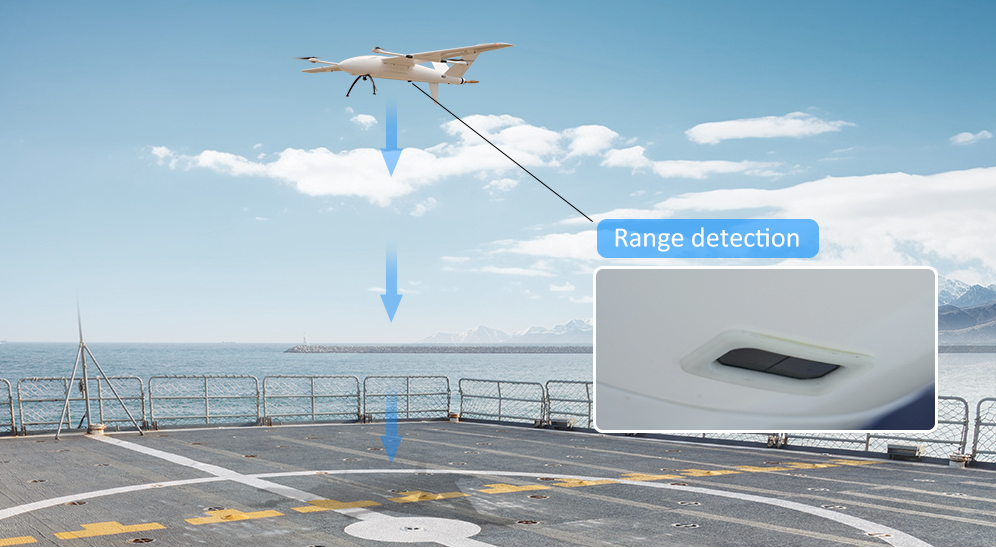

Built-in TOF landing assistance
The landing is gentle and safe with one 8m range radar detection device.

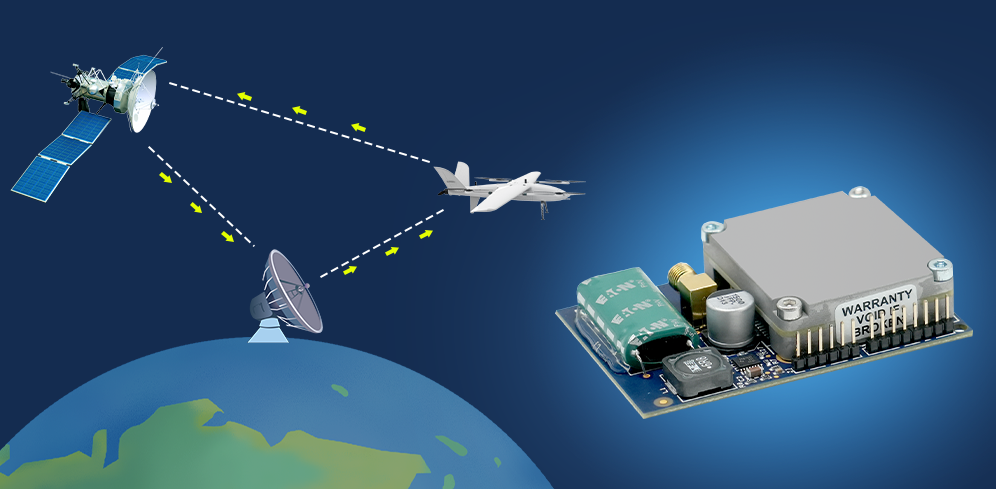

Onboard ADS-B
Equipped with ADS-B, Sky Whale's GPS coordinate will be displayed on the air traffic control system.

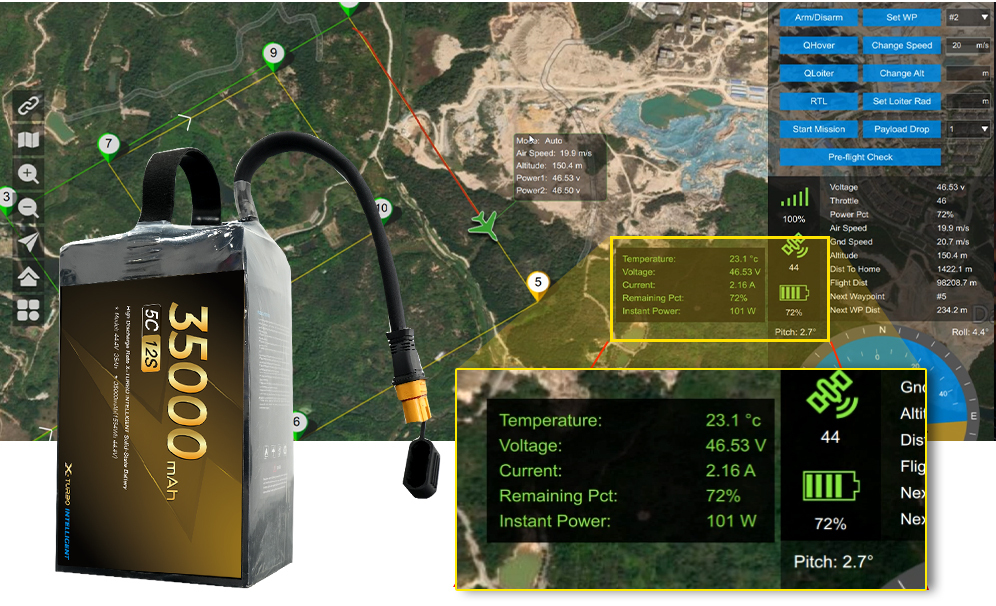

Battery hot swapping
With one extra built-in battery for autopilot, the drone batteries can be replaced without powering off the system, which is very useful for multiple flights at one time.

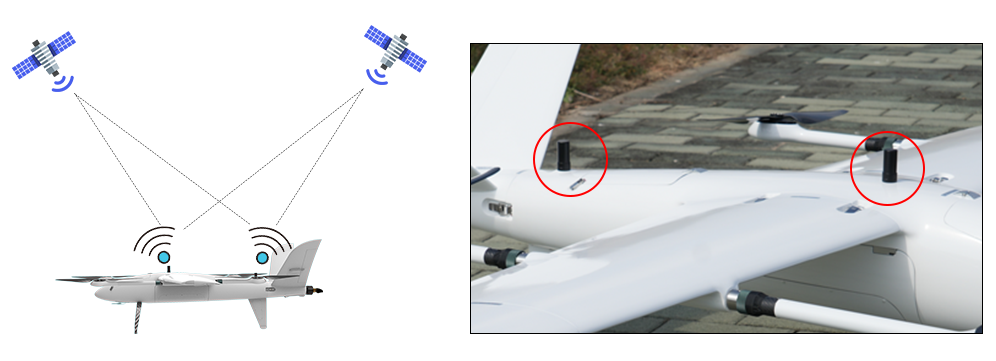

Compass calibration-free (differential GPS)
The pilot does not need to do compass calibration on the Sky Whale VTOL UAV, saving lots of time in emergency tasks. Furthermore, the fixed-wing VTOL won't get affected by surrounding electromagnetic interference (EMI) anymore since the compass is replaced by DGPS, significantly improving the VTOL flight stability in the air.

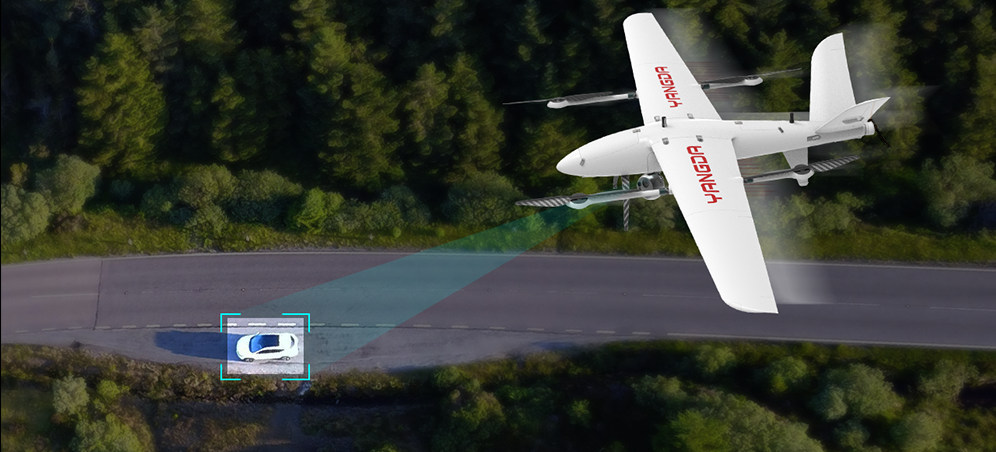

Follow moving target (optional)
The surveillance VTOL can follow and inspect a static or moving target of interest during a routine patrol route when carrying an Eagle Eye-30IE-M drone zoom camera. Also, the target coordinates can be copied and shared with the command center. Once the inspection is completed, the VTOL drone can return to the patrol route.



Remote landing and delivery (optional)
One-key to take off, no need for a skilled operator. Multiple landing points, suitable for cargo delivery application.

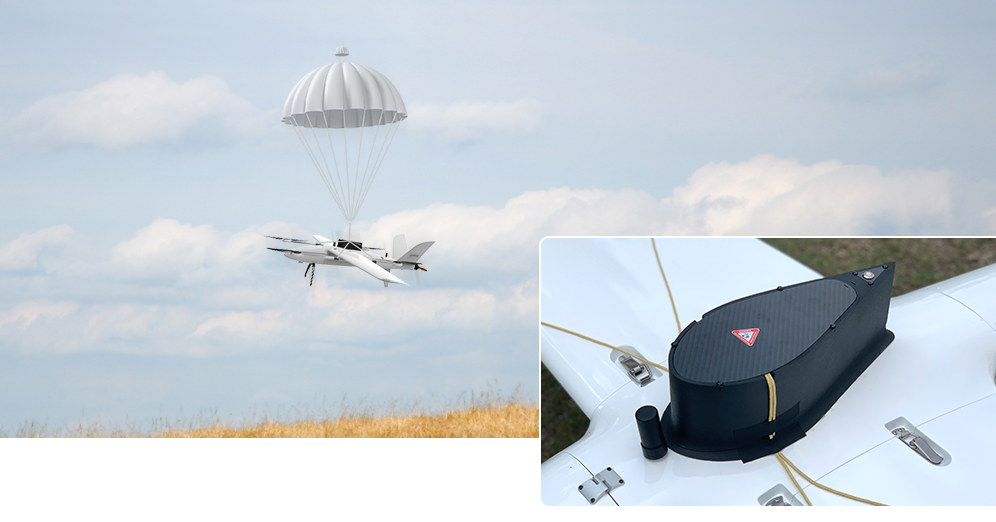

VTOL Parachute (optional)
Saver-40VT parachute has been developed to protect this precious VTOL drone during an unexpected accident in the air.

Follow Me feature (optional)
Sometimes the flight platform, like a boat or a vehicle, has to move around after the drone takes off to carry out a mission. Then, in this case, the drone should have the ability to follow the moving flight platform and land when the task is over. This feature is available on YANGDA VTOL drones now, please click HERE to watch the demo video.

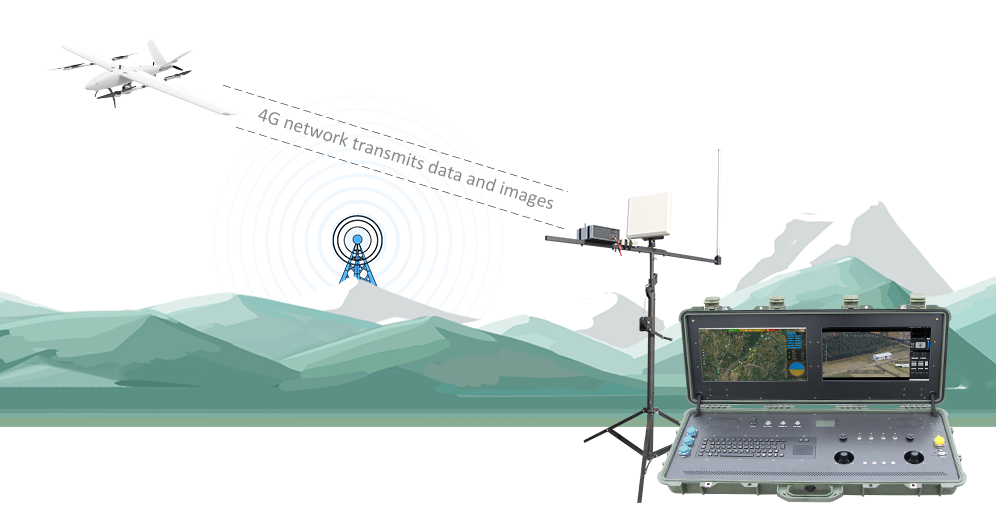

Unlimited video & data range (optional)
Sky Whale aircraft provides a 4G / LTE video transmitter for unlimited video & data transmission.

Versatile airborne platform
Thanks to its excellent stability and powerful payload-lift capability, Sky Whale VTOL can be used in mapping, search, rescue, and surveillance applications.



What is included

1 x YANGDA Sky Whale VTOL fixed-wing airframe
4 x Lift motor
4 x ESC for lift motor
2 x 26 inch CF Propeller CW&CCW
1 x ESC for fixed-wing motor
1 x Fixed-wing motor
1 x 22 inch CF Propeller CW for fixed-wing motor
4 x Servo
2 x CAN air Speedometer
1 x Power Module For Flight Controller
1 x Pixhawk Cube Orange Standard Set With & Differential GPS
1 x TOF
1 x Futaba T6K V3S radio controller
1 x Assembly and Flight Test Service
1 x Aviation box
1 x LAUNCH ground control software

Items compatible (not included)
Battery: 2 x Gens Tattu 32000mAh 22.8V 10C 6S1P High Voltage Lipo Battery Pack or 4 x YANGDA Thunder Stone 30000mAh 22.2V 5C 6S1P Solid State Li-Ion Battery

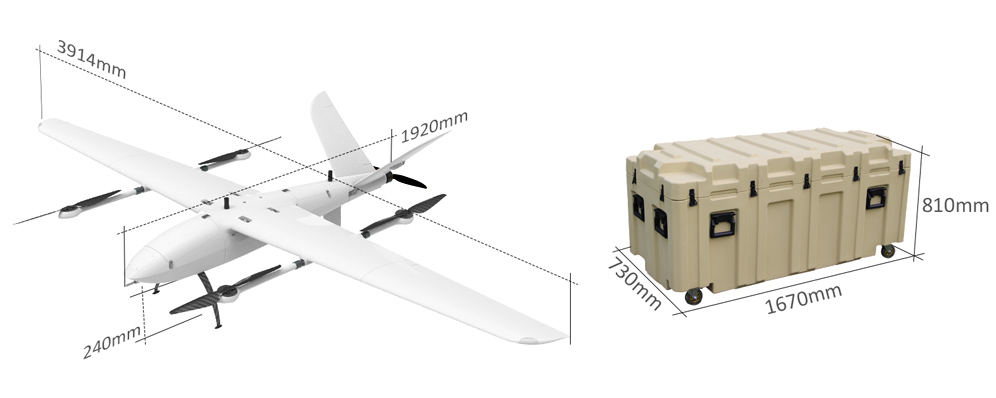

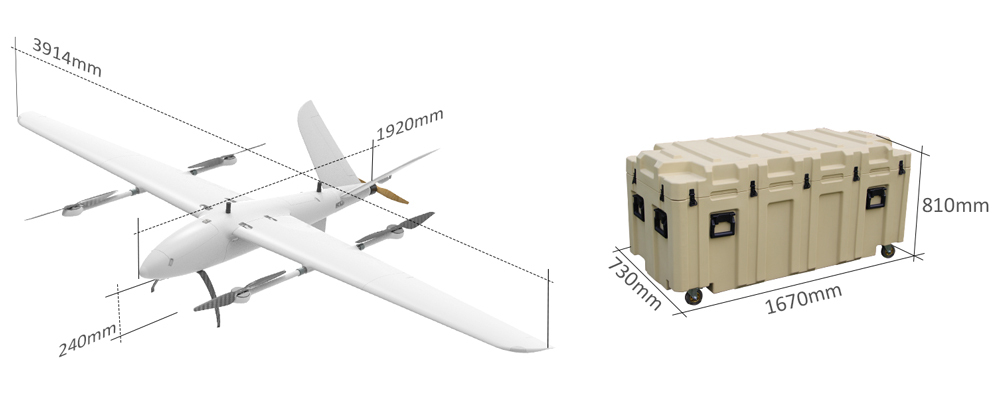

Size And Packing Dimension

Optional payloads



Eagle Eye-30IE Pro EO/IR gimbal camera

Lightweight 3-axis gimbal with 30X optical zoom camera and thermal sensor, and object tracking

 Storm Eye-30IE-M EO/IR gimbal camera

3KM Laser Rangefinder EO/IR camera with AI Auto-Identify, target tracking and GPS coordinate



Eagle Eye-30IE-M50 EO/IR gimbal camera

Lightweight 3-axis gimbal with 30X optical zoom camera and thermal sensor with 50mm lens, object tracking, and target GPS coordinate

Saver-40VTO parachute

Giving you higher chance to save the drone when unexpected situation happens in the air



Optional video and datalink

Videopass-N30

30KM transmission range, video and telemetry in one, two frequencies, ultra-low latency

Videopass-N60

60KM transmission range, video and telemetry in one, two frequencies, ultra-low latency

Videopass-N150

150KM transmission range, video and telemetry in one, two frequencies, ultra-low latency

Shadow auto antenna tracker

Follow the drone to extend the transmission range



Optional ground control station

ROCK ground control station

A portable dual-screen ground control station for drone mission planning and flight control, and payloads control.



MTOW 34kg
Weight w/o battery and payload 16kg
Wingspan 3,914mm
Length 1,920mm
Height 750mm
Frame weight 7.45kg
Max payload (battery included) 17.7kg
Battery weight (Tattu 6S 32000mAh) 7.2kg
Suggested max payload weight 10kg
Endurance 3.5 hours (2kg payload) / 2 hours (6kg payload) / 90min (10kg payload)
Cruise speed 75-100km/h
Max speed 120km/h
Stall speed 57.6km/h
Max ascend speed 14.4km/h
Max descend speed 18km/h
Anti-wind capability 43.2km/h
Operating Altitude(Max.) 4,500m ASL
