Overview

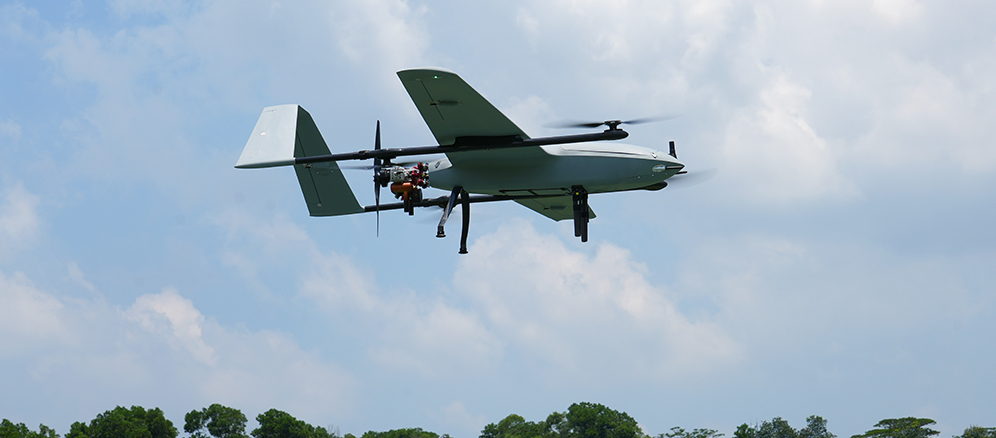

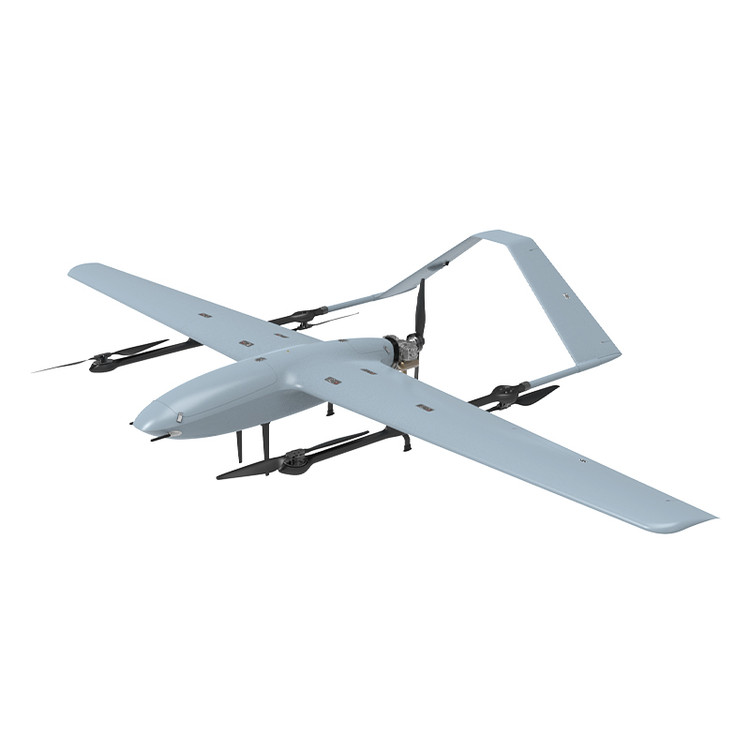

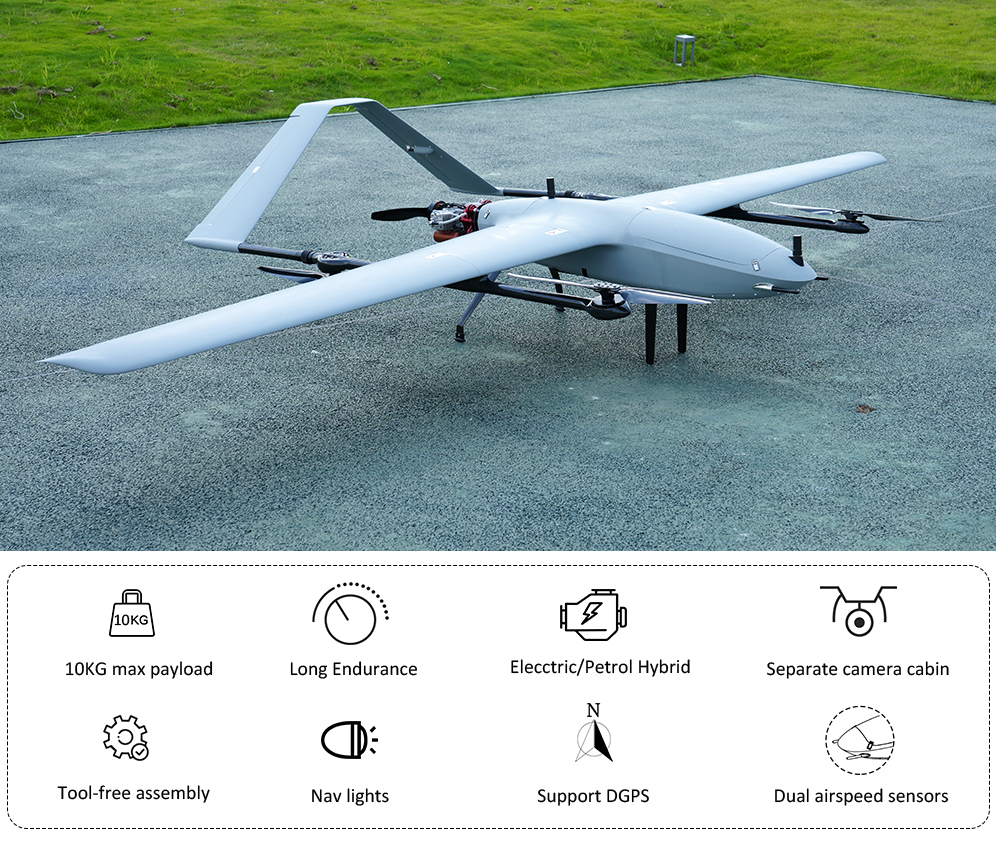

The Sky Whale Hybrid VTOL is a long-endurance fixed-wing VTOL designed with both battery and gasoline energy supply systems. With a maximum payload capacity of 10 kg, it delivers reliable, continuous performance of up to 10 hours-providing efficient aerial support for missions such as long-range border patrol, wide-coverage industrial inspection, and persistent surveillance operations.
Heavy Lift
Unlock Expanded Mission Options

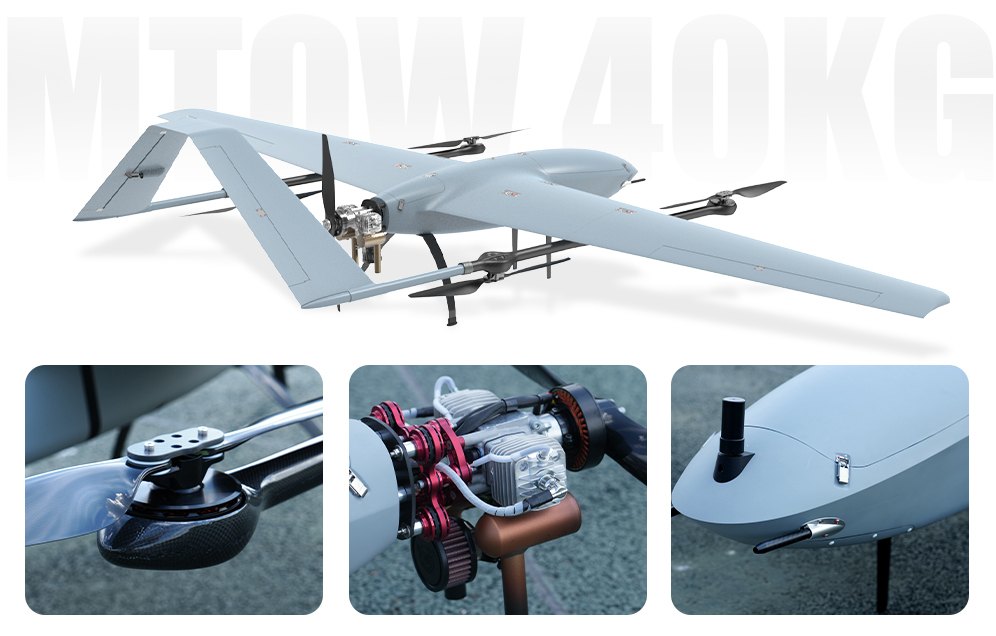

Supporting a 40 kg MTOW and up to 10 kg payload capacity, the Sky Whale Hybrid VTOL enables versatile payload configurations tailored to diverse mission needs, including gimbal cameras, LiDAR, and cargo, and more. Whether for surveillance, inspection, SAR, or delivery, it provides a reliable all-in-one aerial solution across industries.
Fast Deployment
One-Person Setup in 3 Minutes

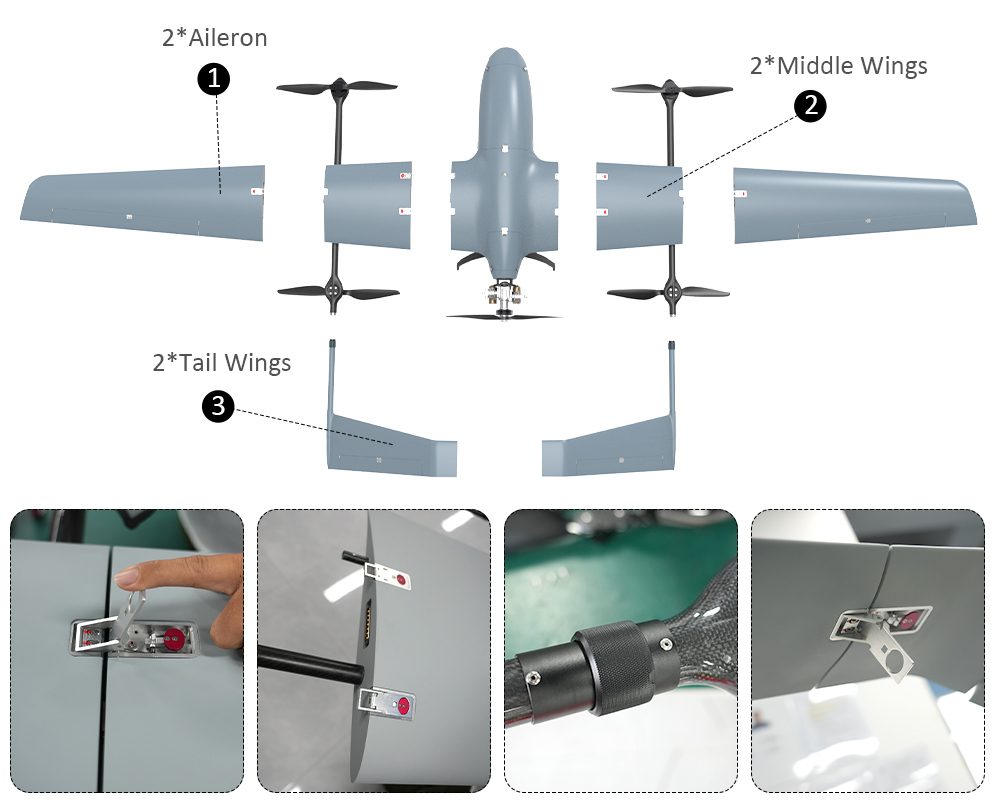

Featuring a quick-release mechanism for arms and wiring harnesses, the Sky Whale Hybrid VTOL enables a hassle-free full assembly in 3 minutes.Designed for single-operator convenience with a single flight case solution, it helps capture critical operational windows in emergency missions.
Ready for All Weather
Reliable Flight in Rain Conditions

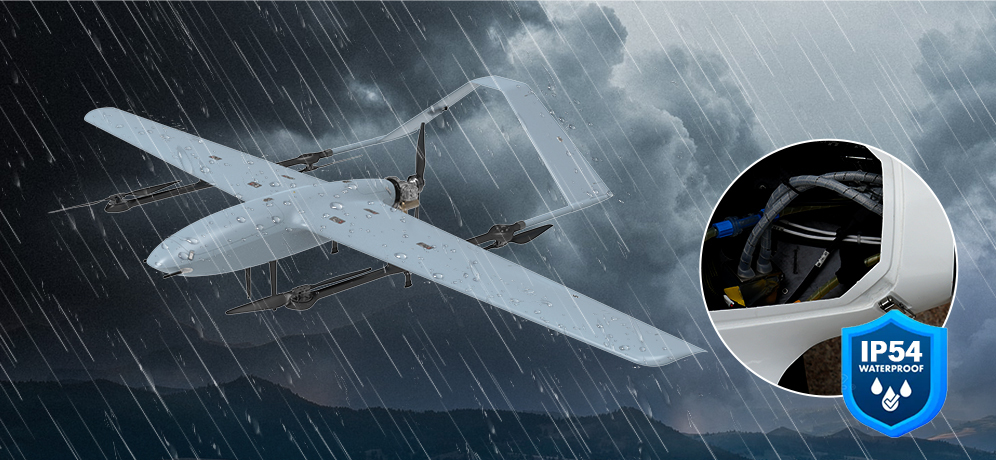

The Sky Whale Hybrid VTOL airframe and critical components, including the pitot tube, are reinforced with waterproof protection, achieving an IP54 rating. The system maintains stable operation in drizzle and intermittent rain, supporting mission-critical tasks such as search and rescue and rapid inspection - ensuring uninterrupted performance when it matters most.
Smart Battery System
Safer Flight with SRTH Algorithm
The Sky Whale Hybrid VTOL can be equipped with the XTurbo intelligent battery, featuring the SRTH (Smart Return-to-Home) algorithm. SRTH dynamically predicts remaining flight endurance based on real-time power consumption, flight distance, and battery health. Compared with traditional voltage-triggered return, it provides greater accuracy and reliability, effectively reducing the risk of low-battery forced landings.
Stable Performance in Harsh Conditions
Level 6 Wind Resistance
With a powerful propulsion system and optimized aerodynamics, the Sky Whale Hybrid VTOL offers wind resistance up to Level 6, maintaining stable flight even in strong breeze conditions. It is particularly well suited for operations in high-wind environments such as coastal patrols and mountainous or high-altitude regions.
Hassle-Free Operation
Easy for Beginners
Paired with the LAUNCH ground control software featuring a clean interface and intuitive logic, the Sky Whale VTOL supports one-click takeoff, automated mission planning, and intelligent return-to-home. Even operators with no prior flight experience can carry out missions independently after short-term training.
Quick-Release Payload Bay
Smoother Mission Switching
The Sky Whale Hybrid VTOL features an integrated quick-release mechanism at the bottom of the fuselage, using a mechanical locking system combined with plug-and-play wiring. This tool-free design enables rapid swapping of multiple mission payloads, such as surveillance cameras, LiDAR sensors, or medical supply modules.
Drone Life-Safe Design
More Reliable Flight
Hot-Swappable Battery System: With an built-in extra auxiliary flight battery, the system enables uninterrupted system power during battery swap. This allows continuous operation and multiple back-to-back missions.
What is Included
1 x YANGDA Sky Whale VTOL Fixed-Wing Airframe
4 x Lift Motor
4 x ESC for Lift Motor
2 x Rotor Propeller CW
2 x Rotor Propeller CCW
1 x Fixed Wing Propeller
1 x DGPS
4 x Servo
1 x CAN Air Speedometer
1 x Power Module For Flight Controller
1 x CUAV X7 Pro Flight Controller

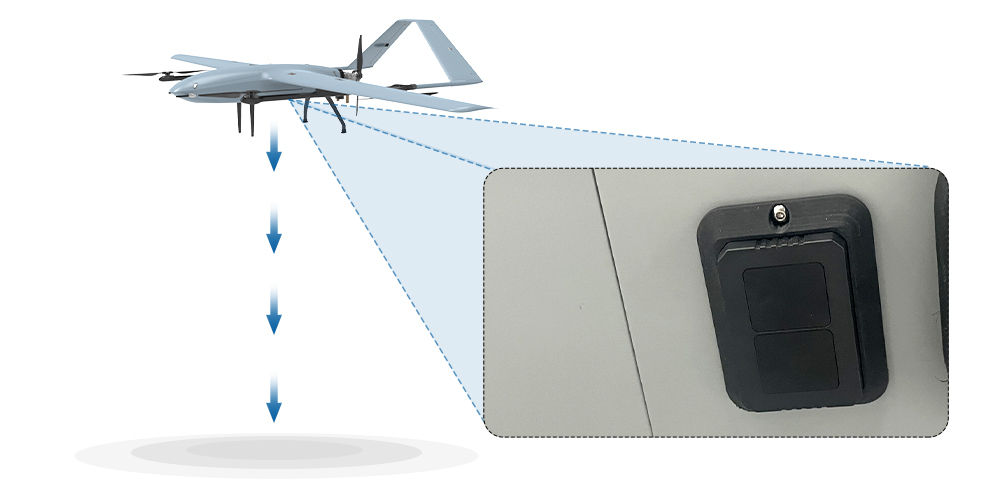

1 x TOF
1 x Futaba T6K Radio Controller
1 x Lide B2G70 EFI Engine
1 x 15L Fuel Tank
2 x 13S 8000mAh for Rotors
1 x 6S 8000mAh for Avionics
1 x Assembly and Flight Test Service
1 x Aviation box
1 x LAUNCH Ground Control Software

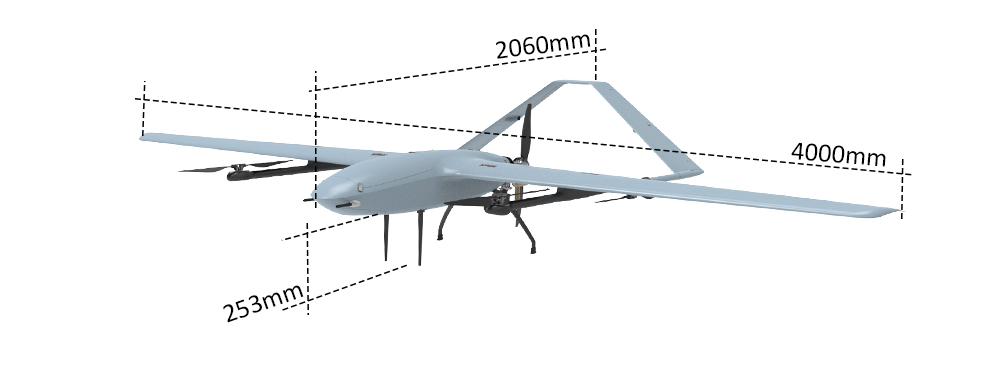

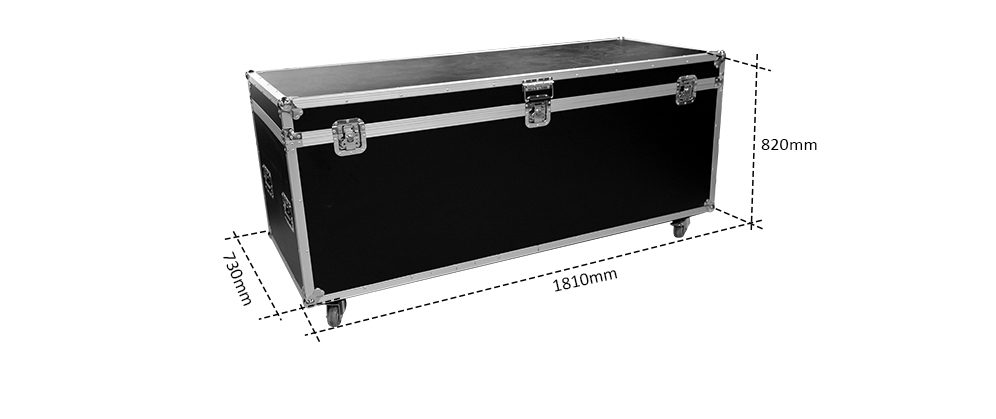

Size And Packing Dimension
Applications and Solutions
Surveying & Geospatial Information
Challenge: Limited coverage per flight, weak signal in mountainous areas, and difficulties in data transmission.
Sky Whale VTOL Solution: With a 10 kg payload capacity, Sky Whale can simultaneously carry a LiDAR system and high-precision INS. Its 3.5-hour extended endurance significantly reduces takeoff and landing cycles. Its optional 4G or Starlink communication enables real-time flight data and video transmission, improving operational efficiency by over 50%.
Recommended Configuration: LiDAR + PPK module + 4G data link.
Security Surveillance & Border Patrol
User Pain Points: Difficulty in target identification at night and the need for continuous hovering during long-range patrols.

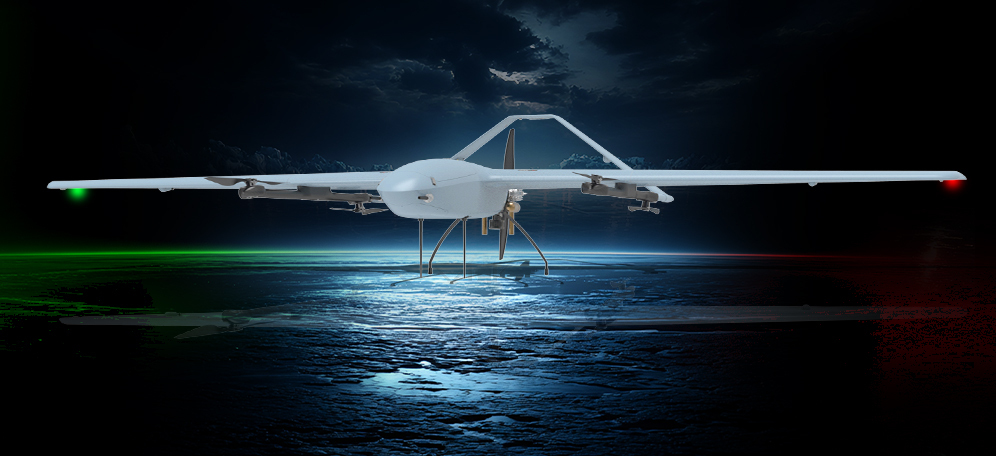

Sky Whale VTOL Solution: With the optional "Fly by Camera" function, the VTOL system can automatically lock onto and track ground vehicles or individual while continuously updating target coordinates in real time. With the navigation lights enhancing nighttime identification, and a thermal imaging gimbal extending night vision capability, it enables all-weather, wide-area surveillance with improved operational safety.

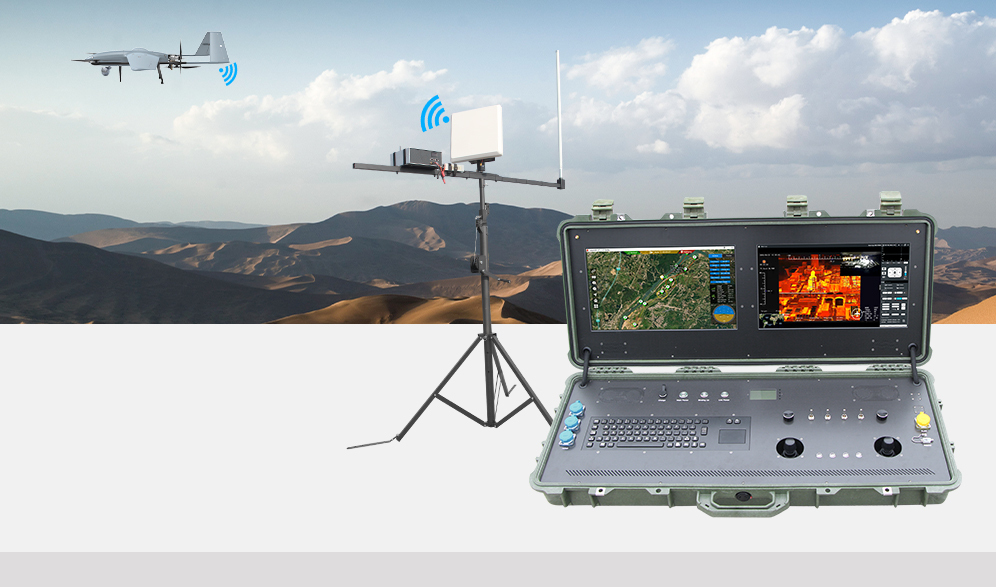

Recommended Configuration: Storm Eye EO/IR gimbal camera + N150 long-range video & data link.
Emergency Material Transport
Challenge: Since roads and urban infrastructure are damaged in disaster zones, emergency material transport demands higher precision and cannot be achieved via traditonal transportation methods.
Sky Whale VTOL Solution: A quick-release cargo bay design enables the delivery of up to 10 kg of emergency supplies per flight, including medical supplies, communication equipment, and life-saving gear. The system supports multi-point landing and remote delivery capabilities, ensuring precise deployment in complex terrain.
Recommended Configuration: Quick-release cargo bay + remote delivery module + parachute system.
Maritime Operations
Challenge: Shipboard takeoff and landing are difficult due to the lack of fixed reference points and compass interference.

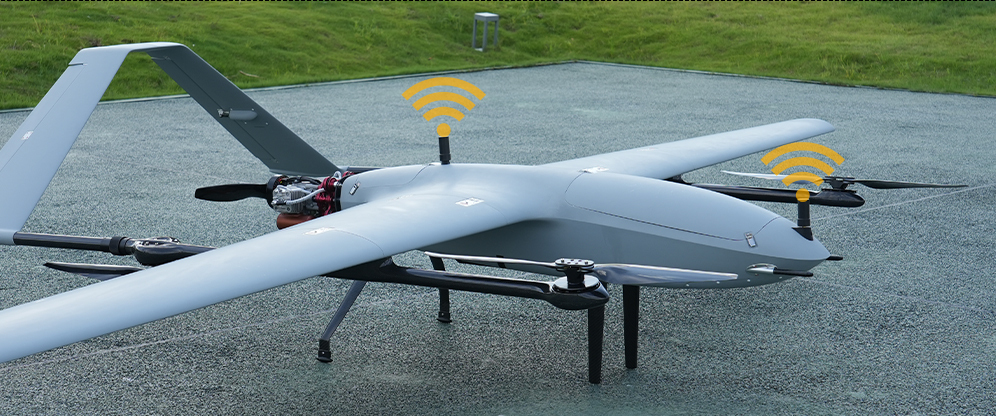

Sky Whale VTOL Solution: The "Follow Me" mode enables the UAV to take off from and land on moving vessels. While the differential GPS frees the VTOL from compass calibration and is resistant to vessel electromagnetic interference. And the ptional 4G or Starlink communication enable beyond-visual-line-of-sight operations.
Recommended Configuration: 4G data link + waterproof protection kit".
| Parameter | Value |
| MTOW | 40kg |
| Weight (w/o battery and fuel) | 19kg |
| Wingspan | 4000mm |
| Length | 2060mm |
| Height | 768mm |
| Max payload | 10kg (battery excluded) |
| Suggested payload weight | 2kg |
| Endurance | 2kg/10 hours |
| Cruise speed | 85km/h |
| Max speed | 130km/h |
| Stall speed | 57.6km/h |
| Max ascend speed | 14.4km/h |
| Max descend speed | 18km/h |
| Anti-wind capability | Level 6 |
| Operating altitude(max.) | 5000m |
| Control range | Up to 150km |
| Fuel tank capacity | 15L |
| Fuel consumption rate | ≈1.2 L/H |
| Hybrid engine | B2G70 (default) |
| Battery specification | 2 * 13S 8000mAh for rotors 1 * 6S 8000mAh for avionics |
| Lift motor | 4*brushless motors |
| Pusher motor | 1*brushless motors |
| Flight controller | CUAV X7+ Pro |
| Remote controller | Futaba T6K V3S |
| GCS software | LAUNCH GCS |
| IP rating | IP54 |
| Operating temperature | -20℃ ~ 60℃ |
Optional Configurations & Additional Capabilities
The Sky Whale Hybrid VTOL is not only a high-performance industrial UAV, but also a flexible mission platform. With a range of optional features designed for diverse operational requirements, it enables seamless integration tailored to your specific mission needs.

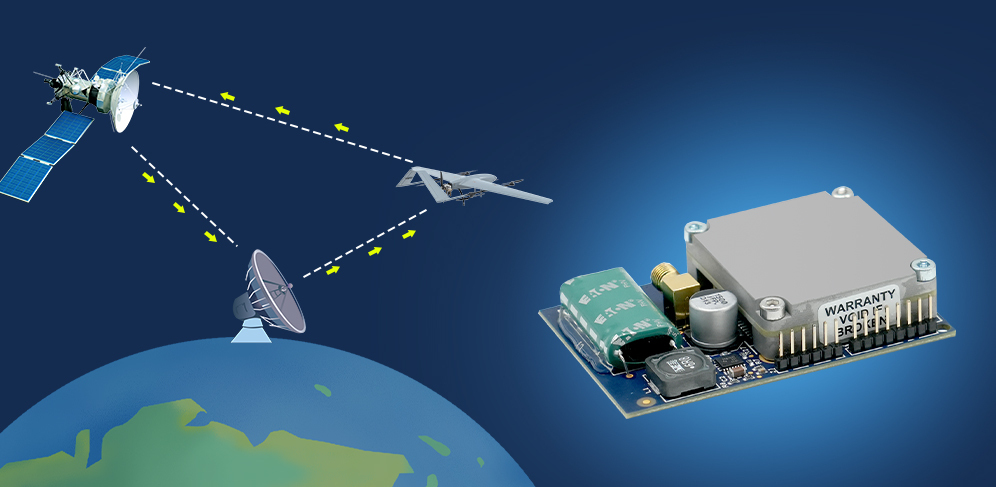

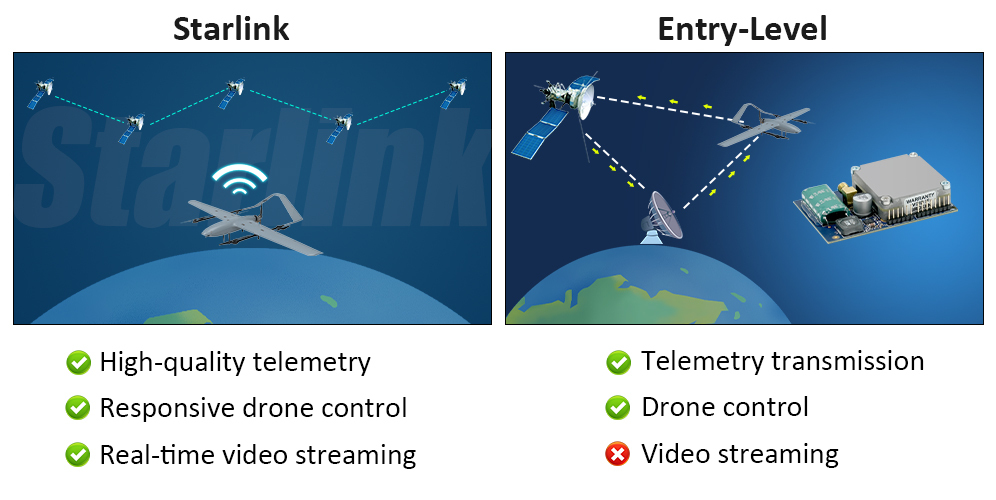

Satellite Communication System
Sky Whale Hybrid supports two satellite communication solutions
Starlink:
Enables global, uninterrupted connectivity via Low Earth Orbit (LEO) satellites, supporting real-time HD video transmission, precise telemetry, and remote command and control.
Entry-Level Satellite Communication:
Provides basic telemetry data and UAV control link transmission, meeting fundamental requirements for beyond visual line-of-sight (BVLOS) operations.
User Value
Breaks through the limitations of terrestrial network coverage, maintaining real-time UAV connectivity in no-signal environments such as oceans, deserts, and remote mountainous areas, ensuring mission controllability and reliable data return.
Application Scenarios
● Offshore oil and gas platform inspection
● Long-range patrol in deserts and uninhabited regions
● Emergency response in disaster zones with communication loss
● Cross-border long-endurance missions
Optional Payloads
