YANGDA Sky Whale Max Hybrid Heavy Lift Long Endurance VTOL Drone

Inquire now: info@yangdaonline.com

Sky Whale Max Hybrid
25.00 KGS

Product Overview

YANGDA Sky Whale Max hybrid (battery and petrol) fixed-wing VTOL drone is specially designed for missions that conventional electric VTOL drones can't do: 15kg heavy payload delivery and 10 hours of ultra-long endurance aviation. Given its stable structure and high reliability, it is an excellent UAV platform for emergency cargo delivery, long-distance coast patrol, oil pipeline inspection, border monitoring, etc.



10 hours ultra-long endurance
Sky Whale Max gasoline hybrid VTOL can fly for 10 hours with a 2kg payload.


15kg payload
With the streamlined aerodynamic structure design, 50kg max take-off weight (MTOW), large wing area, and small wing loading,
the hybrid VTOL drone can carry a 15kg payload for 4 hours.


Separate camera bin
Sky Whale Max hybrid UAV comes with a separate bin for gimbal camera installation, allowing it to search for targets through an onboard camera when carrying a heavy payload.



Stable and mighty power

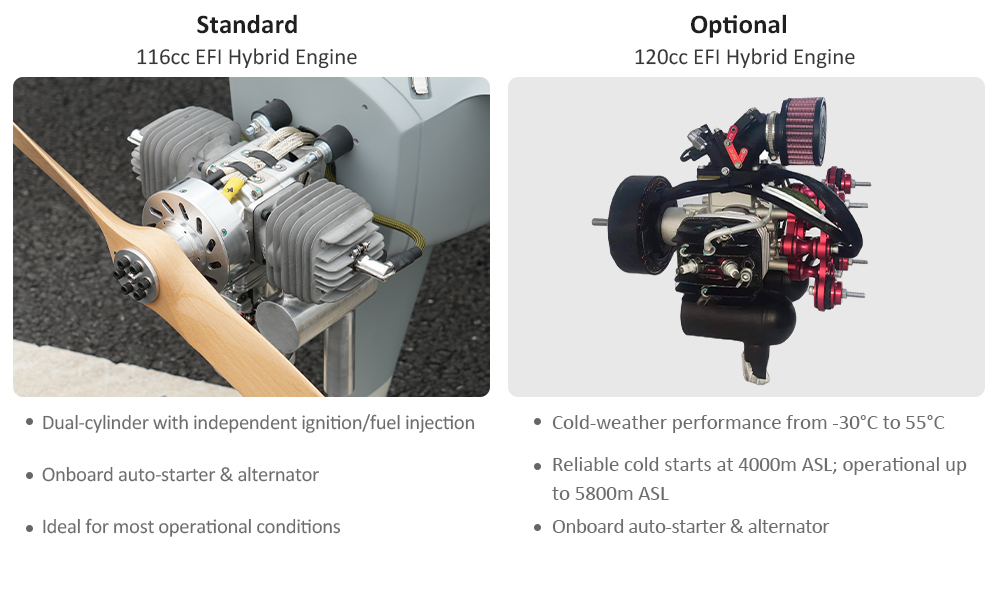

The 116cc EFI hybrid engine has two cylinders with independent ignition and independent fuel feeding. Also, it has an onboard auto starter and alternator, enabling it to output continuous and stable power for the VTOL.



Due to its anti-water design on the fuselage, the Sky Whale Max gas VTOL drone is weatherproof and can reach an IP55 rating. In this case, the waterproof VTOL aircraft can carry out urgent missions on rainy days, like search and rescue.


Fast deploy
The fixed-wing UAV is adapting the most advanced quick-detach technology on both airframe and cable connector, making assembly and disassembly becomes super easy.


No piloting skills needed
The LAUNCH ground control software that Sky Whale Max hybrid VTOL drone uses is developed for beginners, so a pilot without any flight experience can fly the drone well. Click HERE to learn more.



Working day and night
Sky Whale Max can be easily identified in the air with onboard aviation lights, especially at night.

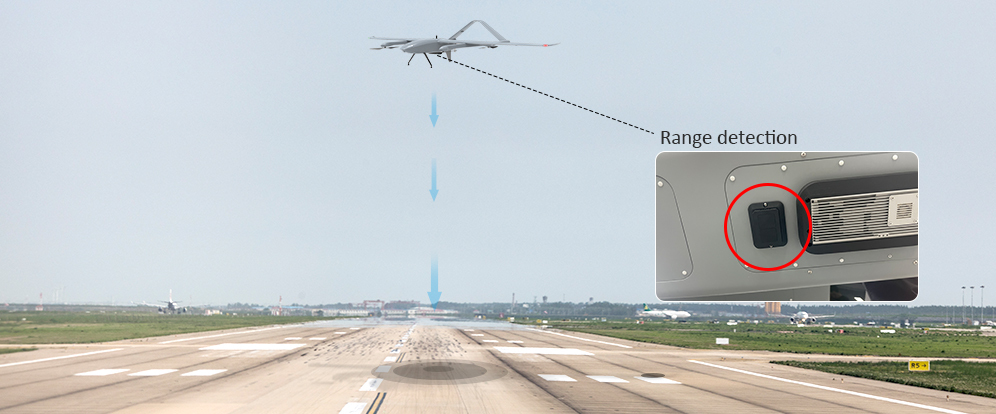

Built-in TOF landing assistance
The landing is gentle and safe with one 8m range radar detection device.


Compass calibration-free (differential GPS)
The pilot does not need to do compass calibration on the Sky Whale Max VTOL UAV, saving lots of time in emergency tasks. Furthermore, the fixed-wing VTOL won't get affected by surrounding electromagnetic interference (EMI) anymore since the compass is replaced by DGPS, significantly improving the VTOL flight stability in the air.


Follow moving target (optional)

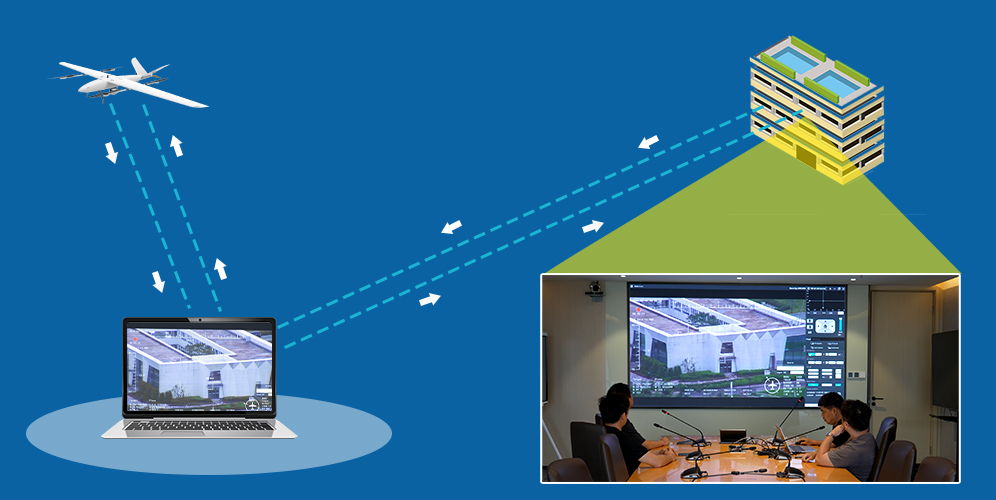

The surveillance VTOL can follow and inspect a static or moving target of interest during a routine patrol route when carrying a Storm Eye-30IE-M drone zoom camera. Also, the target coordinates can be copied and shared with the command center. Once the inspection is completed, the VTOL drone can return to the patrol route.


Remote landing and delivery (optional)
One-key to take off, no need for a skilled operator. Multiple landing points, suitable for cargo delivery application.


Follow Me feature (optional)
Sometimes the flight platform, like a boat or a vehicle, has to move around after the drone takes off to carry out a mission. Then, in this case, the drone should have the ability to follow the moving flight platform and land when the task is over. This feature is available on YANGDA VTOL drones now, please click HERE to watch the demo video.


Size and packing dimension



What is included

1 x YANGDA Sky Whale Max VTOL fixed-wing airframe
4 x Lift motor
4 x ESC for lift motor
2 x 30 inch CF Propeller CW&CCW
1 x 26 inch wood Propeller CW for engine
4 x Servo
1 x CAN air Speedometer
1 x Power Module For Flight Controller
1 x CUAV X7 Pro flight controller with differential GPS
1 x TOF
1 x Futaba T6K V3S radio controller
1 x DLA116 EFI engine
1 x 18L fuel tank
4 x 6S 25000mAh HV Lipo battery
1 x 6S 30000mAh Li-ion battery
1 x Assembly and Flight Test Service
2 x Aviation box
1 x LAUNCH ground control software



Optional payloads

Eagle Eye-30IE Pro EO/IR gimbal camera

Lightweight 3-axis gimbal with 30X optical zoom camera and thermal sensor, and object tracking

Storm Eye-30IE-M EO/IR gimbal camera

3KM Laser Rangefinder EO/IR camera with AI Auto-Identify, target tracking and GPS coordinate

Eagle Eye-30IE-M50 EO/IR gimbal camera

Lightweight 3-axis gimbal with 30X optical zoom camera and thermal sensor with 50mm lens, object tracking, and target GPS coordinate

Mapping camera with PPK

SONY mapping camera with Emlid Reach RTK/PPK


Optional video and datalink


 30KM transmission range, video and telemetry in one, two frequencies, ultra-low latency


60KM transmission range, video and telemetry in one, two frequencies, ultra-low latency


150KM transmission range, video and telemetry in one, two frequencies, ultra-low latency

Shadow auto antenna tracker

Follow the drone to extend the transmission range


Optional ground control station

 ROCK ground control station

A portable dual-screen ground control station for drone mission planning and flight control, and payloads control.


MTOW 65kg
Wingspan 4,800mm
Length 2,580mm
Height 850mm
Weight without battery and fuel 37.5kg
Standard battery pack 4 x 6S 16000mAh HV Lipo battery
1 x 6S 10000mAh HV Lipo battery
Suggested max payload weight 15kg (battery not included)
Endurance 4 hours (15kg payload) / 10 hours (2kg payload)
Hybrid engine DLA116 116cc EFI. Auto-starter & alternator, 2 in 1
Fuel type 92#, 93# petrol
Fuel tank 18L
Fuel consumption rate 1.37L/h
Cruise speed 85-100km/h
Max speed 130km/h
Max ascend speed 14.4km/h
Max descend speed 18km/h
Anti-wind capability 43.2km/h
Material Carbon fiber, glass fiber, and Kevlar
Working temperature -10~60
Operating Altitude(Max.) 4200m ASL
